ABS (TMC/Denso Made)

CIRCUIT DESCRIPTION

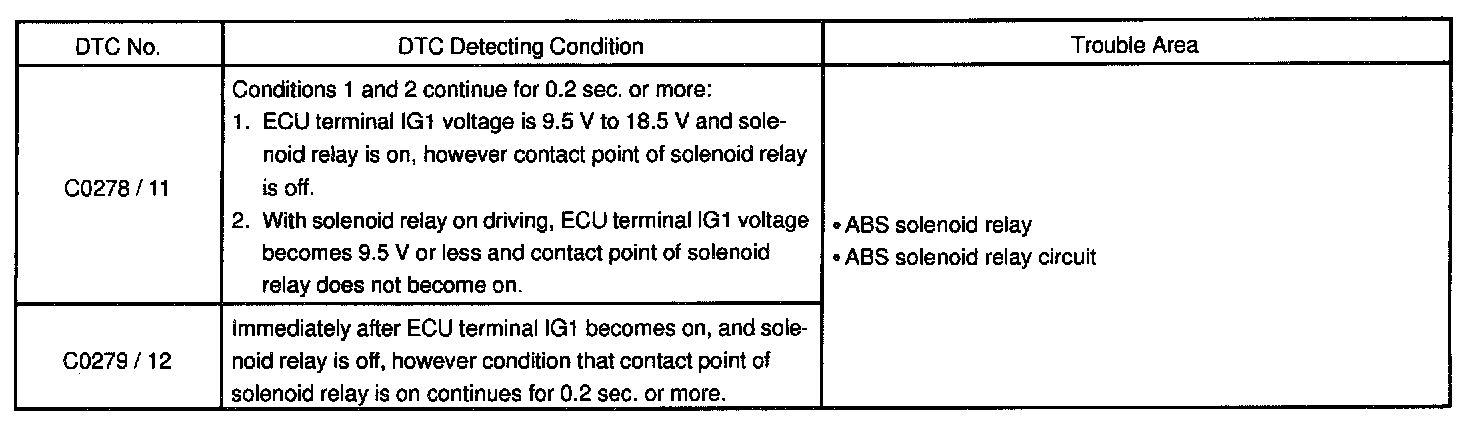

DTC Detecting Condition:

This relay supplies power to each ABS solenoid. After the ignition switch is turned ON, if the initial check is OK, the relay comes on.

Fail safe function:
If a trouble has occurred in the ABS solenoid relay circuit, the ECU cuts off the current to the ABS solenoid relay and prohibits the ABS control.

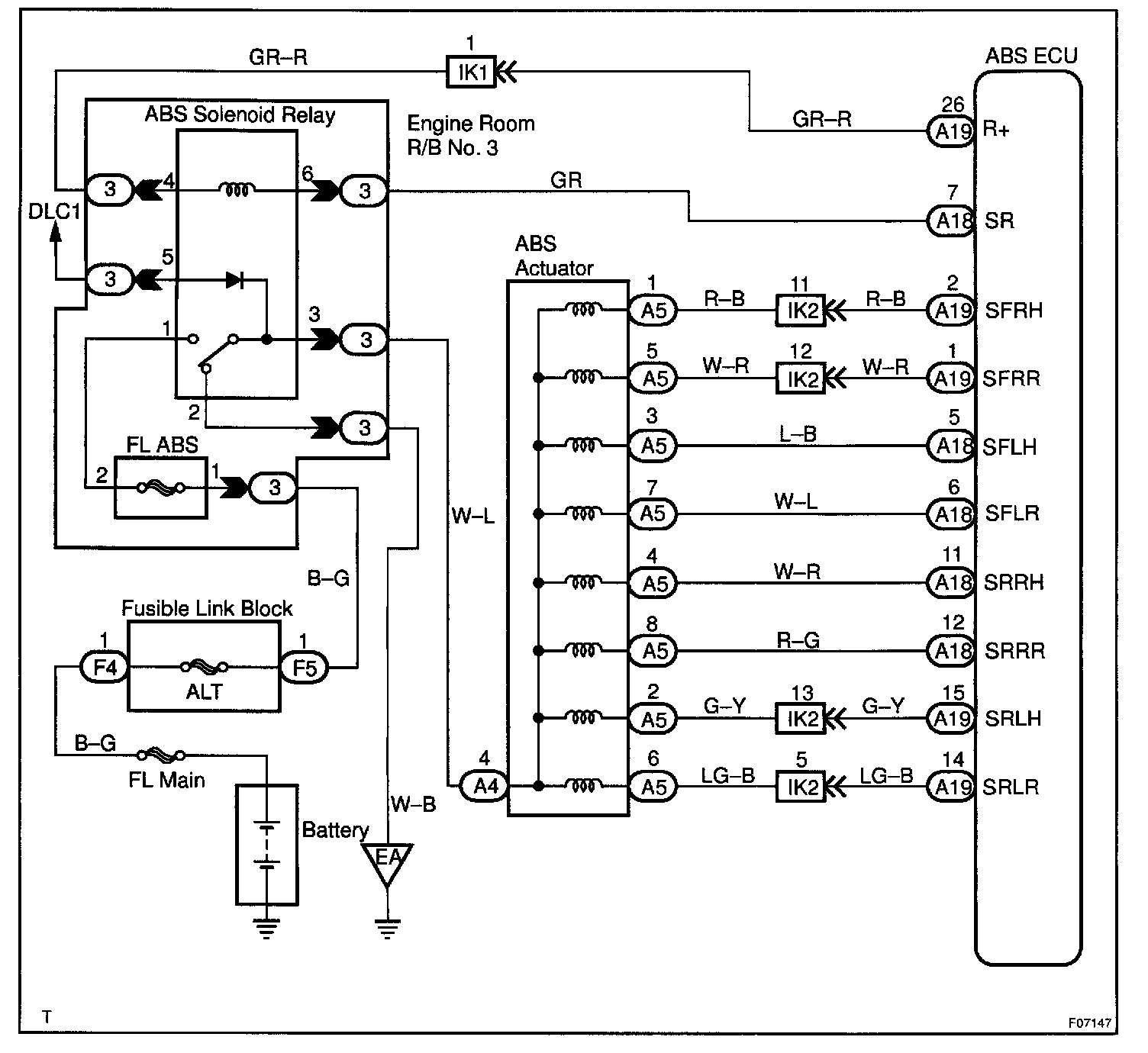

Wiring Diagram:

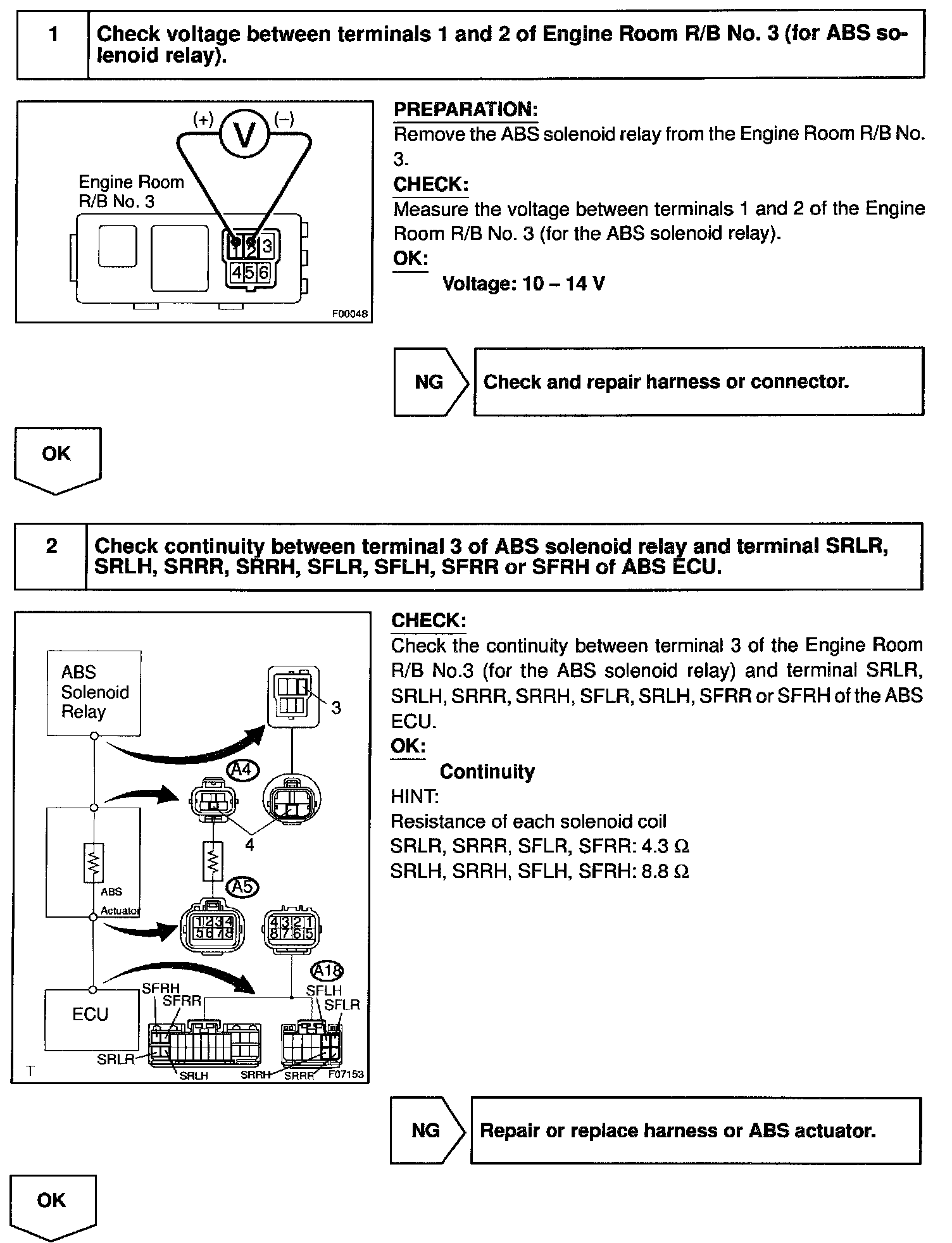

Steps 1 - 2:

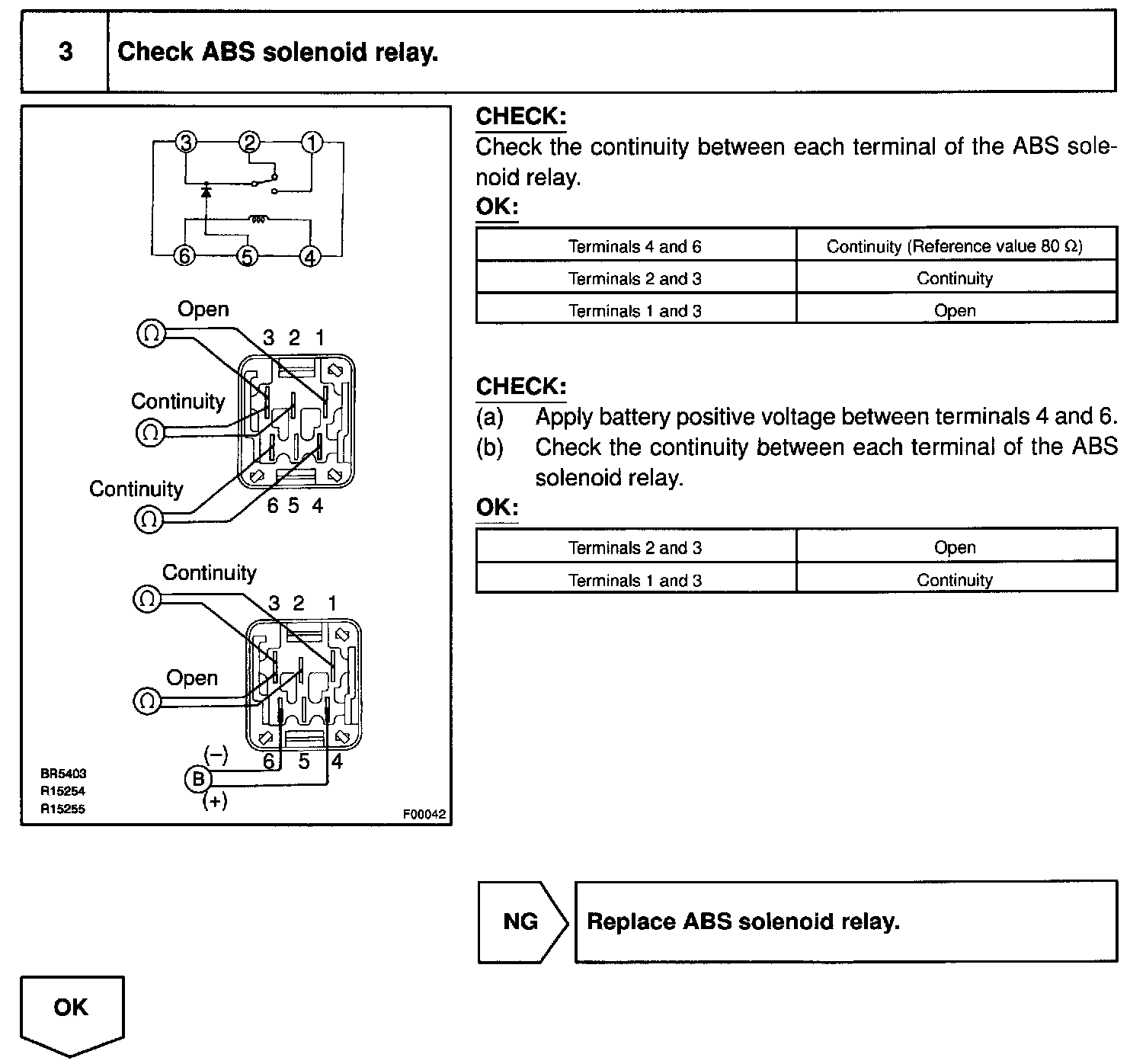

Step 3:

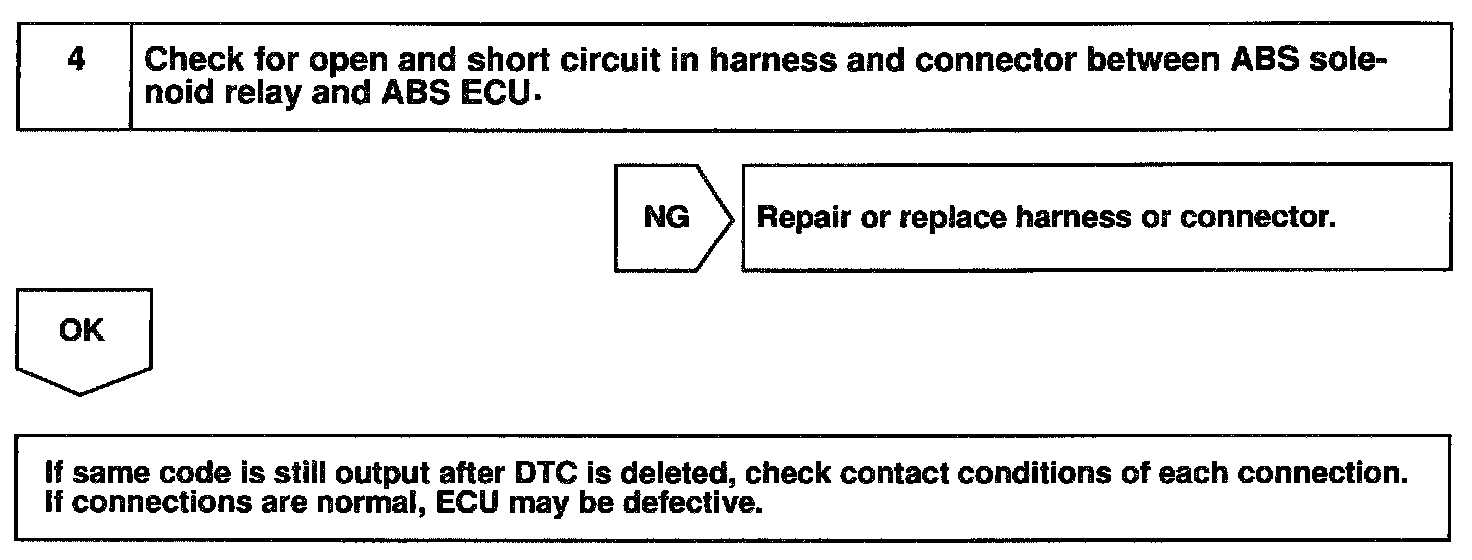

Step 4:

INSPECTION PROCEDURE
