Speed Sensor Signal Check (Test Mode)

SPEED SENSOR SIGNAL

In case of using TOYOTA hand-held tester:

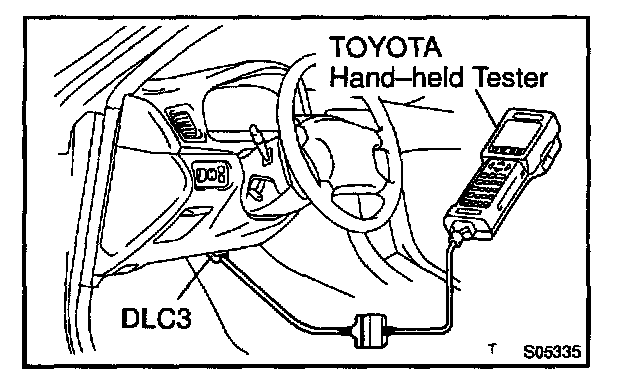

1. Connect the TOYOTA hand-held tester to the DLC3.
2. Start the engine.

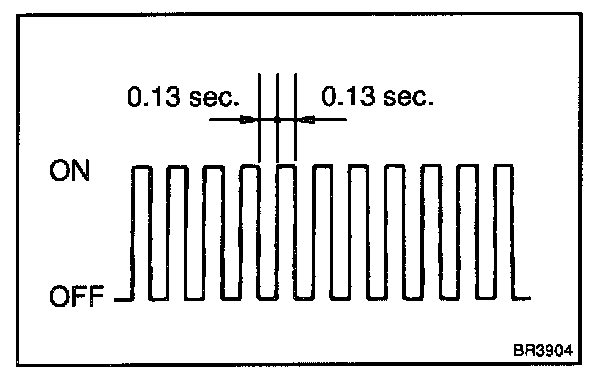

3. Check that the ABS warning light blinks.

HINT: If the ABS warning light does not blink, inspect the ABS warning light circuit (See ABS Warning Light Circuit).

4. Drive the vehicle straight forward.

HINT: Drive the vehicle faster than 45 km/h (28 mph) for several seconds.

5. Stop the vehicle.

6. Read the DTC by following the prompts on the tester screen.

Please refer to the TOYOTA hand-held tester operator's manual for further details.

C1271/71 - C1278/78:

DTC of speed sensor check function:
