Front Seat (Power Seat For TMC Made)

REPLACEMENT

HINT: Care should be taken during the operation to protect the seat cover from scratches, dirt or accidental cuts.

1. REMOVE SEAT COVER
Remove the hog rings which are fastened to the cover from seat cushion pad and seatback pad.

2. REMOVE SEAT WIRE




Remove the 2 set wires which are passed over the seat heater from the seat cushion cover and seatback cover.

3. REMOVE SEAT HEATER
a. Seatback cover:
Cut the 8 tack pins which are fastened to the seat heater and then remove the seat heater.

b. Seat cushion cover:
Cut the 8 tack pins which are fastened to the seat heater.




c. Seat cushion cover:

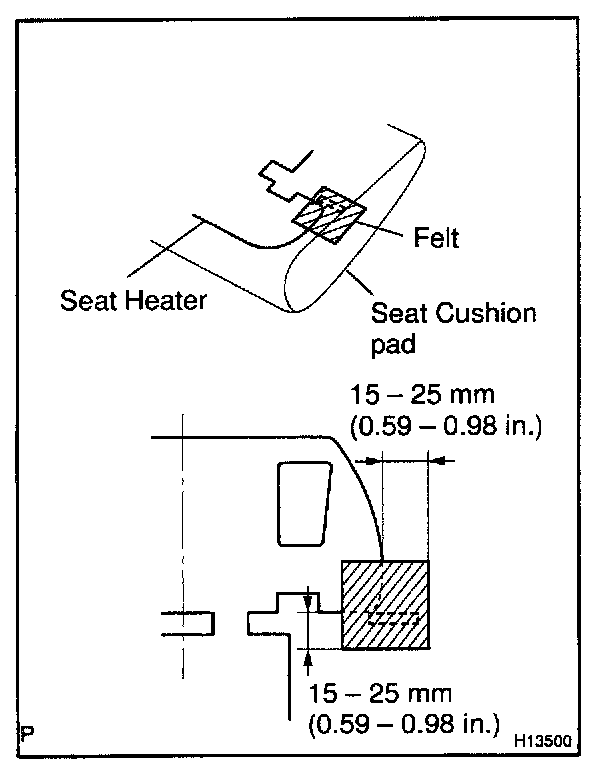

Using a cutter, cut the piece of the felt along the heater's outline as shown in the illustration.

NOTE: Do not cause any damage to the seat cushion pad while cutting the felt.

4. Seat cushion cover:
INSTALL NEW SEAT HEATER

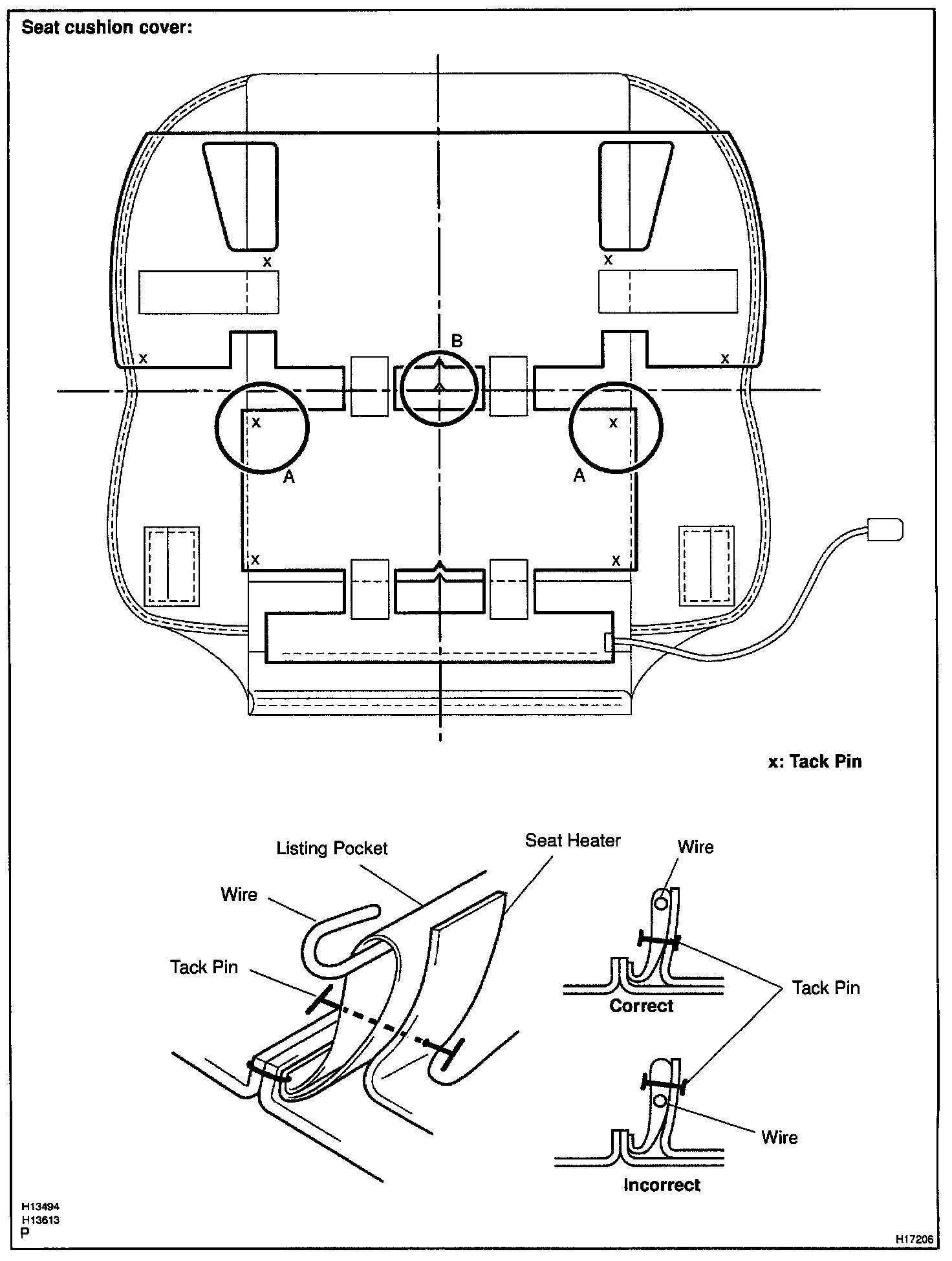

Install a new front seat heater as shown in the illustration.

1. Set a seat heater.

HINT: Face the marked side (part number) to the seat cushion pad.

2. For part A, position the seat heater by aligning the end of the fin with the fold line of the listing pocket.
3. For part B, position the seat heater by aligning the heater's center line with the cover's V slit.
4. Using a tacker, attach the seat heater to the seat cushion cover.

Tacker: BANZAI 303XT or equivalent

NOTE: Do not substitute other metal part for tack pins. Insufficient distance between the heater and cover may result in damage to the heater.






HINT:
- Attach tack pins on the seam side so that the wire can be passed through the hole from the fold side.
- Sewing thread can be substituted for tack pins. However, allow a distance of 6 - 7 mm (0.24 - 0.28 in.) between both sewed parts of the heater and cover.

5. Seatback cover:
INSTALL NEW SEAT HEATER

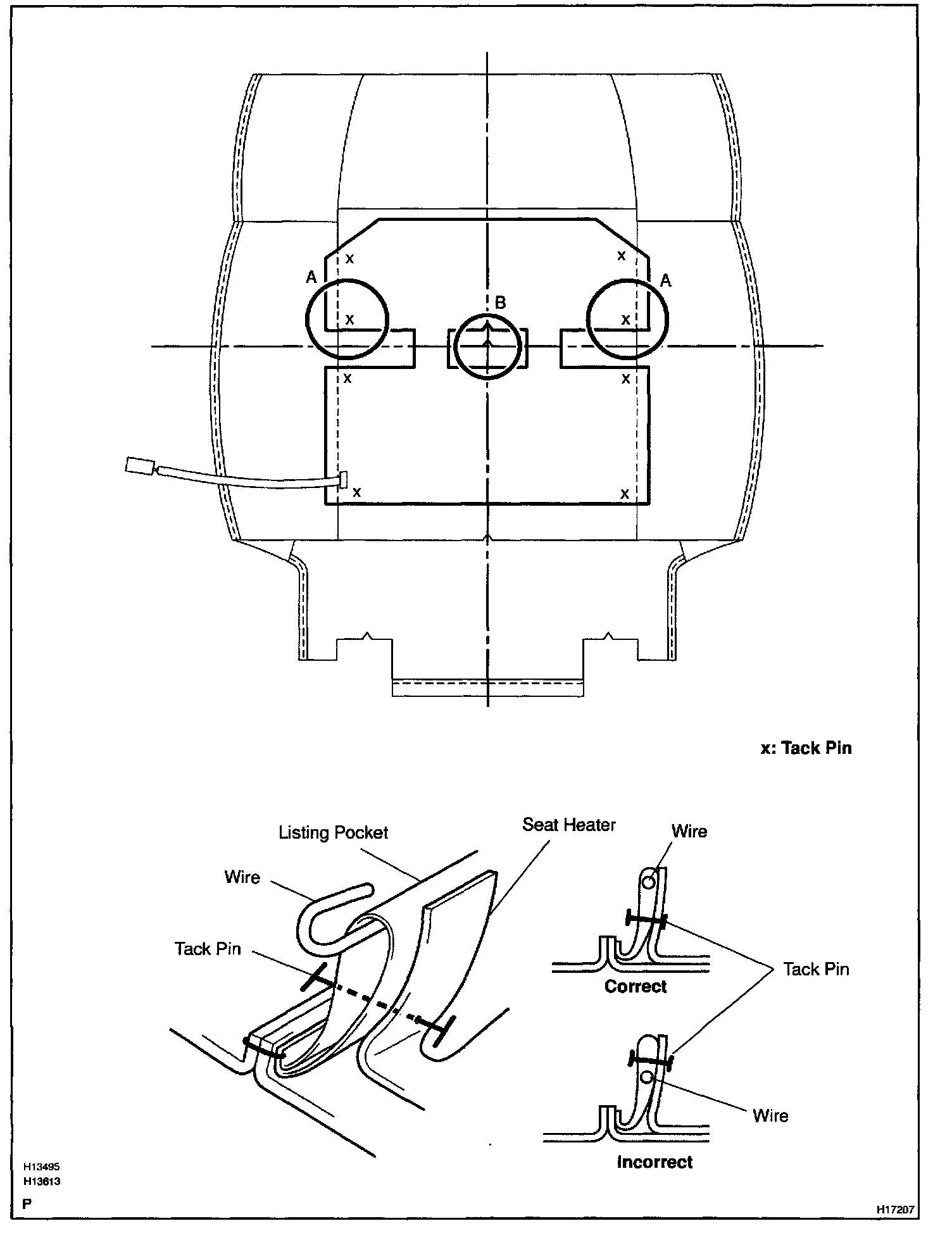

Install a new front seat heater as shown in the illustration.

1. Set a seat heater.

HINT: Face the marked side (part number) to the seat cushion pad.

2. For part A, position the seat heater by aligning the end of the fin with the fold line of the listing pocket.
3. For part B, position the seat heater by aligning the heater's center line with the cover's center line.
4. Using a tacker, attach the seat heater to the seat-back cover.

Tacker: BANZAI 303XT or equivalent.

NOTE: Do not substitute other metal part for tack pins. Insufficient distance between the heater and cover may result in damage to the heater.






HINT:
- Attach tack pins on the seam side so that the wire can be passed through the hole from the fold side.
- Sewing thread can be substituted for tack pins. However, allow a distance of 6 - 7 mm (0.24 - 0.28 in.) between both sewed parts of the heater and cover.

6. INSTALL SEAT WIRE







Install the 2 seat wires to the seat cushion cover and seatback cover.

HINT: Pass the wire over the seat heater as shown in the illustration.

7. Seatback cover:
REVERSE SEAT COVER BACK TO ITS ORIGINAL POSITION

8. Seat cushion cover:
INSTALL SEAT HEATER TO SEAT CUSHION PAD




Attach a piece of felt to the seat heater and the pad as shown in the illustration.

9. INSTALL SEAT COVER
Install the seat covers with new hog rings to the seat cushion pad and the seatback pad.

HINT: When installing new hog rings, take care to prevent wrinkles as much as possible.
