Air Conditioning Amplifier

REMOVAL
1. REMOVE GLOVE COMPARTMENT

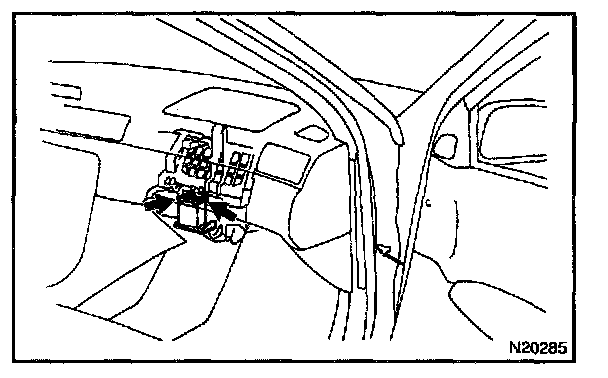

2. REMOVE A/C AMPLIFIER
a. Disconnect the connector.
b. Release the 2 claws and pull out the amplifier.

INSTALLATION
Installation is in the reverse order of removal.
