Rear Wheel Alignment

NOTICE: For Zero Point Calibration information, please refer to: TSB T-SB-0020-8 (3/25/08).

INSPECTION
1. MEASURE VEHICLE HEIGHT
Vehicle height: Refer to Front.

NOTICE: Before inspecting the wheel alignment, adjust the vehicle height to specification.

2. INSTALL CAMBER - CASTER - KINGPIN GAUGE ONTO VEHICLE OR POSITION VEHICLE ON WHEEL ALIGNMENT TESTER
Follow the specific instructions on the equipment manufacturer.

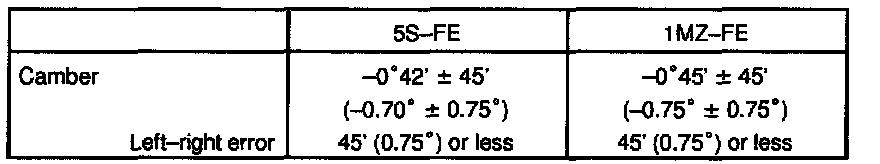

3. INSPECT CAMBER

HINT: Camber in not adjustable, it measurement is not within the specifications, inspect the suspension parts for damaged and/ or worn-out parts and replace them as necessary.

Measuring Point Reference:

4. INSPECT TOE-IN
If the toe-in is not within the specification, adjust it at the No.2 lower suspension arm.
5. ADJUST TOE-IN

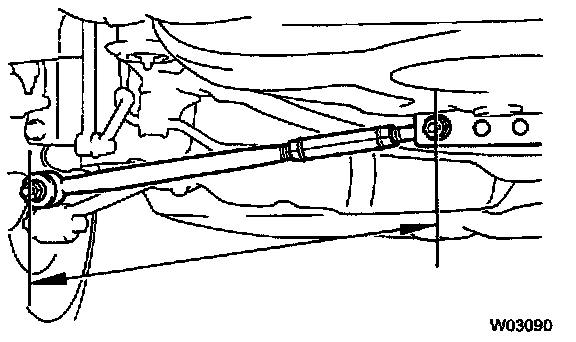

a. Measure the length of the left and right No.2 lower suspension arms.
No.2 lower suspension arm length difference: 1 mm (0.04 inch) or less
If the left-right difference is larger than the specification, adjust the length.
b. Loosen the lock nuts.





c. Turn the left and right lower suspension arms an equal amount to adjust toe-in.

HINT:
- Try to adjust the toe-in to the center value.
- One turn of the each adjusting tube will adjust the toe-in about 36' (0.6°, 6.7 mm, 0.264 inch).

d. Torque the lock nuts.
Torque: 56 Nm (570 kgf-cm, 41 ft. lbs.)
