Air Flow Meter/Sensor: Service and Repair

Mass Air Flow (MAF) Meter:

REMOVAL




REMOVE MAF METER
a. Disconnect the MAF meter connector.

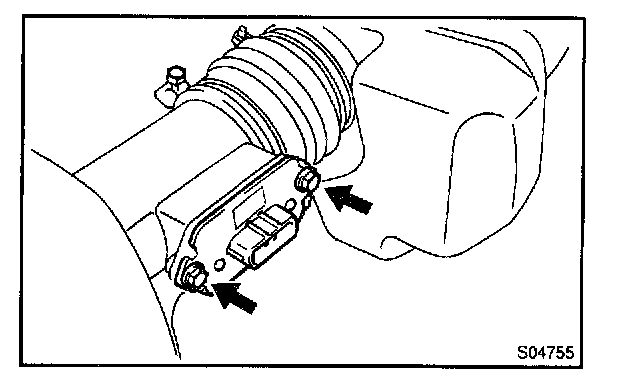

b. Remove the 2 bolts, MAF meter and gasket.

HINT: At the time of installation, please refer to the following items.
Install a new gasket to the MAF meter.

INSTALLATION
Installation is In the reverse order of removal.
