Throttle Position Sensor: Testing and Inspection
THROTTLE BODYON-VEHICLE INSPECTION
1. INSPECT THROTTLE BODY

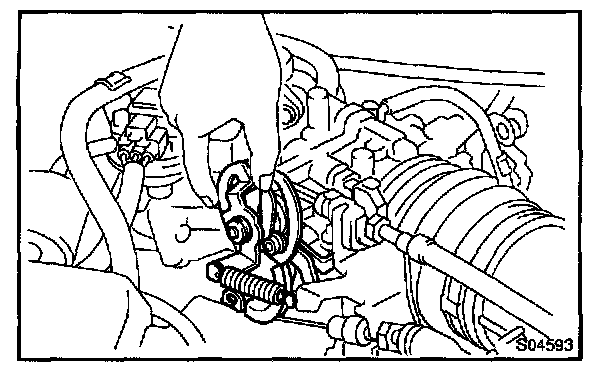

Check that the throttle linkage moves smoothly.
2. INSPECT THROTTLE POSITION SENSOR
a. Disconnect the sensor connector.
b. Disconnect the vacuum hose from the throttle body.
c. Apply vacuum to the throttle opener.

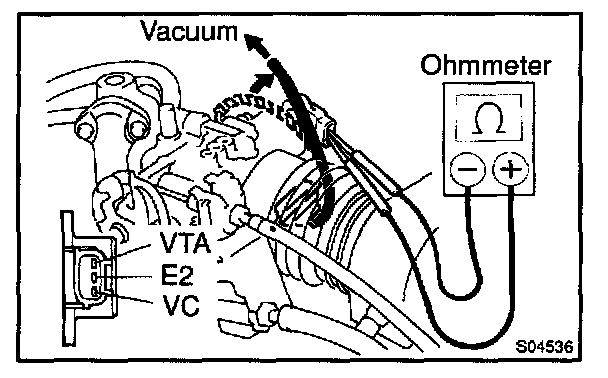

d. Using an ohmmeter, measure the resistance between each terminal.

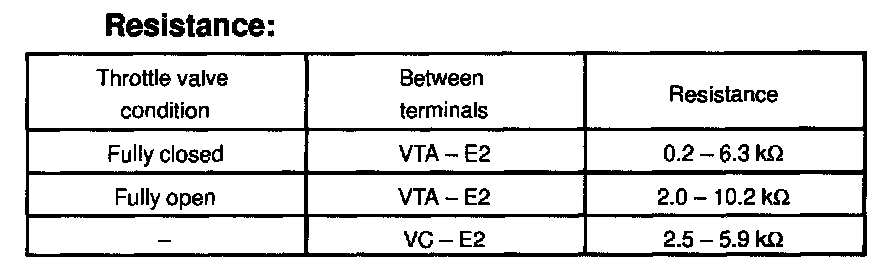

Resistance:
e. Reconnect the vacuum hose to the throttle body.
f. Reconnect the sensor connector.
3. INSPECT THROTTLE OPENER
a. Allow the engine to warm up to normal operating temperature.
b. Check idle speed.
Idle speed: 700 ± 50 rpm

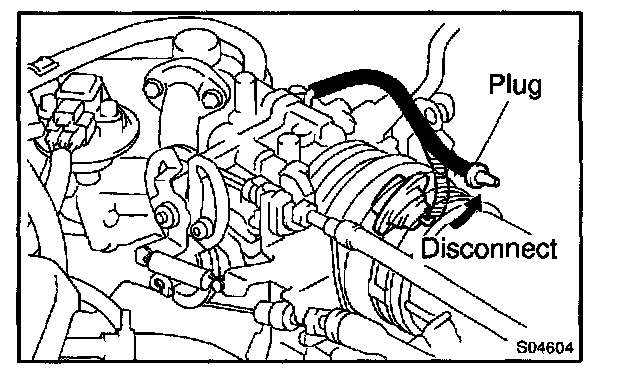

c. Disconnect the vacuum hose from the throttle opener, and plug the hose end.
d. Check the throttle opener setting speed.
Throttle opener setting speed: 900 - 1,950 rpm
If the throttle opener setting is not as specified, replace the throttle body.
e. Stop the engine.
f. Reconnect the vacuum hose to the throttle opener.
g. Start the engine and check that the idle speed returns to the correct speed.
