TRAC Off Indicator, TRAC Cut Switch Circuit

TRAC OFF Indicator, TRAC Cut Switch Circuit

CIRCUIT DESCRIPTION

Wiring Diagram:

This is the TRAC control main switch. When the TRAC cut switch has been turned on, TRAC control goes off and the TRAC OFF indicator lights up. This indicator blinks for warnings when a trouble has occurred and displays DTC.

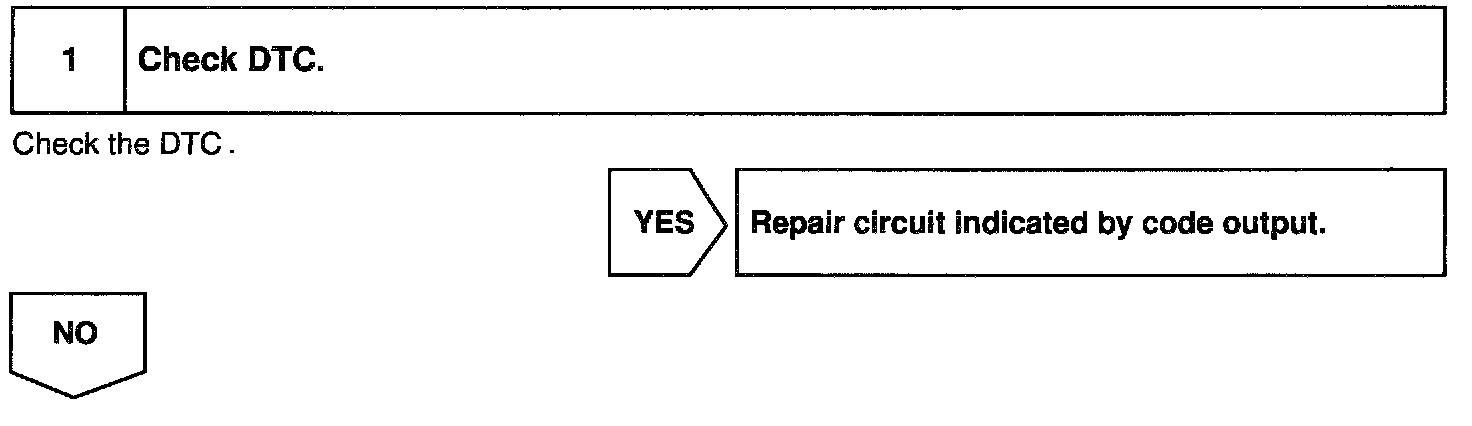

Step 1:

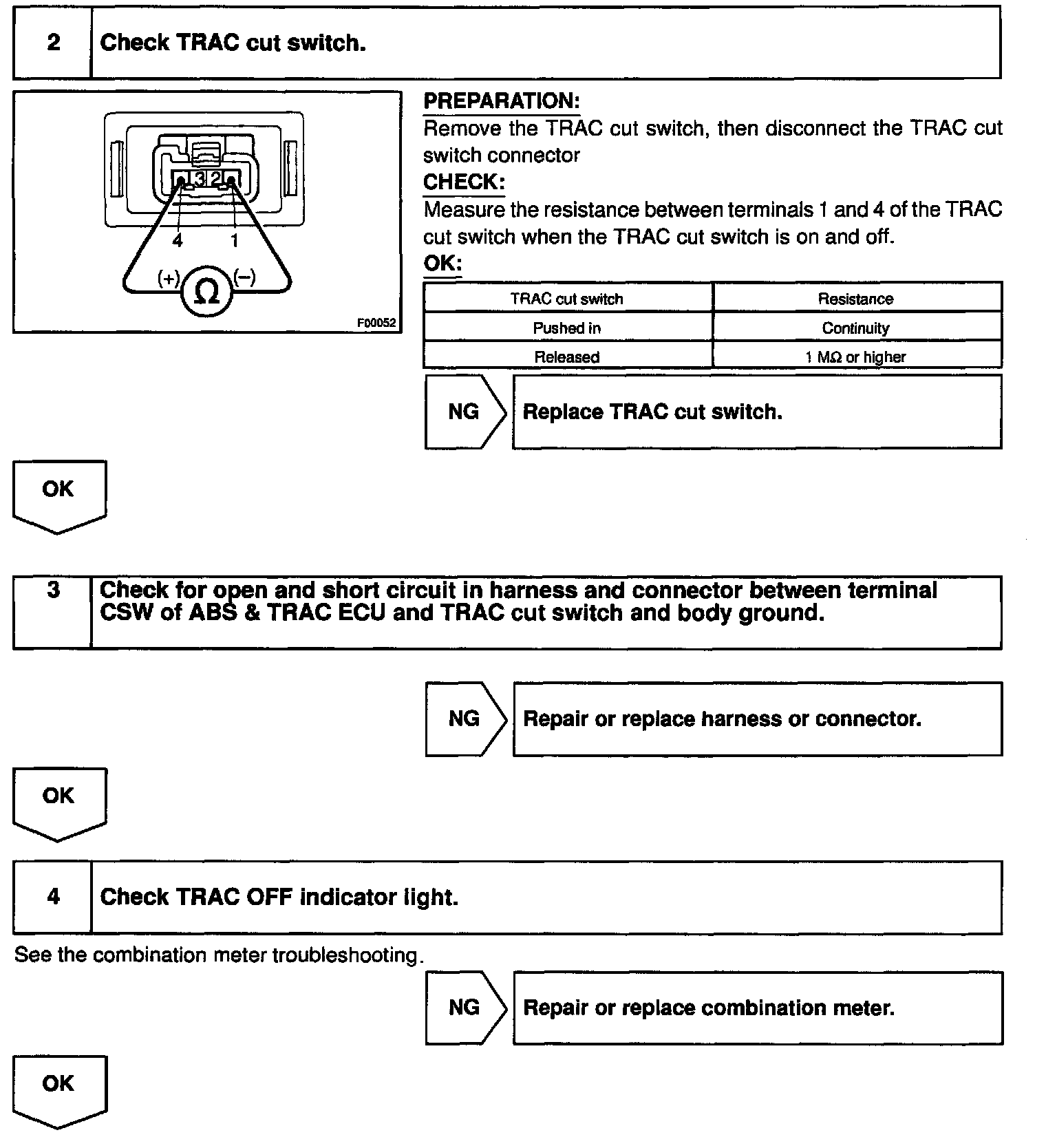

Steps 2 - 4:

Step 5:

INSPECTION PROCEDURE
