Engine Control Module: Specifications

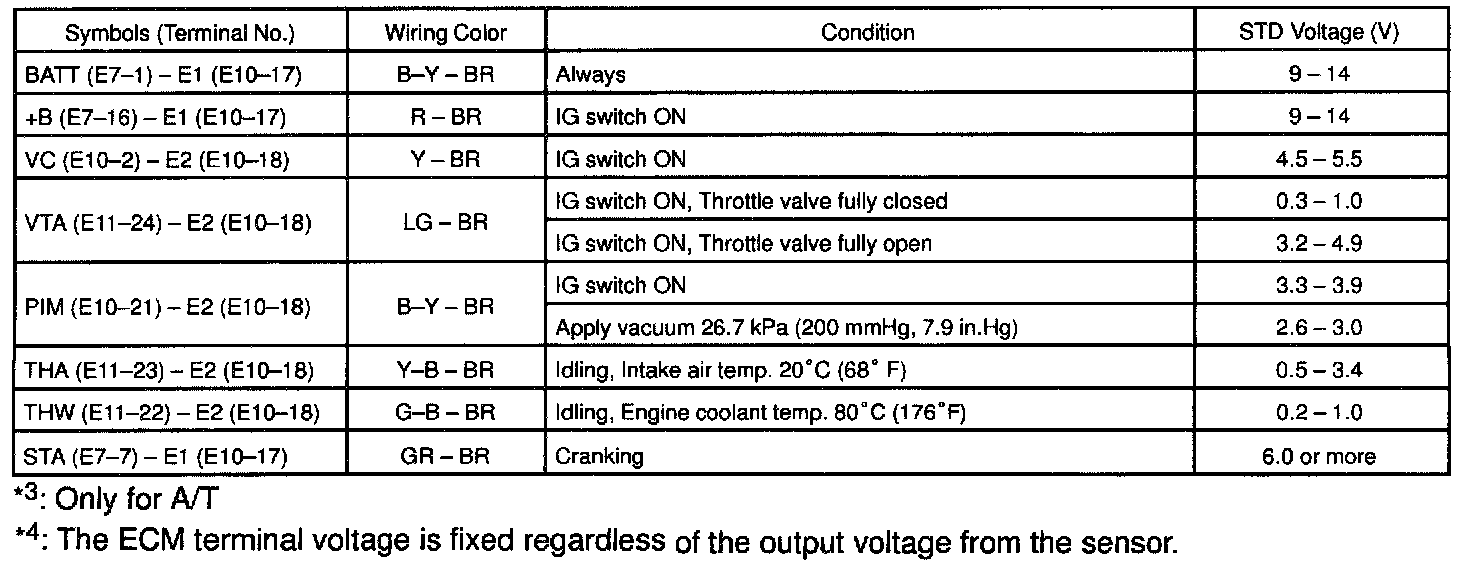

ECM (Without Engine Immobilizer System) - Pinouts (Part 1):

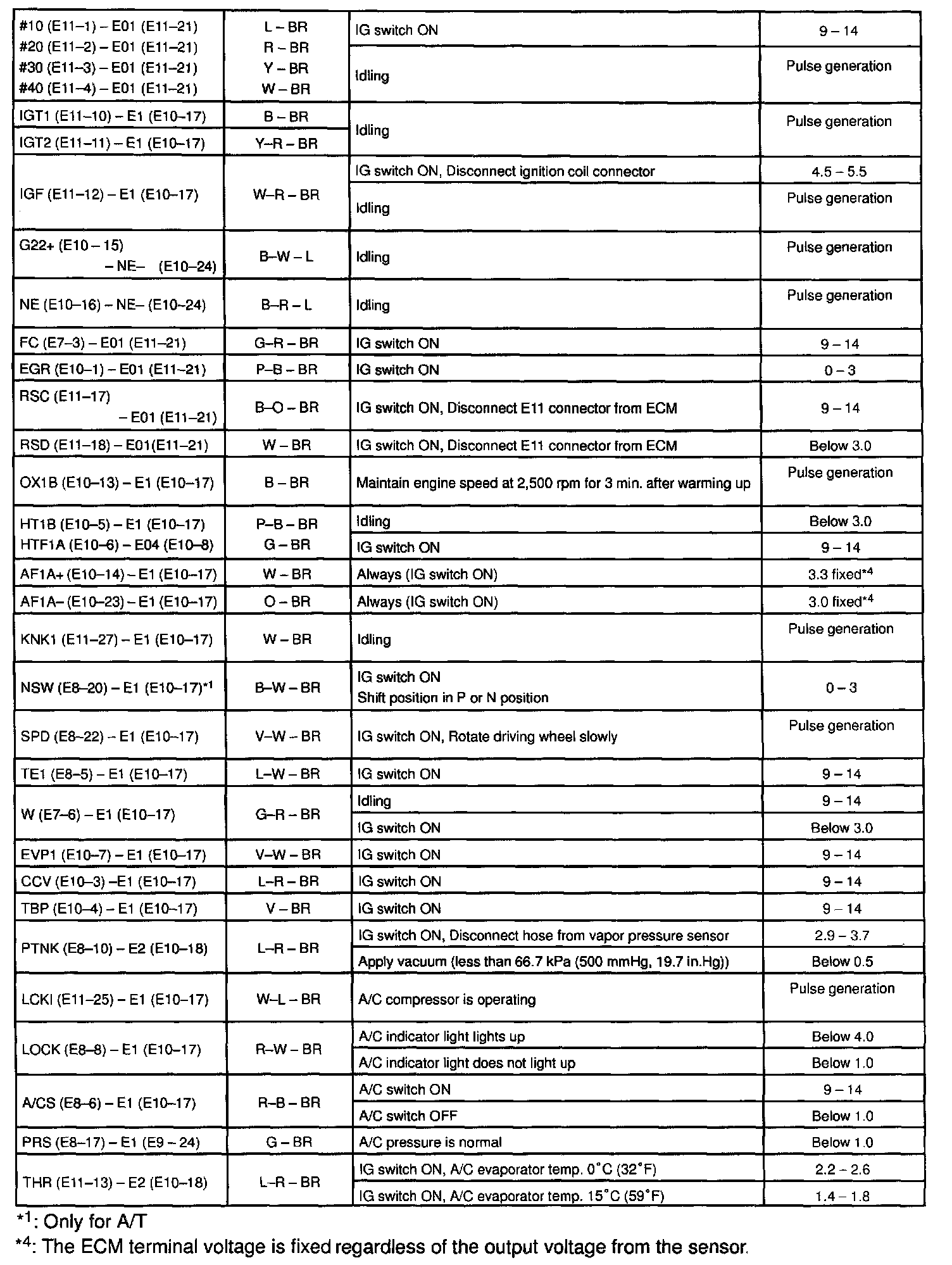

ECM (Without Engine Immobilizer System) - Pinouts (Part 2):

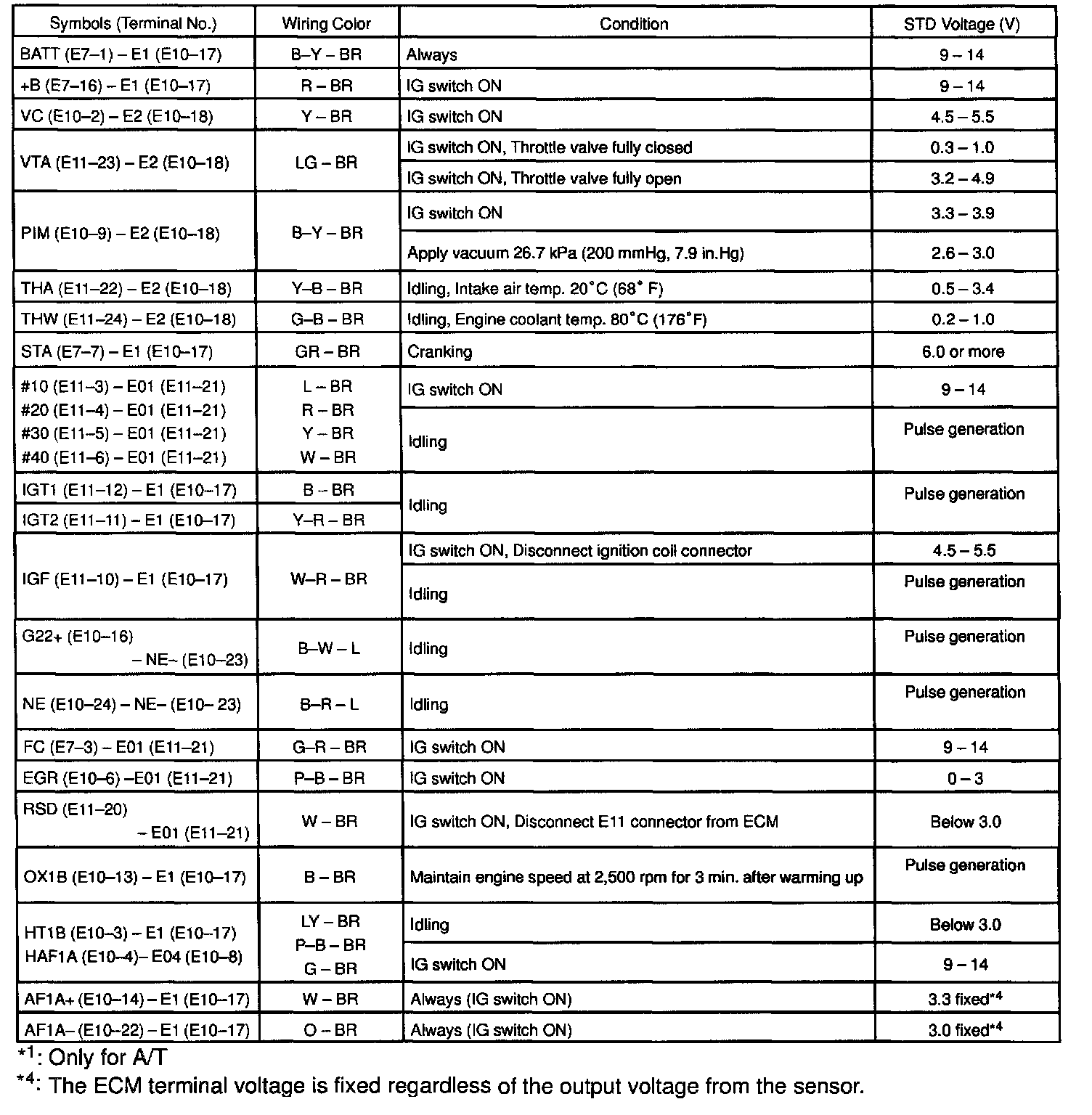

ECM (With Engine Immobiliser System) - Pinouts (Part 1):

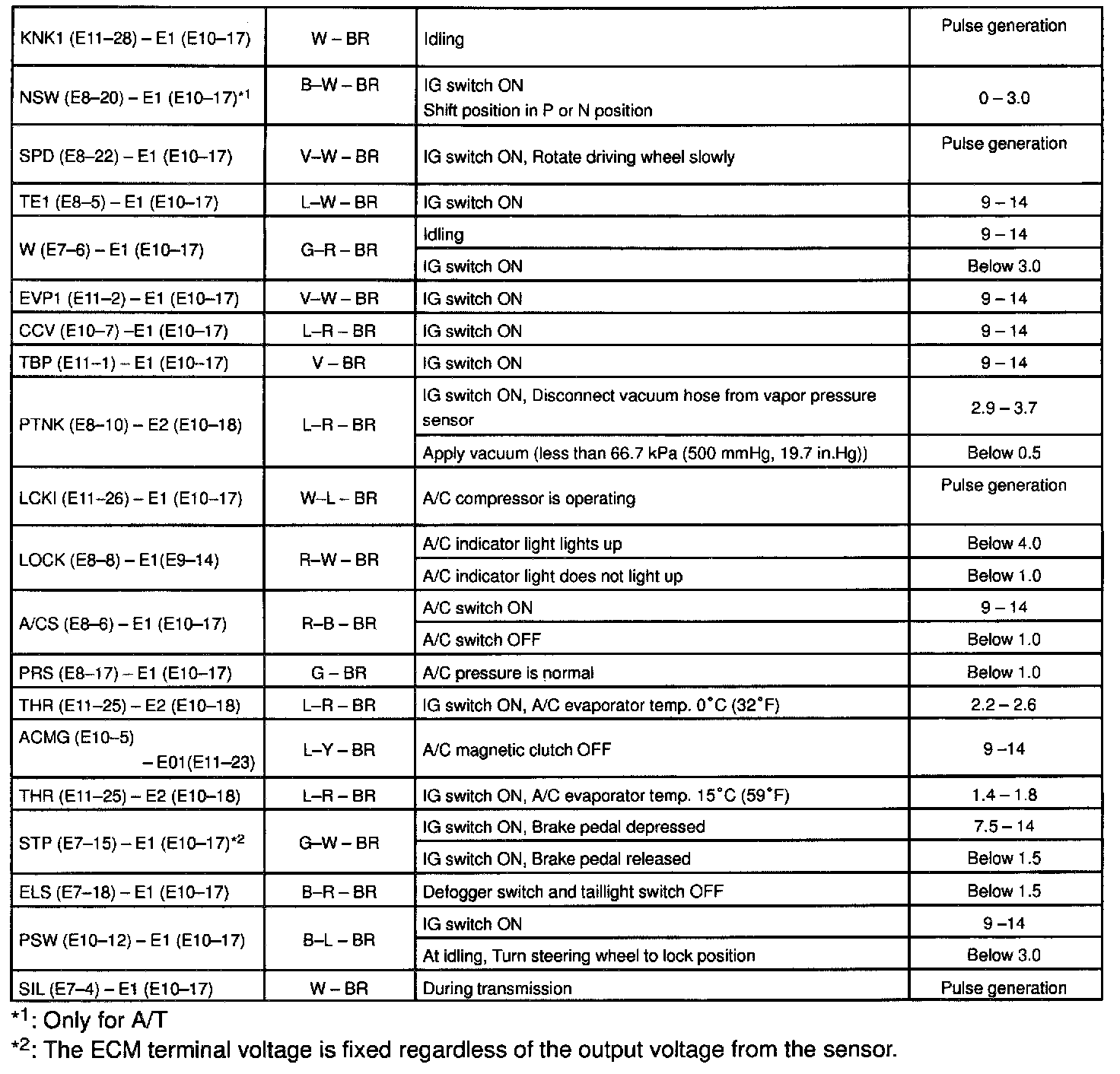

ECM (With Engine Immobiliser System) - Pinouts (Part 2):

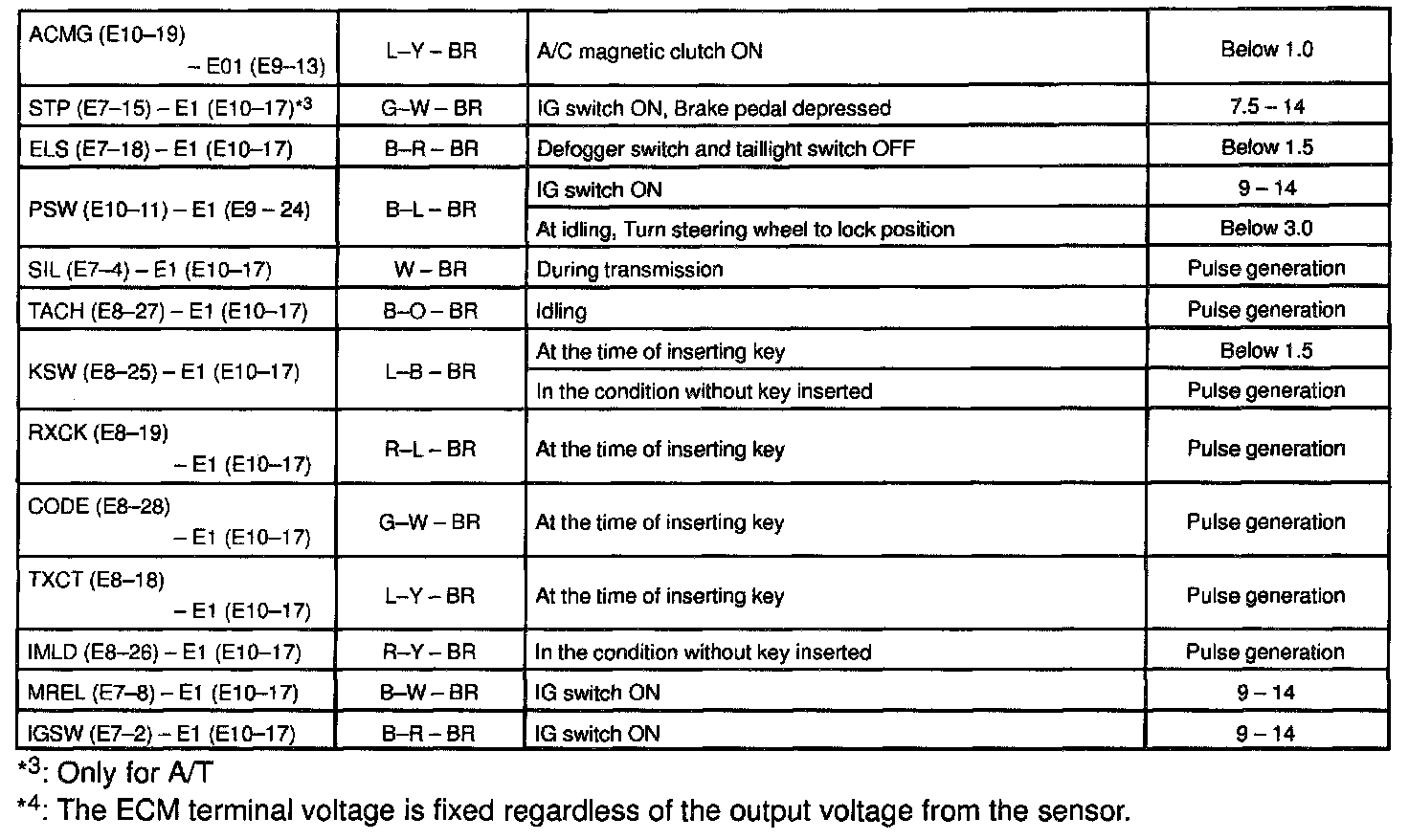

ECM (With Engine Immobiliser System) - Pinouts (Part 3):
