B1143

DTC Detecting Condition:

CIRCUIT DESCRIPTION
The door side airbag sensor (RH) circuit consists of the airbag sensor assembly and door side airbag sensor (RH).
For details of the function of each component, see DESCRIPTION AND OPERATION.

DTC B1142/B1143/34 is recorded when malfunction is detected in the door side airbag sensor (RH) circuit.

Wiring Diagram:

Steps 1 - 2:

Steps 3 - 4:

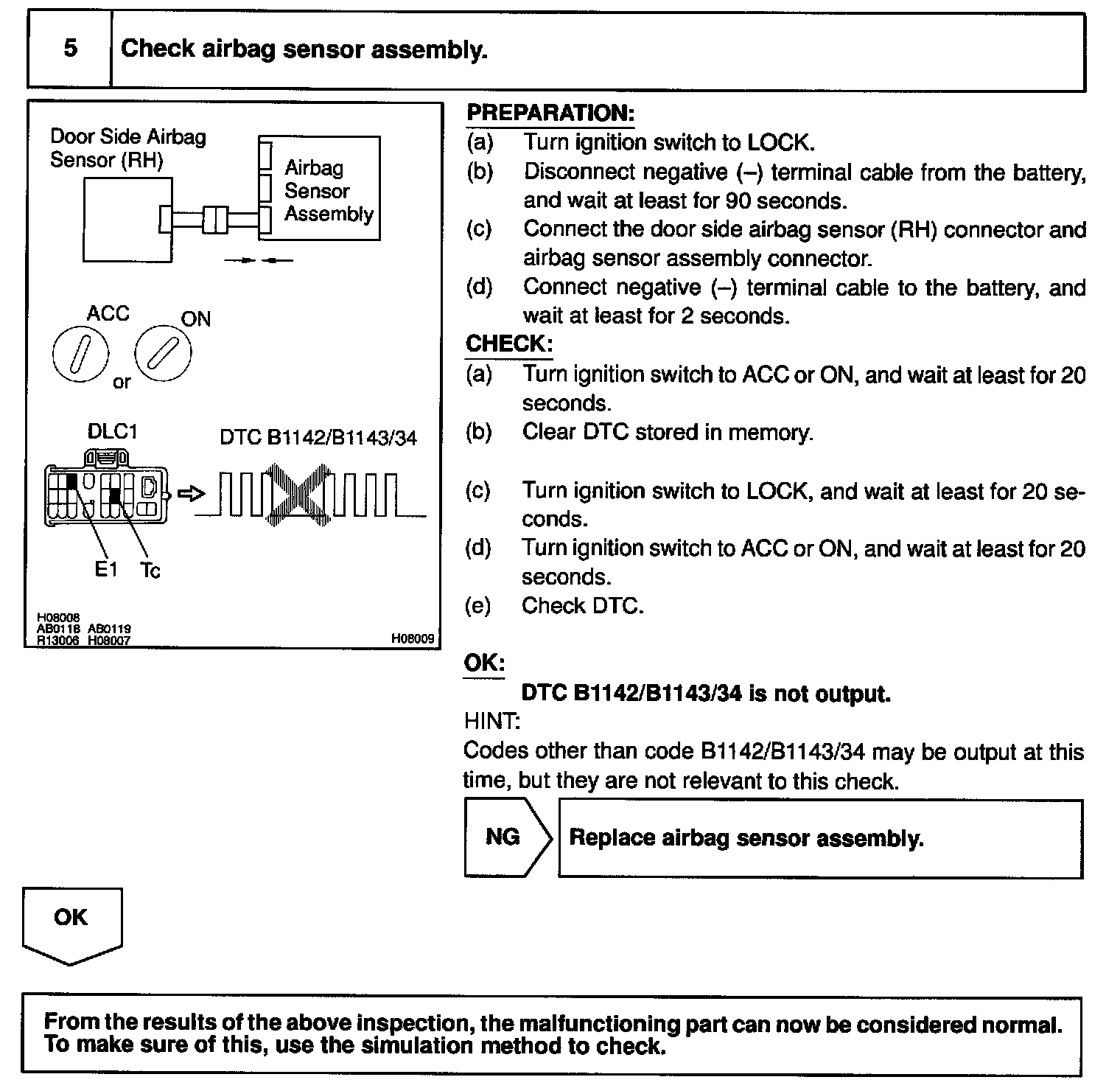

Step 5:

Steps 6 - 7:

Step 8:

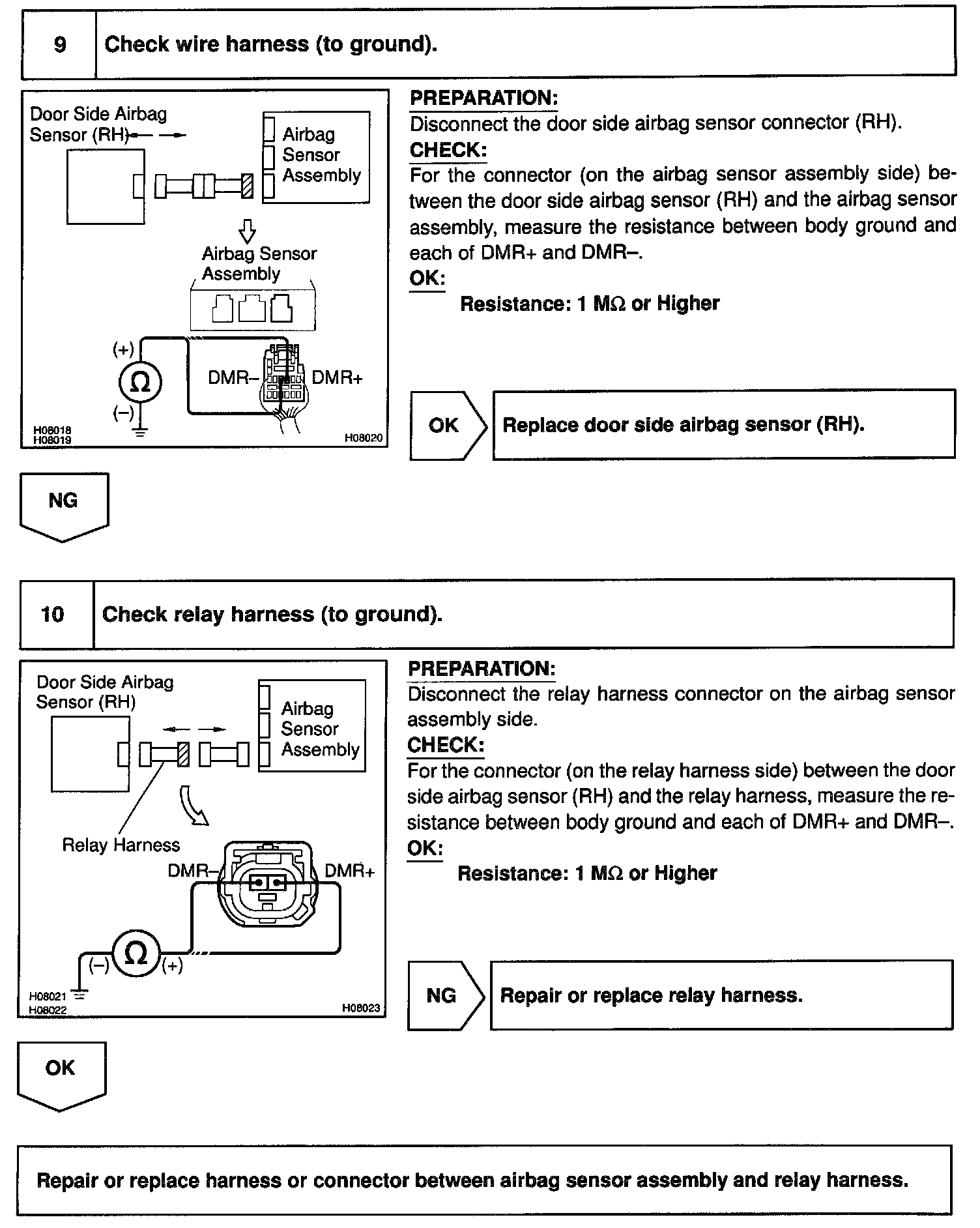

Steps 9 - 10:

Steps 11 - 12:

INSPECTION PROCEDURE
