ABS W/Traction Control (Trac)

C1203 / 53 - ECM Communication Circuit Malfunction

CIRCUIT DESCRIPTION

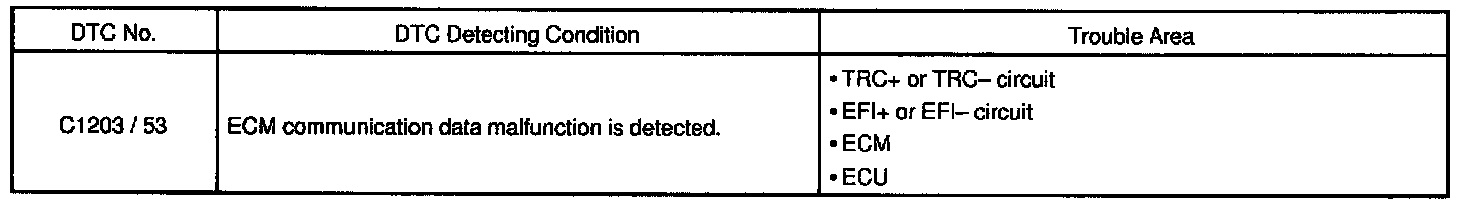

DTC Detecting Condition:




This circuit is used to send the TRAC control information to the ECM (TRC+, TRC-) from the ABS & TRAC ECU, and engine control information to the ABS & TRAC ECU (EFI+, EFI-) from the ECM.

Wiring Diagram:






Step 1:




INSPECTION PROCEDURE
