Theft Deterrent Horn Circuit
CIRCUIT DESCRIPTIONWhen the theft deterrent system is activated, the relay in the ECU turns ON and OFF cycles of approximately 0.2 sec., causing the theft deterrent horn to blow.
In this condition, if any of the following operations is done, the relay in the ECU turns OFF, thus stopping the theft deterrent horn from blowing:
1. Unlock the front LH or RH door with key.
2. Turn the ignition switch to ACC or ON position.
3. Unlock the doors with the wireless door lock control system.
4. Wait for approximately 60 seconds.
5. Push the panic switch of the wireless door lock control system.

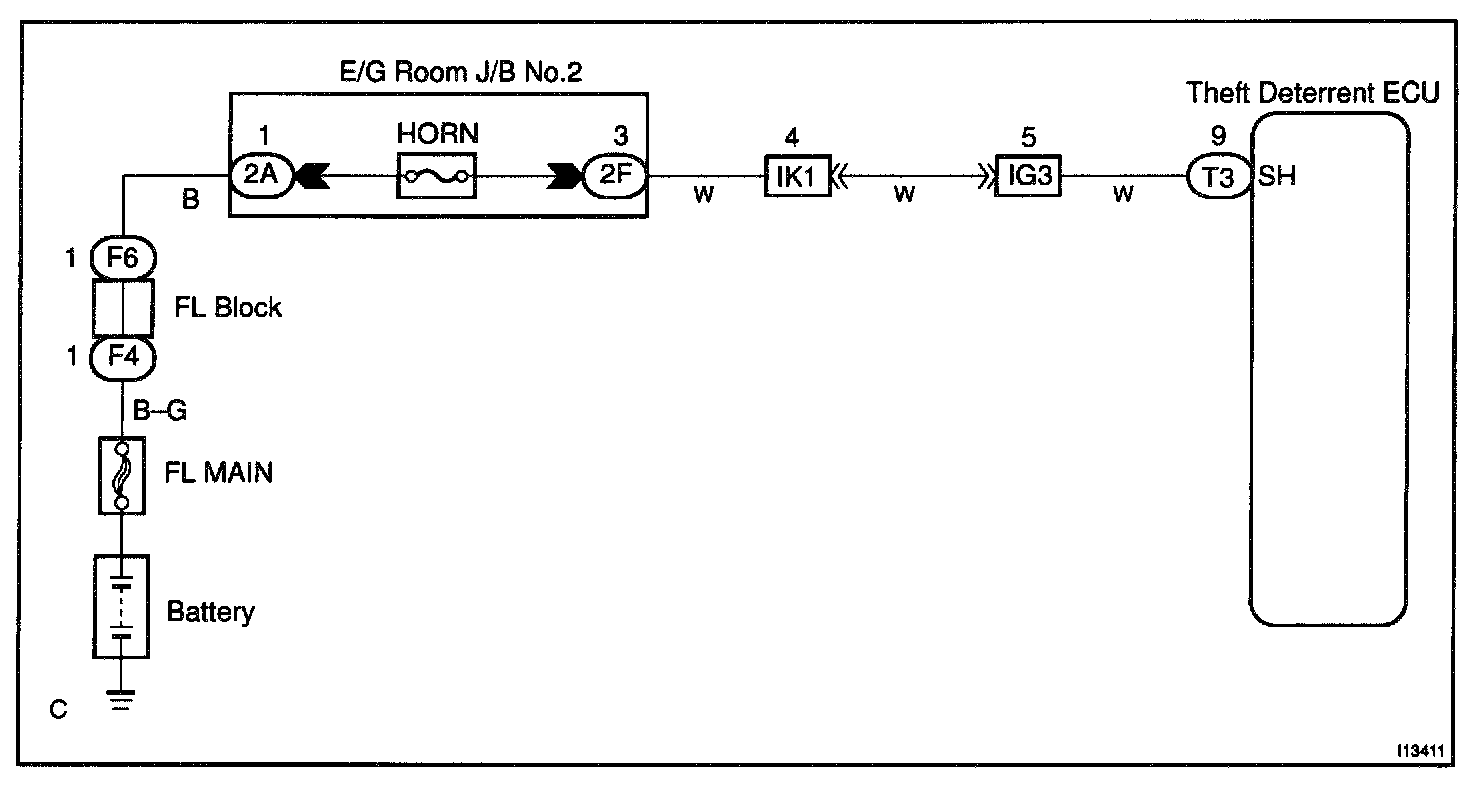

Wiring Diagram:
Steps 1 - 3:
INSPECTION PROCEDURE
