Connector Code Lists

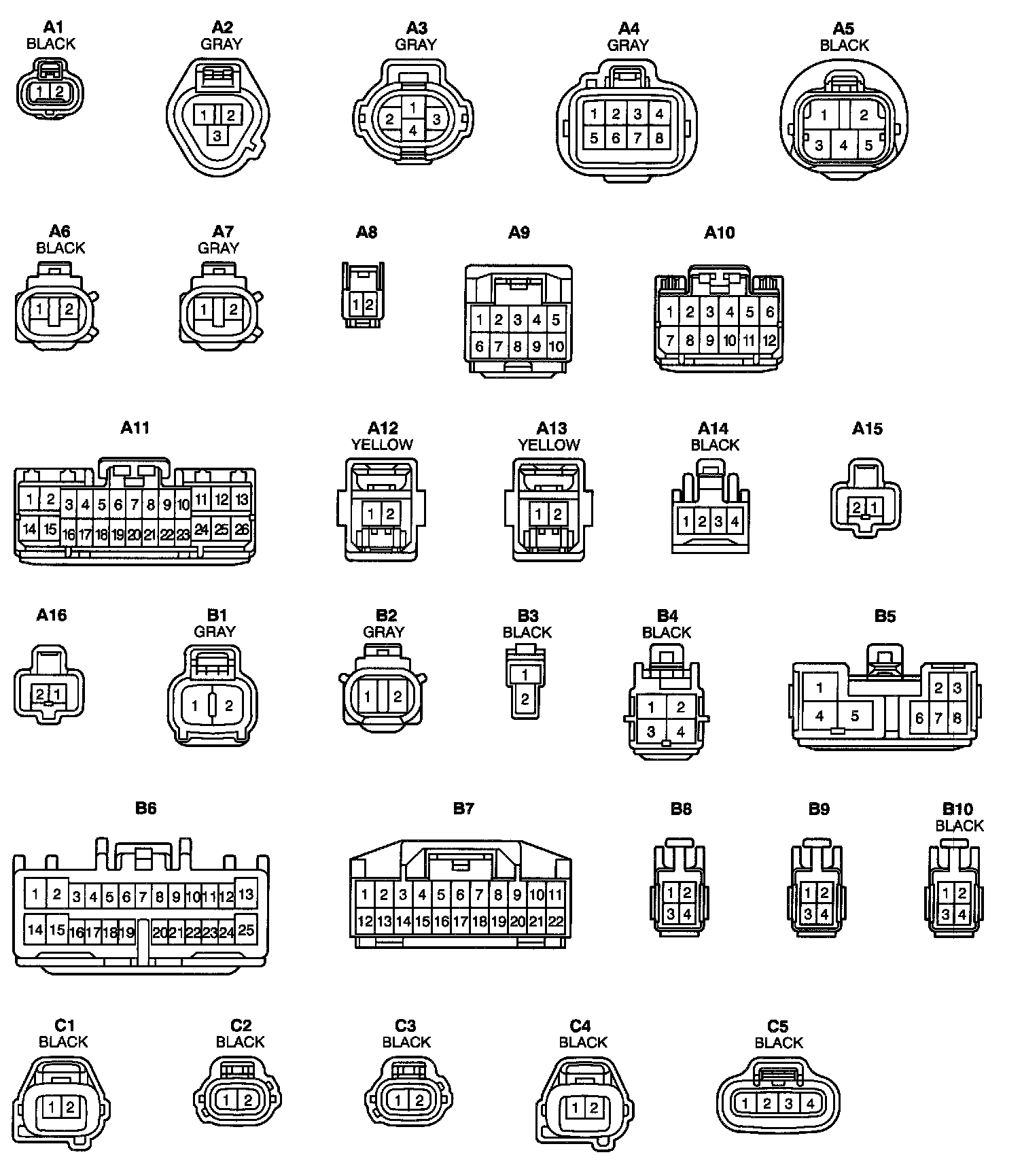

Connector Views (A1 - C5):

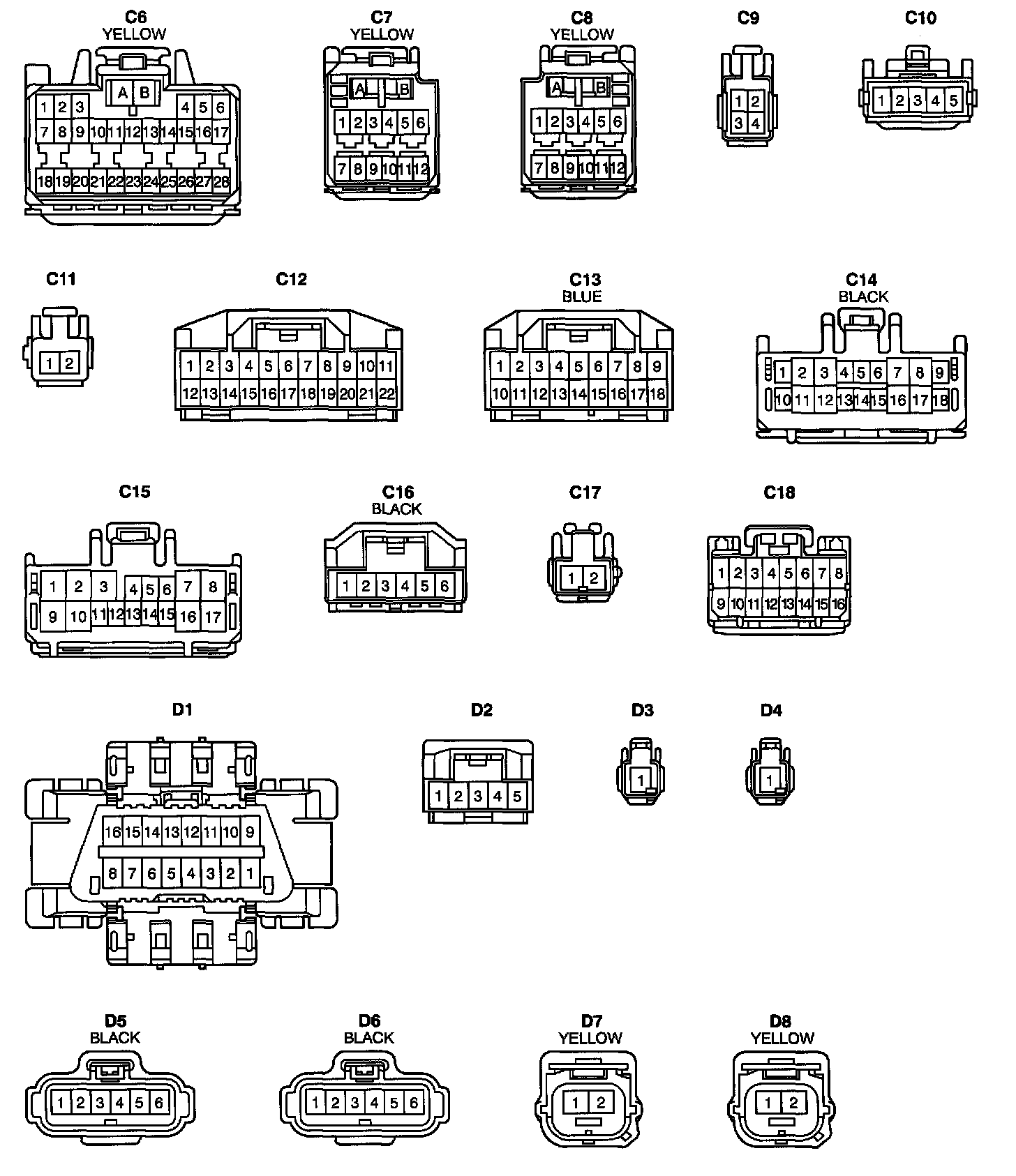

Connector Views (C6 - D8):

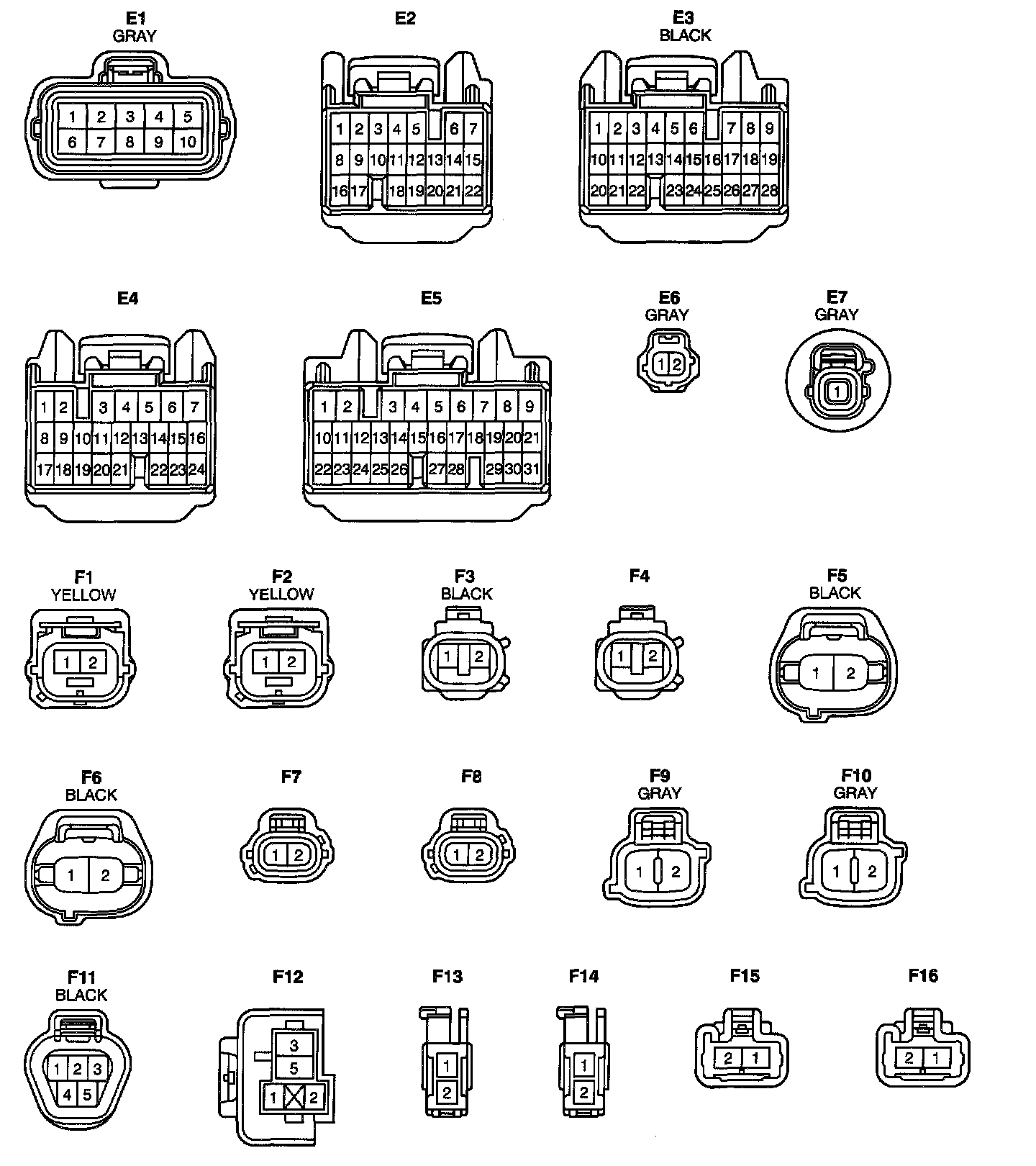

Connector Views (E1 - F16):

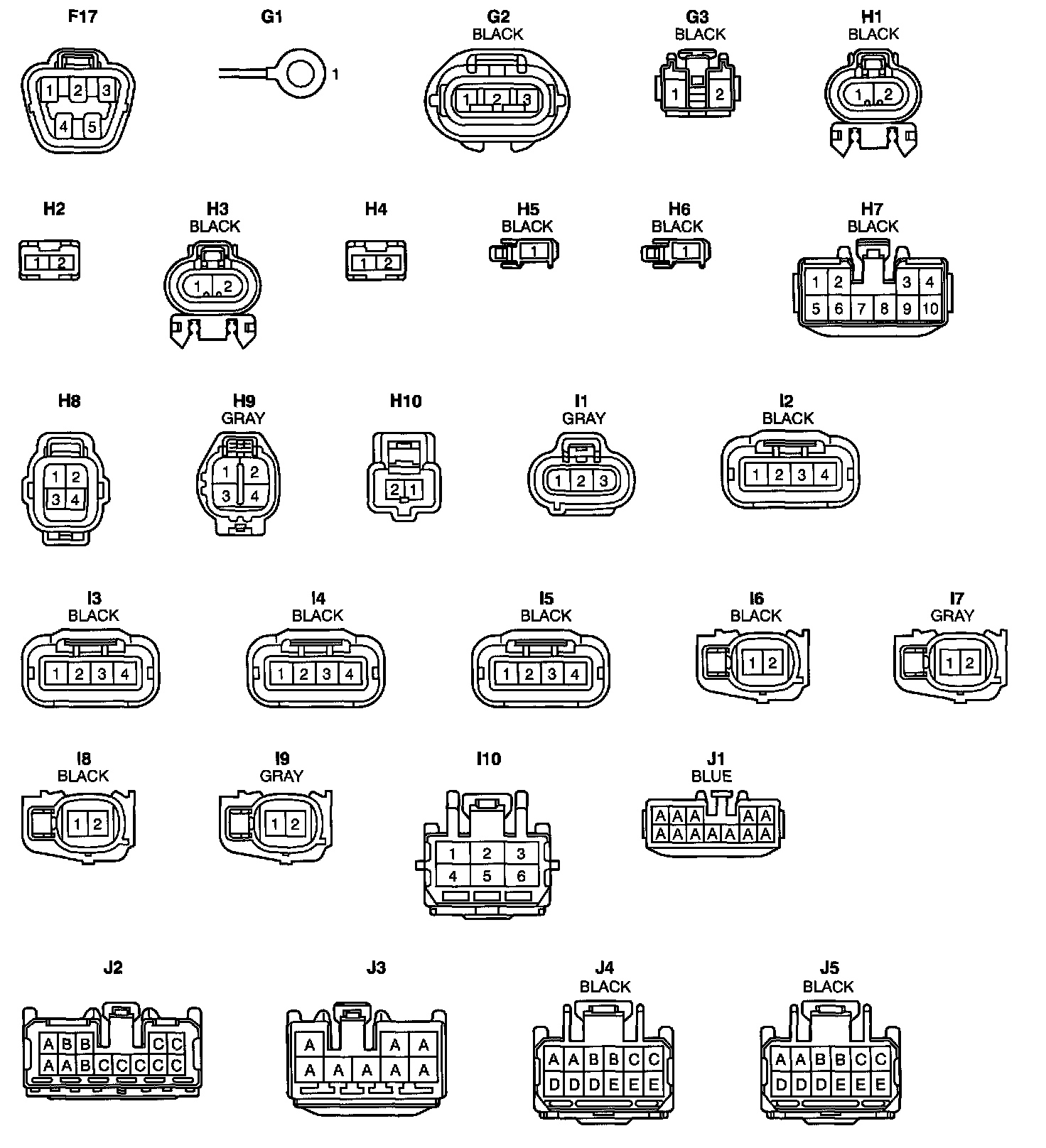

Connector Views (F17 - J5):

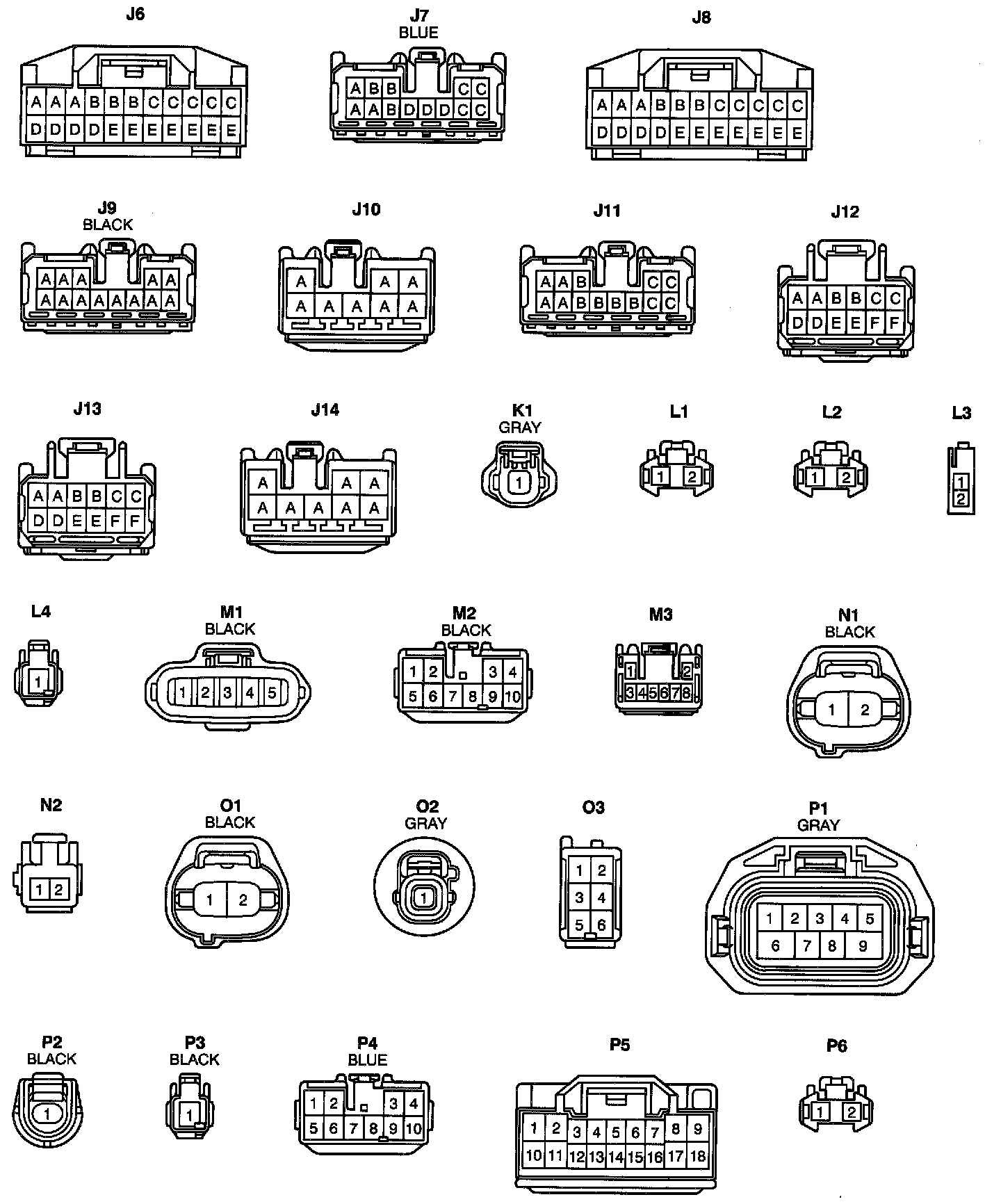

Connector Views (J6 - P6):

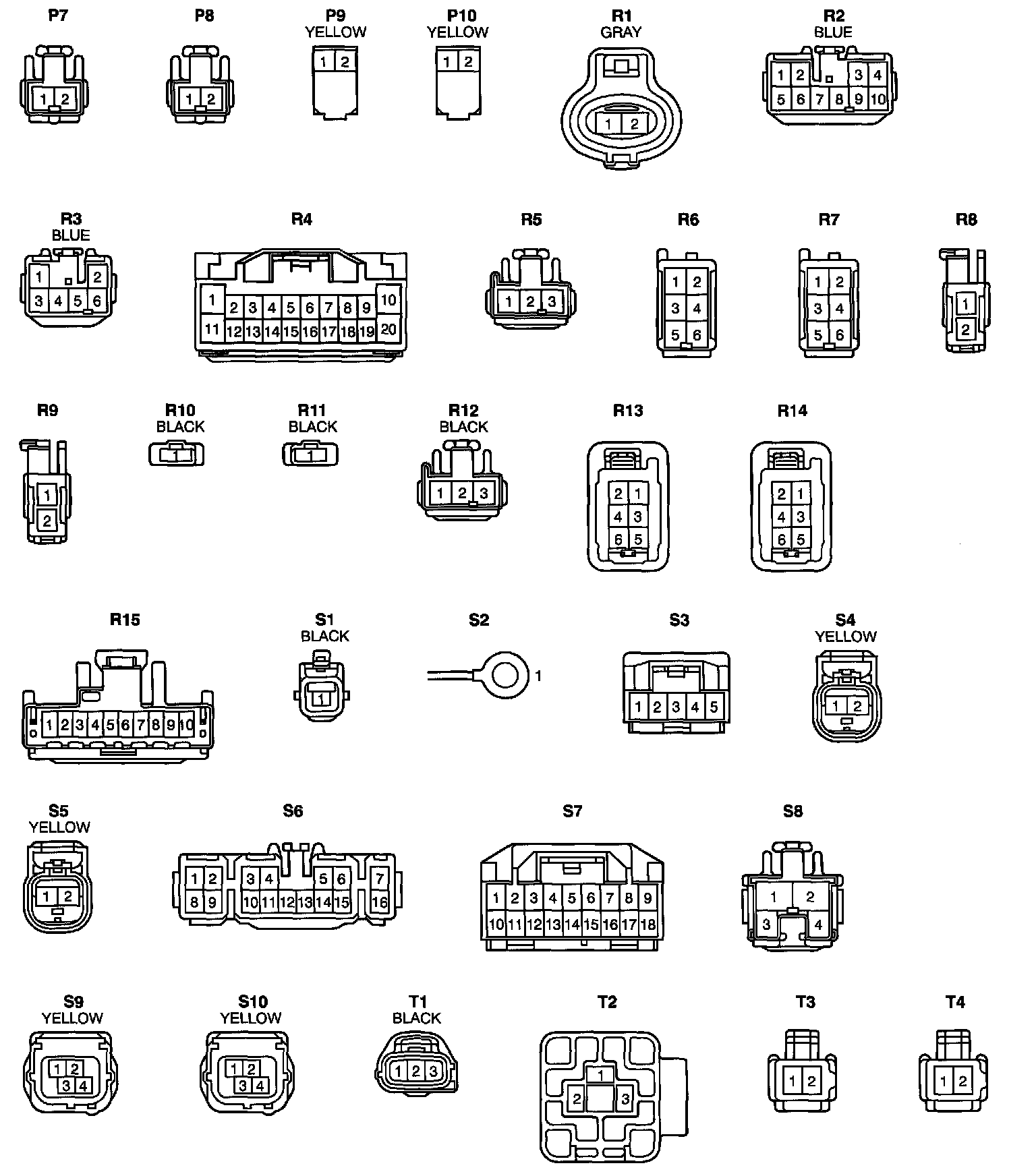

Connector Views (P7 - T4):

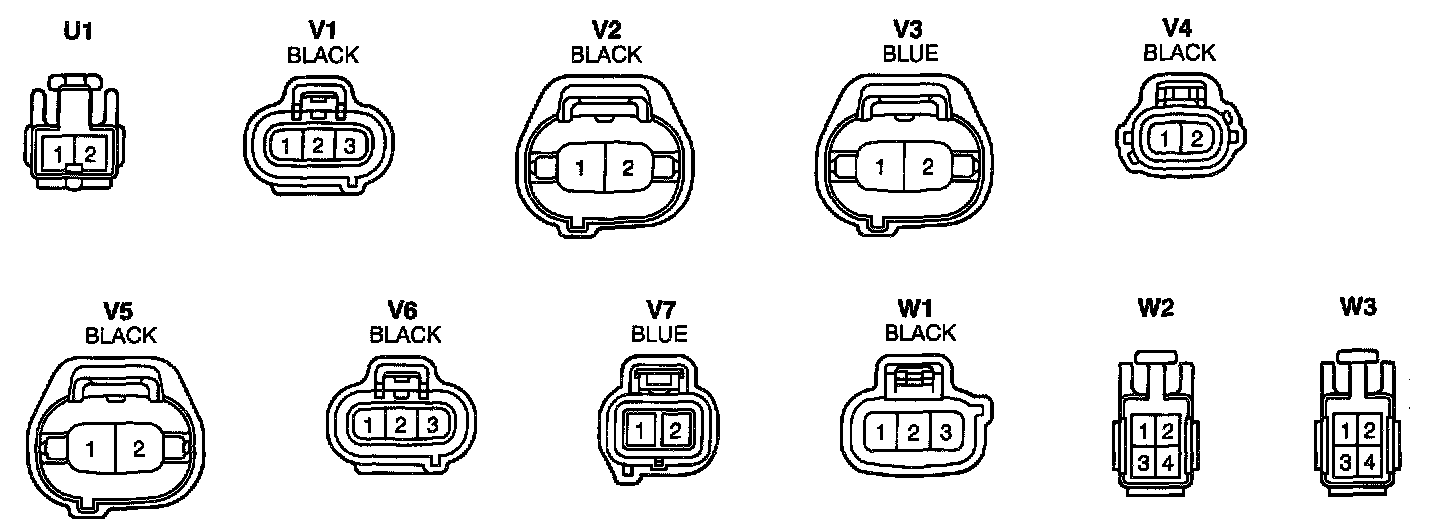

Connector Views (U1 - W3):
