B1144

DTC B1144/B1145/35 Door Side Airbag Sensor (LH) Malfunction

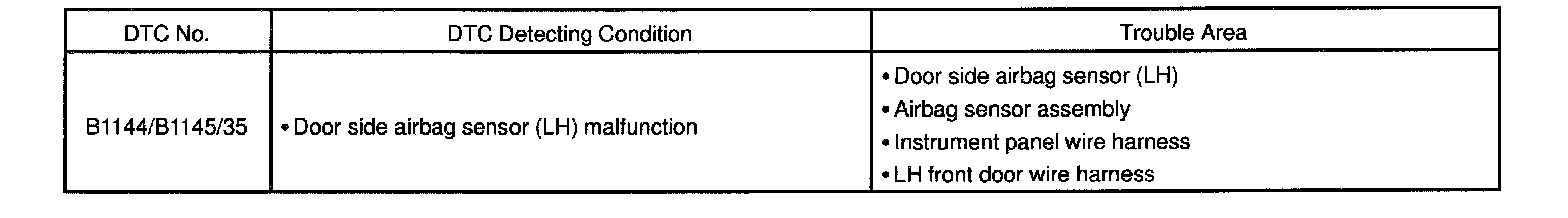

DTC Detecting Condition:

CIRCUIT DESCRIPTION
The door side airbag sensor (LH) circuit consists of the airbag sensor assembly and door side airbag sensor (LH).
For details of the function of each component, see DESCRIPTION AND OPERATION.

DTC B1144/B1145/35 is recorded when malfunction is detected in the door side airbag sensor (LH) circuit.

Wiring Diagram:

Steps 1 - 3:

Steps 4 - 5:

Step 6:

Step 7:

Steps 8 - 9:

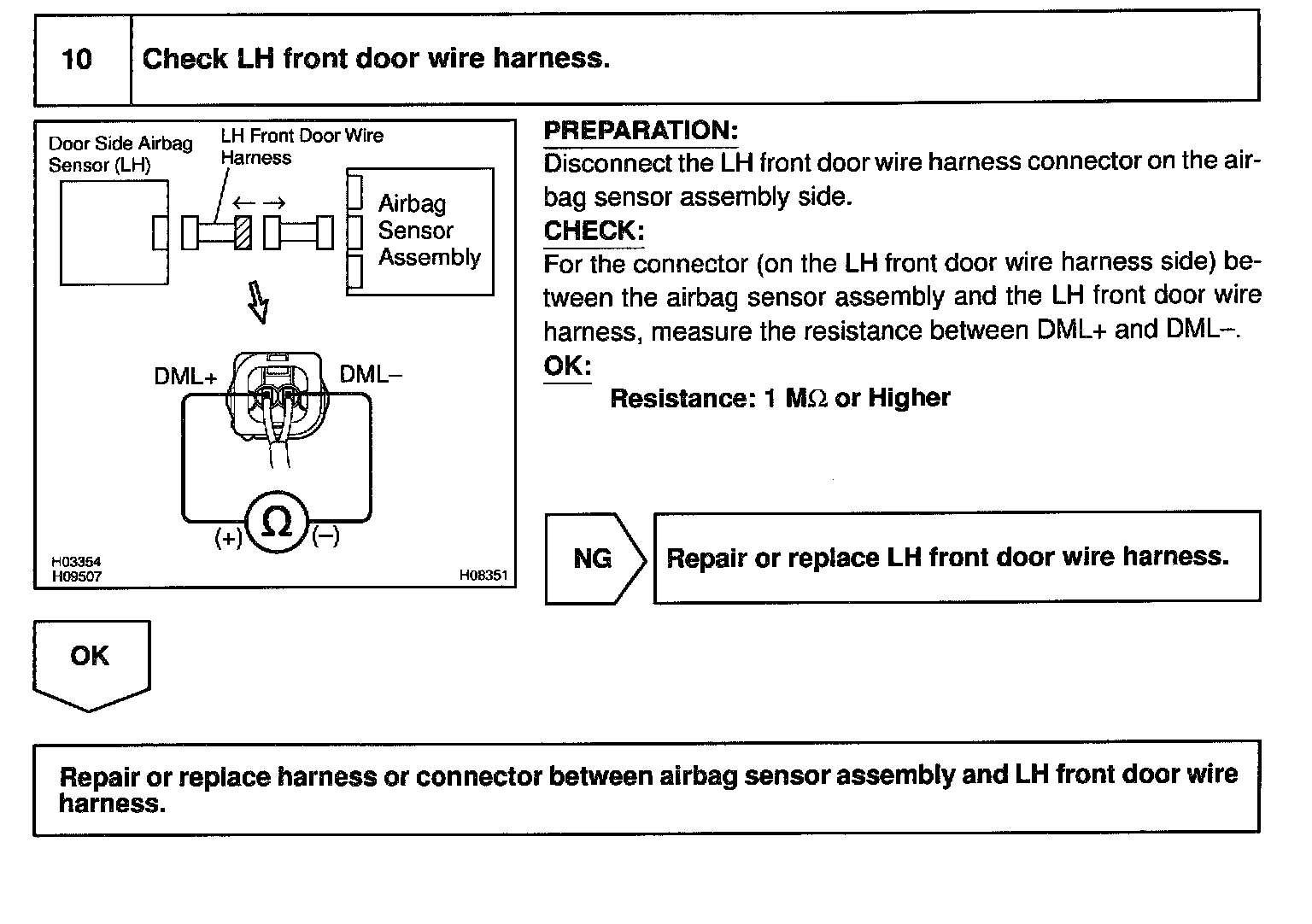

Step 10:

Step 11:

INSPECTION PROCEDURE
