Harness Locations

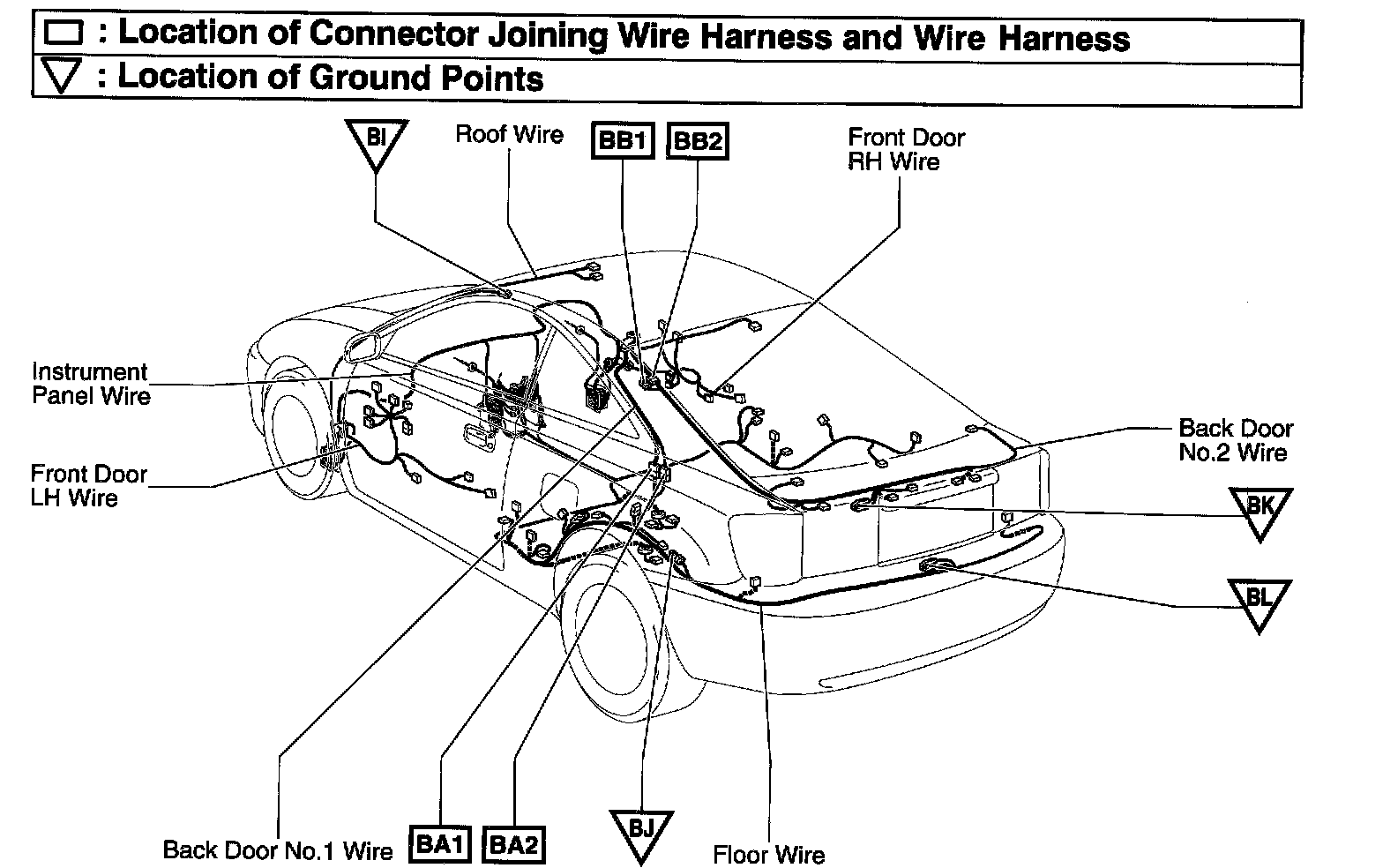

Body Ground Points & Harness To Harness Connectors:

Ground Location
BI Roof Left
BJ Luggage Room Left
BK Back Door Left
BL Back Panel Center

Connector Location
BA1 Back Door No.1 Wire and Floor Wire (Quarter Panel LH)
BA2 Back Door No.1 Wire and Floor Wire (Quarter Panel LH)
BB1 Back Door No.2 Wire and Back Door No.1 Wire (Back Door Upper Left)
BB2 Back Door No.2 Wire and Back Door No.1 Wire (Back Door Upper Left)

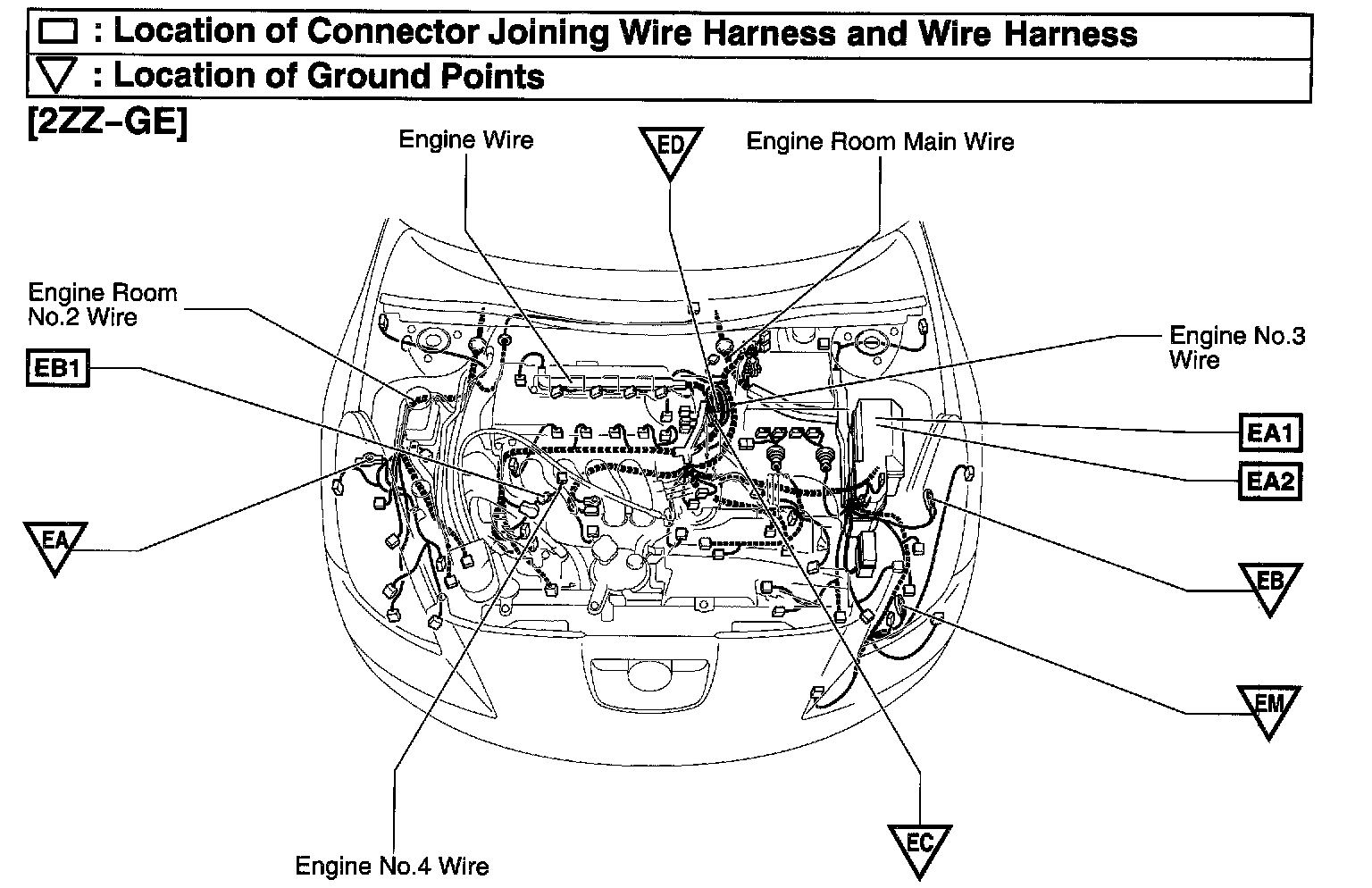

Engine Compartment Ground Points & Harness To Harness Connectors:

Ground Location
EA Front Right Fender
EB Front Left Fender
EC Cylinder Head Cover LH
ED Cylinder Head Cover LH
EM Front Left Fender

Connector Location
EA1 Engine Wire and Engine Room Main Wire (Inside of Engine Room R/B No.1)
EA2 Engine Wire and Engine Room Main Wire (Inside of Engine Room R/B No.1)
EB1 Engine No. 4 Wire and Engine Wire (Under the Intake Manifold)

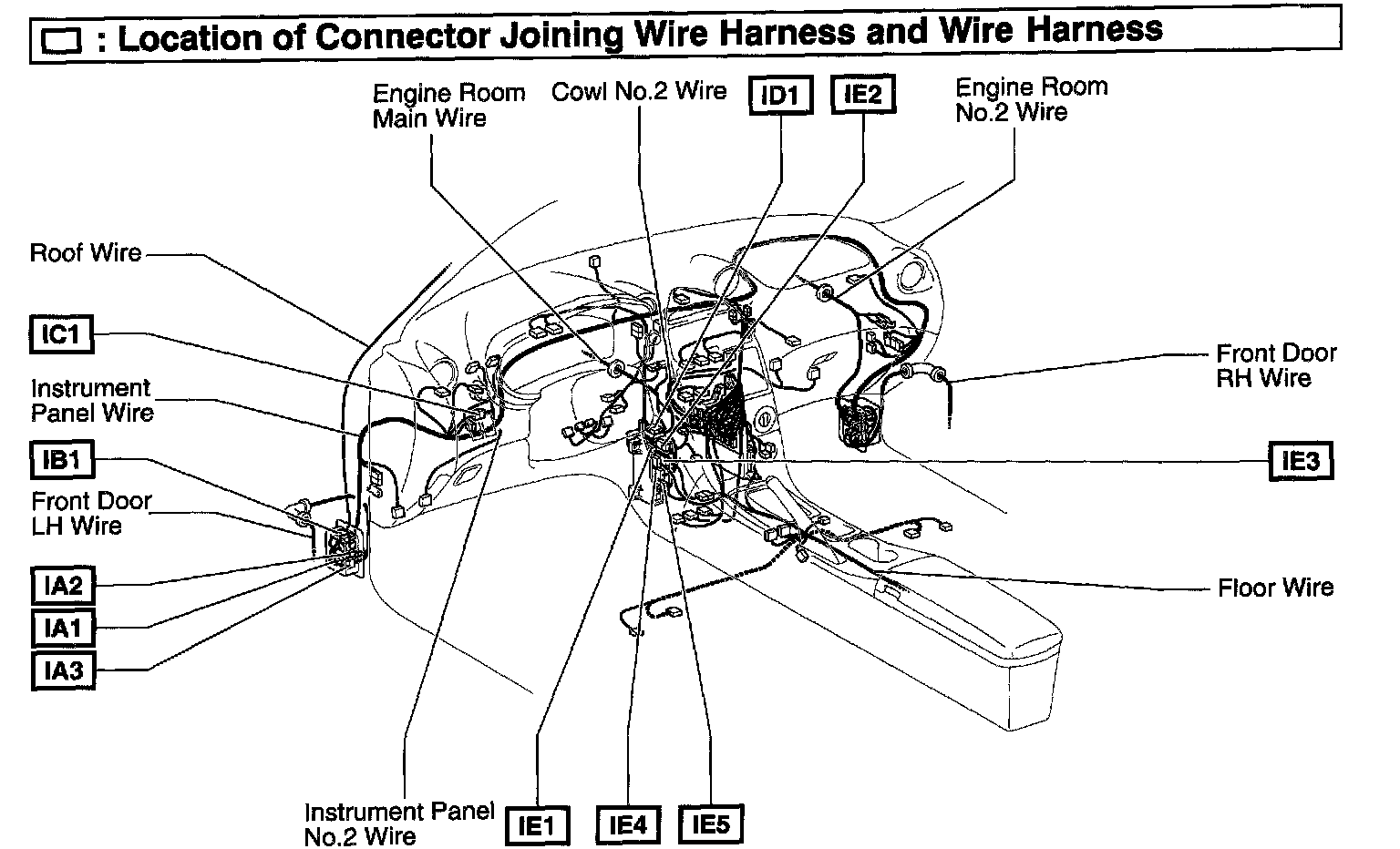

Instrument Panel / Console Harness To Harness Connectors:

Connector Location
IA1 Front Door LH Wire and Instrument Panel Wire (Left Kick Panel)
IA2 Front Door LH Wire and Instrument Panel Wire (Left Kick Panel)
IA3 Front Door LH Wire and Instrument Panel Wire (Left Kick Panel)
IB1 Roof Wire And Instrument Panel Wire (Left Kick Panel)
IC1 Instrument Panel Wire and Instrument Panel No.2 Wire (Instrument Panel Reinforcement)
ID1 Cowl No.2 Wire and Instrument Panel Wire (Instrument Panel Brace LH)
IE1 Engine Room Main Wire and Instrument Panel Wire (Instrument Panel Brace LH)
IE2 Engine Room Main Wire and Instrument Panel Wire (Instrument Panel Brace LH)
IE3 Engine Room Main Wire and Instrument Panel Wire (Instrument Panel Brace LH)
IE4 Engine Room Main Wire and Instrument Panel Wire (Instrument Panel Brace LH)
IE5 Engine Room Main Wire and Instrument Panel Wire (Instrument Panel Brace LH)

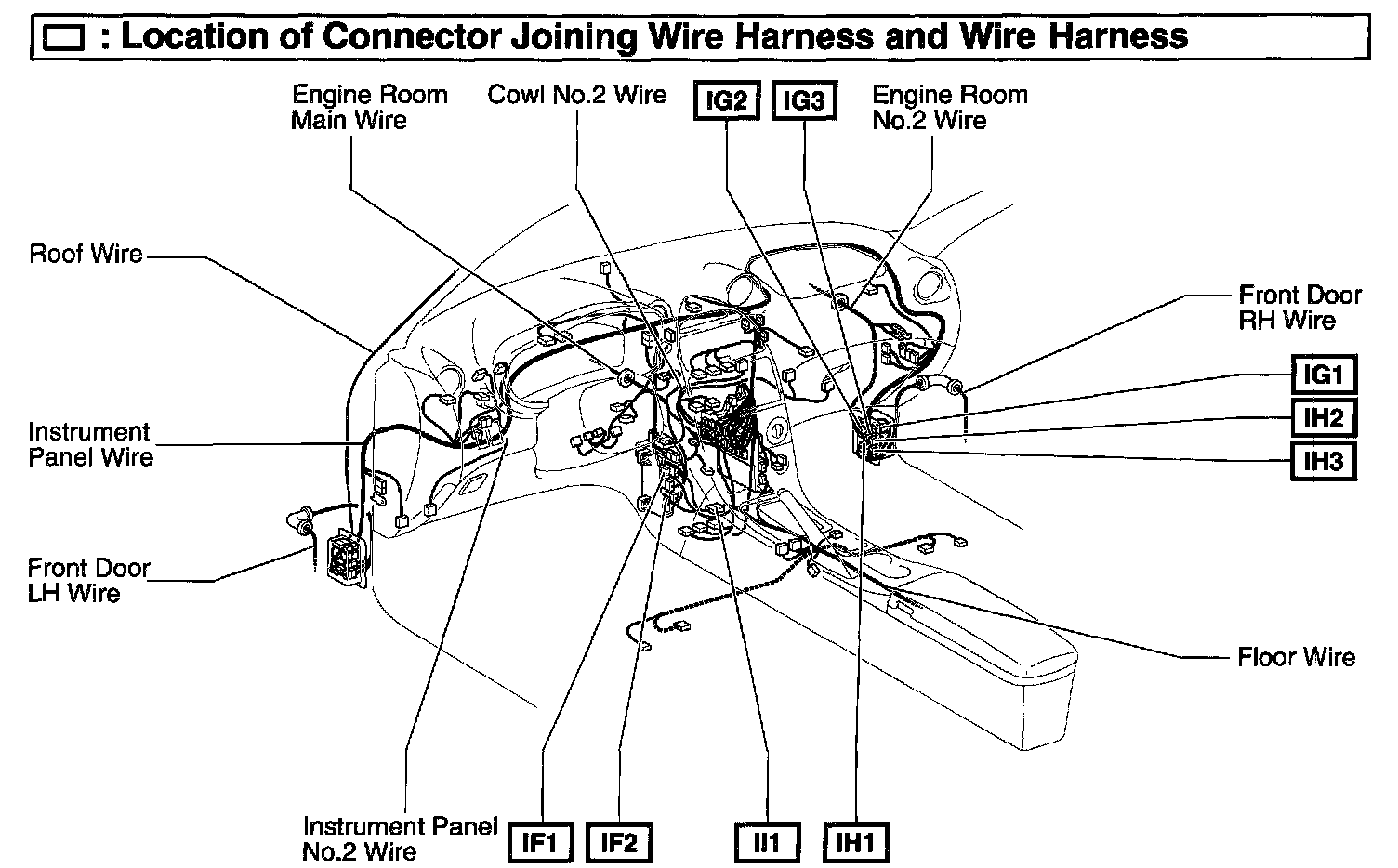

Instrument Panel / Console Harness To Harness Connectors:

Connector Location
IF1 Floor Wire and Instrument Panel Wire (Instrument Panel Brace LH)
IF2 Floor Wire and Instrument Panel Wire (Instrument Panel Brace LH)
IG1 Engine Room No.2 Wire and Instrument Panel Wire (Right Kick Panel)
IG2 Engine Room No.2 Wire and Instrument Panel Wire (Right Kick Panel)
IG3 Engine Room No.2 Wire and Instrument Panel Wire (Right Kick Panel)
IH1 Front Door RH Wire and Instrument Panel Wire (Right Kick Panel)
IH2 Front Door RH Wire and Instrument Panel Wire (Right Kick Panel)
IH3 Front Door RH Wire and Instrument Panel Wire (Right Kick Panel)
II1 Engine Room Main Wire and Floor Wire (Instrument Panel Brace LH)
