Connector Code Lists

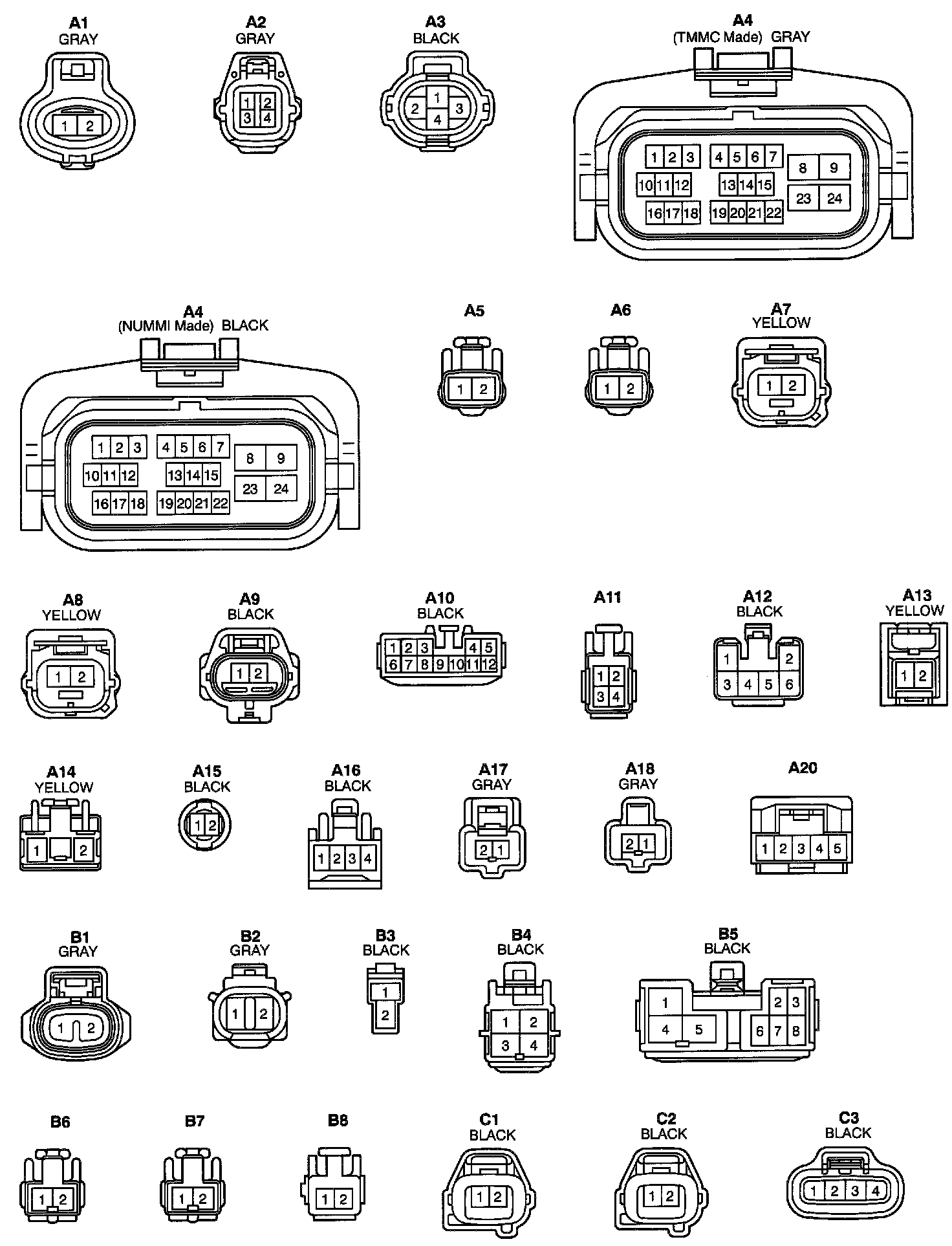

Connector Views (A1 - C3):

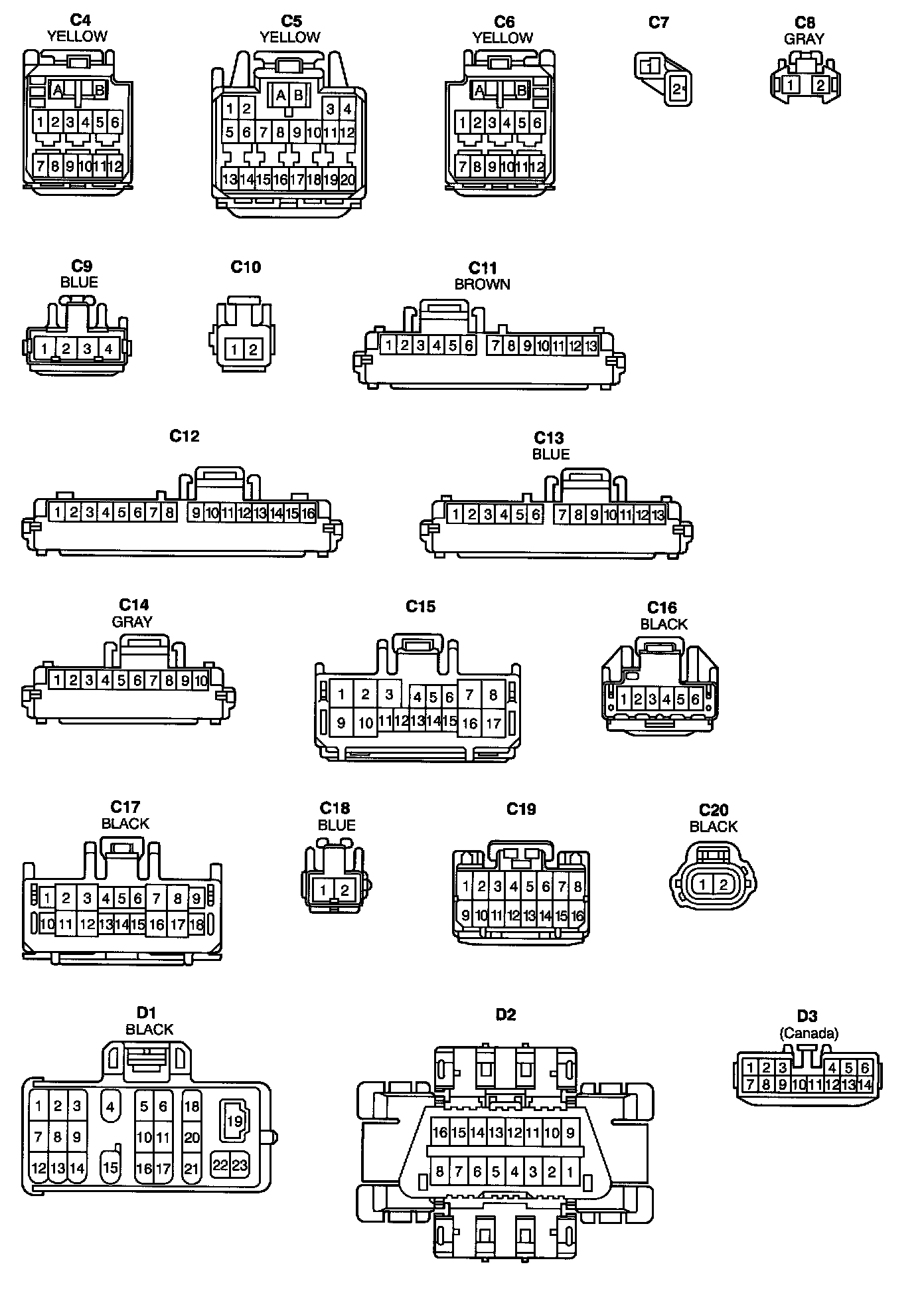

Connector Views (C4 - D3):

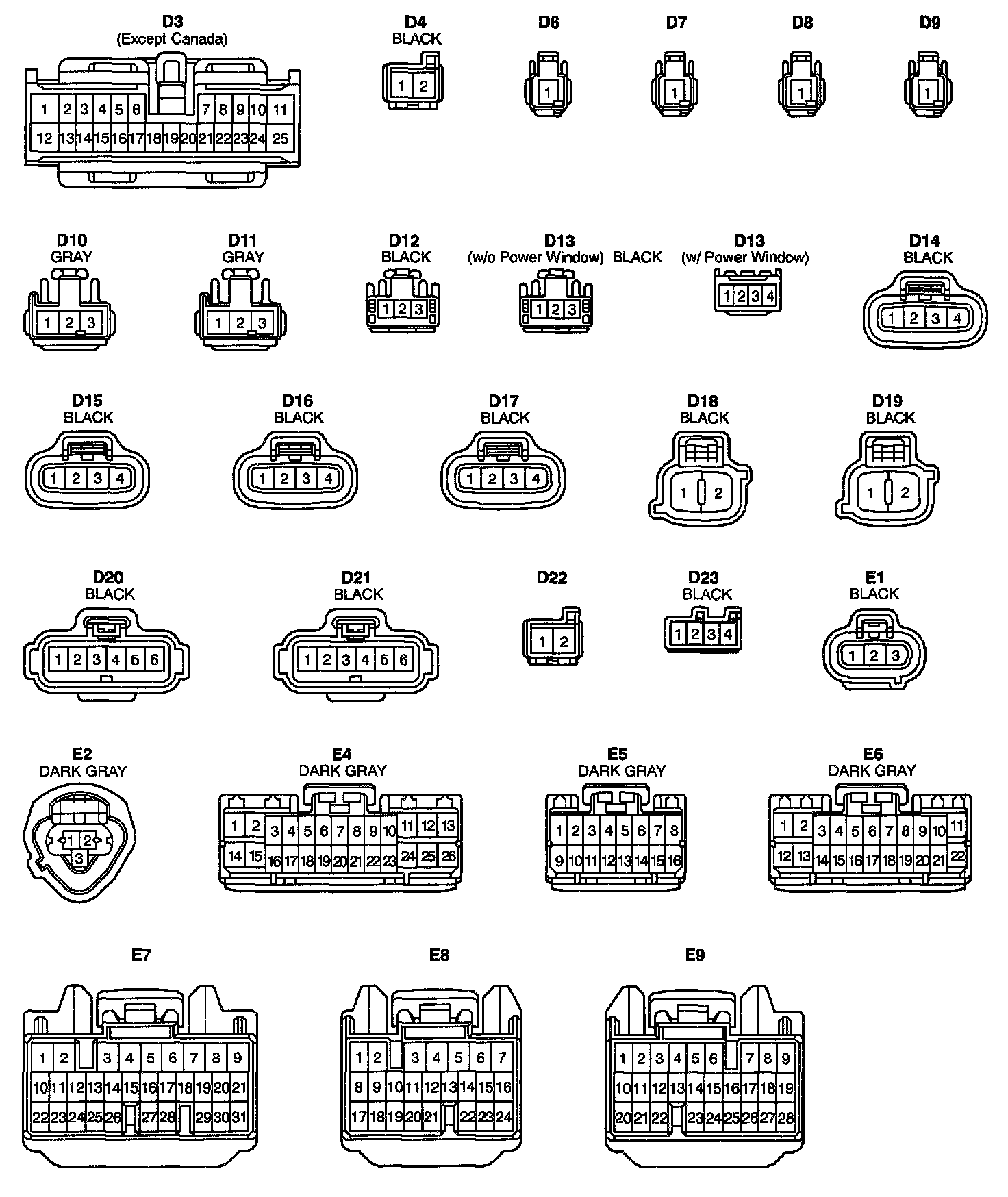

Connector Views (D3 - E9):

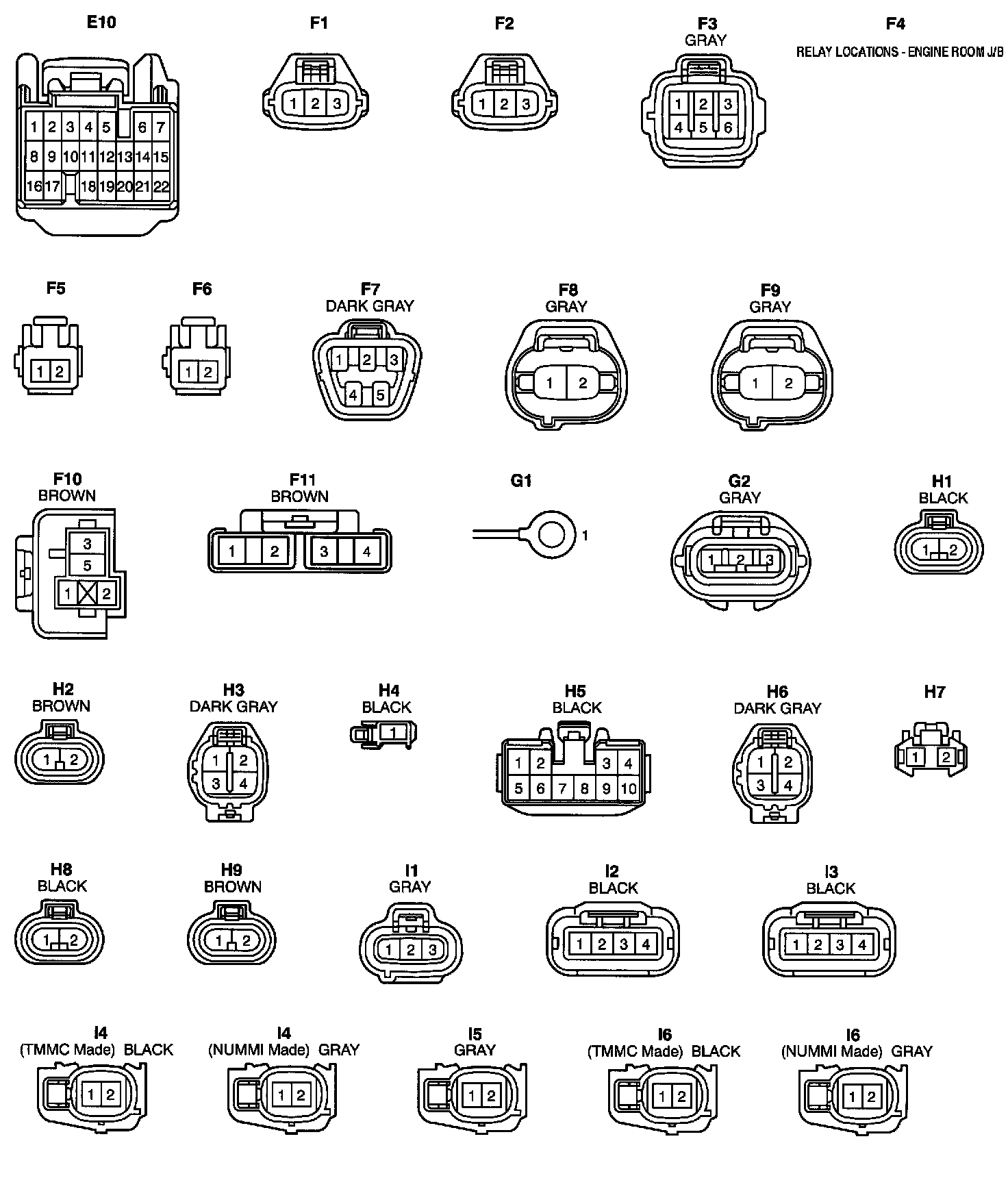

Connector Views (E10 - I6):

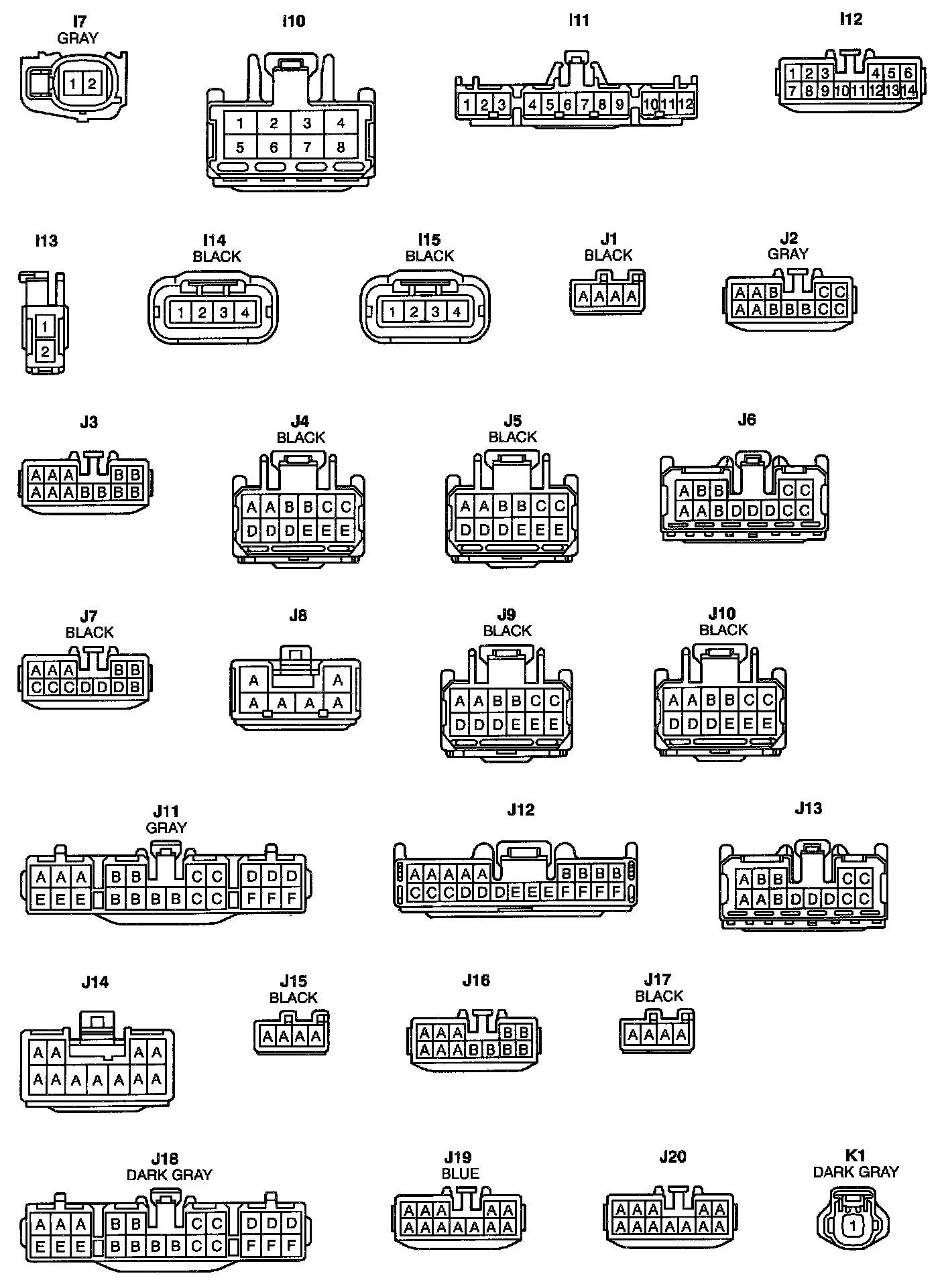

Connector Views (I7 - K1):

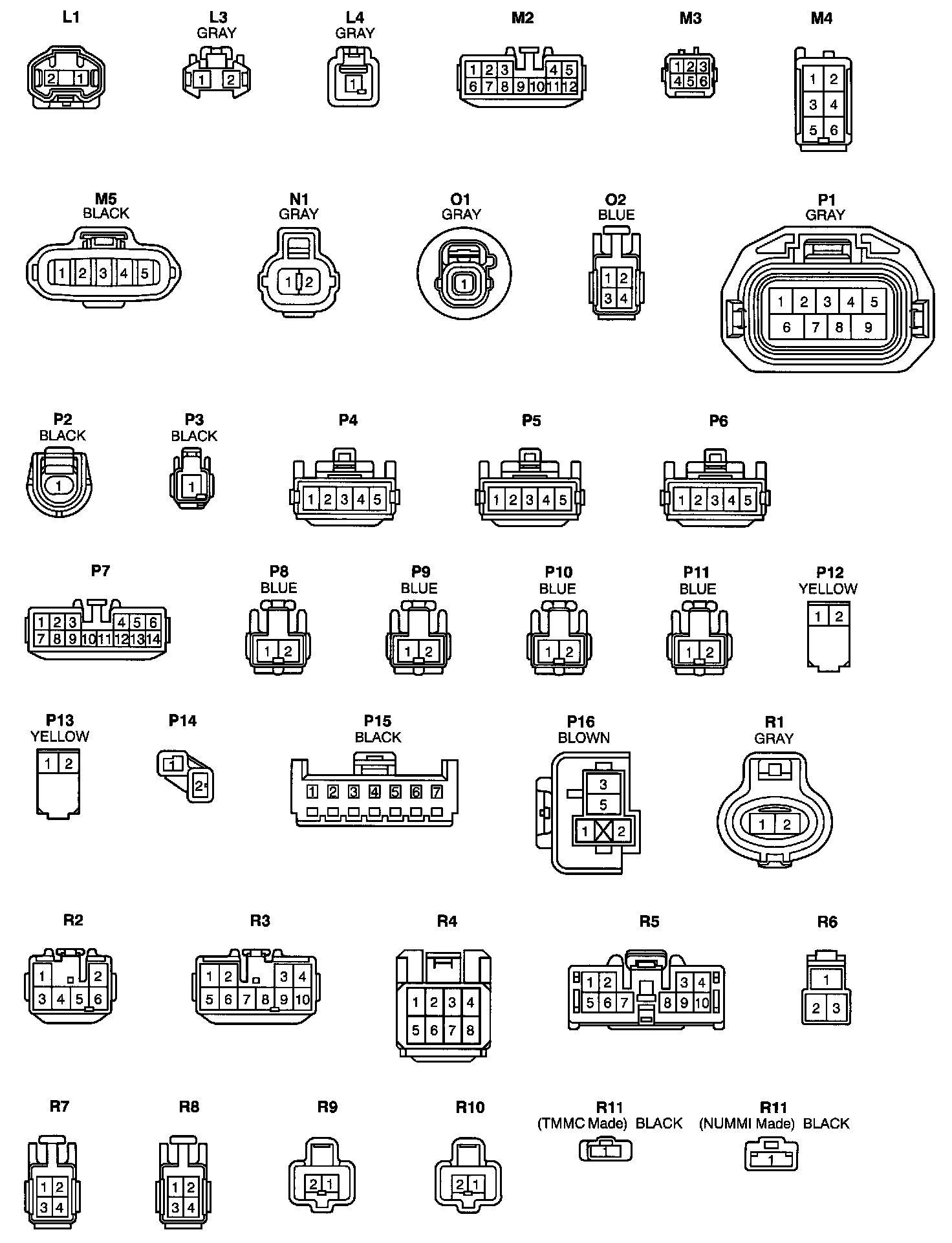

Connector Views (L1 - R11):

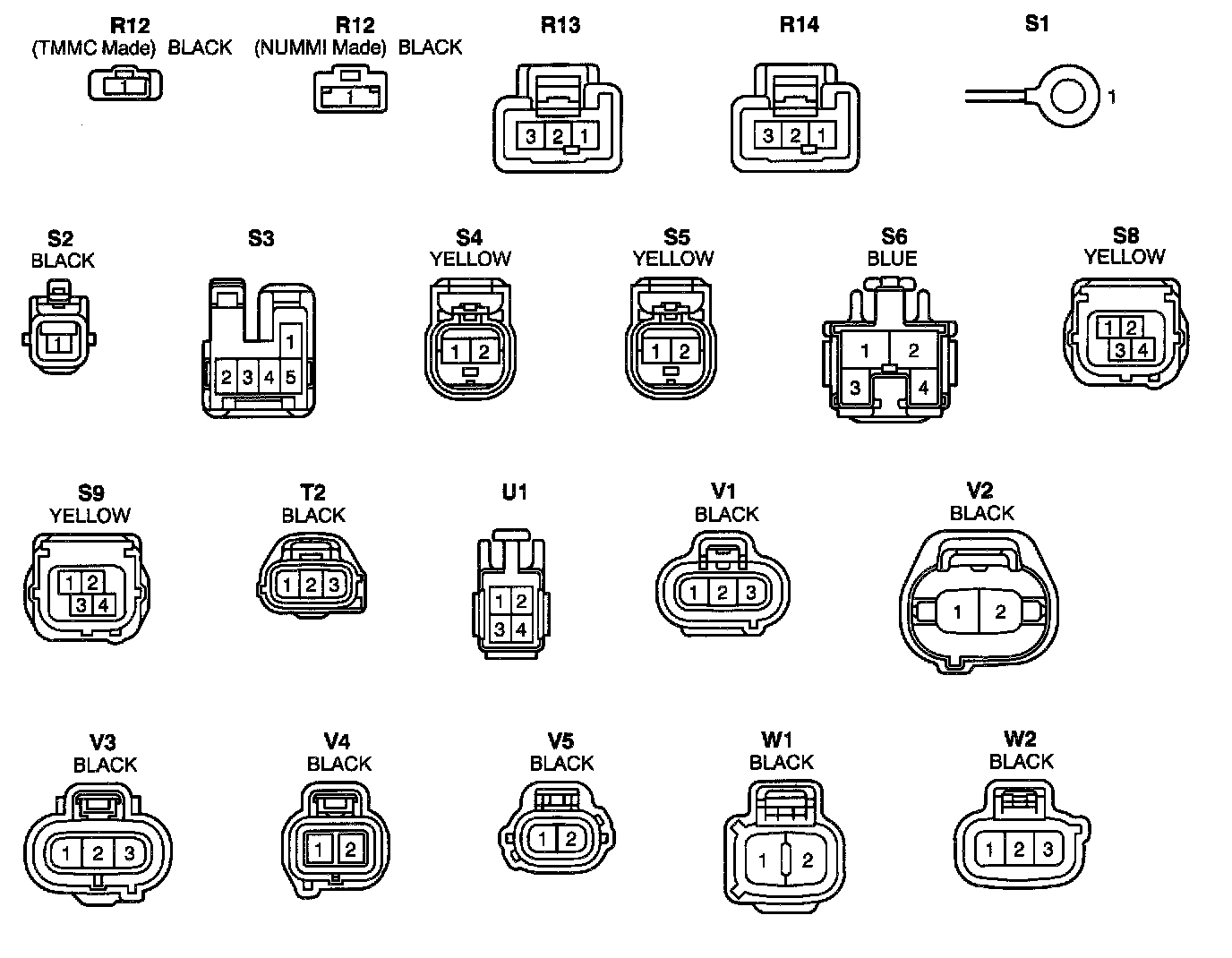

Connector Views (R12 - W2):
