DTC 34

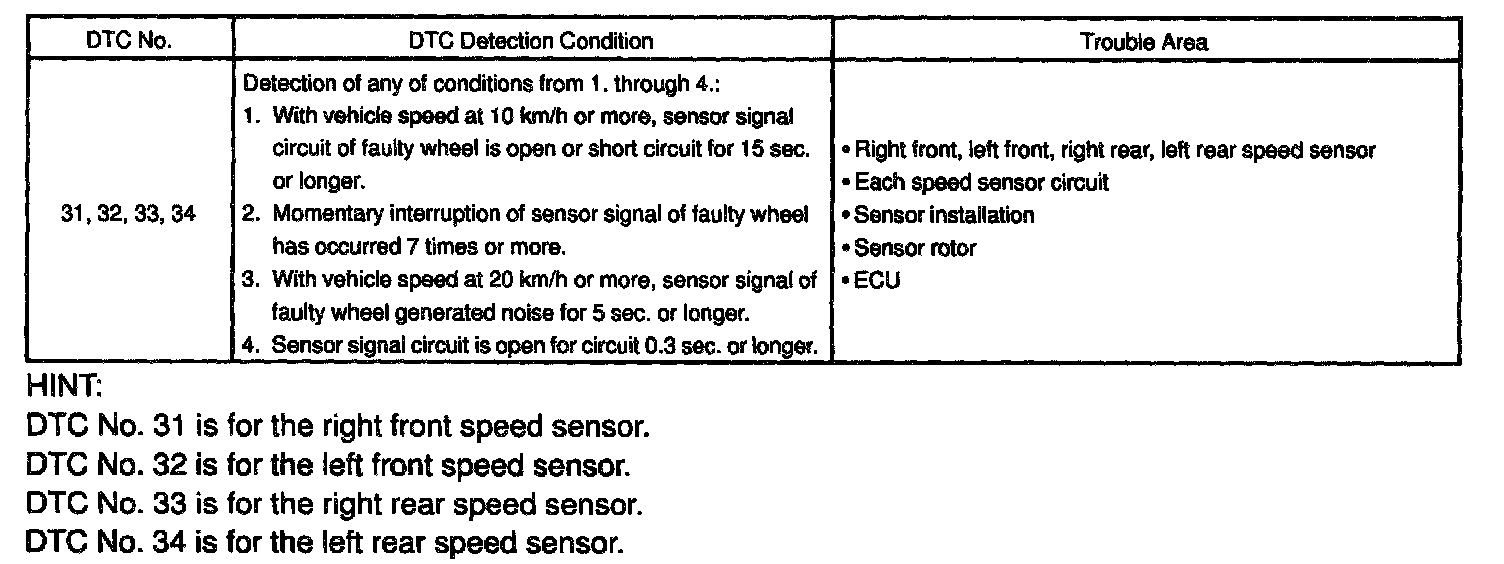

DTC Detection Condition:

CIRCUIT DESCRIPTION

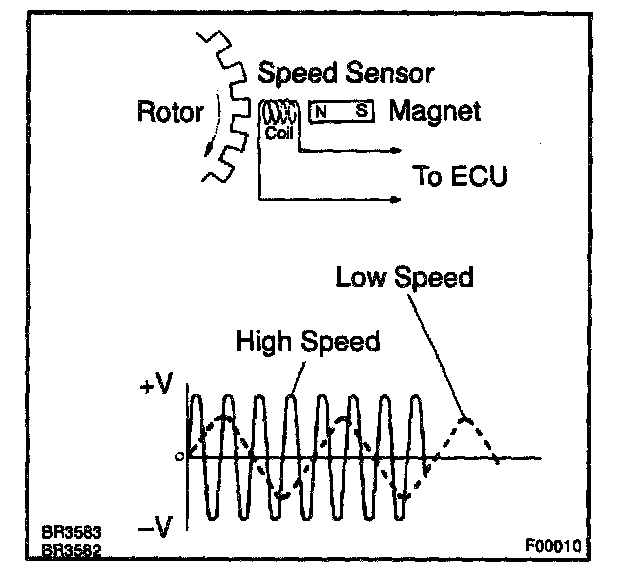

The speed sensor detects wheel speed and sends the appropriate signals to the ECU. These signals are used to control the ABS system. The front and rear rotors each have 48 serrations.

When the rotors rotate, the magnetic field emitted by the permanent magnet in the speed sensor generates an AC voltage. Since the frequency of this AC voltage changes in direct proportion to the speed of the rotor, the frequency is used by the ECU to detect the speed of each wheel.

Fail safe function:
If any trouble occurs in the speed sensor circuit, the ECU cuts off current to the ABS solenoid valve relay and prohibits ABS control.

Wiring Diagram:

Step 1:

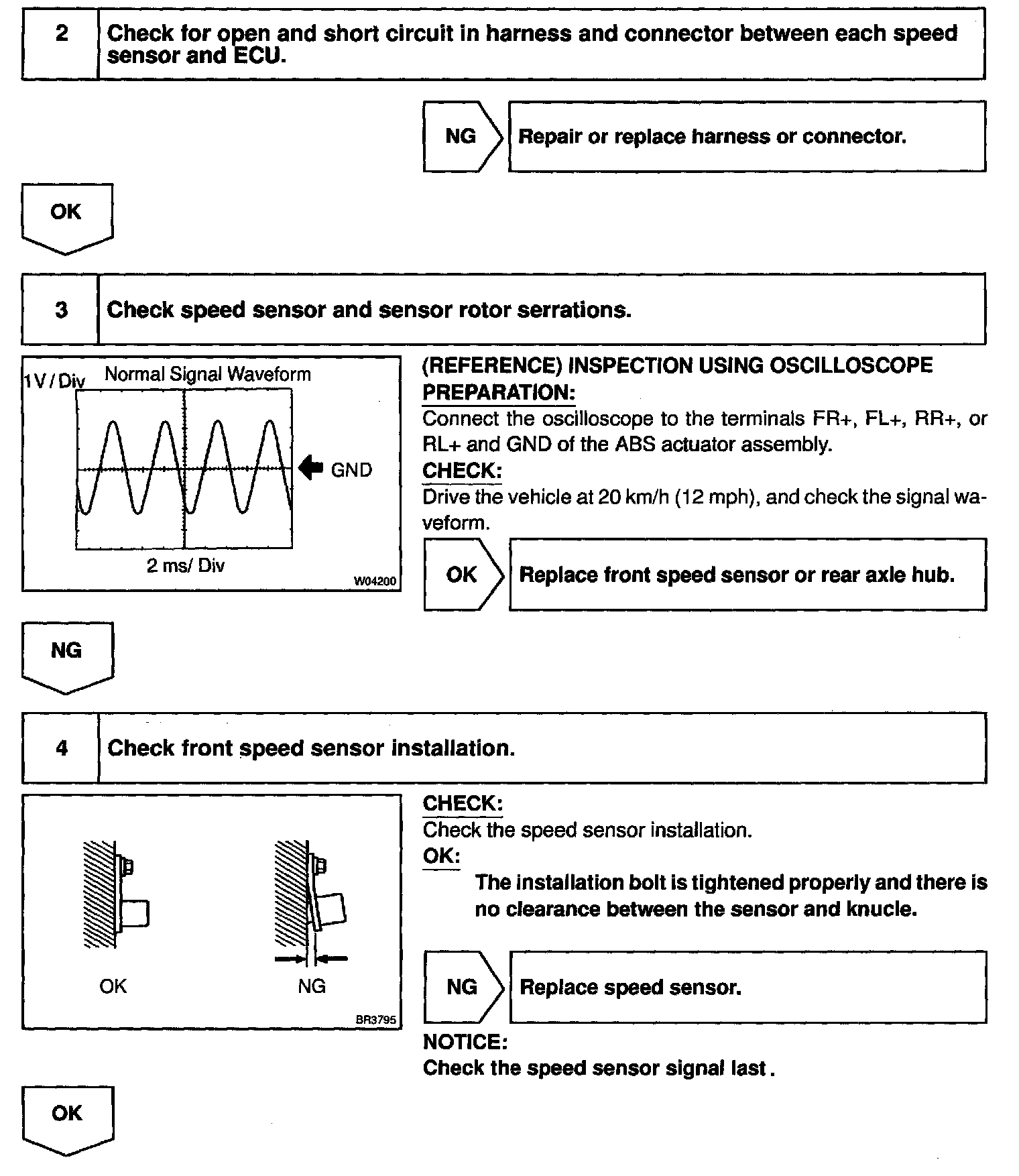

Steps 2 - 4:

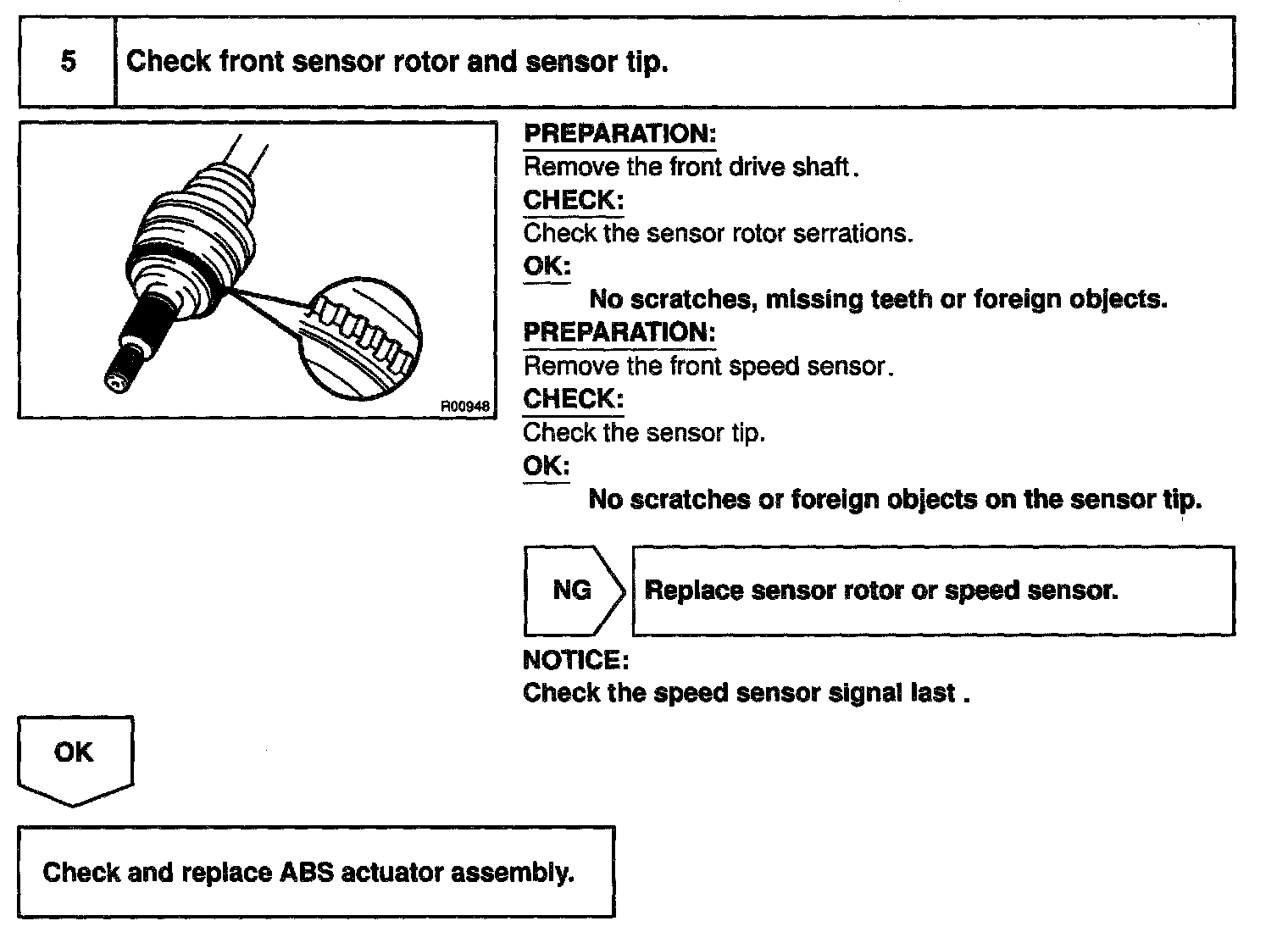

Step 5:

INSPECTION PROCEDURE
