Harness Locations

Engine Compartment:

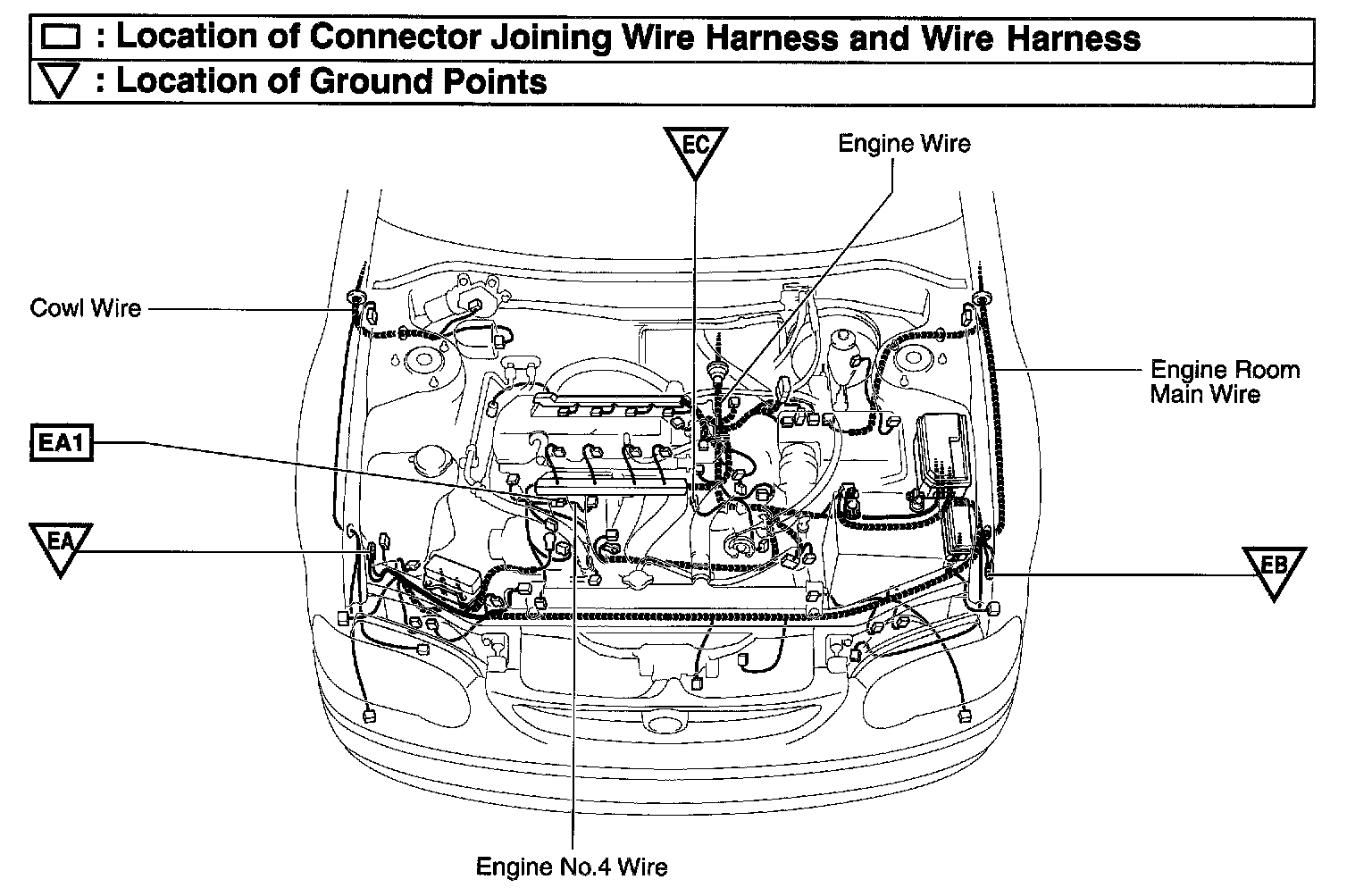

Connector Location
EA1 Engine No. 4 Wire and Engine Wire (Inside of the Intake Manifold RH)

Instrument Panel / Console:

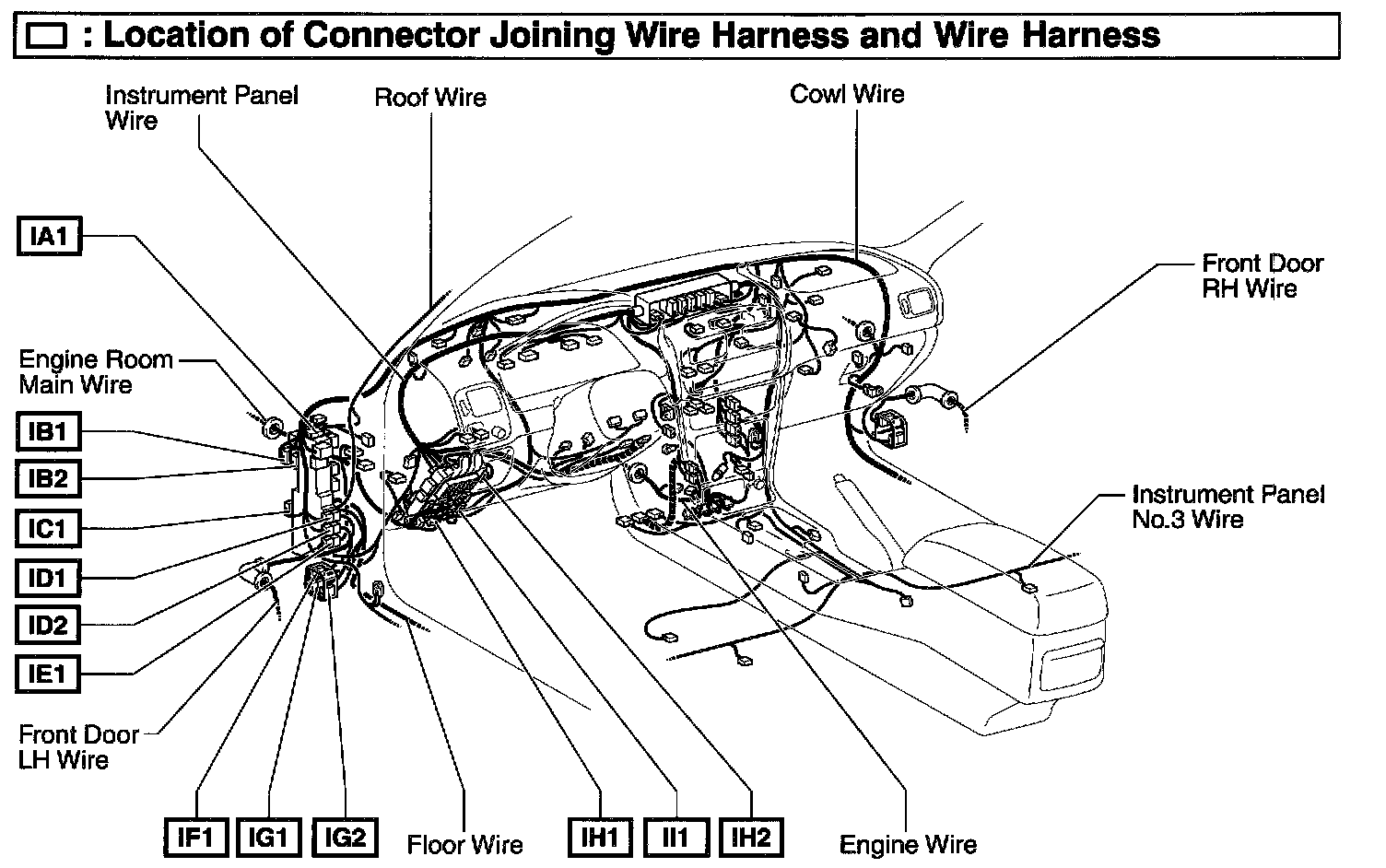

Connector Location
IA1 Roof Wire and Cowl Wire (Near the Driver Side R/B)
IB1 Engine Room Main Wire and Cowl Wire (Near the Driver Side R/B)
IB2 Engine Room Main Wire and Cowl Wire (Near the Driver Side R/B)
IC1 Floor Wire and Cowl Wire (Near the Driver Side J/B)
ID1 Front Door LH Wire and Cowl Wire (Near the Driver Side J/B)
ID2 Front Door LH Wire and Cowl Wire (Near the Driver Side J/B)
IE1 Engine Room Main Wire and Instrument Panel Wire (Near the Driver Side J/B)
IF1 Front Door LH Wire and Instrument Panel Wire (Left Kick Panel)
IG1 Floor Wire and Instrument Panel Wire (Left Kick Panel)
IG2 Floor Wire and Instrument Panel Wire (Left Kick Panel)
IH1 Engine Room Main Wire and Instrument Panel Wire (Lower Finish Panel)
IH2 Engine Room Main Wire and Instrument Panel Wire (Lower Finish Panel)
II1 Cowl Wire and Instrument Panel Wire (Lower Finish Panel)

Instrument Panel / Console:

Connector Location
IJ1 Engine Wire and Instrument Panel Wire (Instrument Panel Brace LH)
IJ2 Engine Wire and Instrument Panel Wire (Instrument Panel Brace LH)
IK1 Instrument Panel Wire and Cowl Wire (Instrument Panel Brace RH)
IK2 Instrument Panel Wire and Cowl Wire (Instrument Panel Brace RH)
IL1 Engine Wire and Cowl Wire (Instrument Panel Brace RH)
IL2 Engine Wire and Cowl Wire (Instrument Panel Brace RH)
IM1 Front Door RH Wire and Cowl (Right Kick Panel)
IM2 Front Door RH Wire and Cowl (Right Kick Panel)

Body:

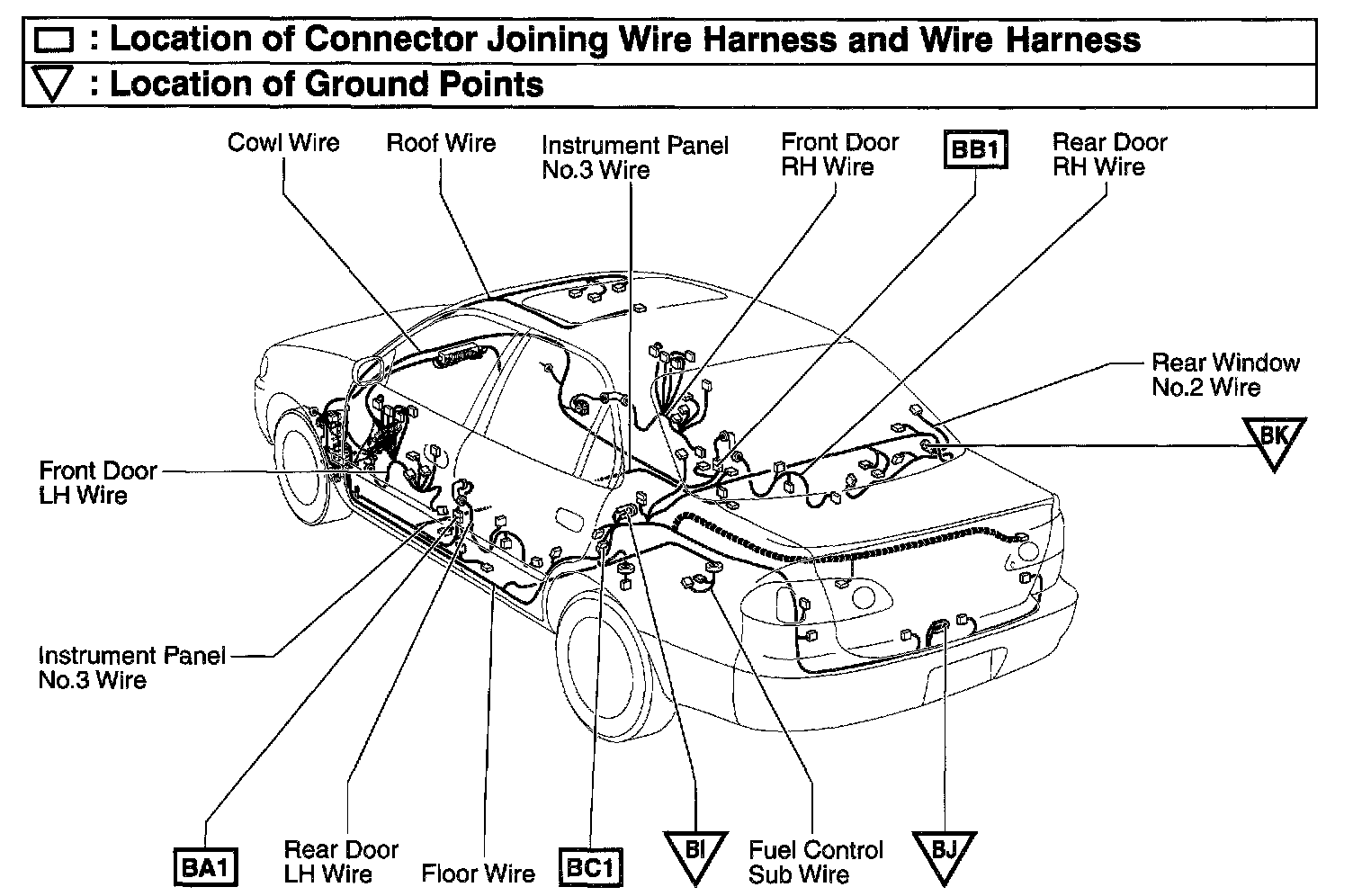

Connector Location
BA1 Rear Door LH Wire and Cowl Wire (Under the Left Center Pillar)
BB1 Rear Door RH Wire and Cowl Wire (Under the Right Center Pillar)
BC1 Fuel Control Sub Wire and Floor Wire (Rear Wheel House LH)
