Manual Shifting Test

MANUAL SHIFTING TEST

HINT: With this test, it can be determined whether the trouble is in the electrical circuit or is a mechanical problem in the transaxle.

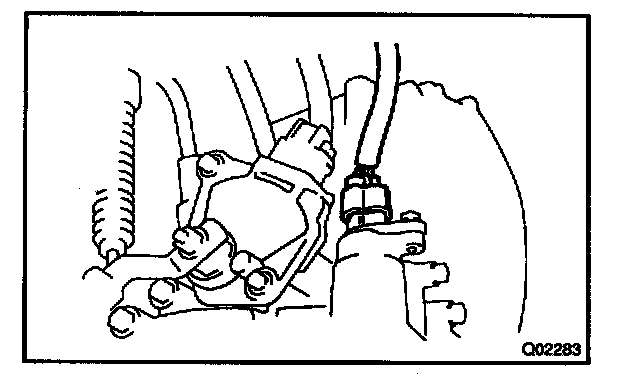

a. Disconnect the solenoid wire.




b. Inspect the manual driving operation.

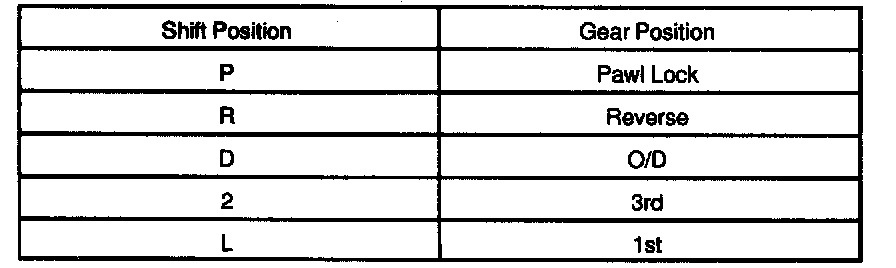

Check that the shift and gear positions correspond to the table.

HINT:
- If the L, 2 and D position gear positions are difficult to distinguish, do the following road test.
- While driving, shift through the L, 2 and D positions. Check that the gear change corresponds to the shift position.

If any abnormality are found in the above test, the problem is in the transaxle itself.

c. Connect the solenoid wire.
d. Cancel out the DTC.
