Air Bag Control Module: Locations

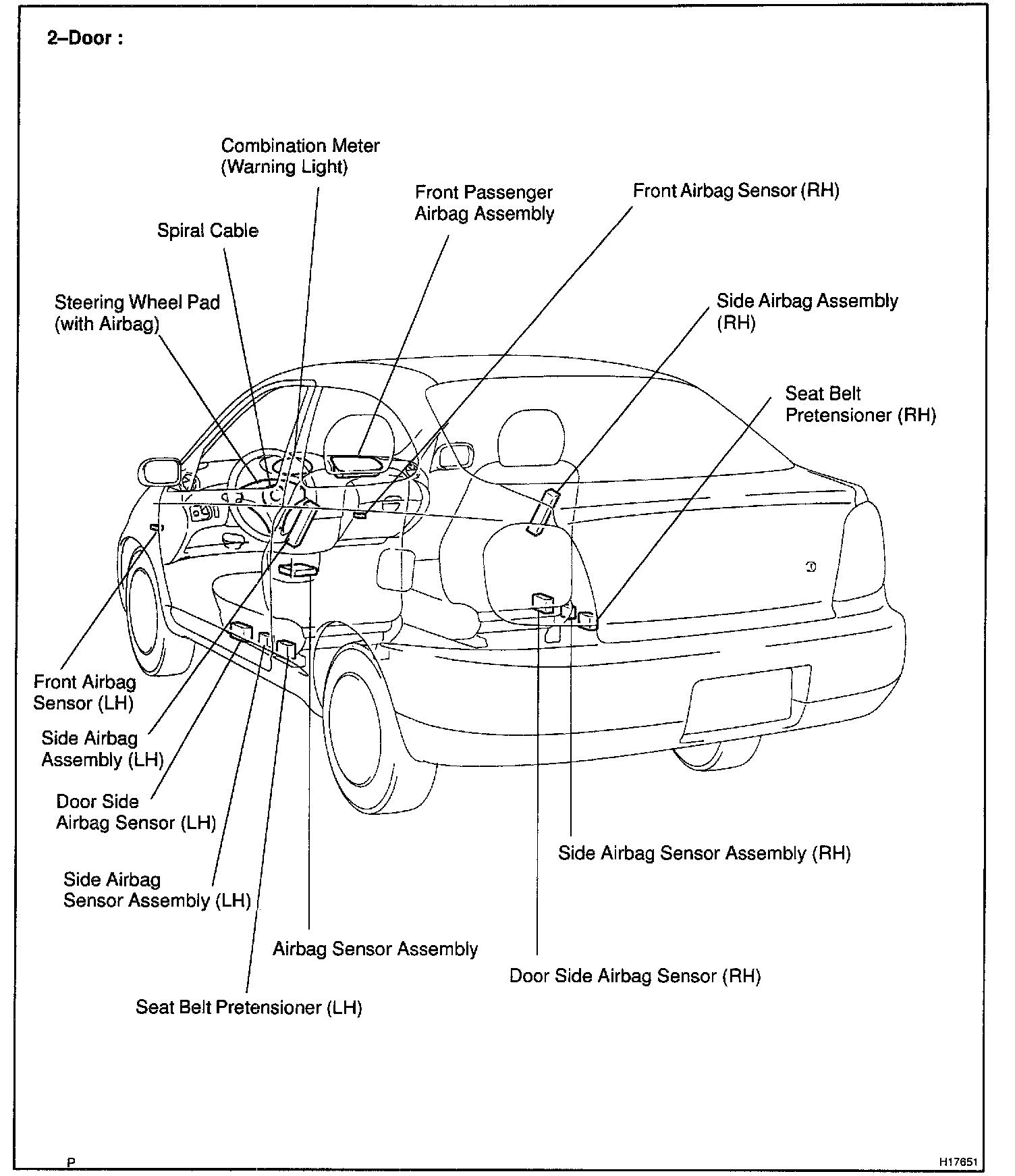

Parts Location (2 Door):

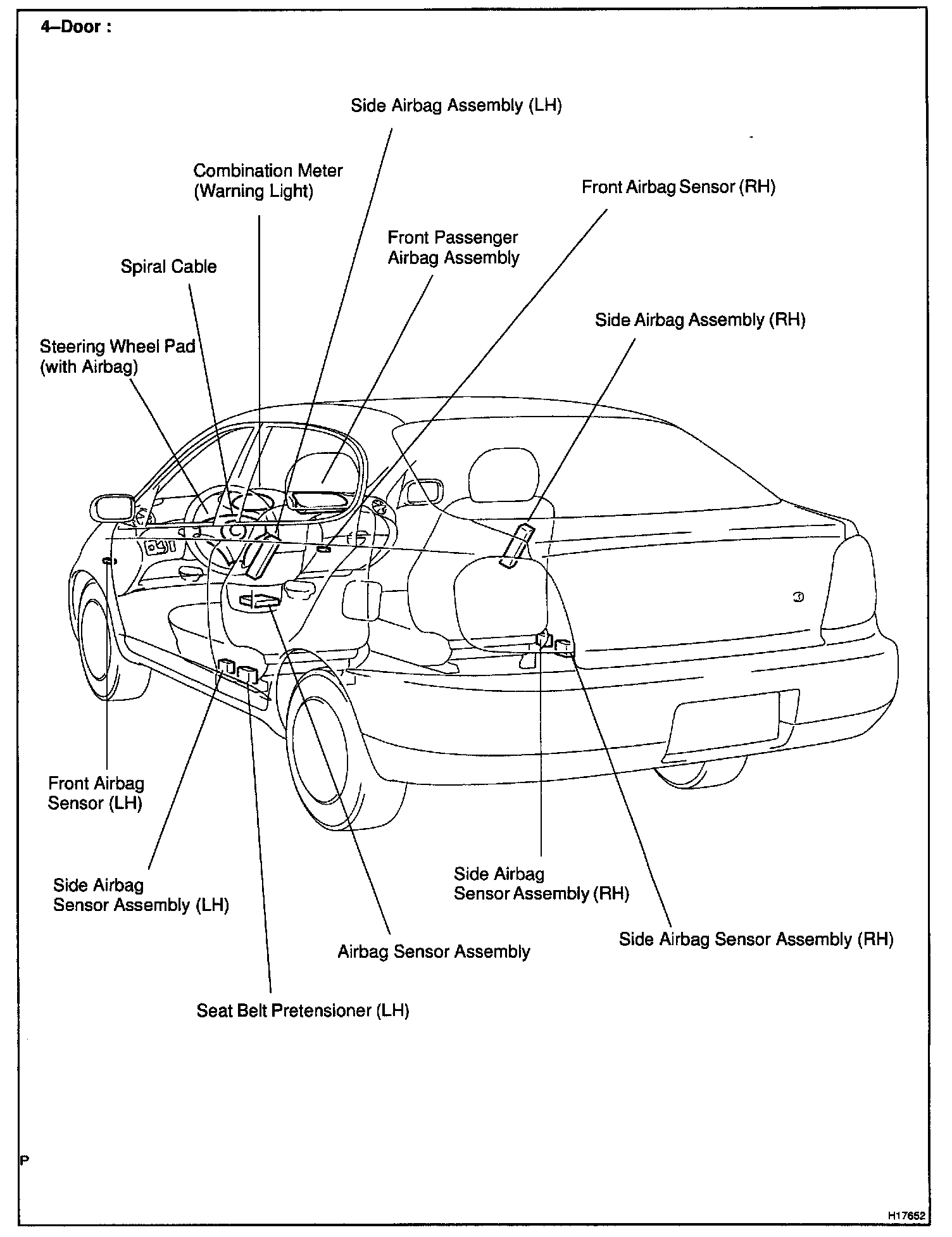

Parts Location (4 Door):

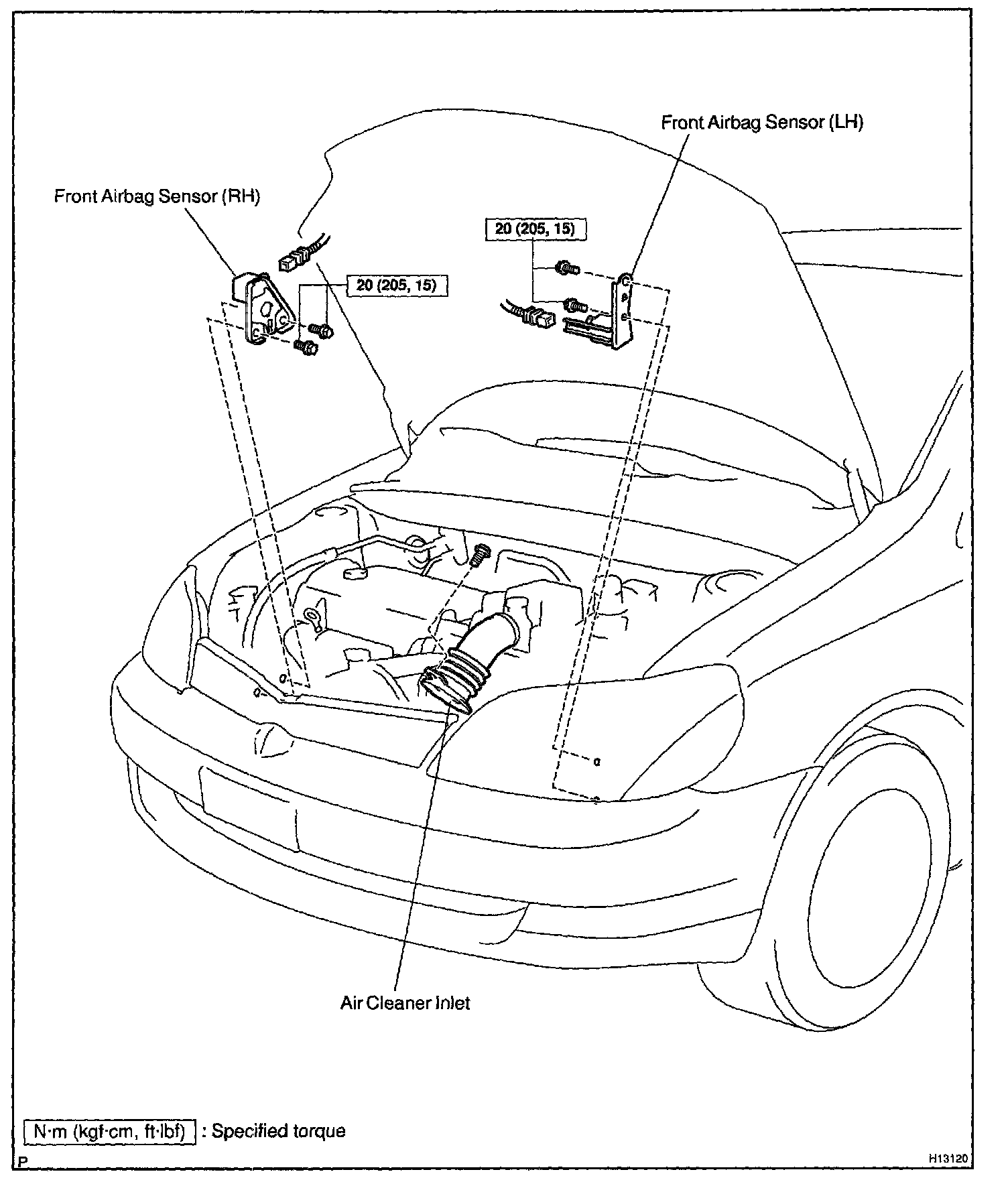

Front Airbag Sensor:

Door Side Airbag Sensor (2-door):
