Flywheel Torque and Data

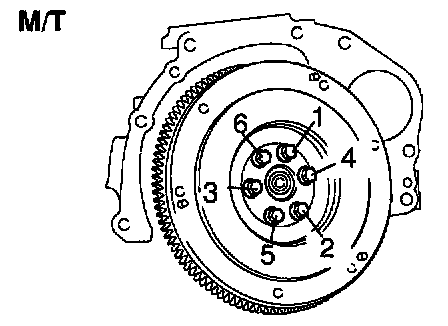

Sequence:






Flywheel Maximum Runout 0.1 mm

Flywheel Torque
1st 49 Nm
2nd Turn 90 deg
