Throttle Position Sensor: Testing and Inspection

THROTTLE POSITION SENSOR [89452G / 98-40]
Resistance inspection.

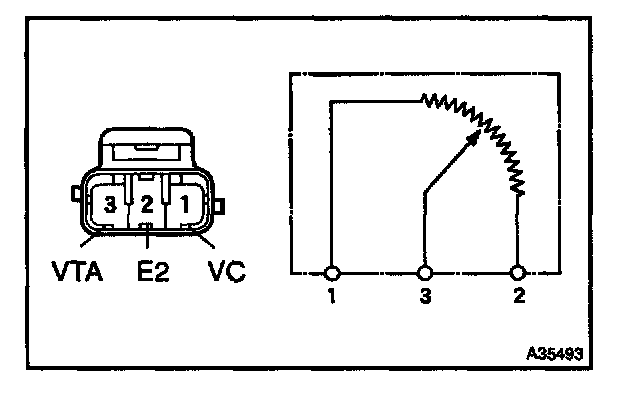

1. Disconnect the throttle position sensor connector.
2. Using an ohmmeter, measure the resistance between terminals VC and E2.

Resistance: 2.5 - 5.0 Kohms

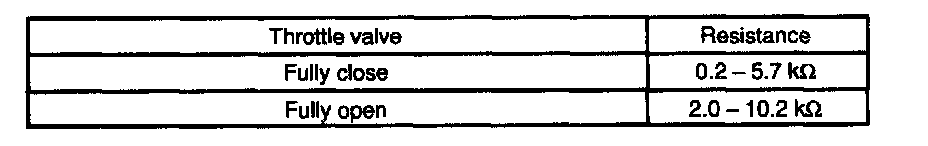

3. Check the change of resistance between terminals VTA and E2.

HINT:

Change of resistance:
The resistance value increases In proportion to the throttle lever opening value.
