Power Mirror Switch: Testing and Inspection

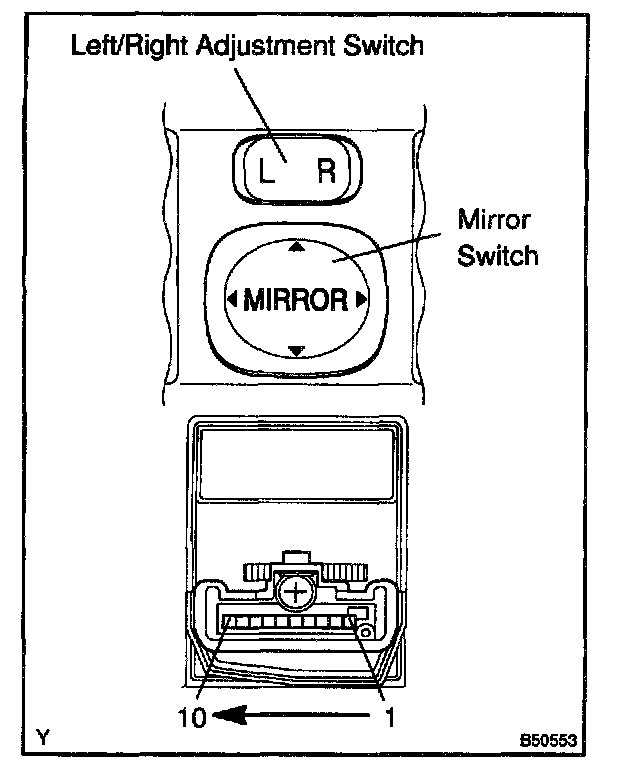

INSPECT OUTER MIRROR SWITCH ASSEMBLY




a. Inspect the mirror switch continuity.

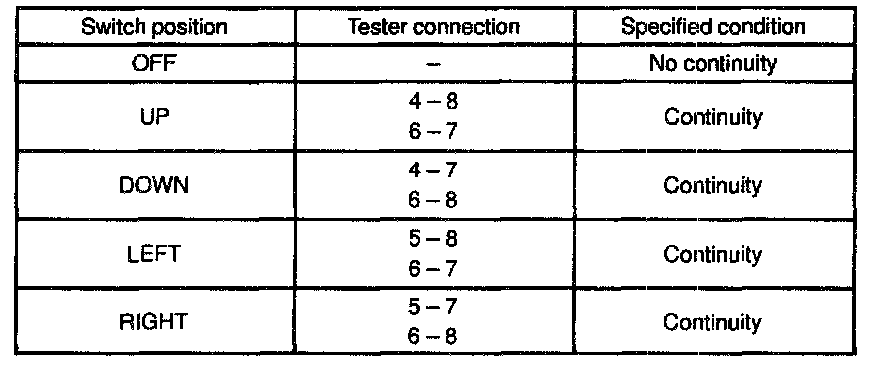

1. Left side for left/right adjustment switch:
Inspect the left side mirror switch continuity.
If the continuity is not as specified, replace the switch.

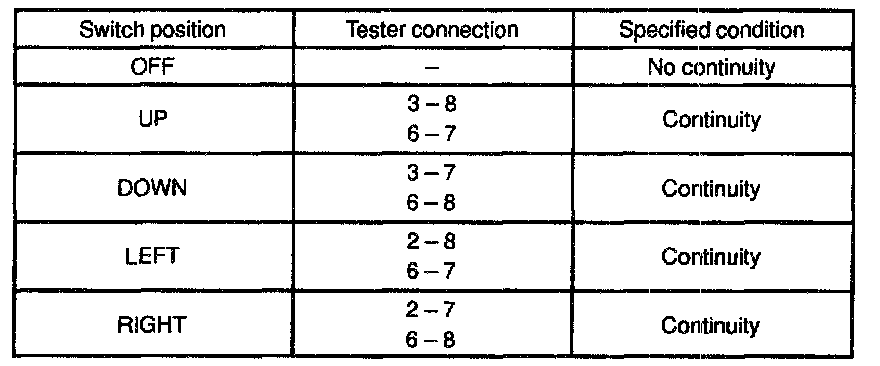

2. Right side for left/right adjustment switch:
Inspect the right side mirror switch continuity.
If the continuity is not as specified, replace the switch.
