Cylinder Head Torque and Sequence

Cylinder Head

Tightening Torque
First Pass 79 Nm
Second Pass 90 Degrees

Sequence




Removal




Installation

Maximum Warpage
Cylinder Block Side 0.05 mm
Intake Manifold Side 0.08 mm
Exhaust Manifold Side 0.08 mm

Cylinder Head Bolt Length
Standard 161.3-162.3 mm
Maximum 164.2 mm

Intake Manifold
Torque 30 Nm

Camshaft Bearing Cap Torque
Front 30 Nm
Exc. Front 9 Nm

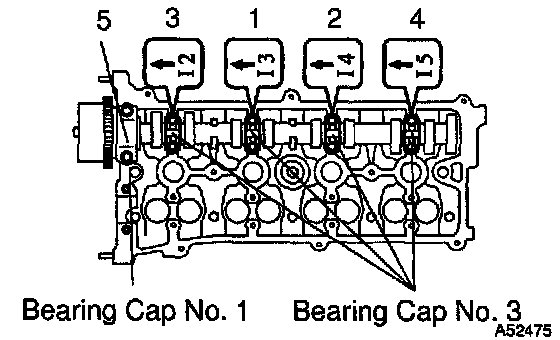

Sequence

No.1 Camshaft (Int.)




Removal




Installation

No. 2 Camshaft (Exh.)




Removal




Installation

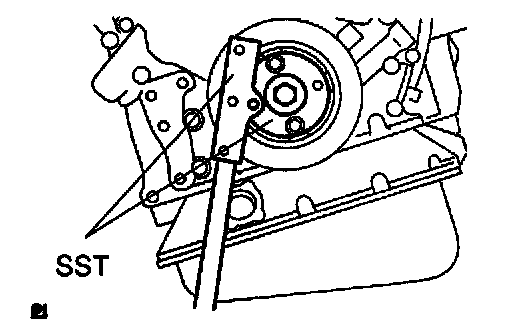

Camshaft Sprockets
Torque 54 Nm

Exhaust Manifold
Torque 37 Nm

Sequence




Installation
