Sensor Power Source Circuit
Sensor Power Source Circuit

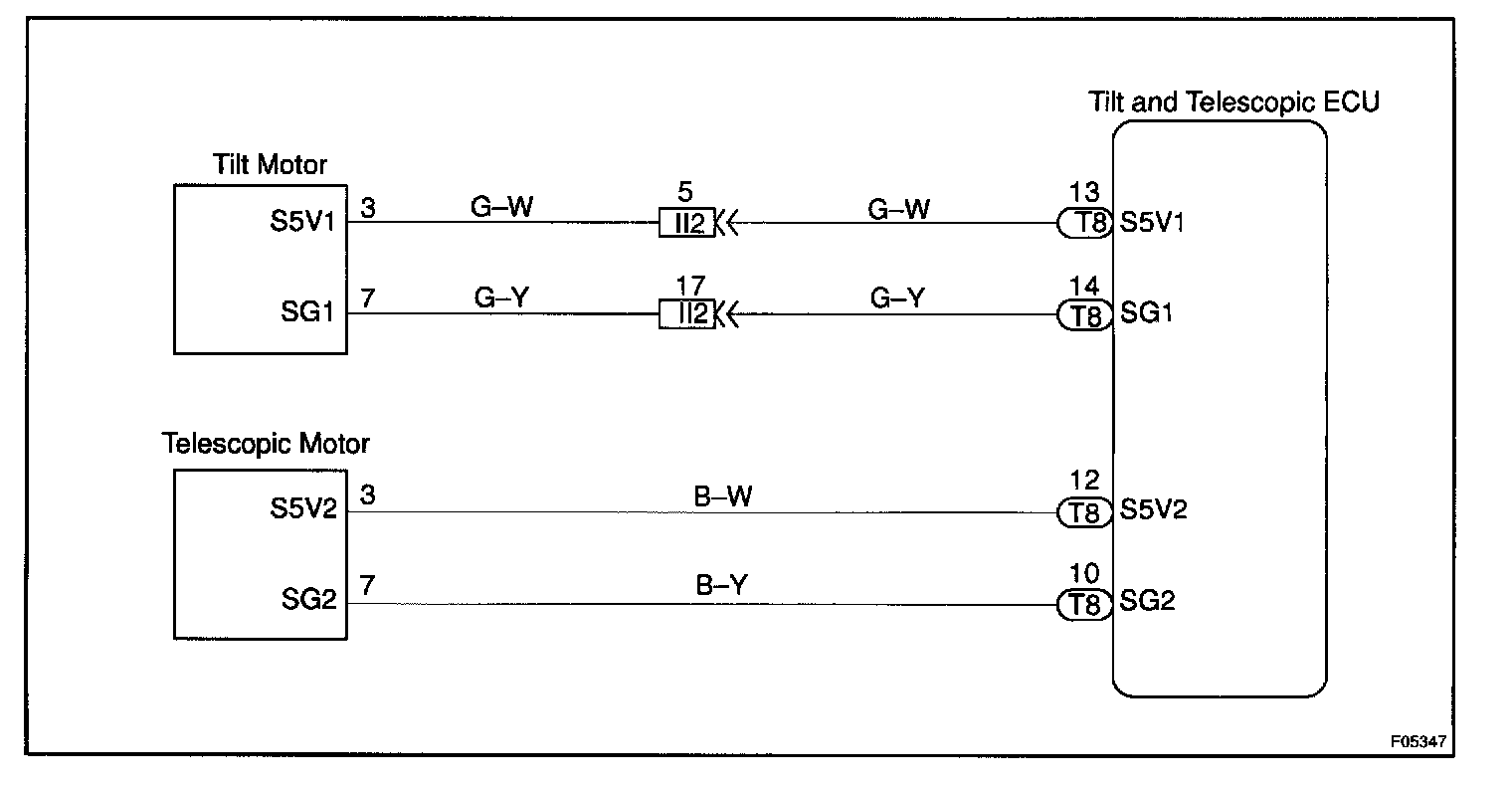

CIRCUIT DESCRIPTION
Power to the position sensor is output from ECU.

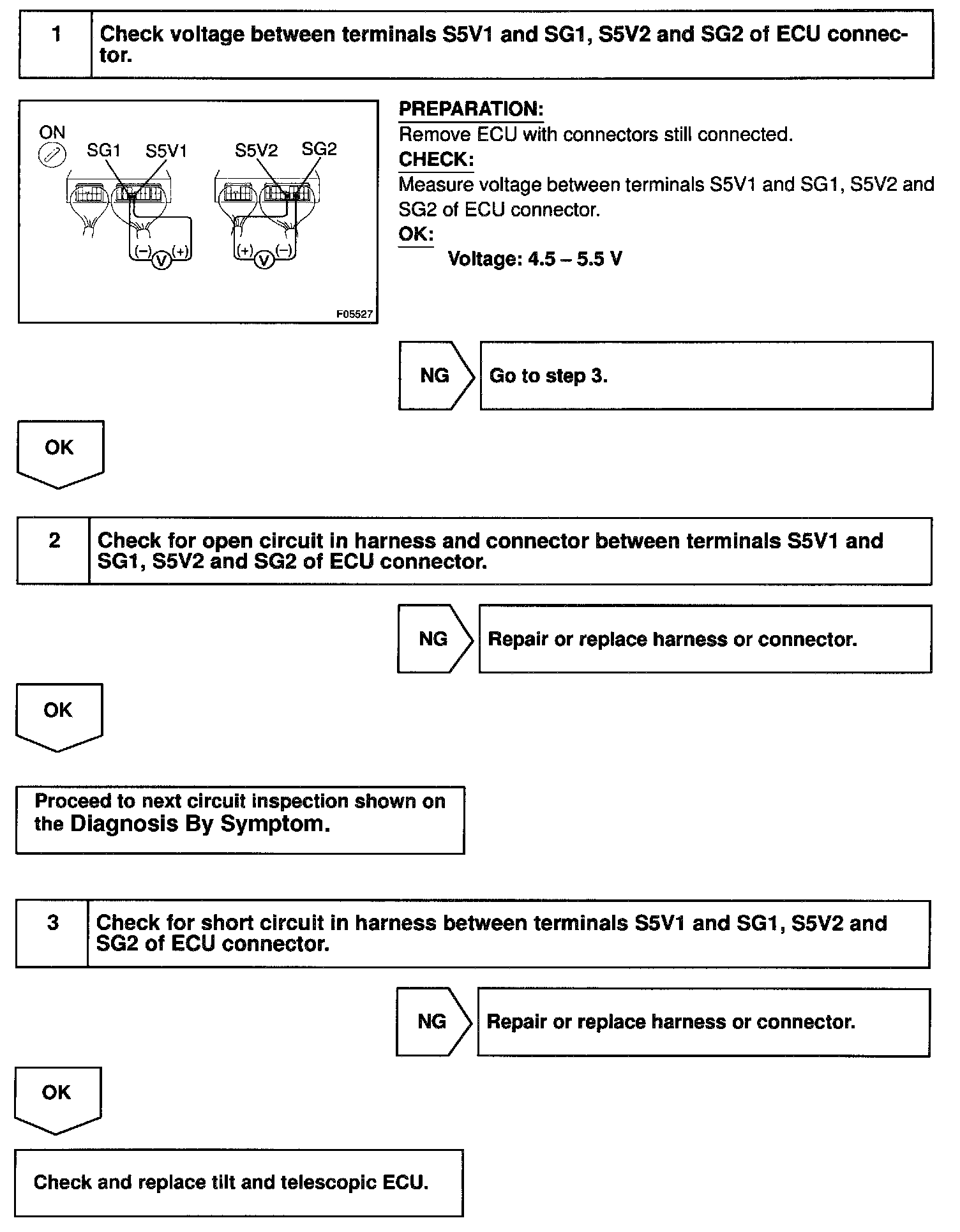

Steps 1 - 3:
INSPECTION PROCEDURE
