Cruise Control Switch: Testing and Inspection

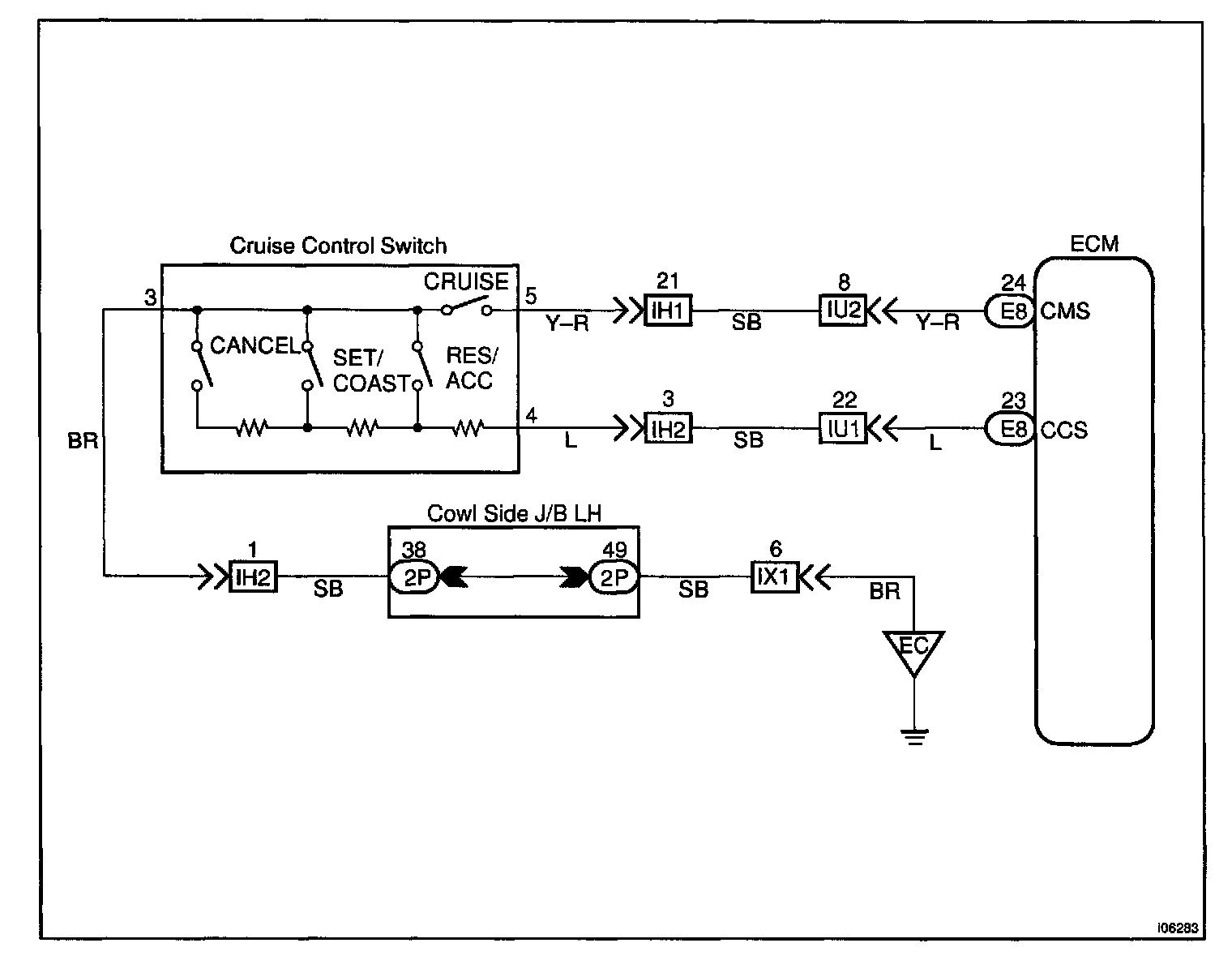

CIRCUIT DESCRIPTION

Step 1:

When the cruise control main switch is turned off, the cruise control does not operate.

Steps 2 - 3:

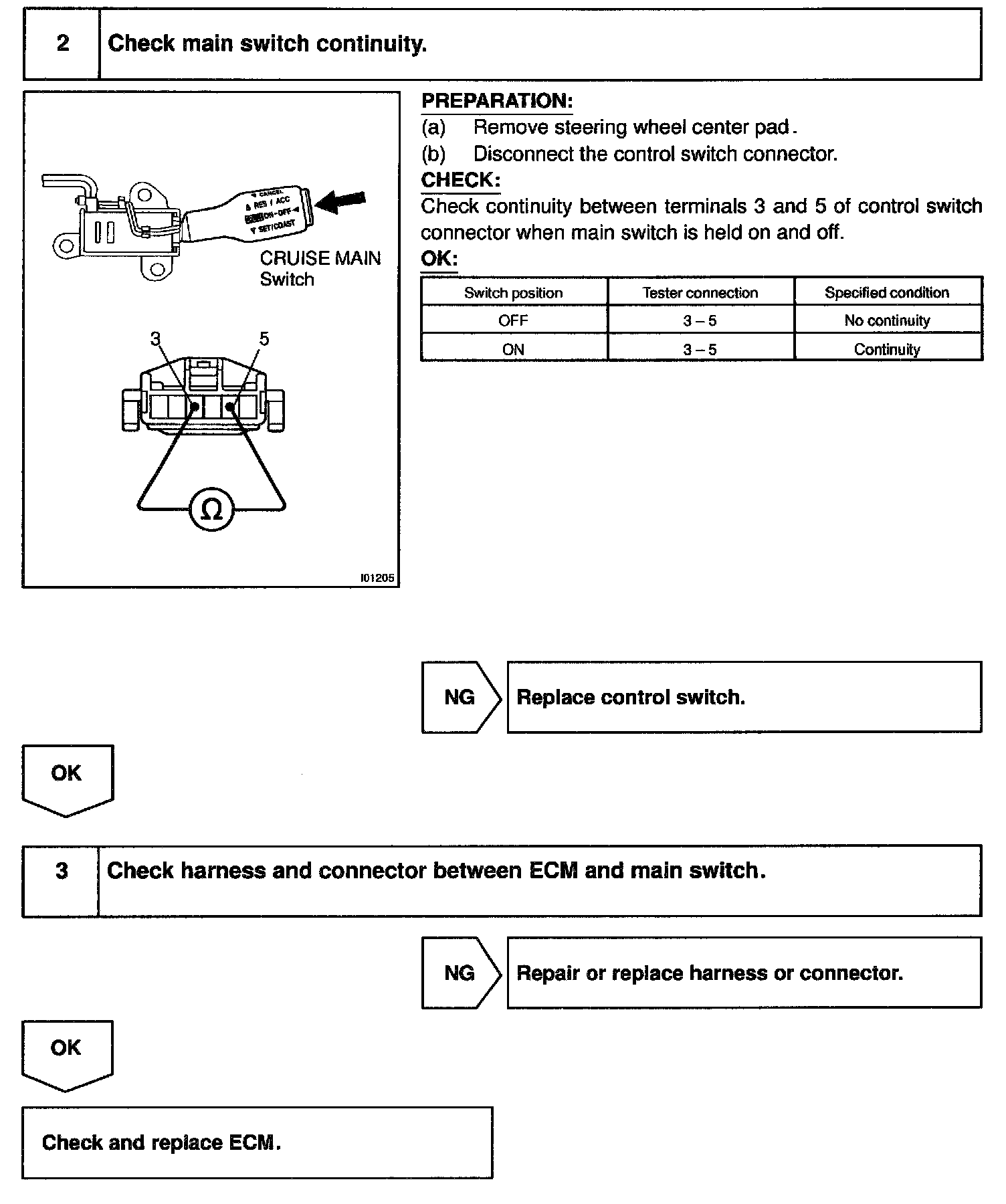

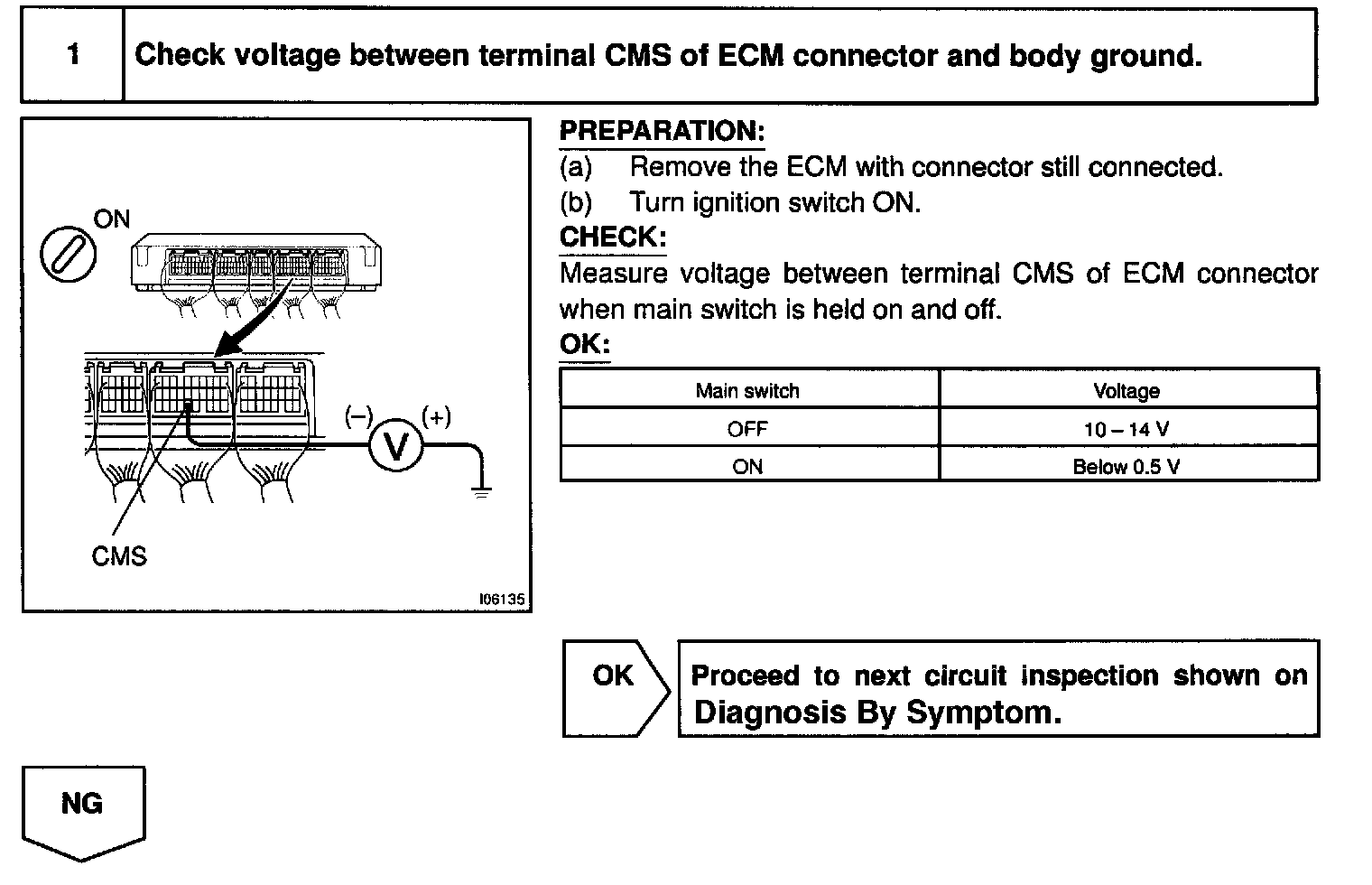

INSPECTION PROCEDURE
