Engine Compartment
Engine Compartment

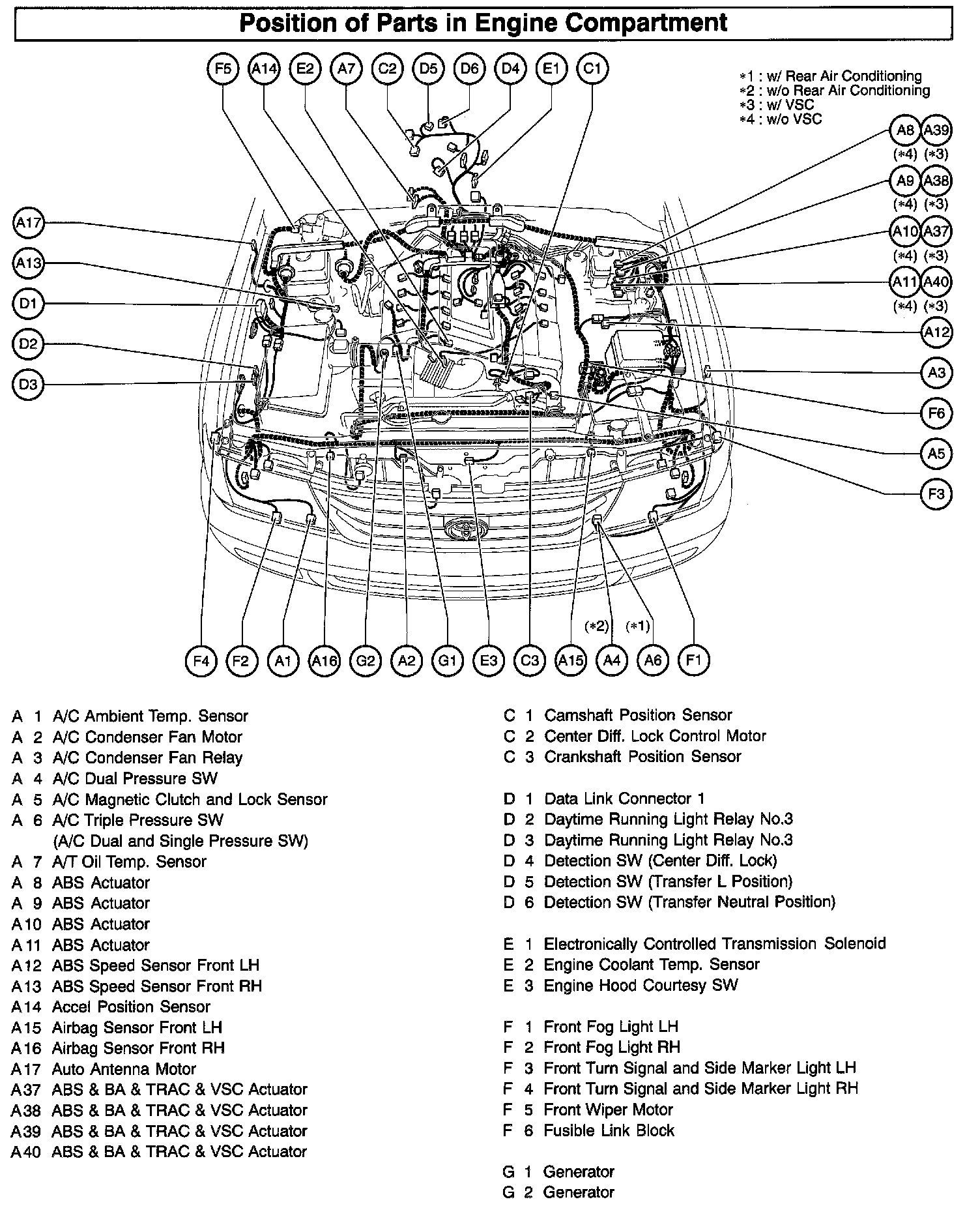

Position Of Parts In Engine Compartment (Part 1):

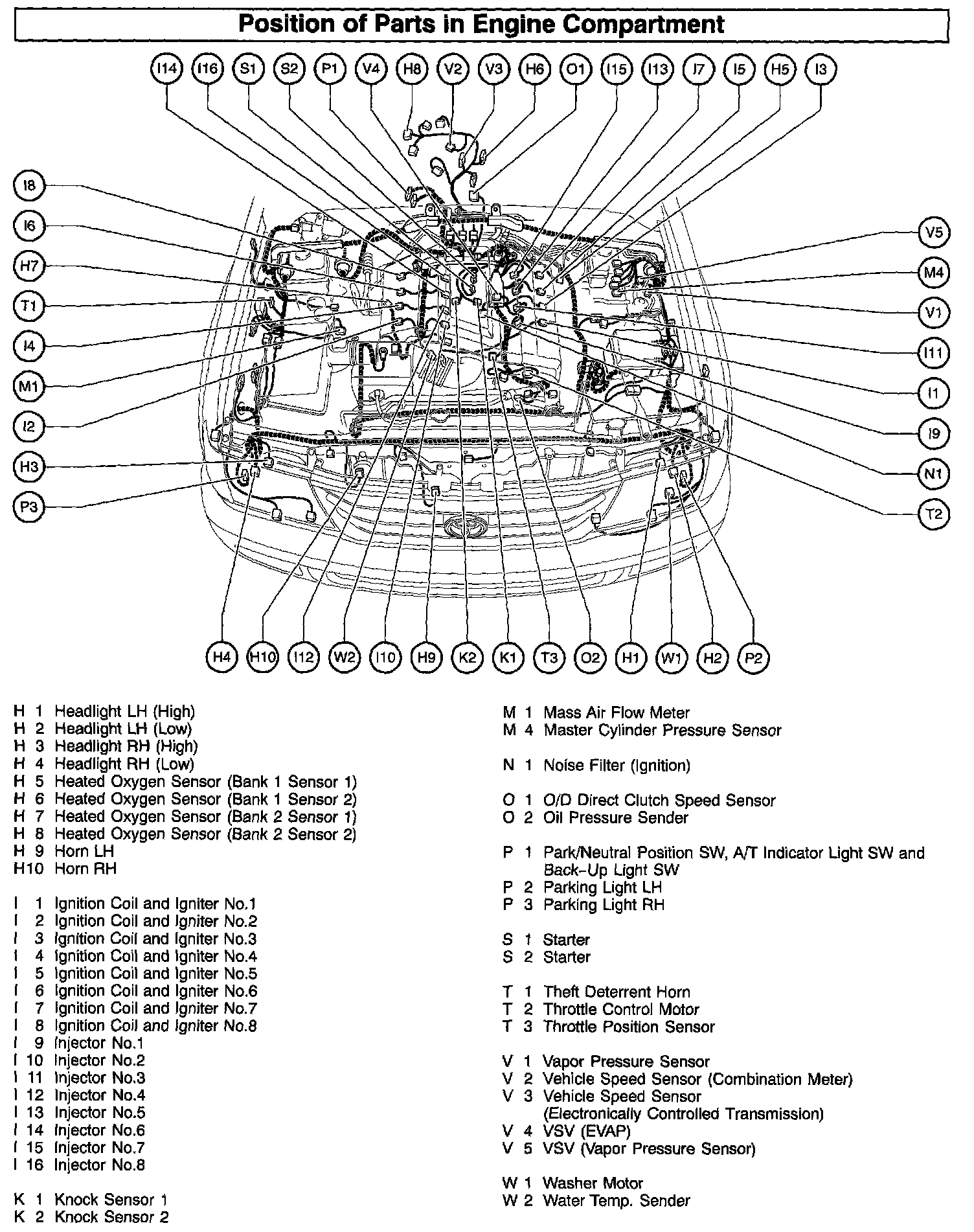

Position Of Parts In Engine Compartment (Part 2):
Engine Compartment:
