Control Module HVAC: Testing and Inspection

AIR CONDITIONING AMPLIFIER (for Rear A/C)

INSPECTION

1. REMOVE REAR DOOR SCUFF PLATE RH
2. REMOVE REAR FLOOR MAT SUPPORT PLATE
3. REMOVE QUARTER TRIM PANEL RH

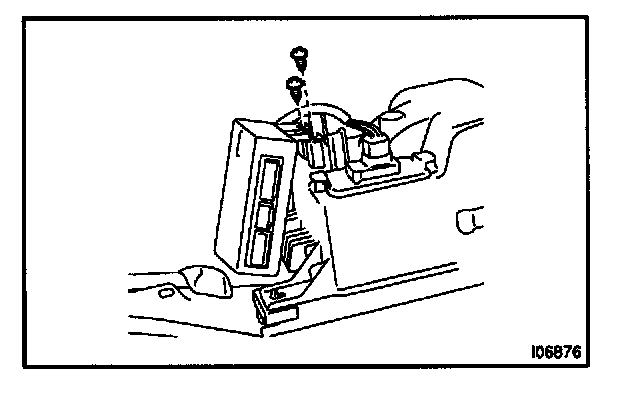

4. REMOVE A/C AMPLIFIER
a. Disconnect the connectors.
b. Remove the 2 screws and A/C amplifier.

5. INSPECT REAR A/C AMPLIFIER CIRCUIT

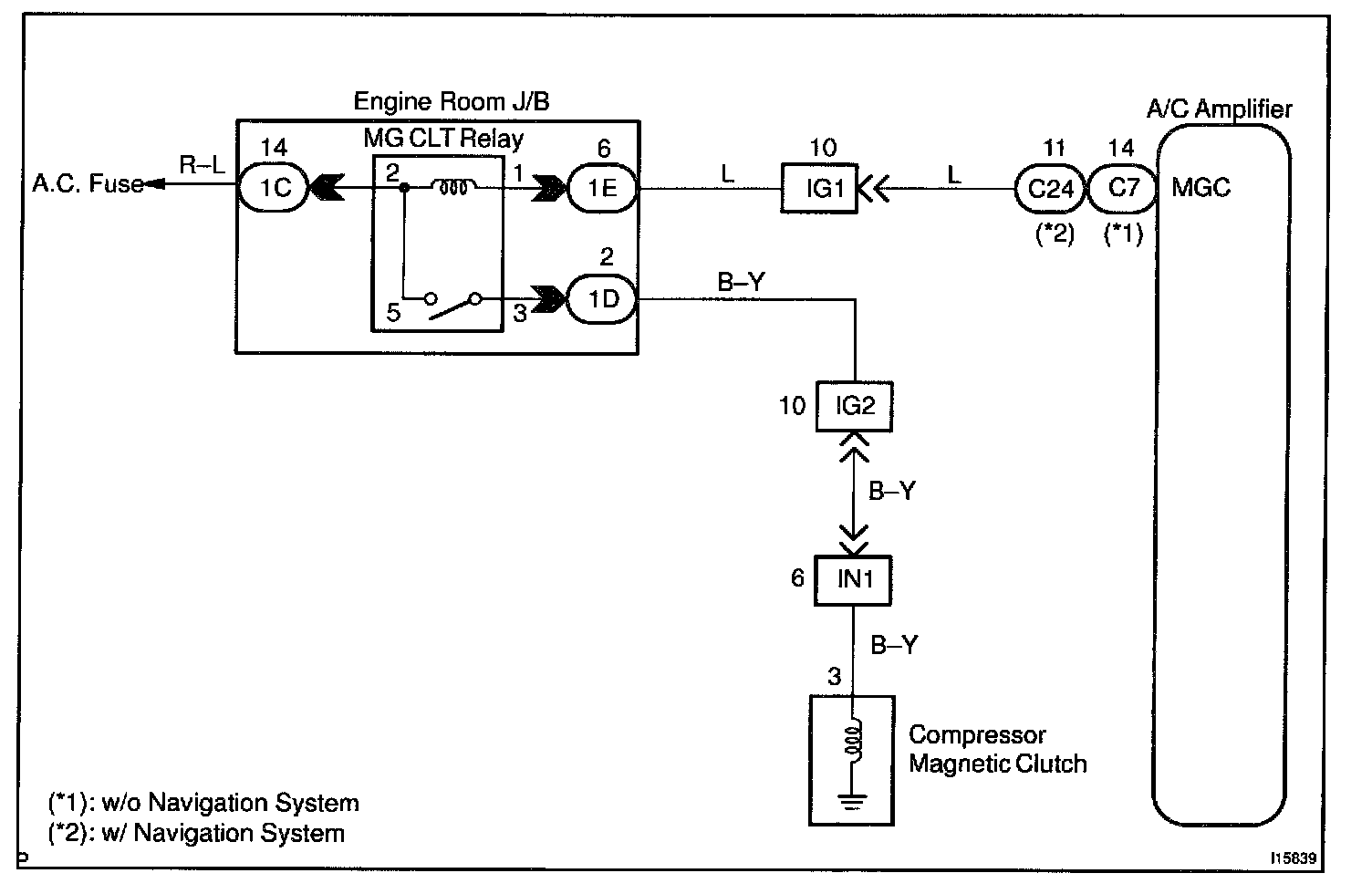

CIRCUIT DESCRIPTION
A/C amplifier switches the A/C magnetic clutch relay ON, thus turning the A/C compressor magnetic clutch ON.

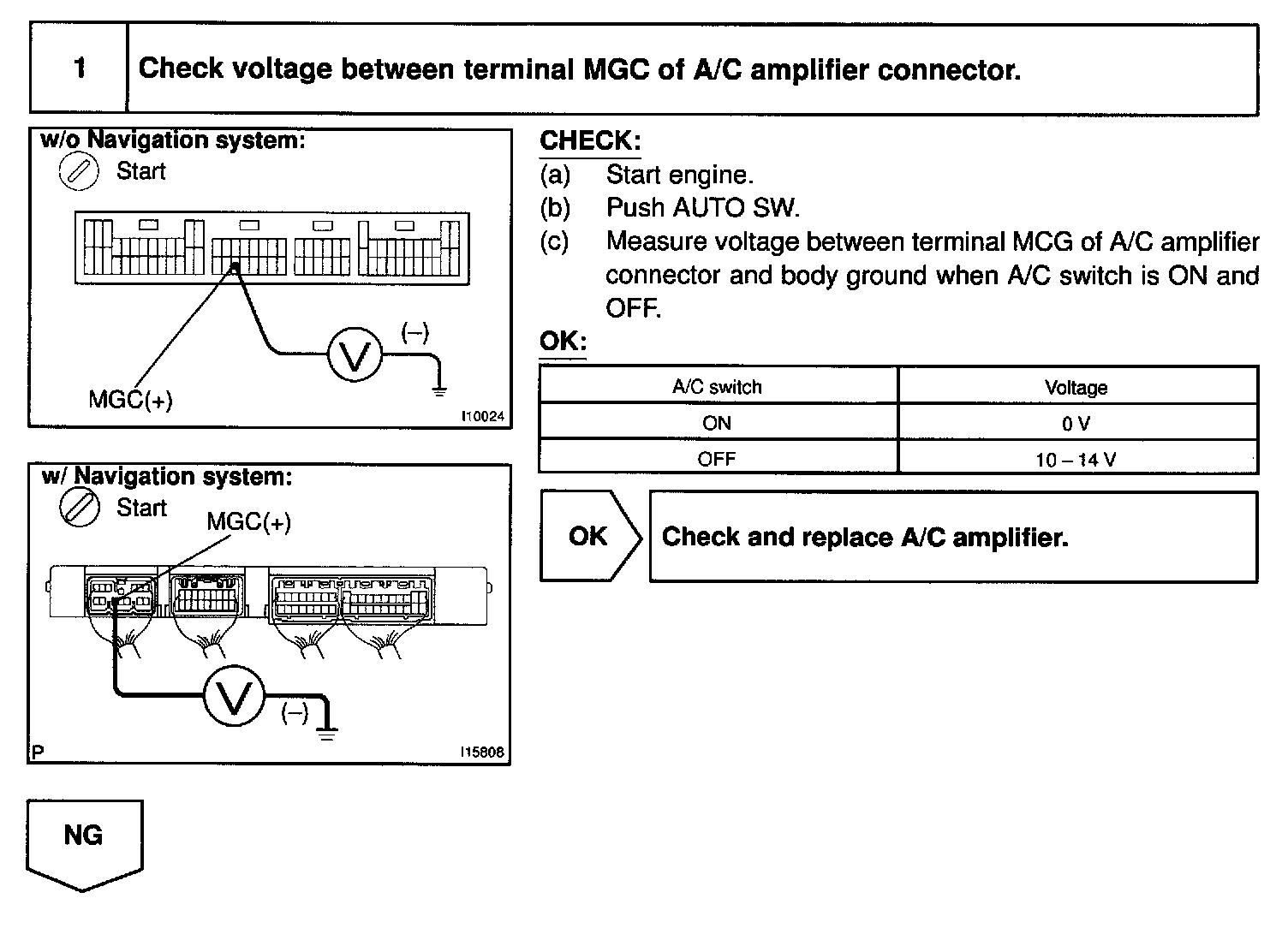

Step 1:

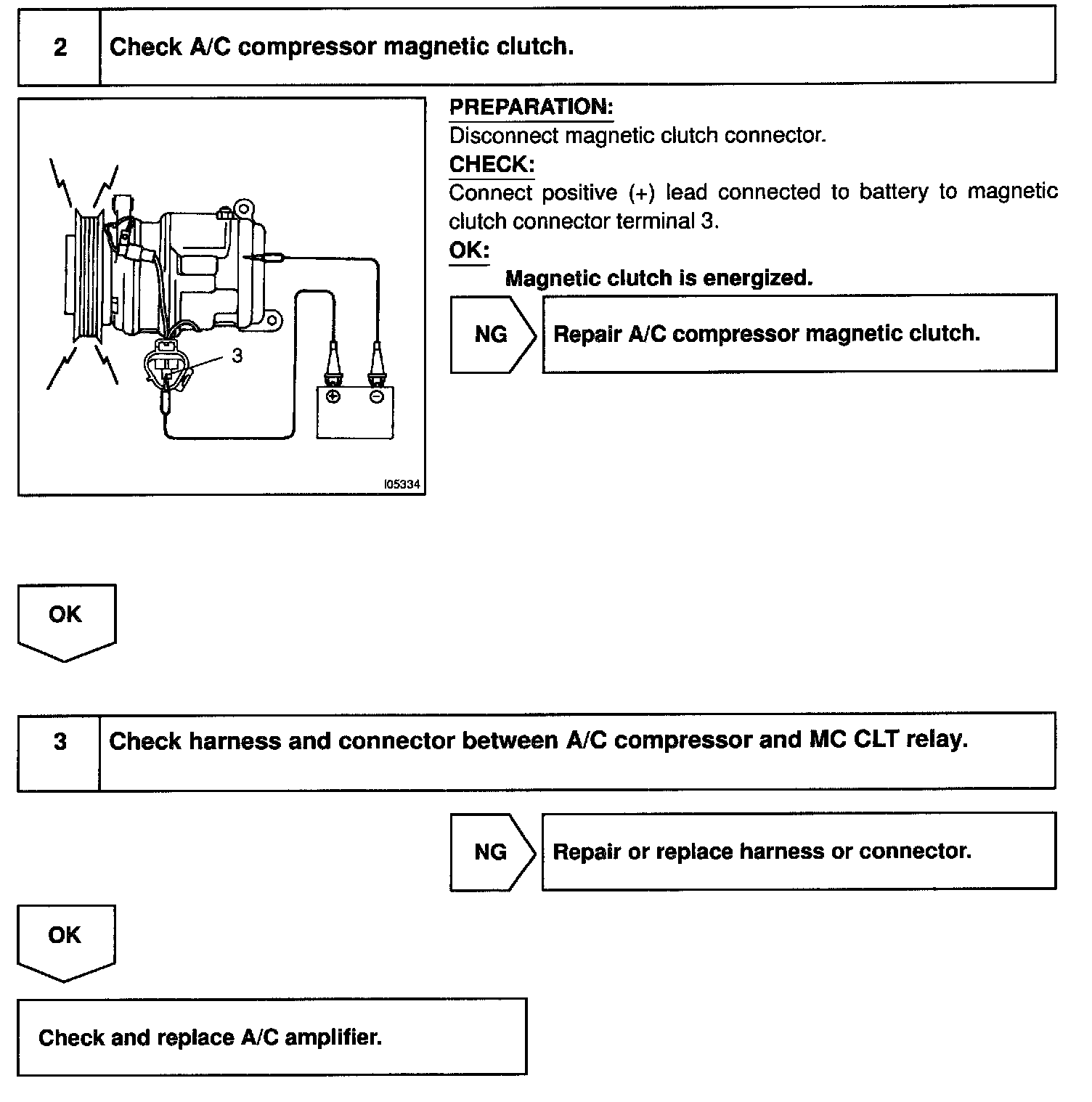

Steps 2 - 3:

INSPECTION PROCEDURE
