Throttle Position Sensor: Testing and Inspection

INSPECT THROTTLE POSITION SENSOR
a. Disconnect the throttle position sensor connector.

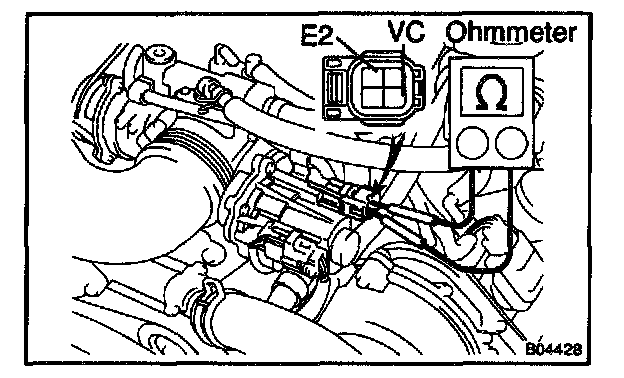

b. Using an ohmmeter, measure the resistance between terminals VC and E2.

Resistance: 1.25-2.35 ohm at 20°C (68°F) If the resistance is not as specified, replace the throttle position sensor.

c. Reconnect the throttle position sensor connector.
