Accelerator Pedal Position Sensor

Electric Throttle Control (Part 1):

Throttle Body (Part 2):

Throttle Position Sensor
Torque:....................2.0 N.m (20 kgf.cm, 18 in..lbf)

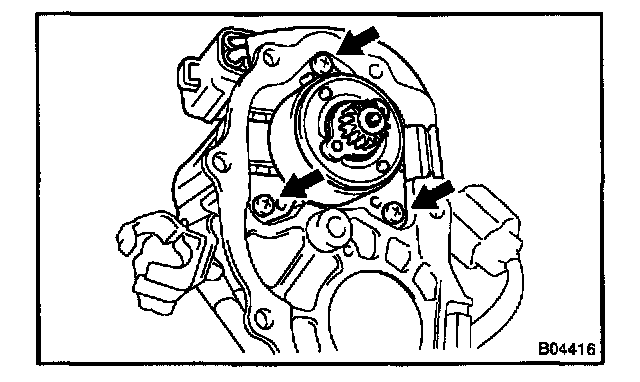

Throttle Control Motor with the 3 screws
Torque:...................3.4 N.m (35 kgf.cm, 30 in..lbf)

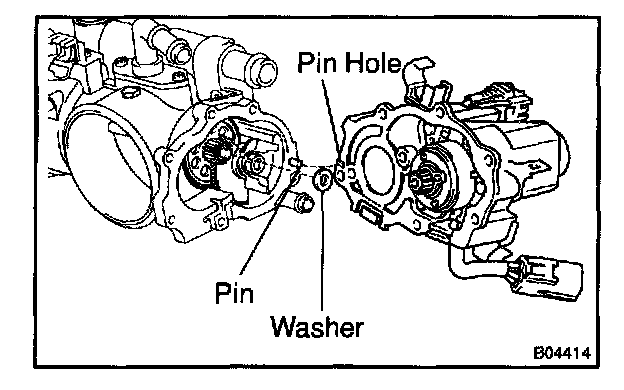

Throttle Control Motor Cover and Motor Assembly with the 6 screws
Torque:...................3.4 N.m (35 kgf.cm, 30 in..lbf)

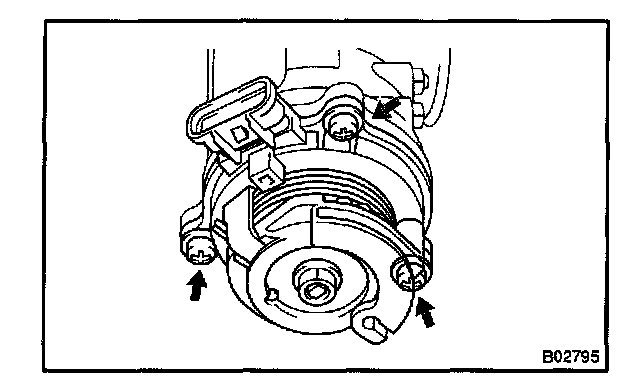

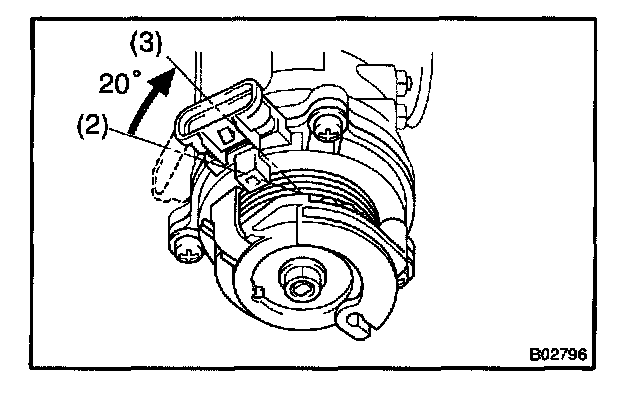

Accelerator Pedal Position Sensor.
Torque:....................5.4 N.m (55 kgf.cm, 48 in.. lbf)

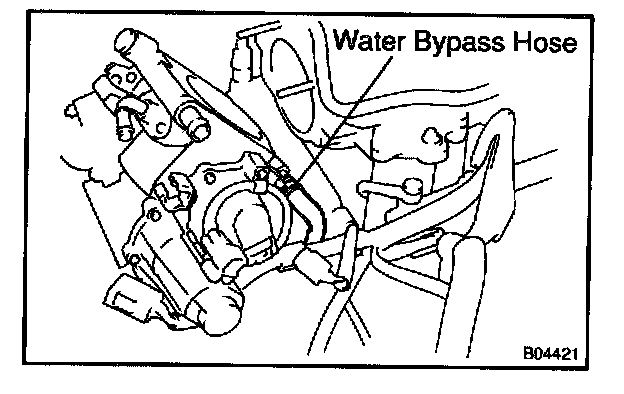

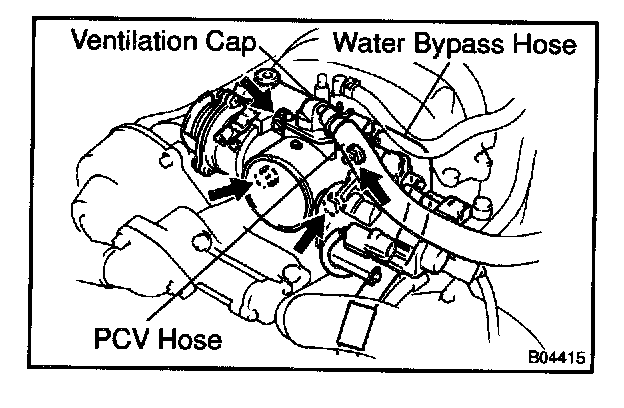

Throttle Body.
Torque:...................18 N.m (185 kgf.cm, 13 ft.lbf)
