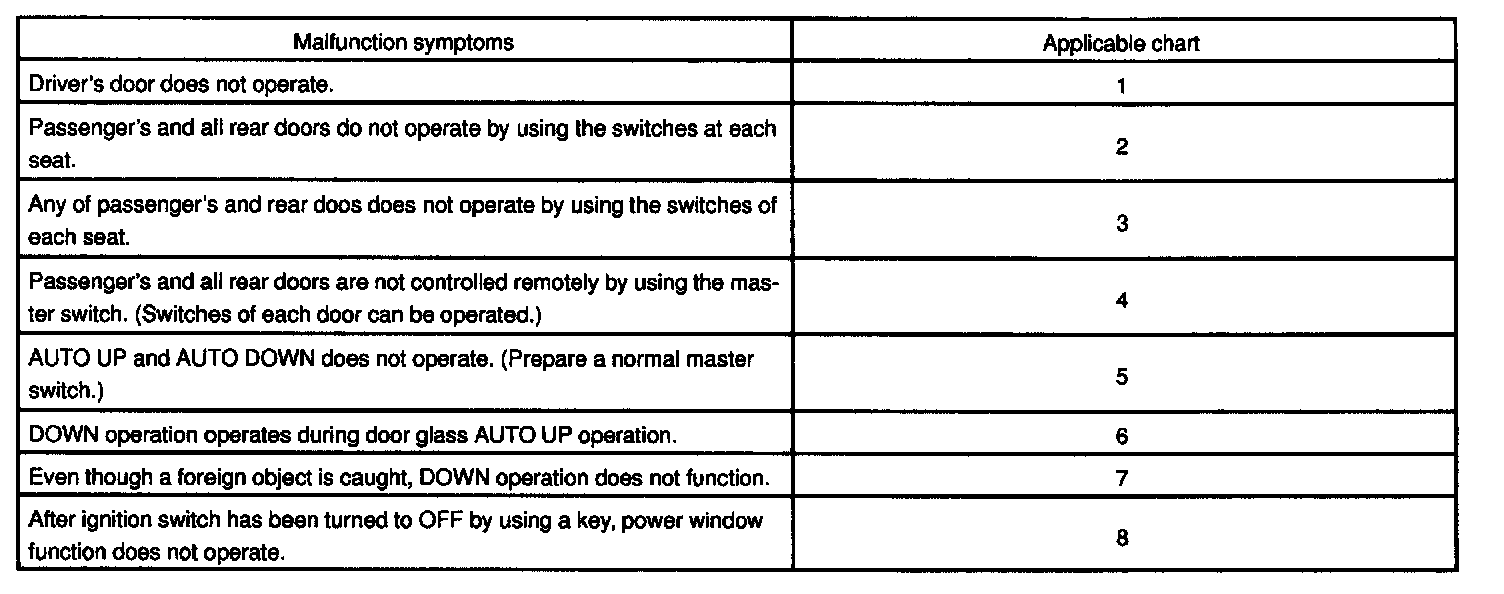

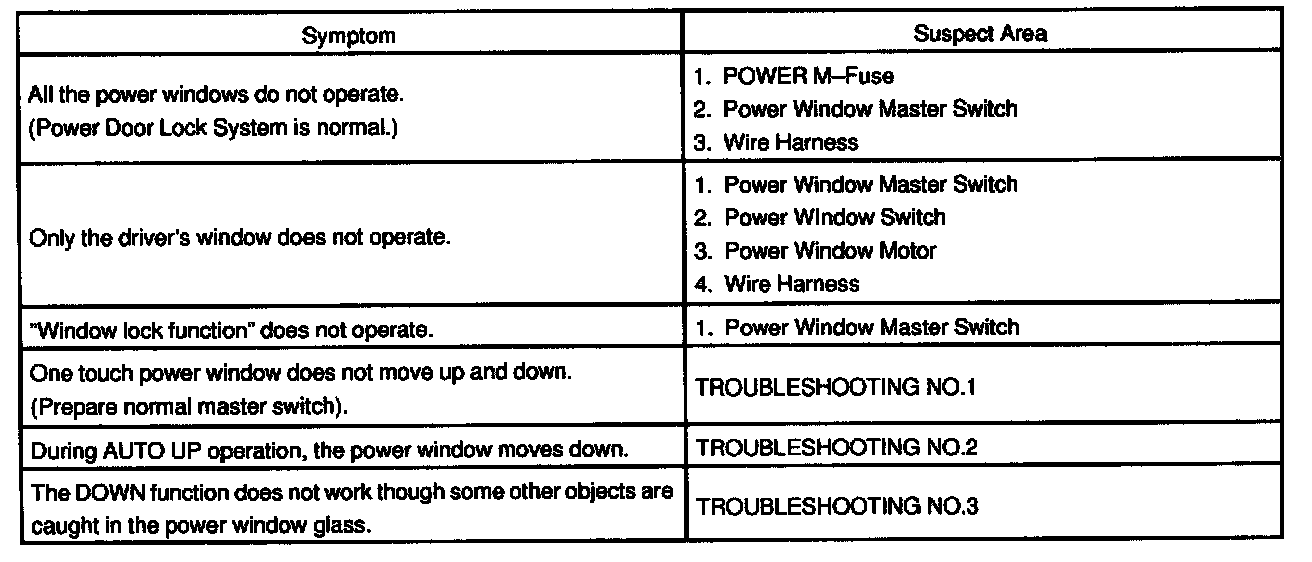

Problem Symptom Table

Power Window Control System:

Power Window Control System - Troubleshooting:

POWER WINDOW CONTROL SYSTEM:
This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.
