Engine Control Module
Engine Control Module

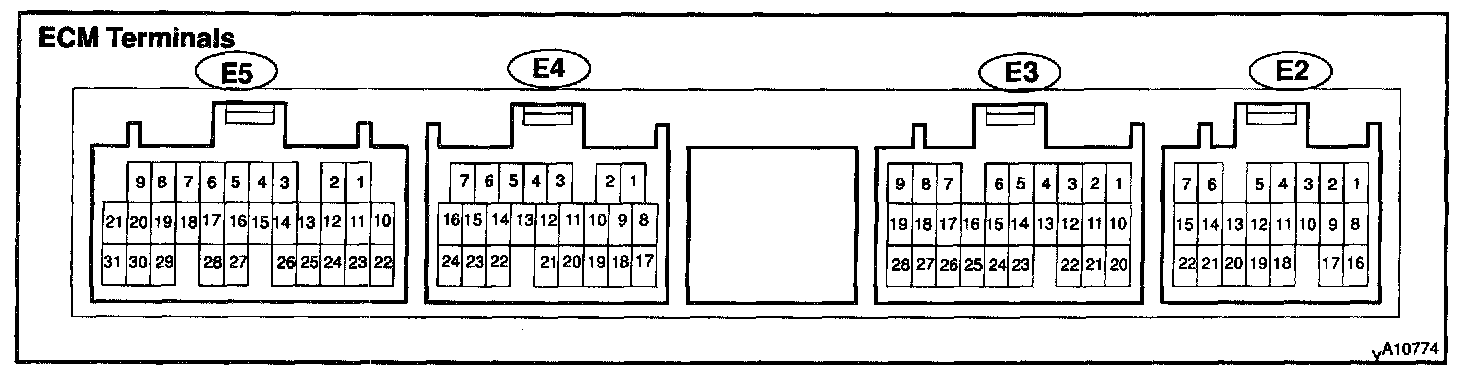

Terminals Of ECM - Connector View:

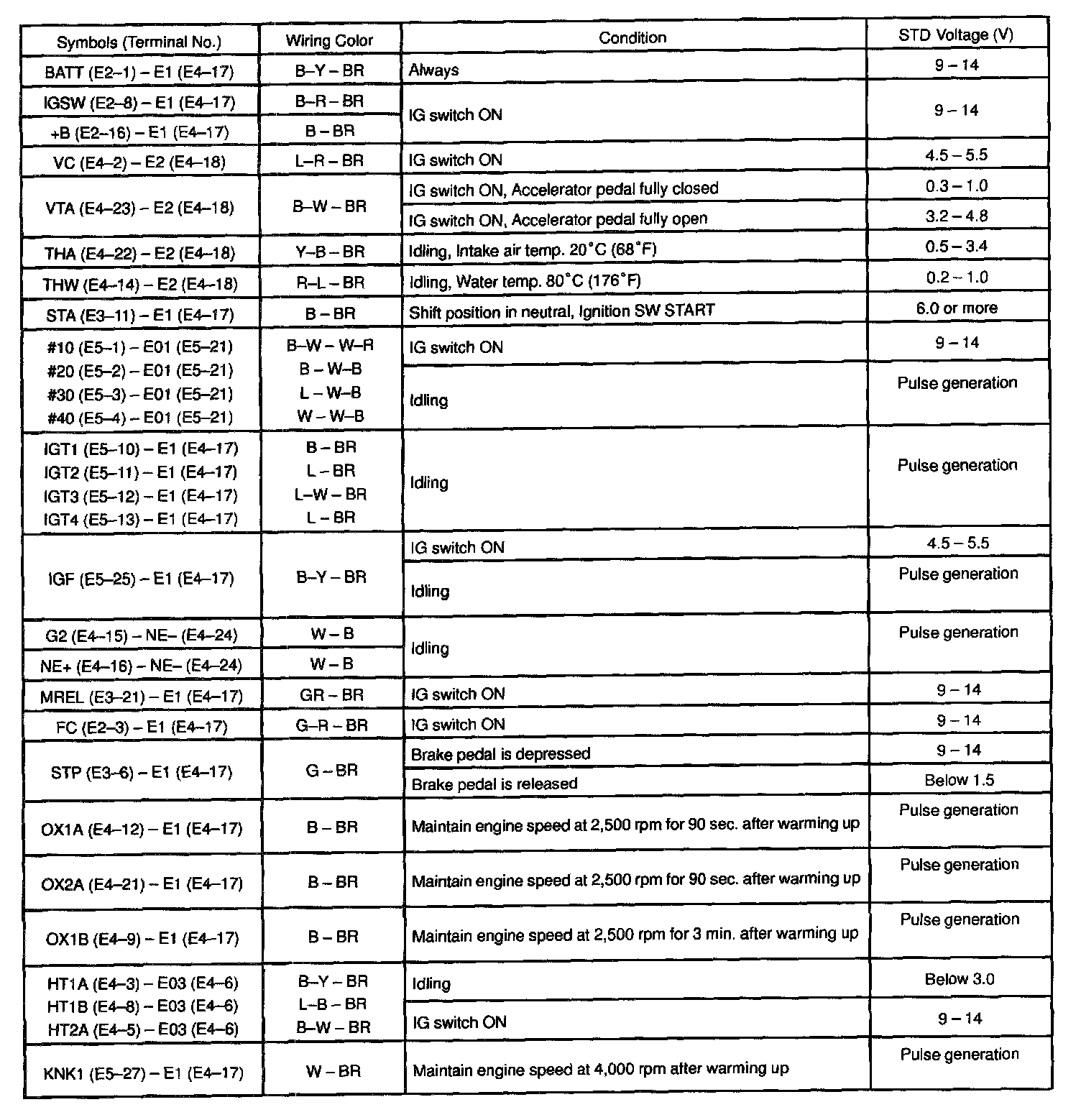

Terminals Of ECM - Pinouts (Part 1):

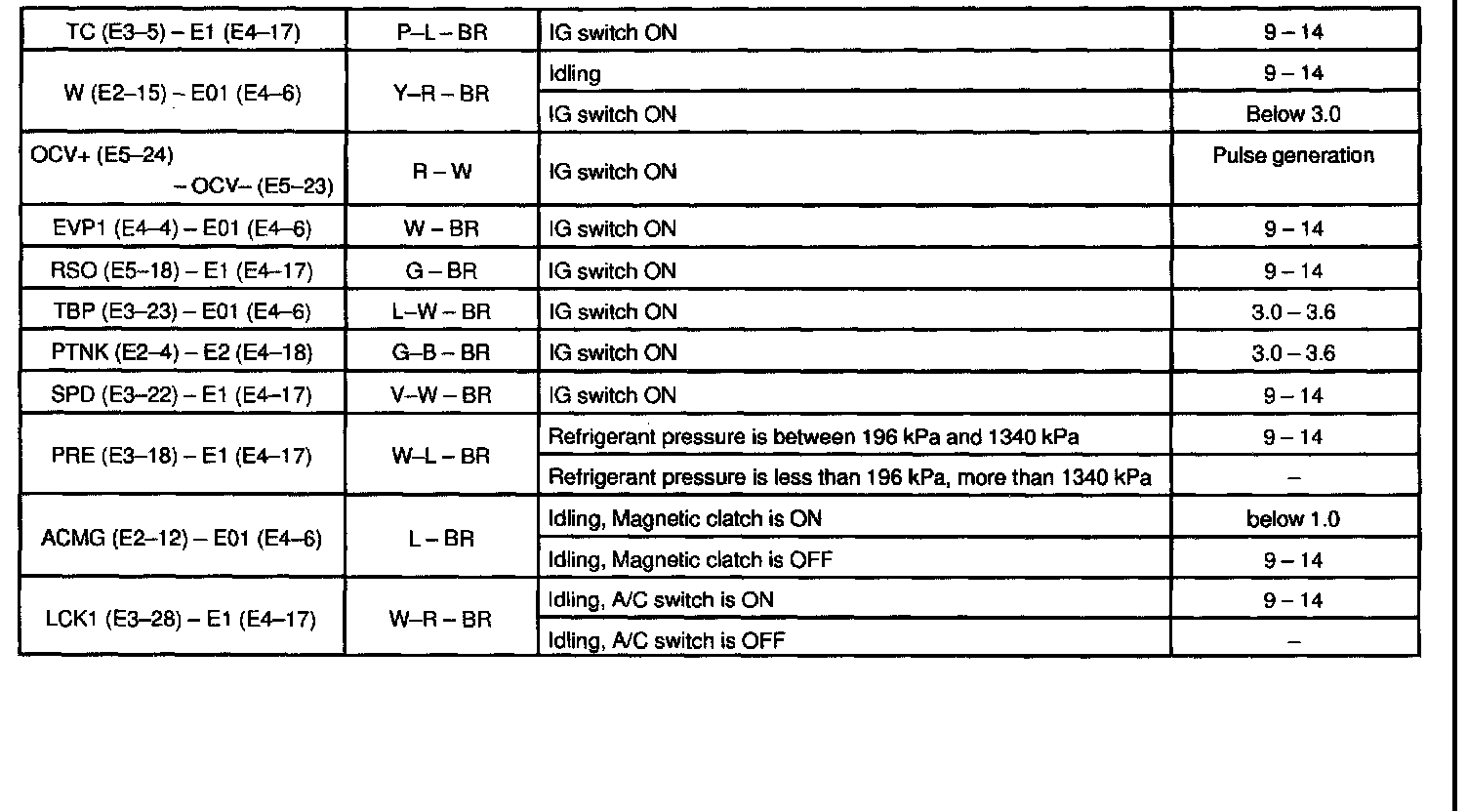

Terminals Of ECM - Pinouts (Part 2):
