Sequential Shift
>>
Shift Lever
Shift Lever

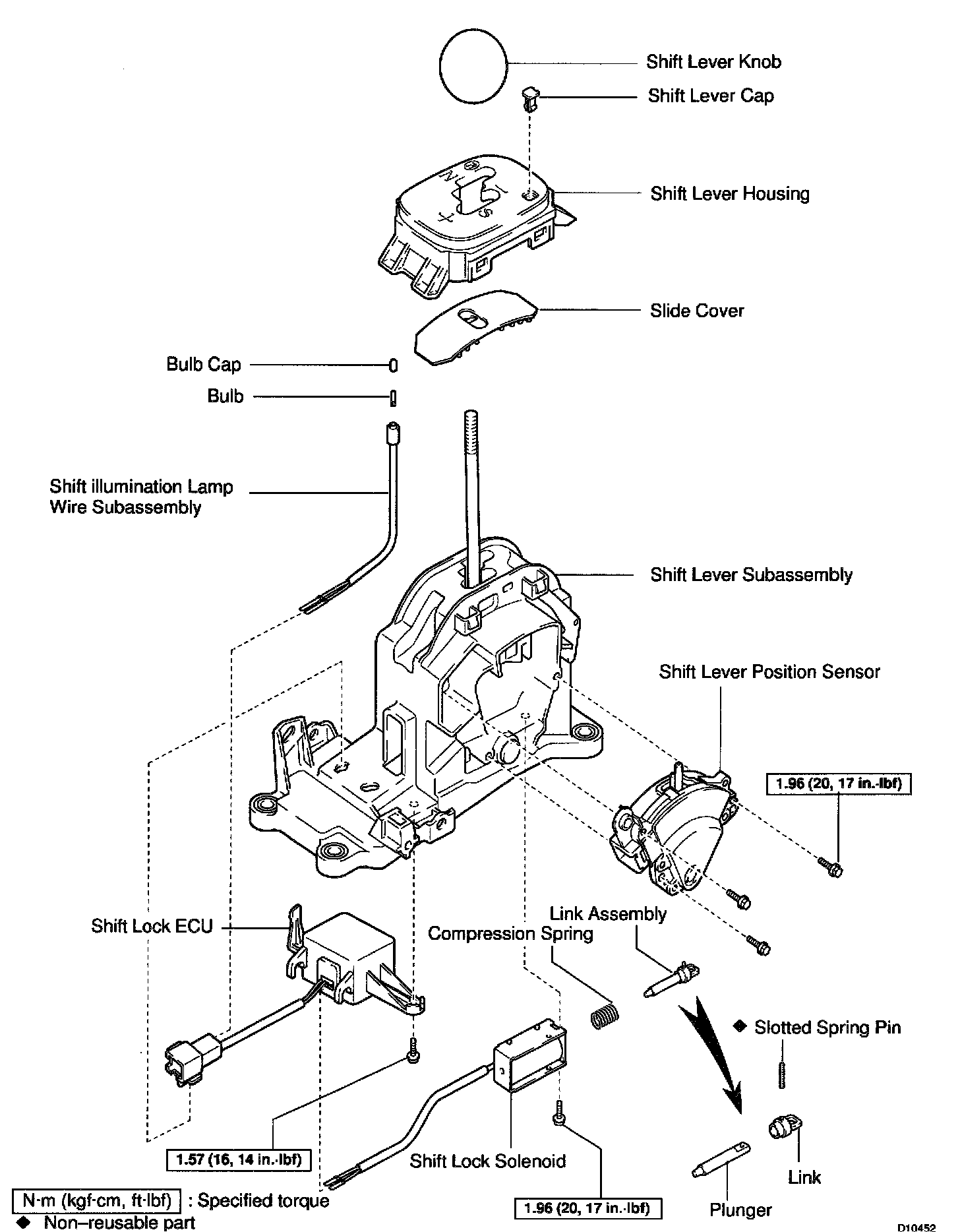

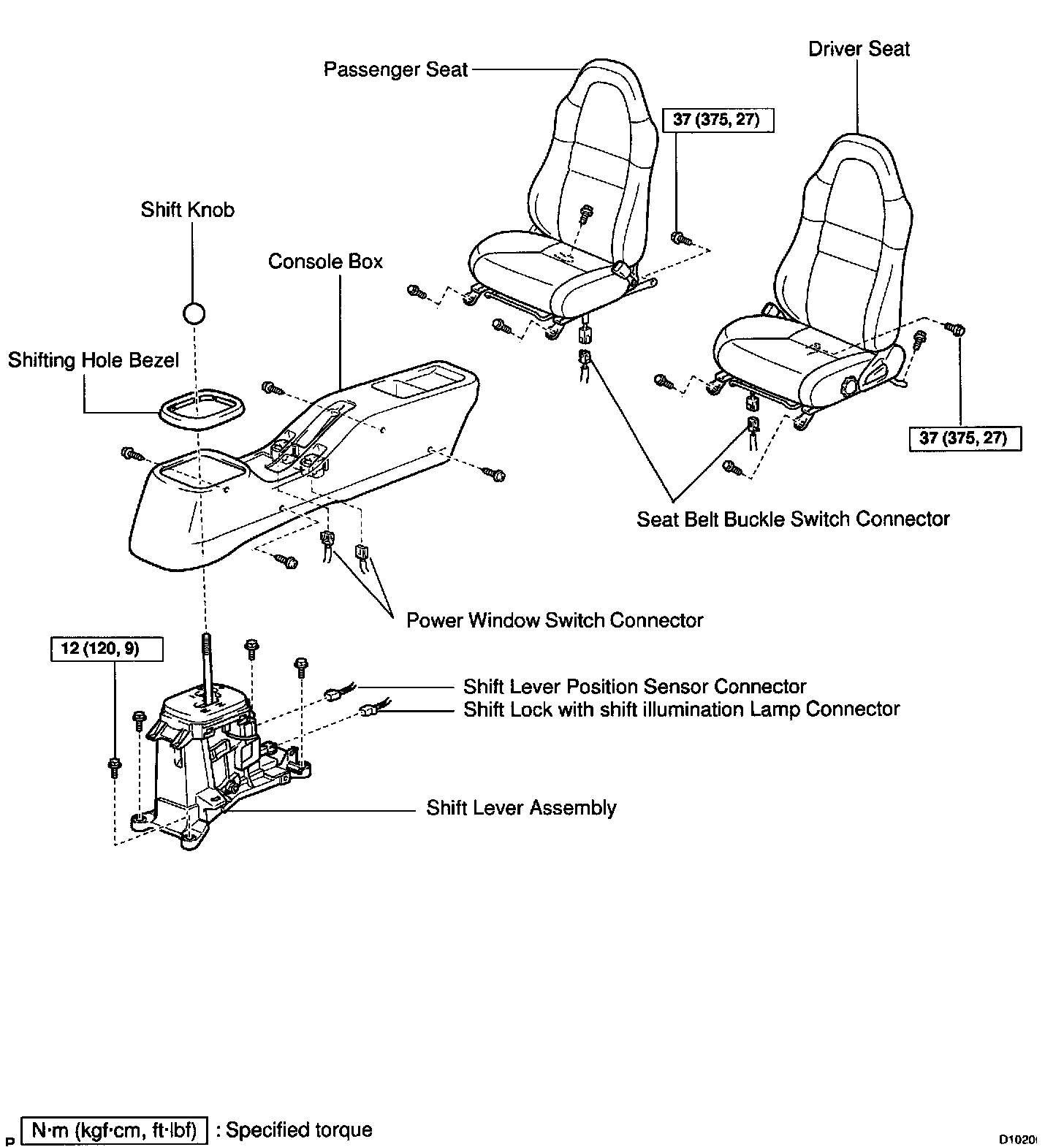

SHIFT LEVER REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
Part 1 of 2
Part 2 of 2
