Ground Locations

Engine Compartment:

Ground Location
EA Cylinder Head Rear LH
EB Engine Block LH
EC Engine Block LH
ED Cylinder Head Rear RH

Connector Location
EA1 Engine No. 4 Wire and Engine (Near the Generator)

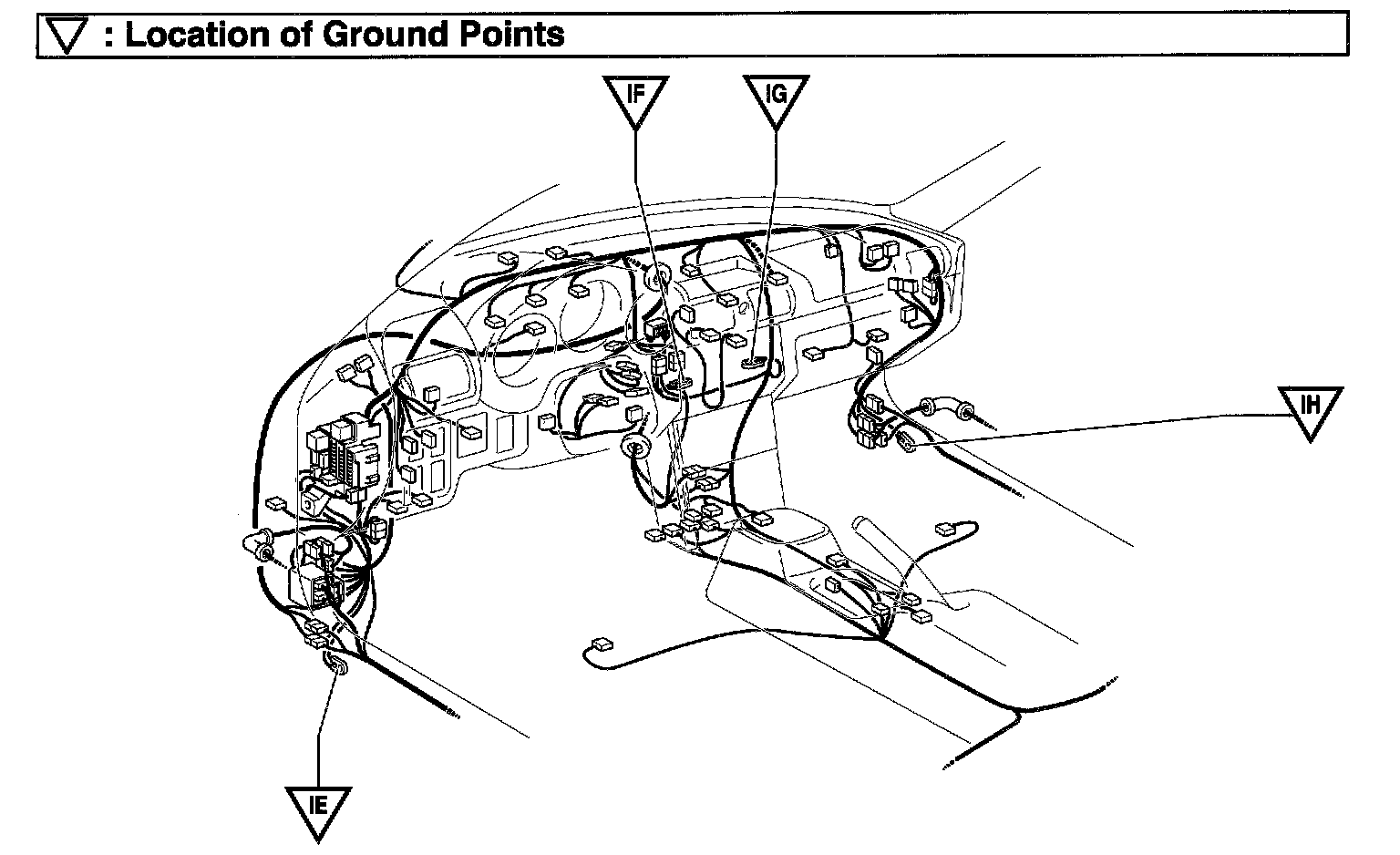

Instrument Panel / Console:

Ground Location
IE Left Kick Panel
IF Instrument Panel Brace LH
IG Instrument Panel Brace RH
IH Right Kick Panel

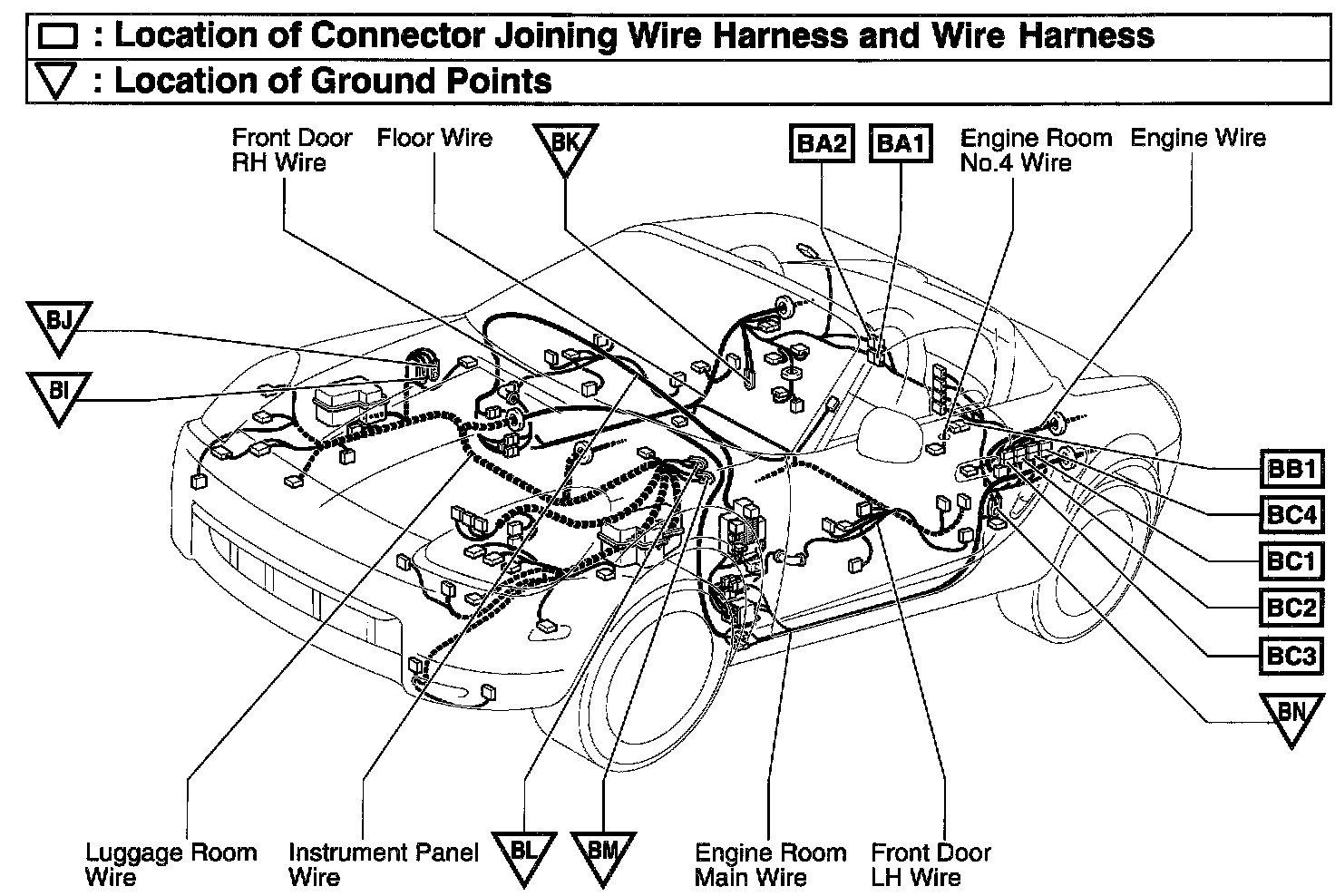

Body:

Ground Location
BI Cylinder Head Front RH
BJ Cylinder Head Front RH
BK Under the Center Pillar RH
BL Cylinder Head Front LH
BM Cylinder Head Front LH
BN Under the Center Pillar LH

Connector Location
BA1 Engine Room Main Wire and Floor Wire (Right Side of Room Partition Panel)
BA2 Engine Room Main Wire and Floor Wire (Right Side of Room Partition Panel)
BB1 Engine Room No. 4 Wire and Engine Room Main Wire (Left Side of Room Partition Panel)
BC1 Engine Wire and Engine Room Main Wire (Quarter Panel LH)
BC2 Engine Wire and Engine Room Main Wire (Quarter Panel LH)
BC3 Engine Wire and Engine Room Main Wire (Quarter Panel LH)
BC4 Engine Wire and Engine Room Main Wire (Quarter Panel LH)
