Splice Locations

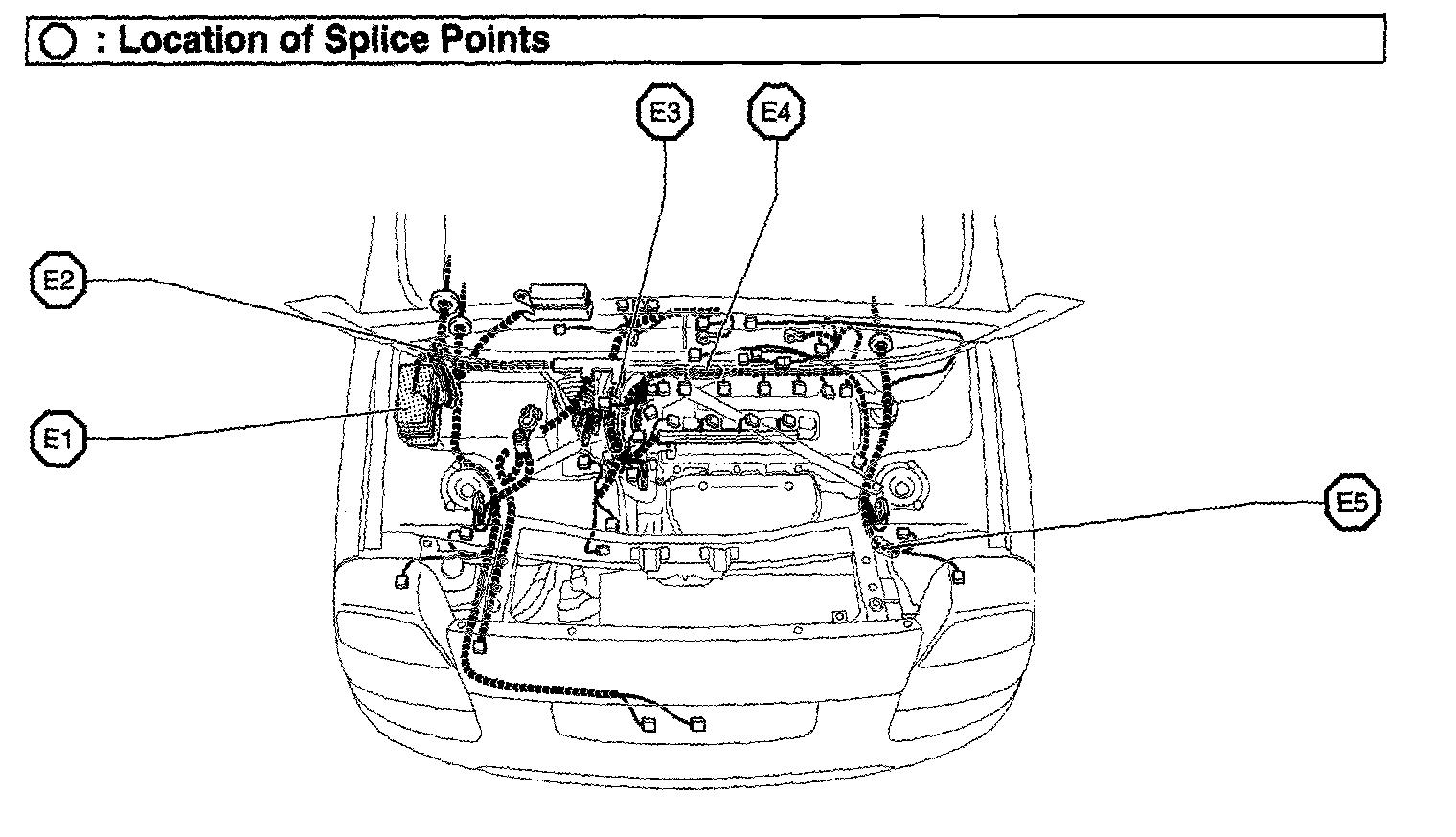

Engine Compartment:

Splice Location
E1 Engine Room Main Wire
E2 Engine Wire
E3 Engine Wire
E4 Engine Wire
E5 Floor Wire

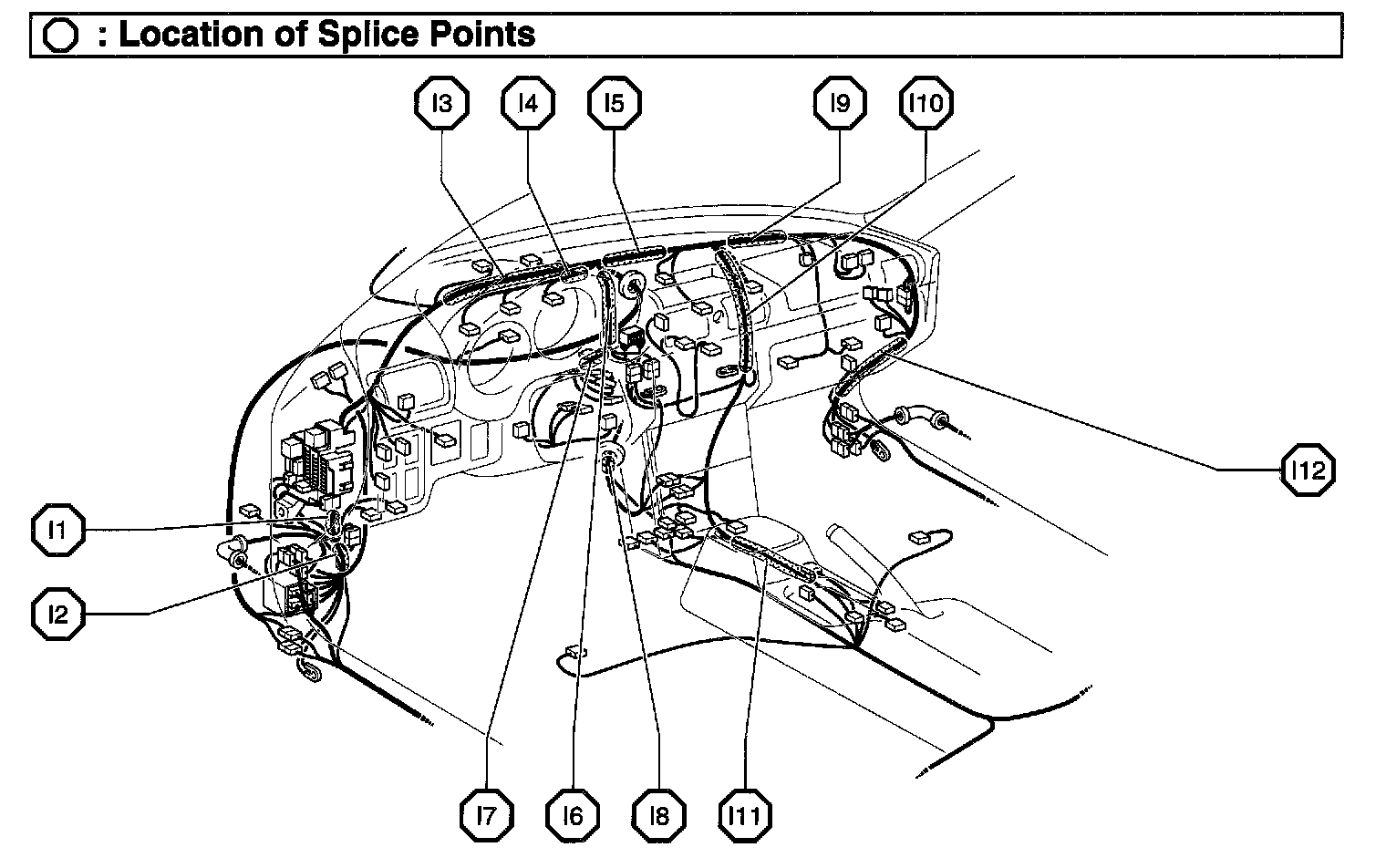

Instrument Panel / Console:

Splice Location
I1 Instrument Panel Wire
I2 Instrument Panel Wire
I3 Instrument Panel Wire
I4 Instrument Panel Wire
I5 Instrument Panel Wire
I6 Instrument Panel Wire
I7 Instrument Panel Wire
I8 Luggage Room Wire
I9 Instrument Panel Wire
I10 Instrument Panel Wire
I11 Instrument Panel Wire
I12 Instrument Panel Wire

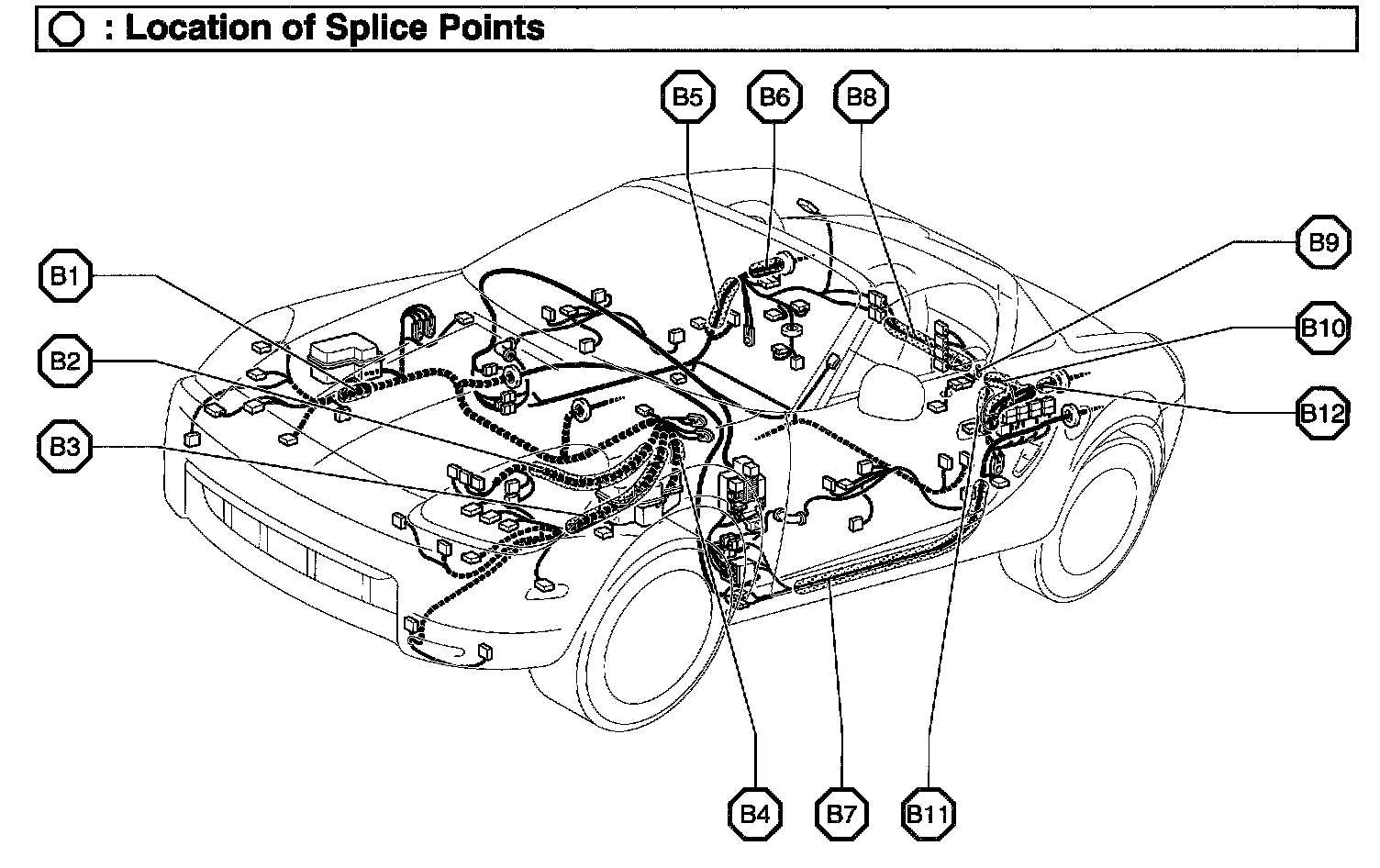

Location Of Splice Points:

Splice Location
B1 Luggage Room Wire
B2 Luggage Room Wire
B3 Luggage Room Wire
B4 Luggage Room Wire
B5 Floor Wire
B6 Floor Wire
B7 Engine Room Main Wire
B8 Engine Room Main Wire
B9 Engine Room Main Wire
B10 Engine Wire
B11 Engine Room Main Wire
B12 Engine Wire
