Main Relay (Computer/Fuel System): Locations

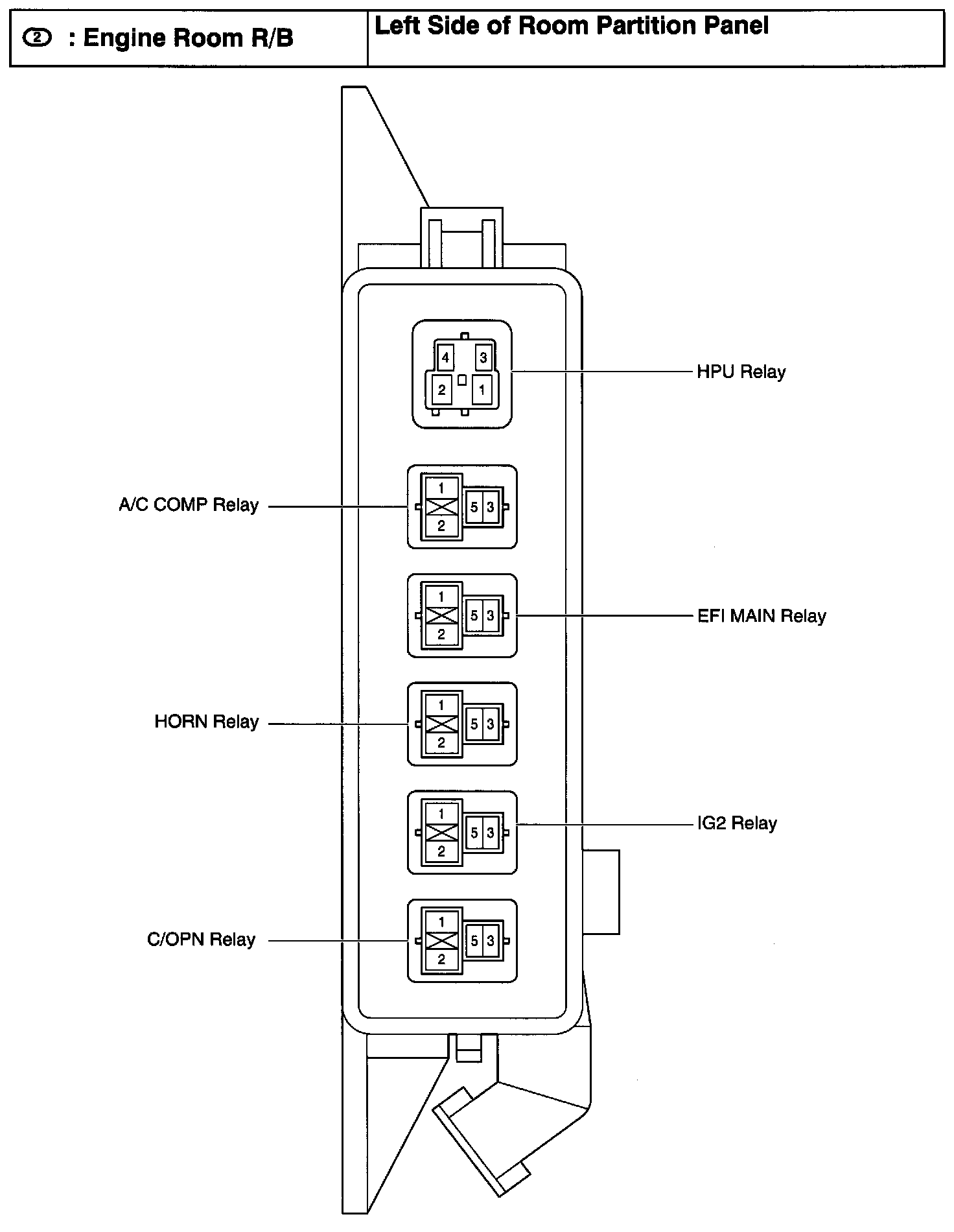

Engine Room R/B:

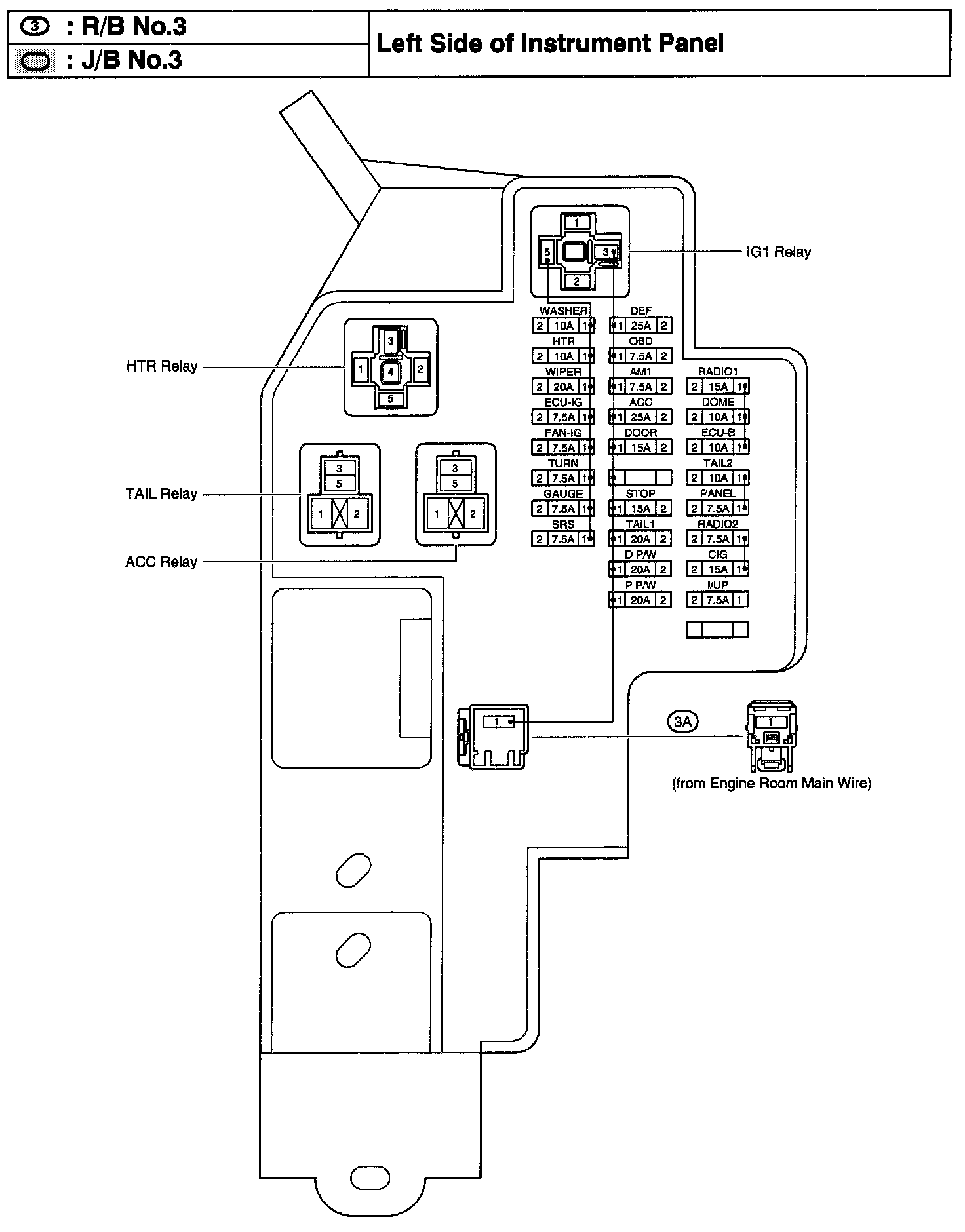

R/B No.3 - J/B No.3:

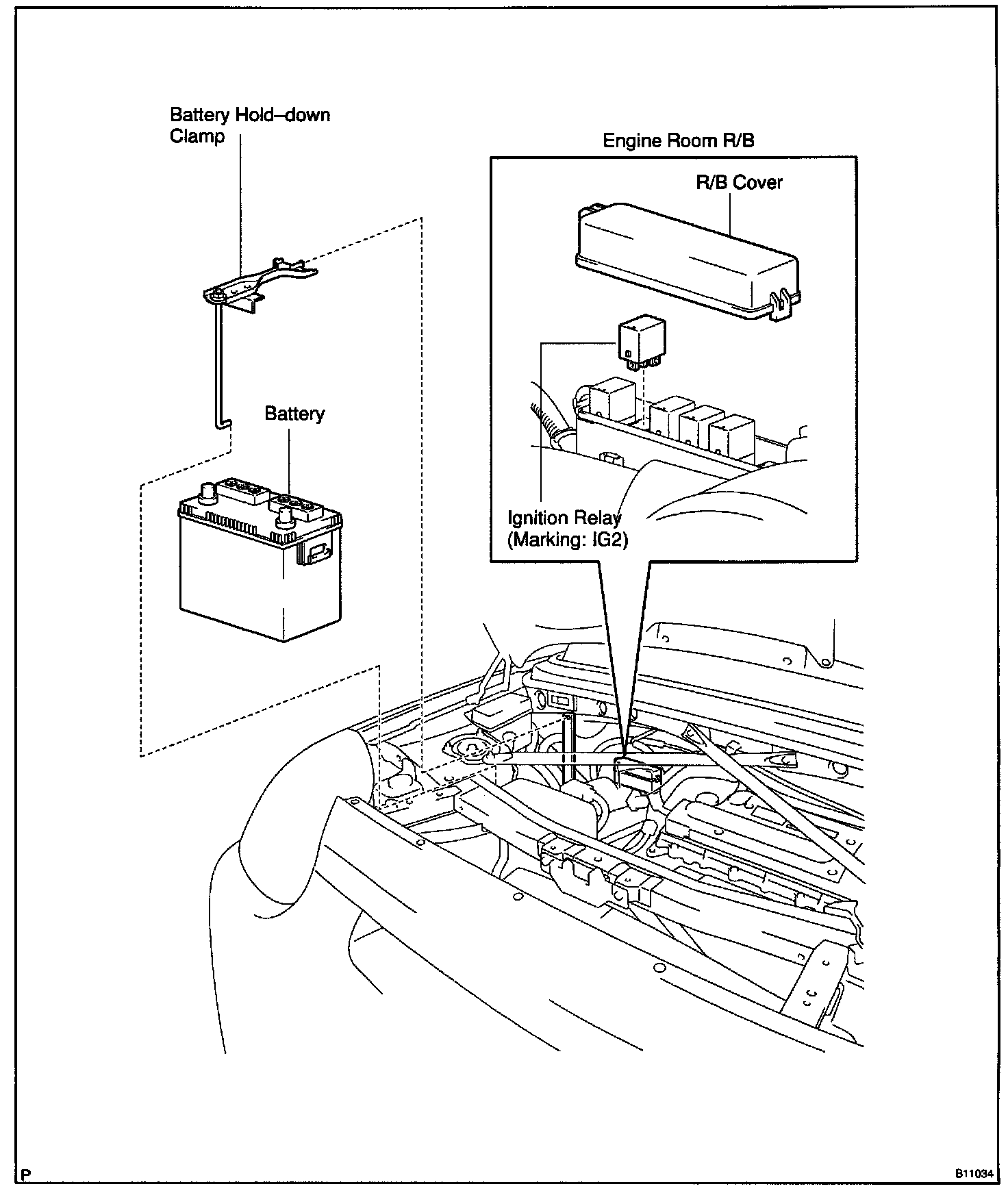

Ignition Relay (No.2):
