Door Lock Control Switch Circuit

CIRCUIT DESCRIPTION

The door lock control switch is ON when the door lock knob is in the lock position and OFF when the lock knob is in the unlock position.

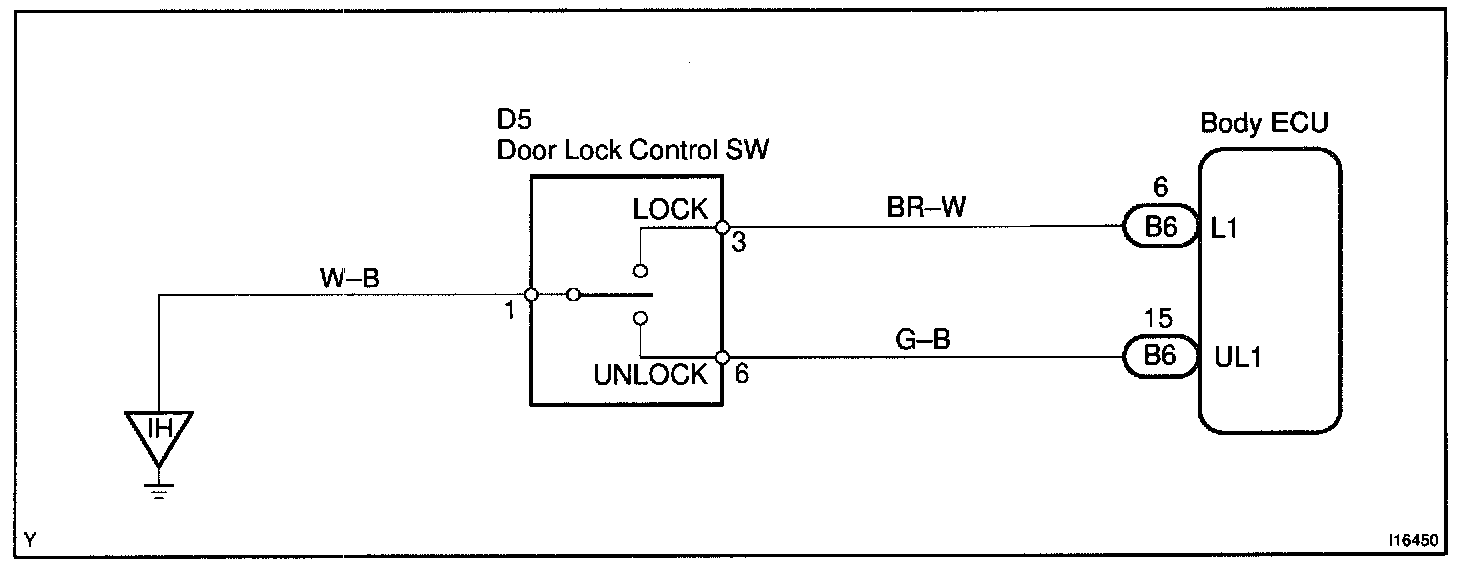

Wiring Diagram:

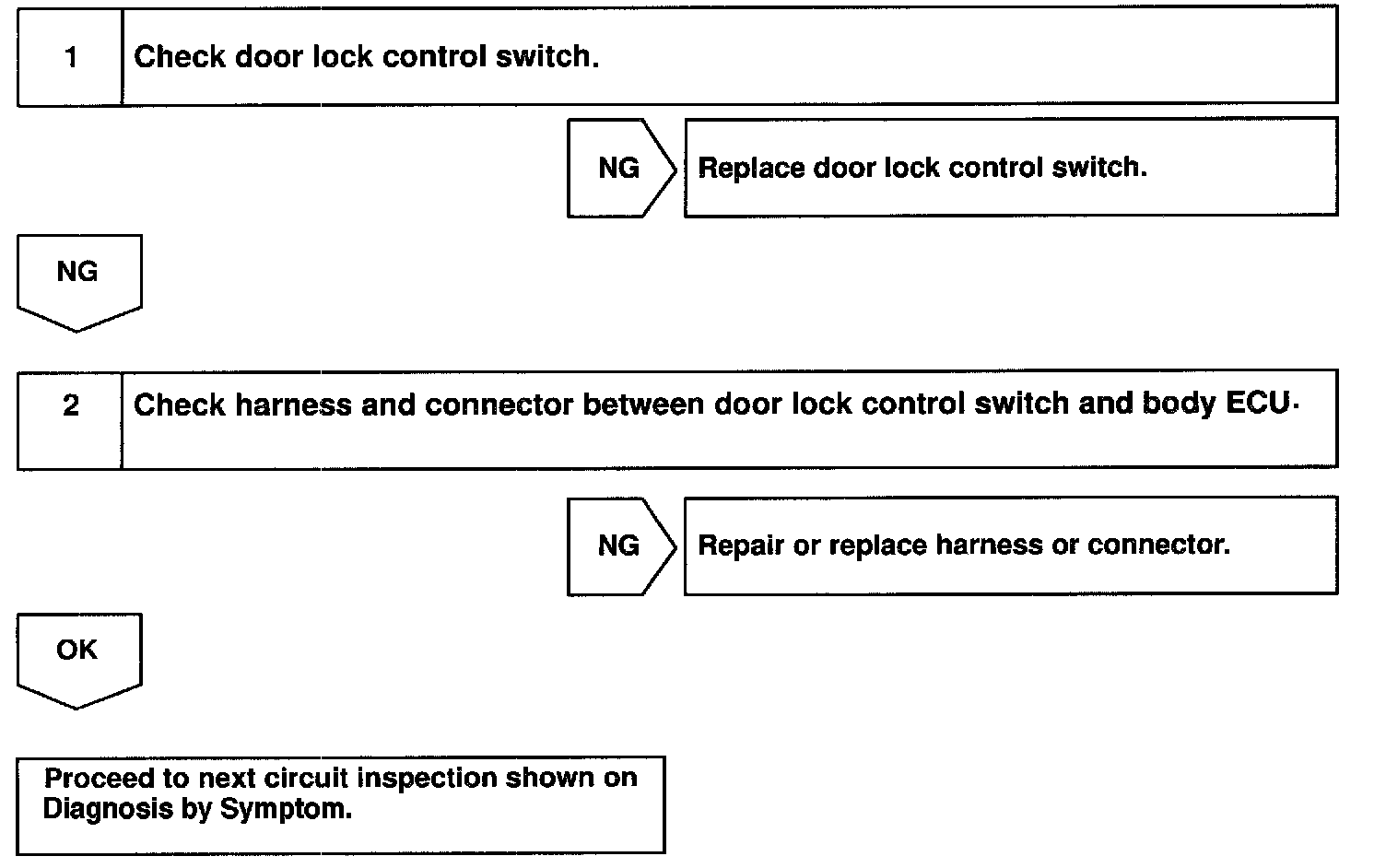

Steps 1 - 2:




INSPECTION PROCEDURE
