Power Window Control Switch Circuit

CIRCUIT DESCRIPTION

This circuit detects the state of the power window control switch.

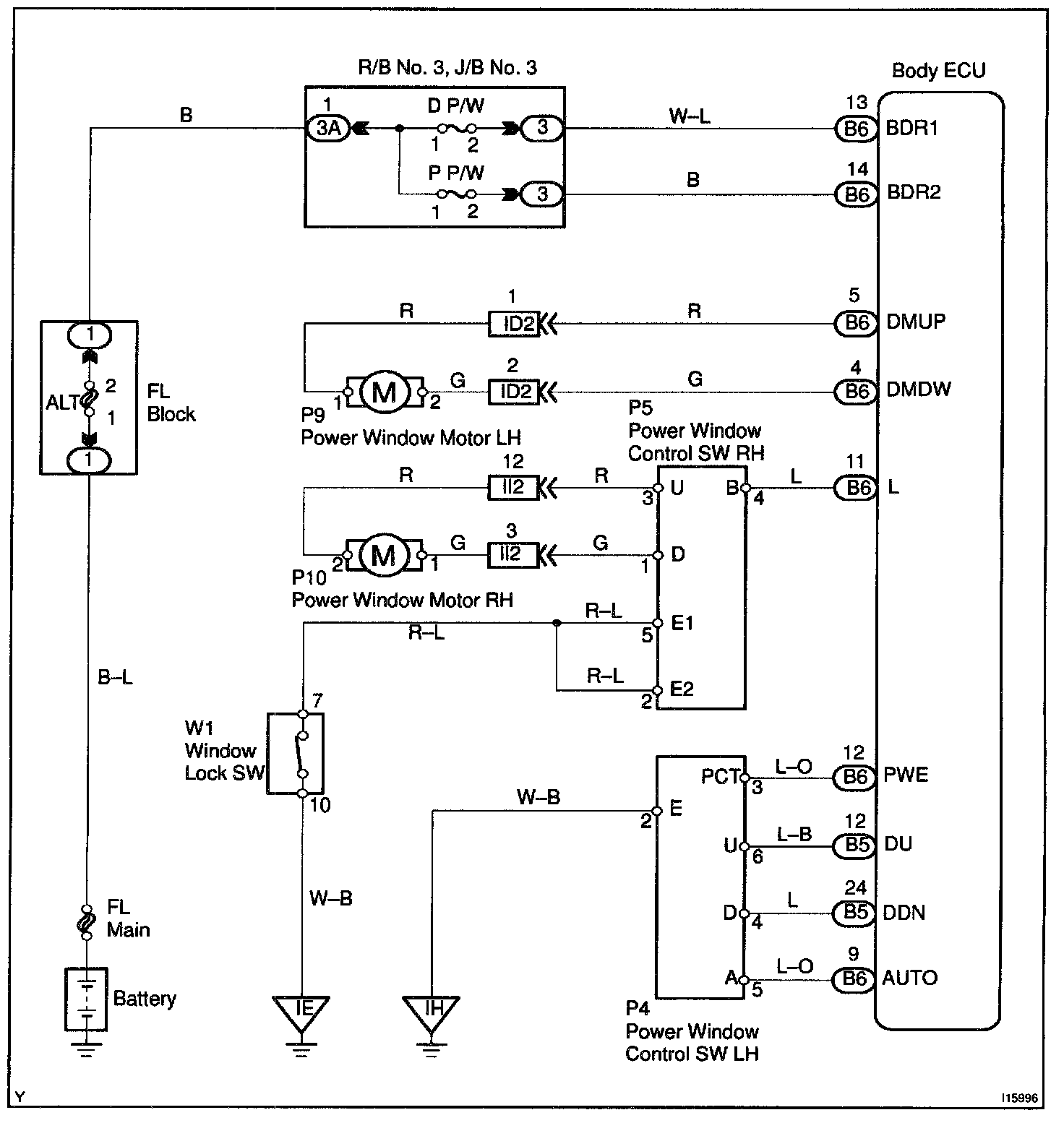

Wiring Diagram:

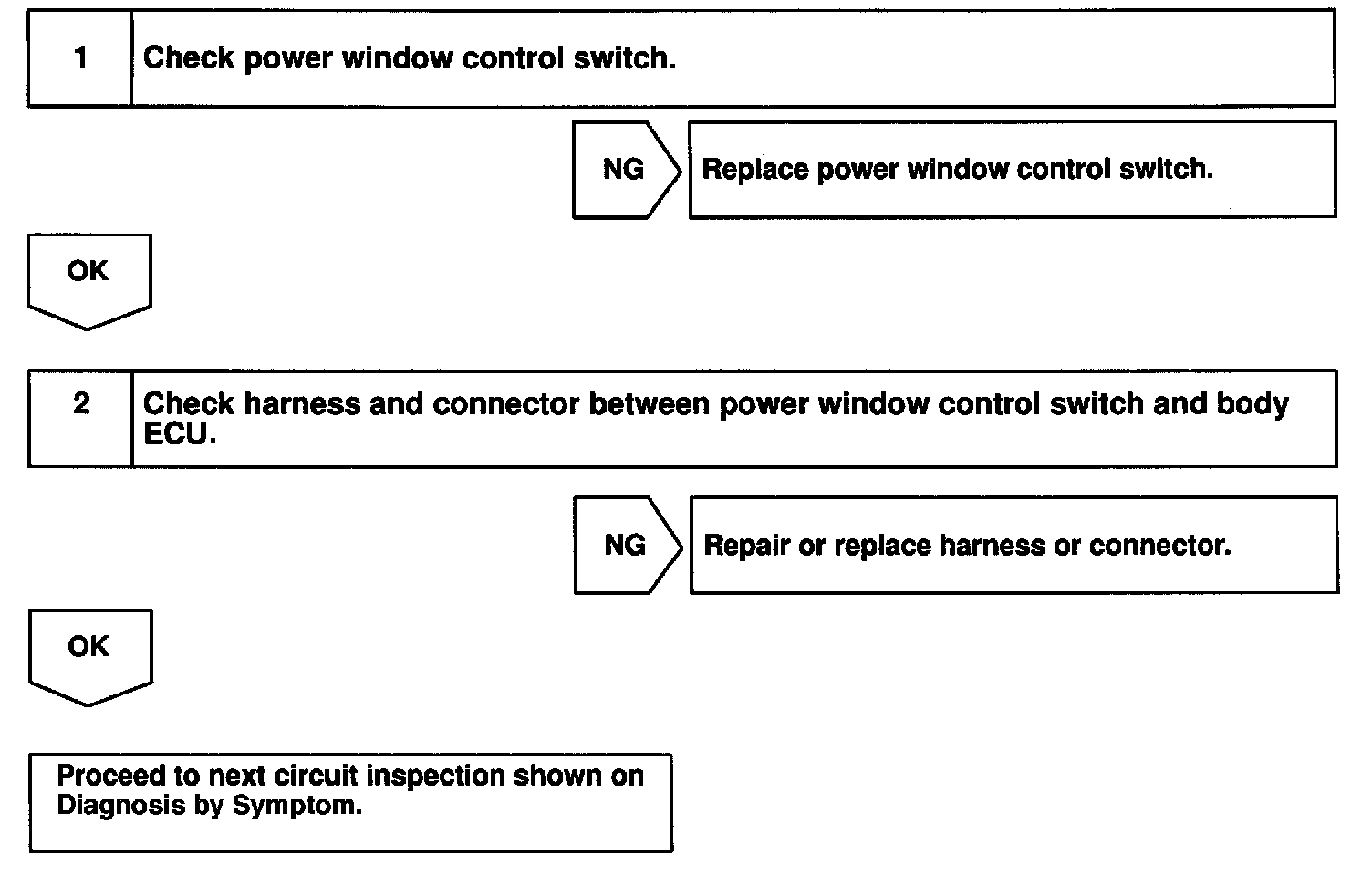

Steps 1 - 2:

INSPECTION PROCEDURE
