Body and Frame: Locations

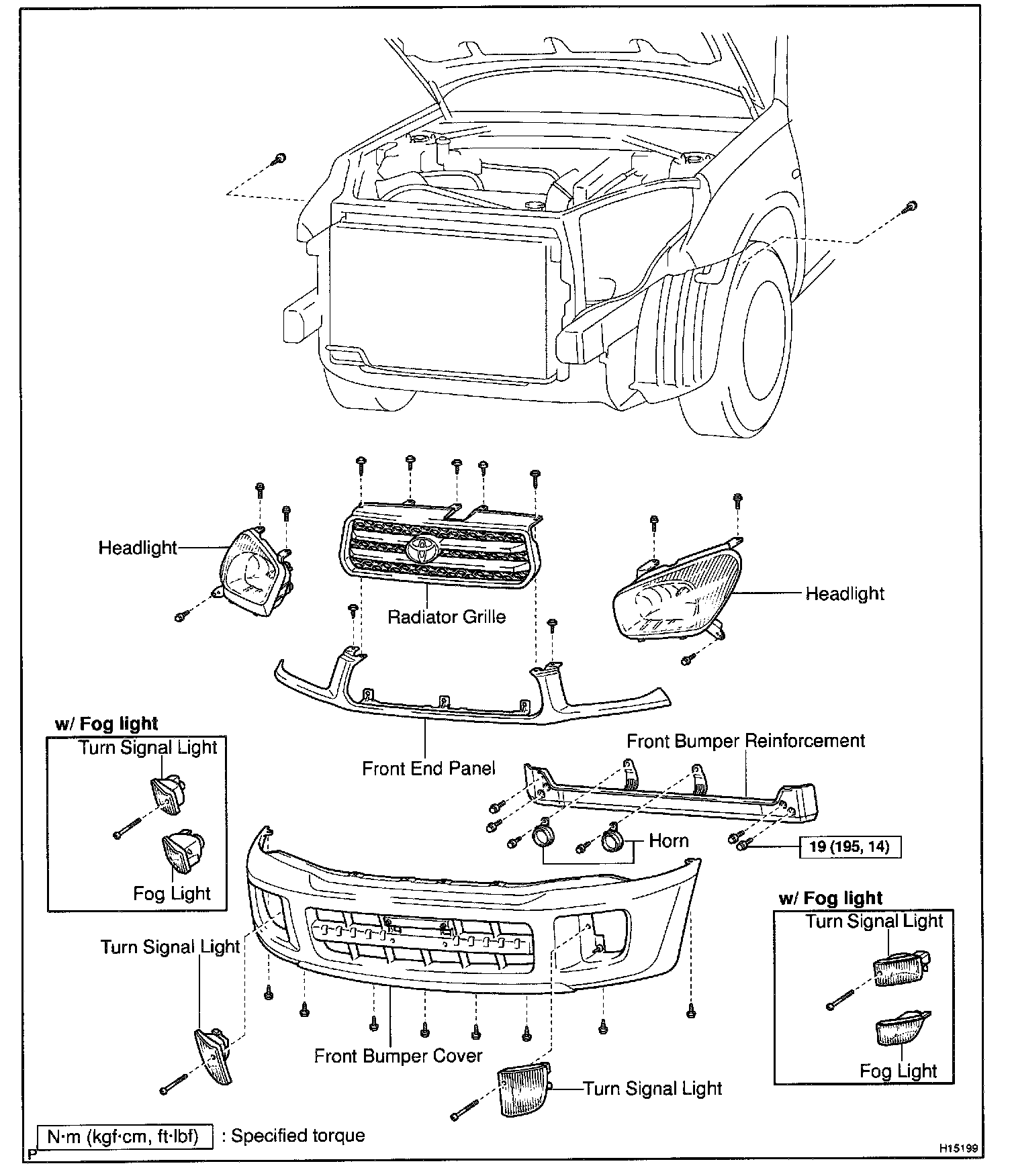

Front Bumper:

Rear Bumper (Part 1):

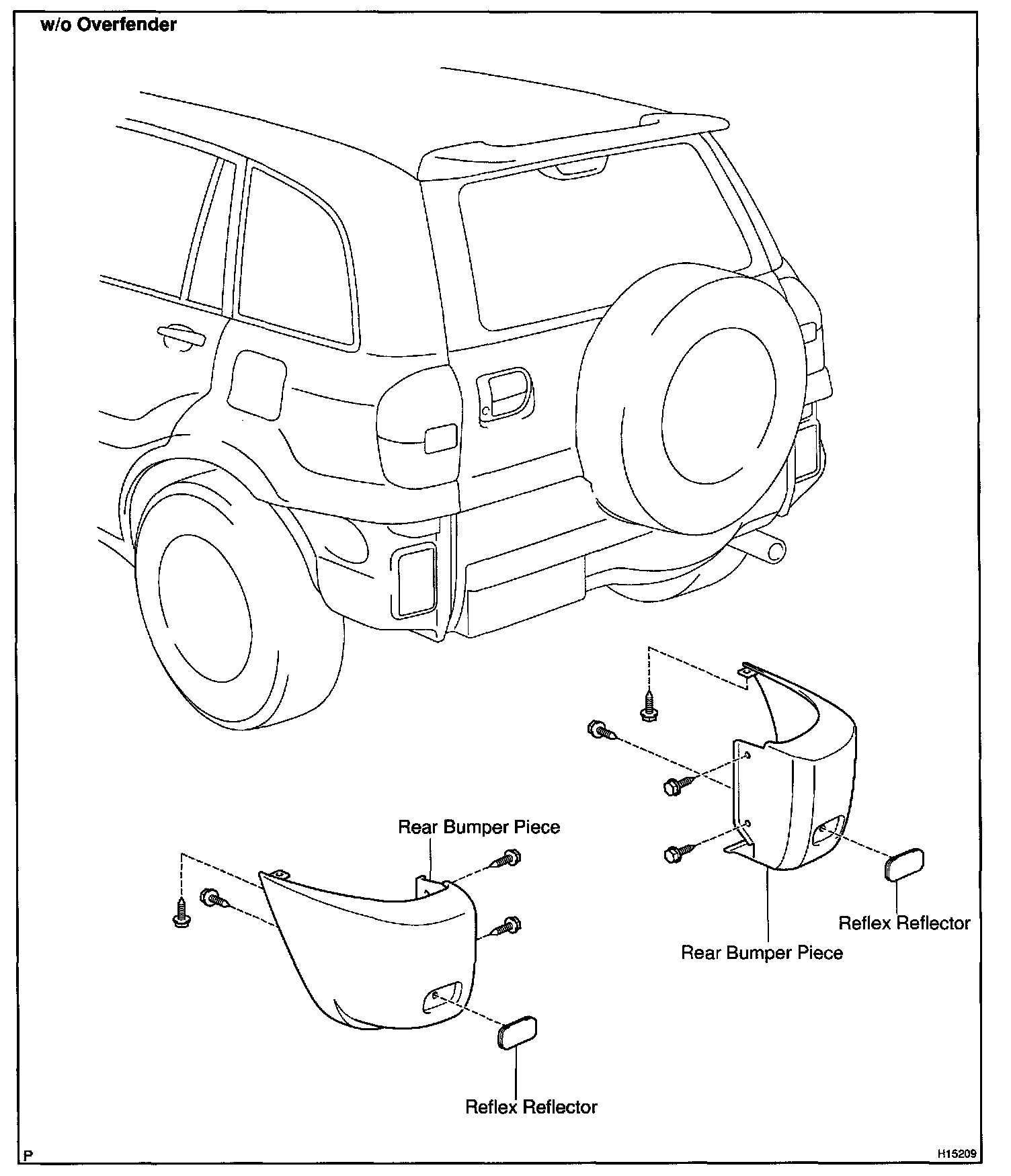

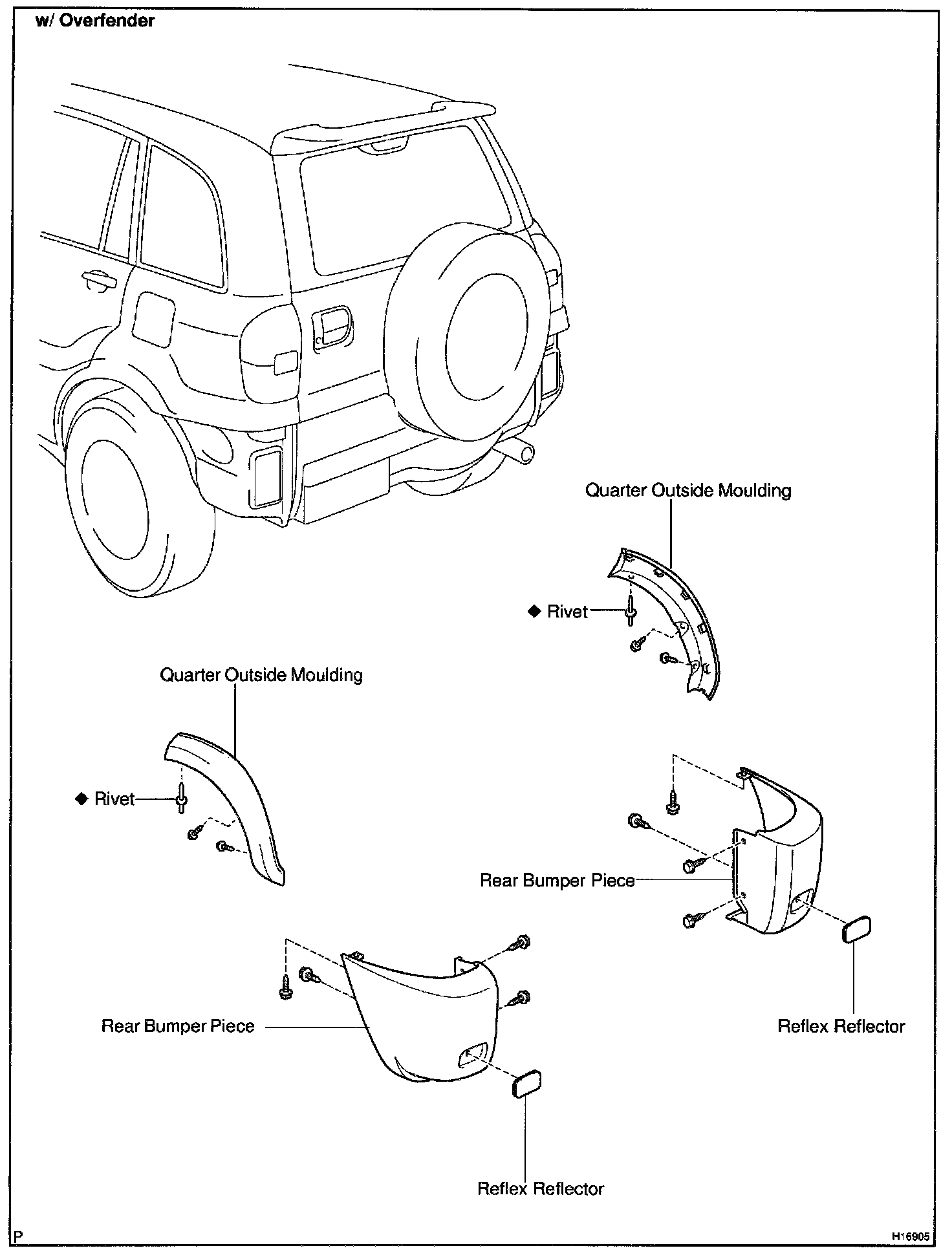

Rear Bumper (Part 2):

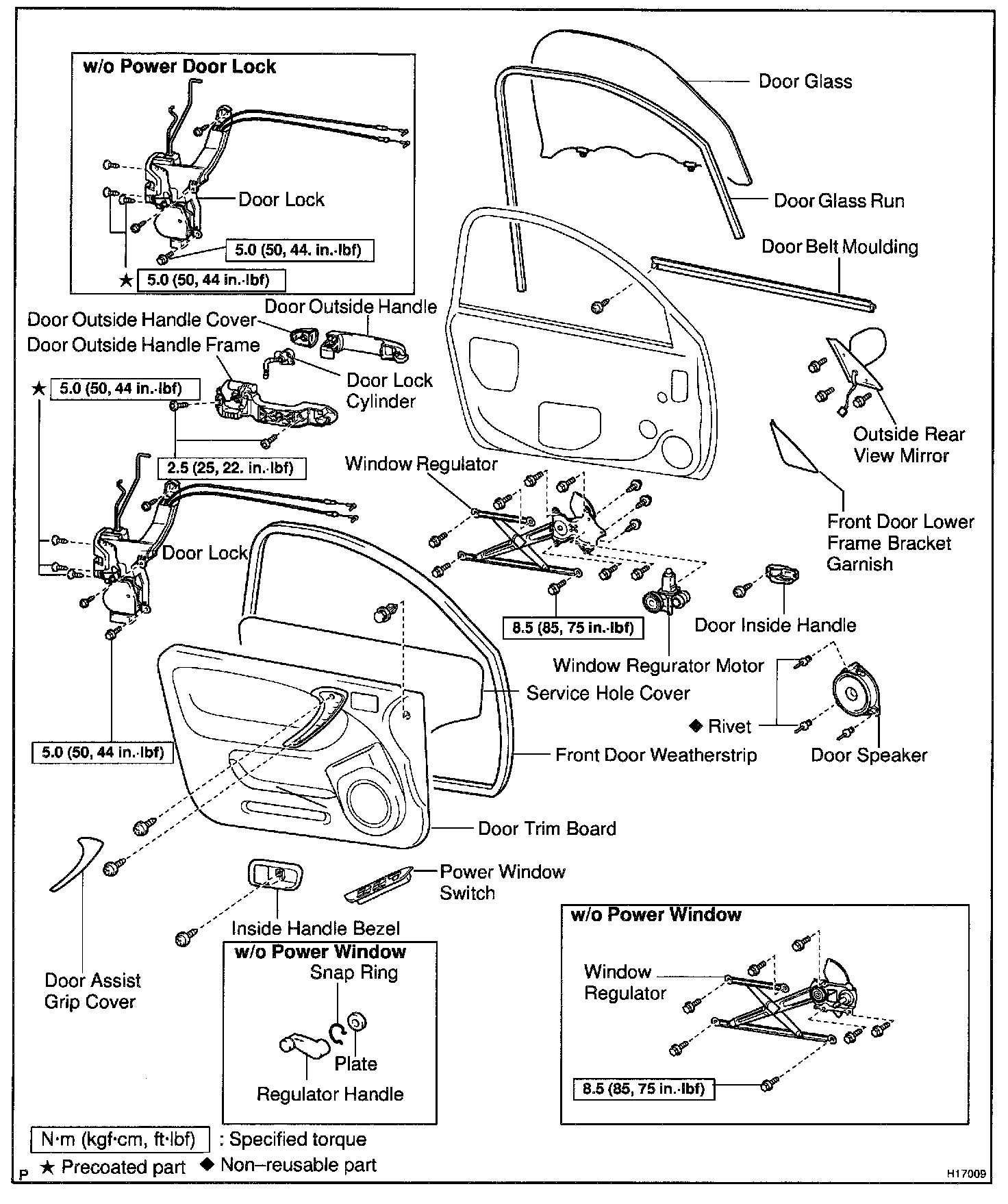

Front Door:

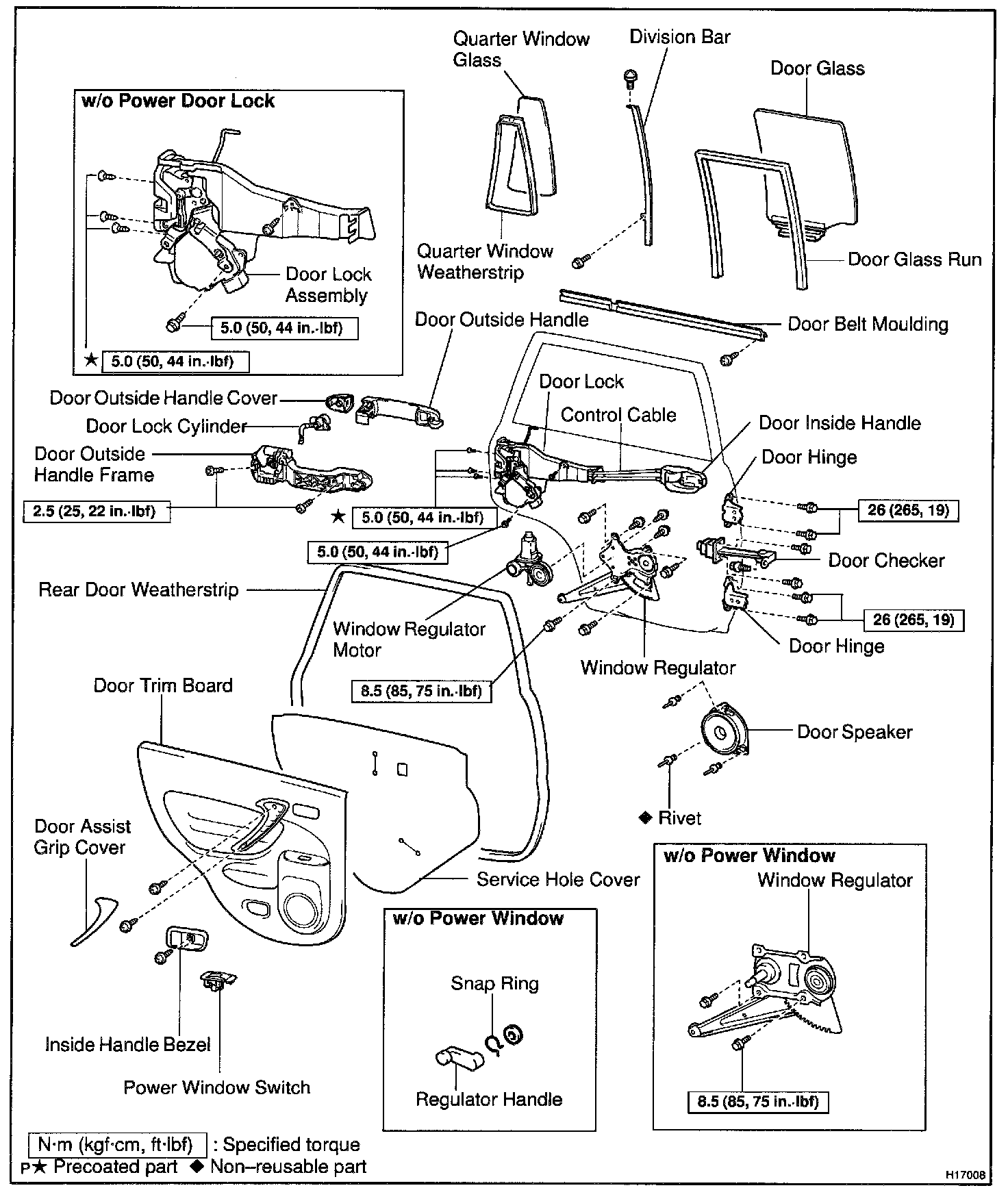

Rear Door:

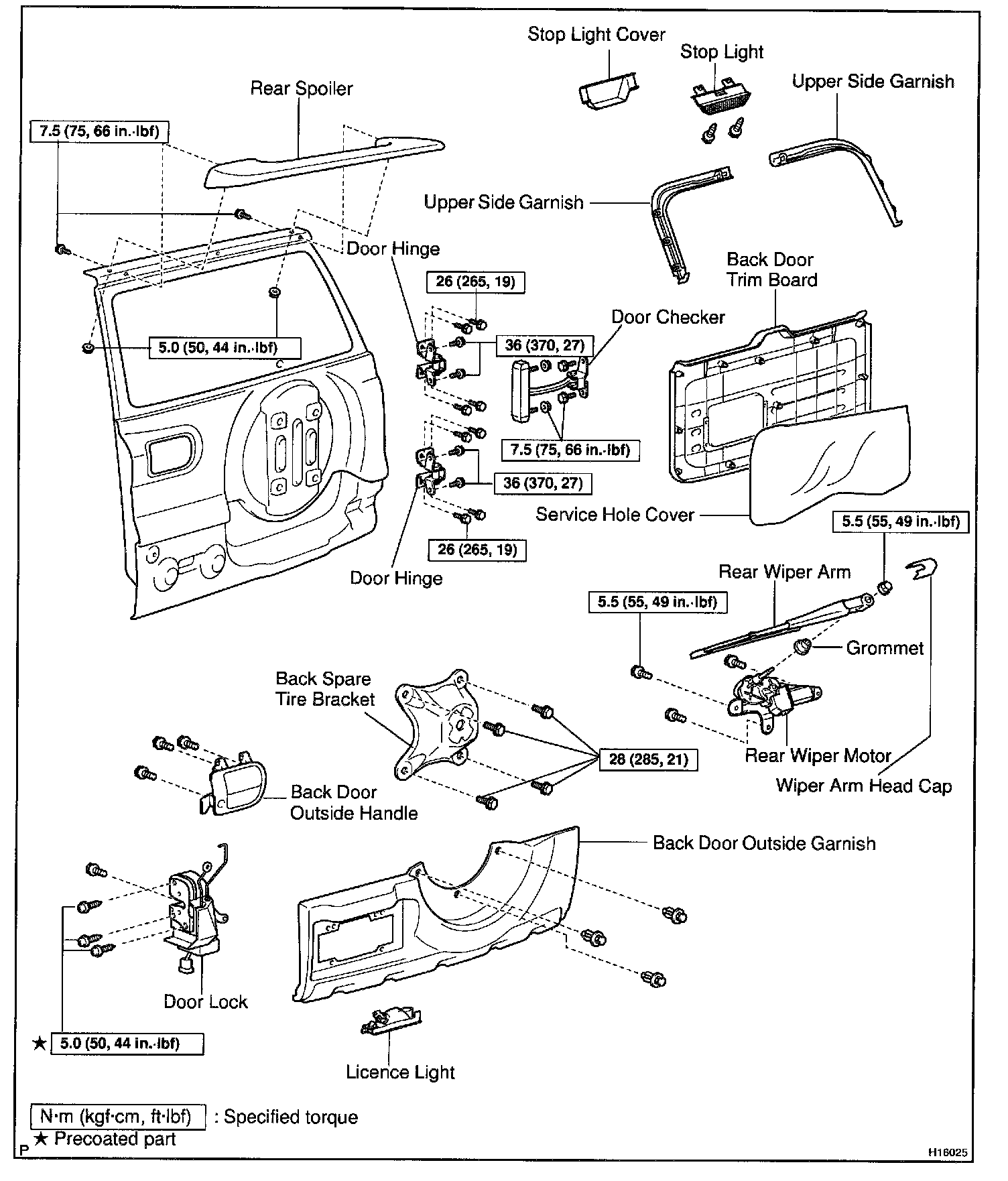

Back Door:

Front Wiper And Washer:

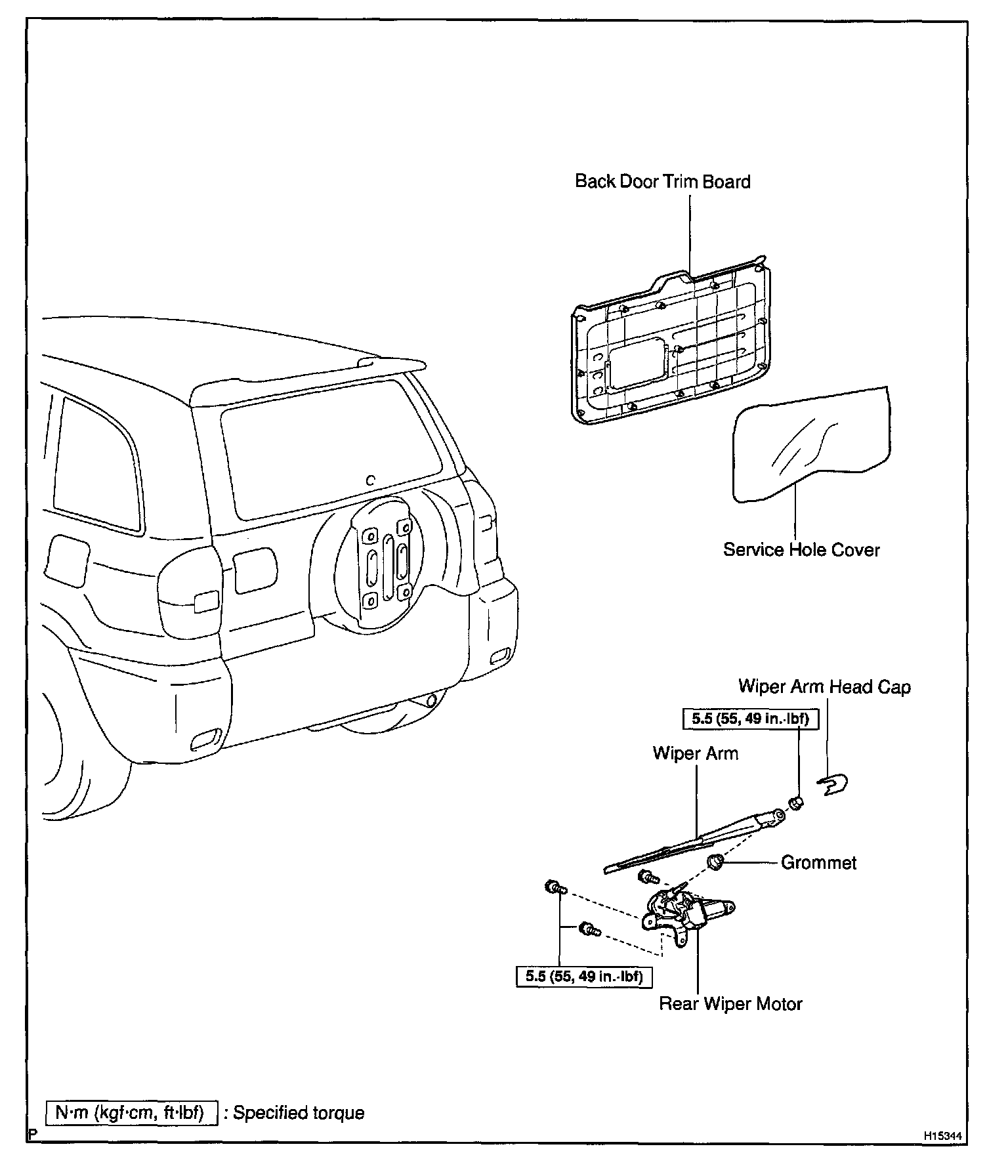

Rear Wiper And Washer:

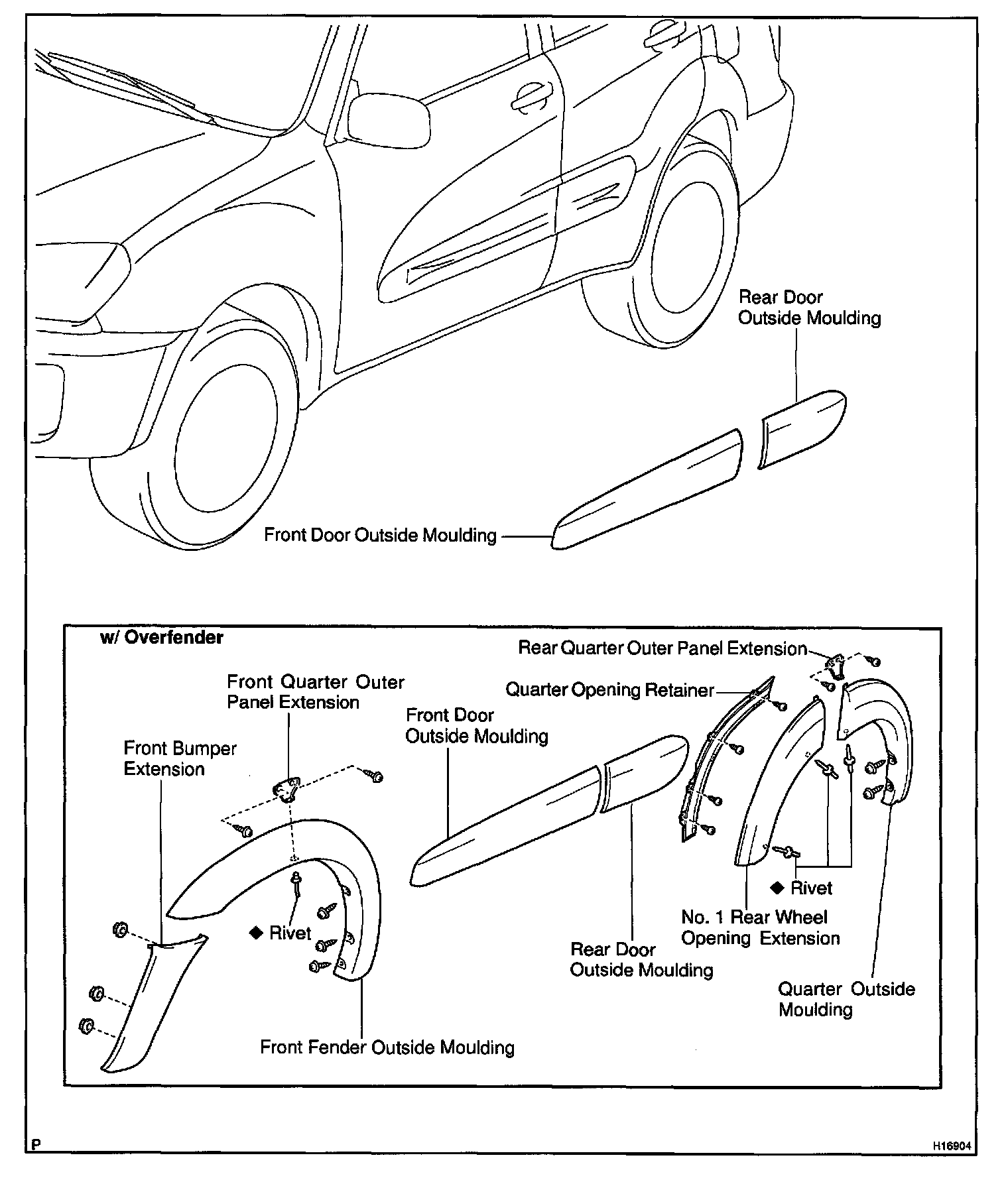

Body Outside Moulding:

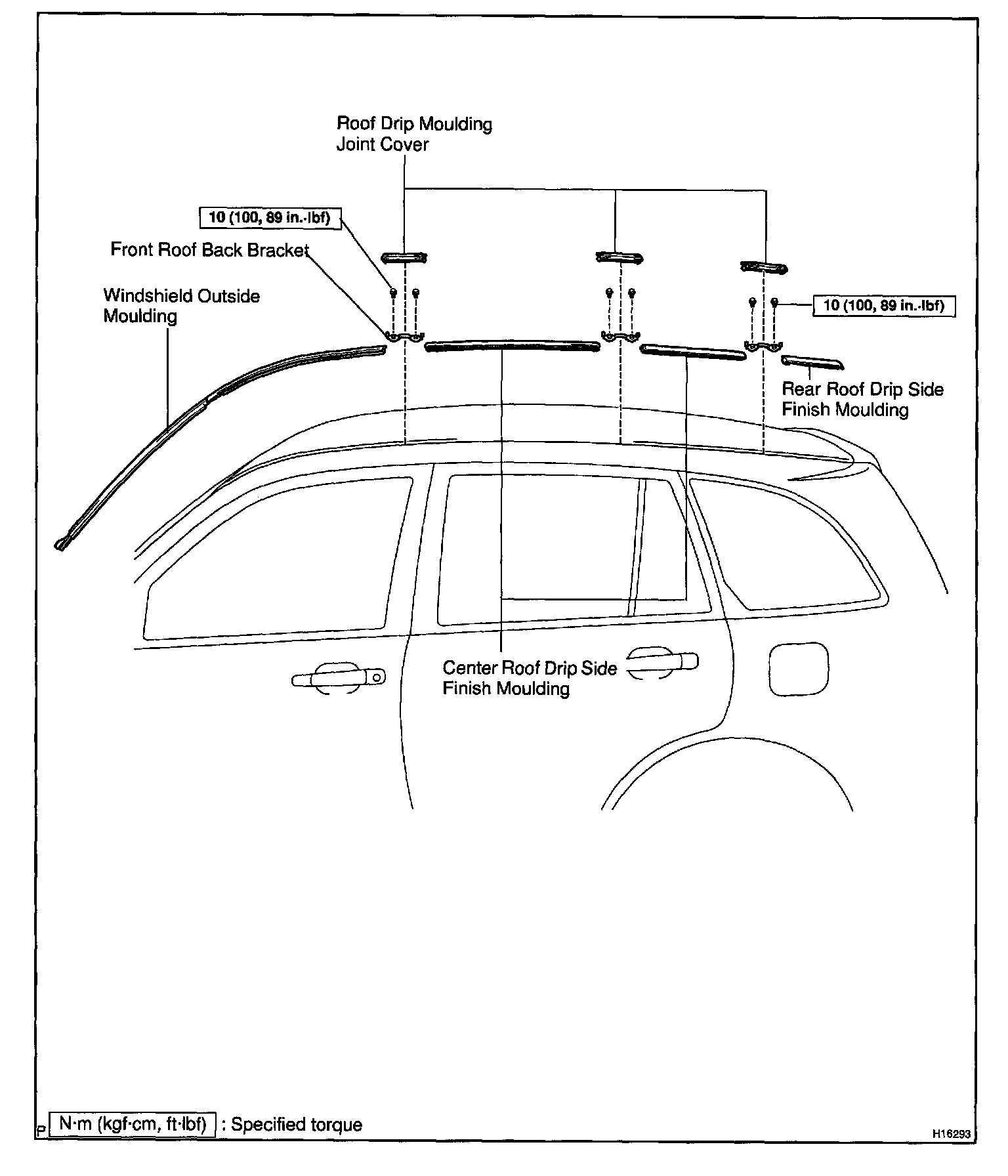

Roof Drip Side Finish Moulding:

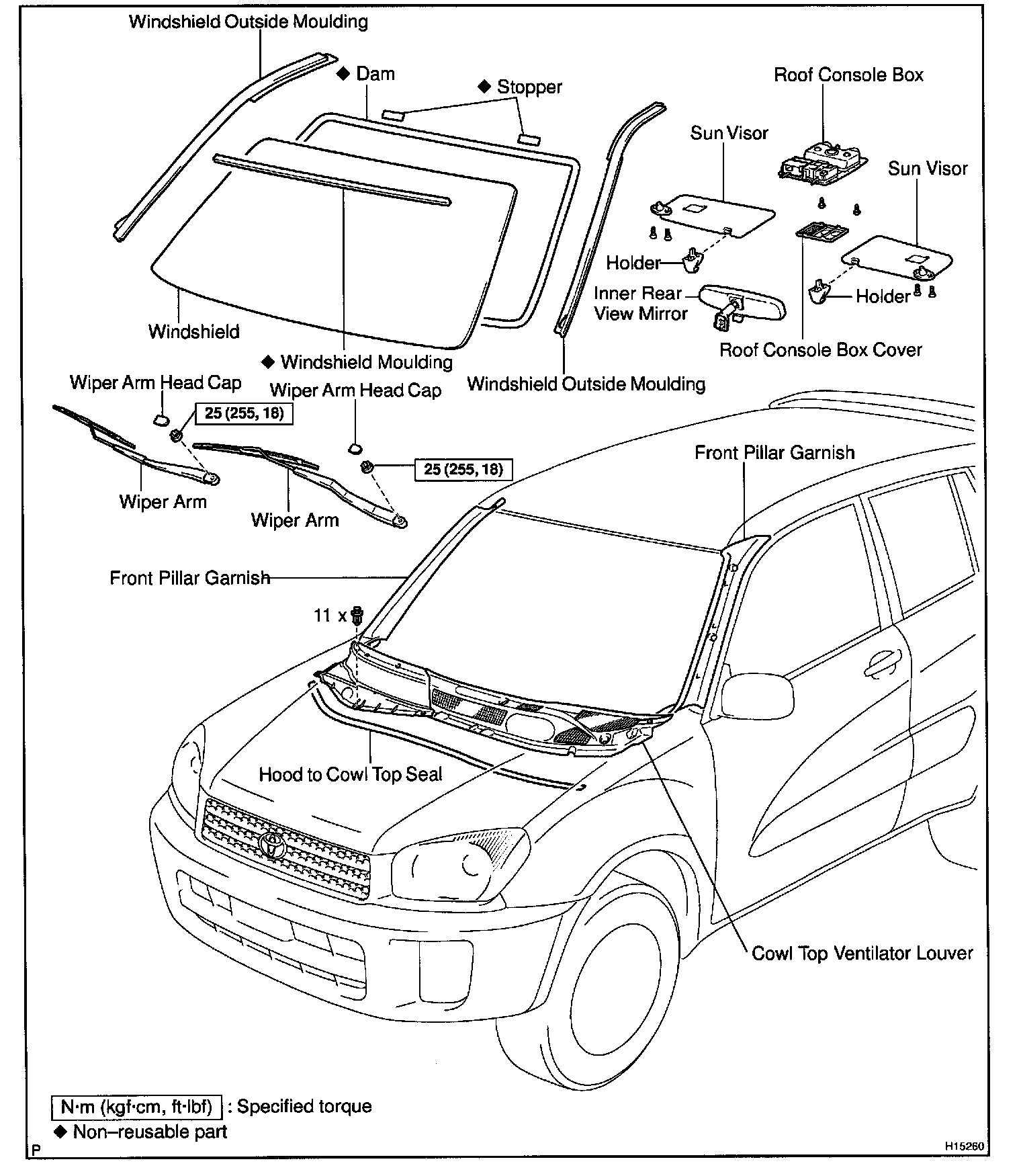

Windshield:

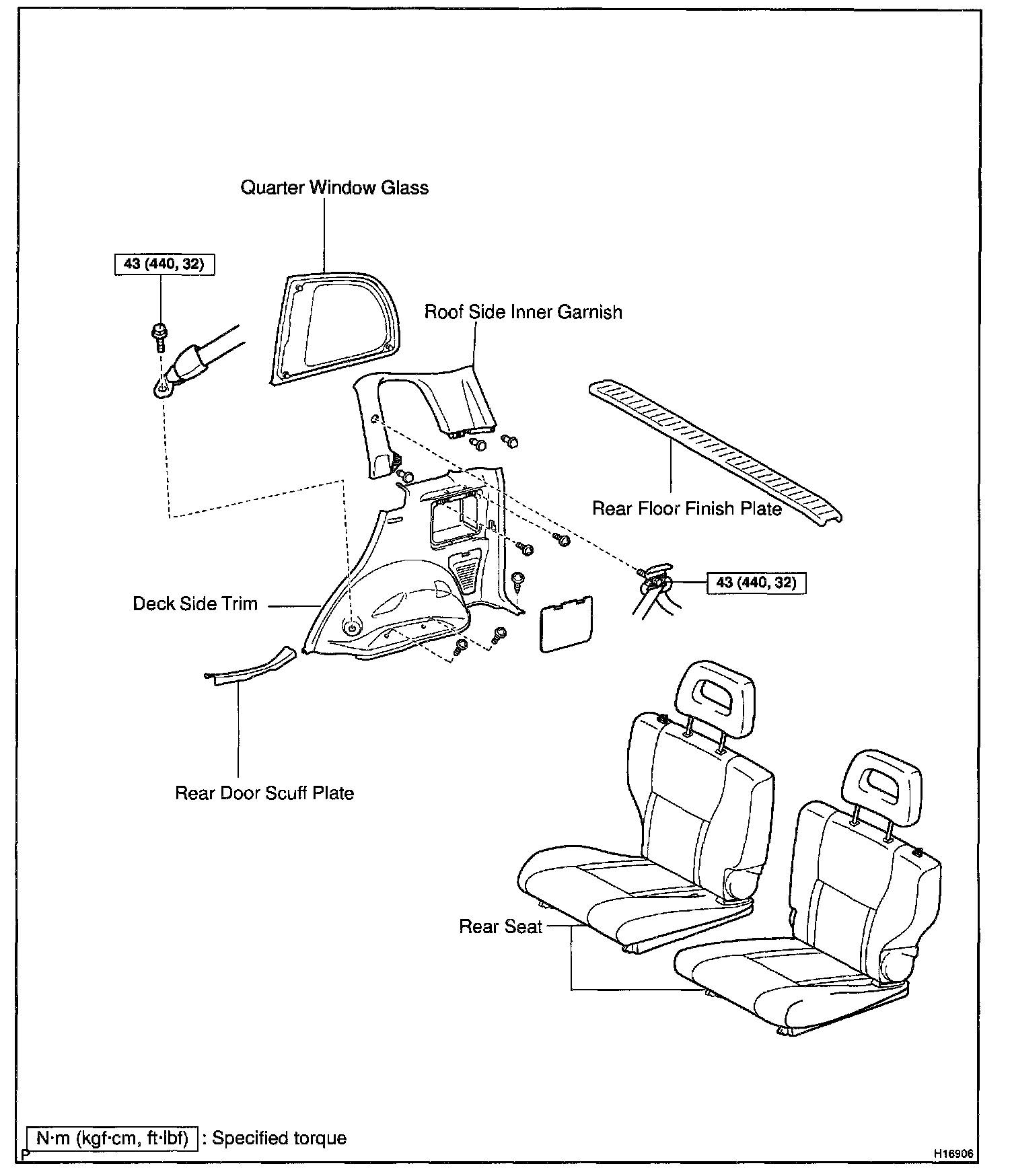

Quarter Window Glass:

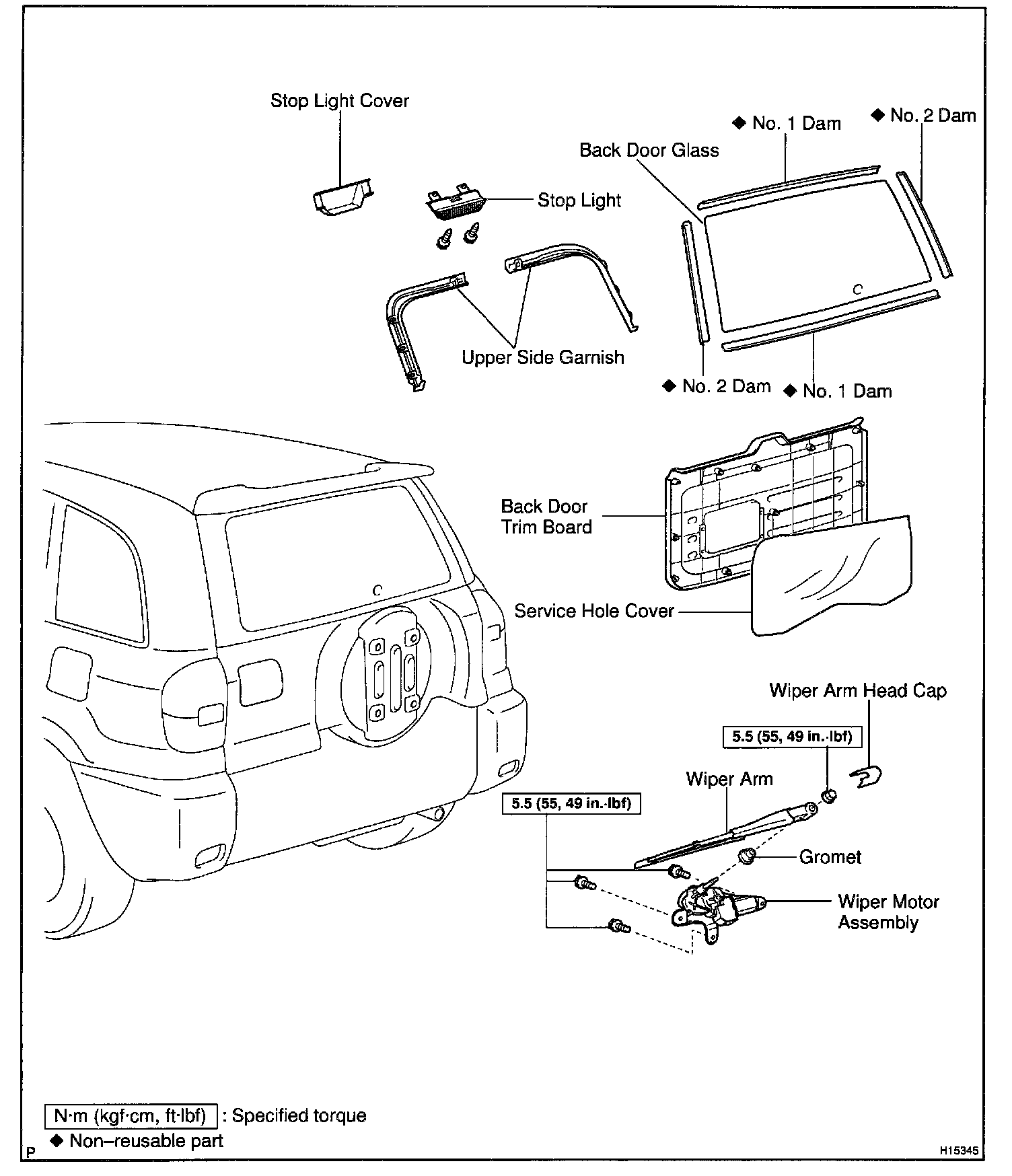

Back Door Glass:

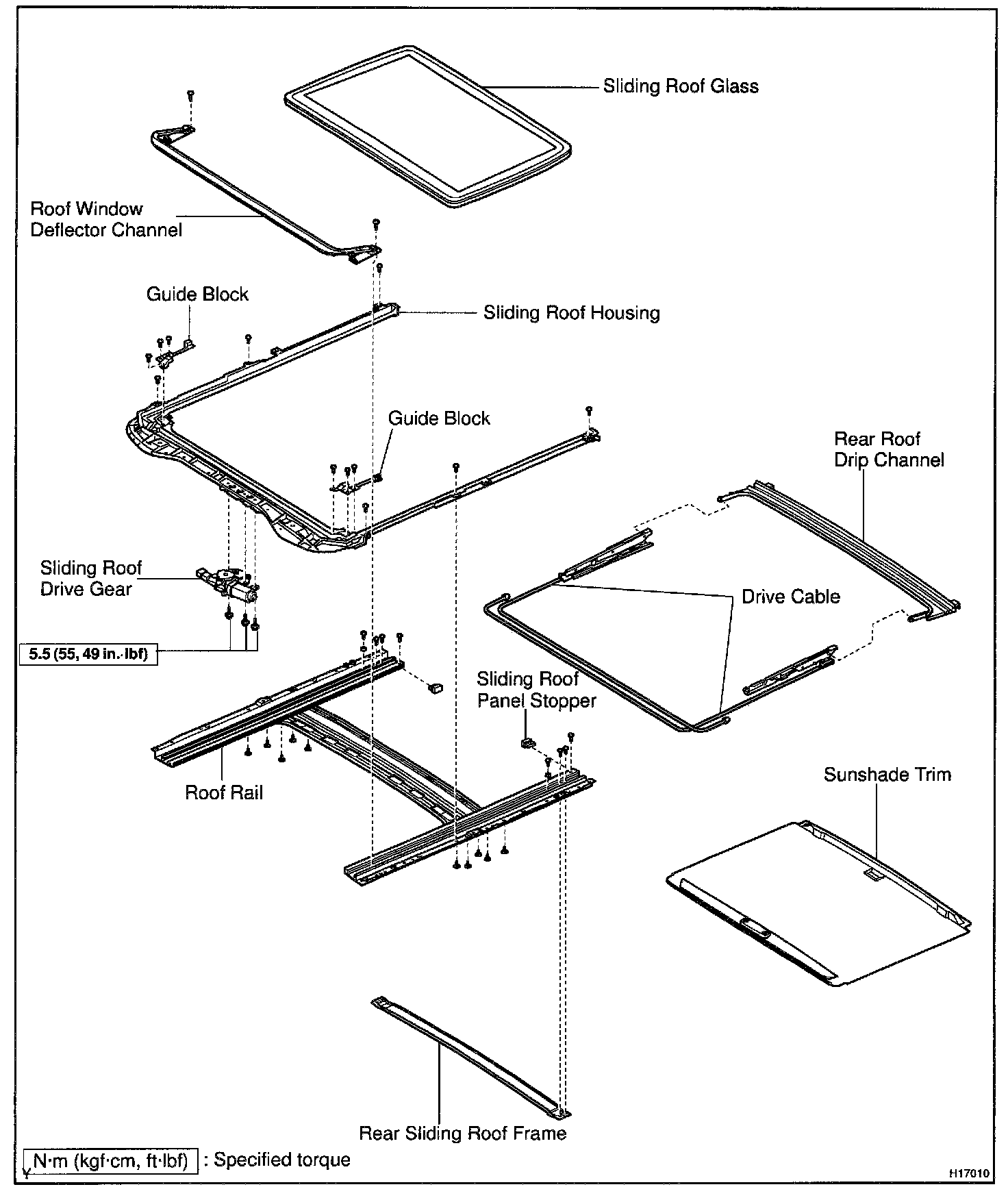

Sliding Roof:

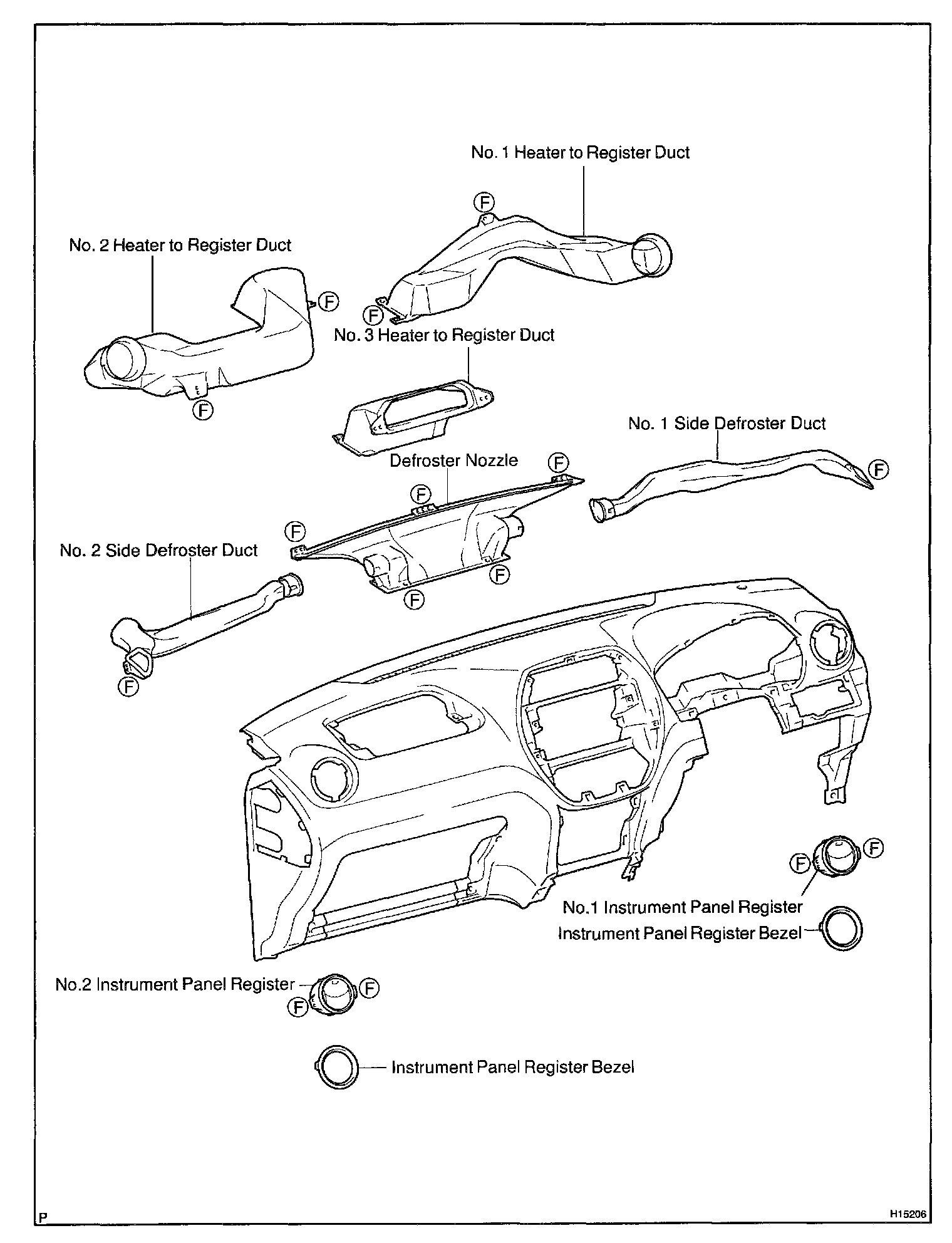

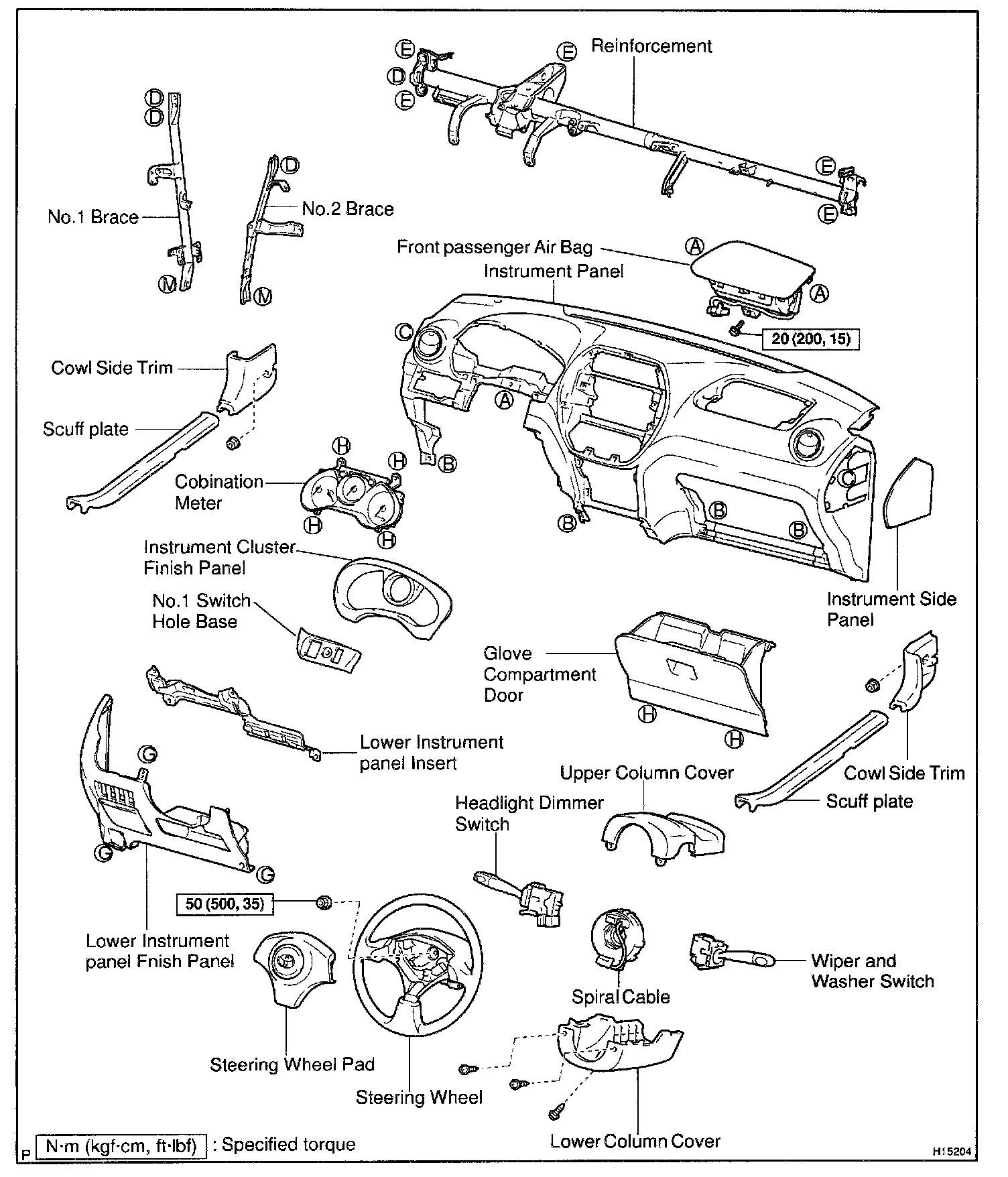

Instrument Panel (Part 1):

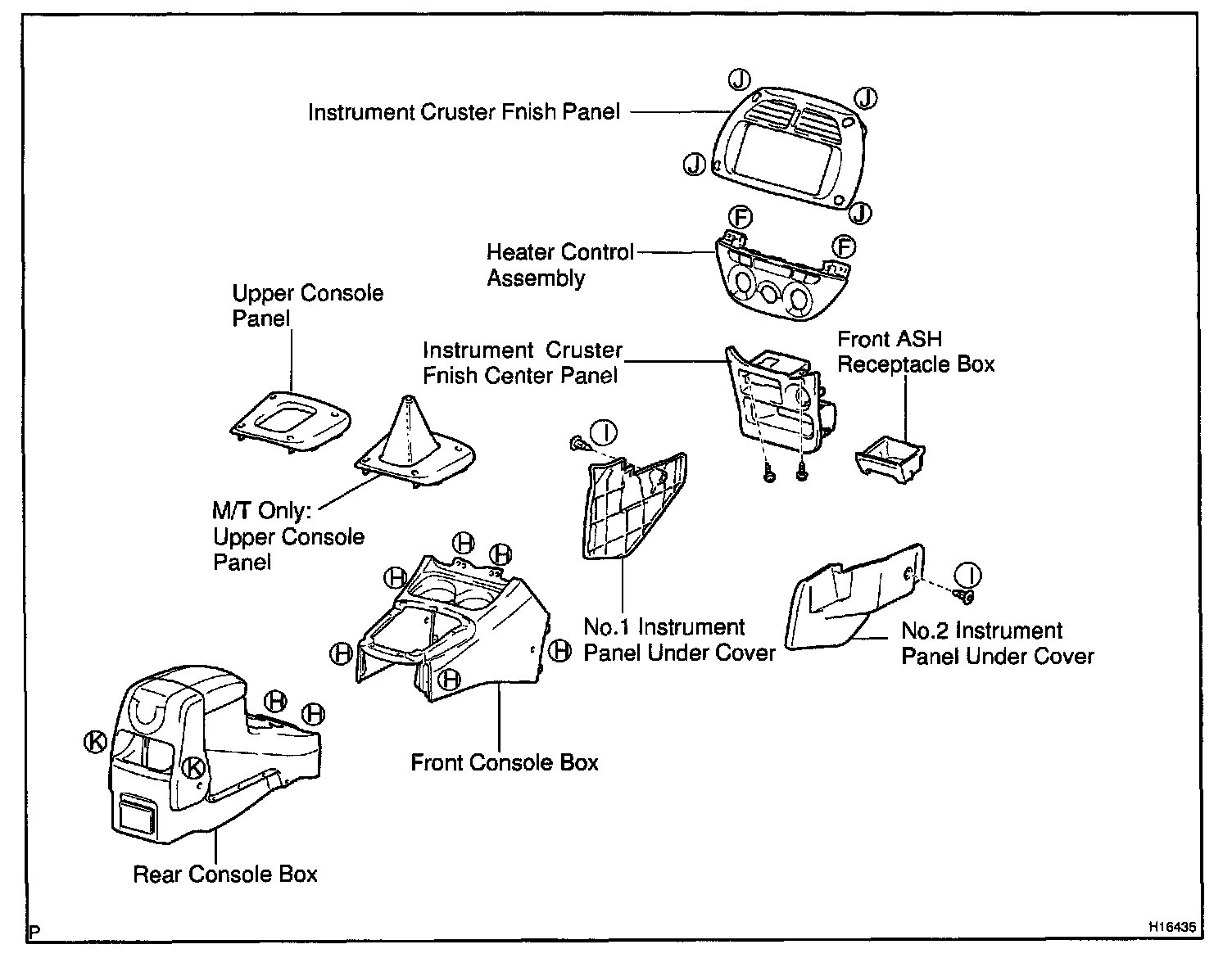

Instrument Panel (Part 2):

Instrument Panel (Part 3):

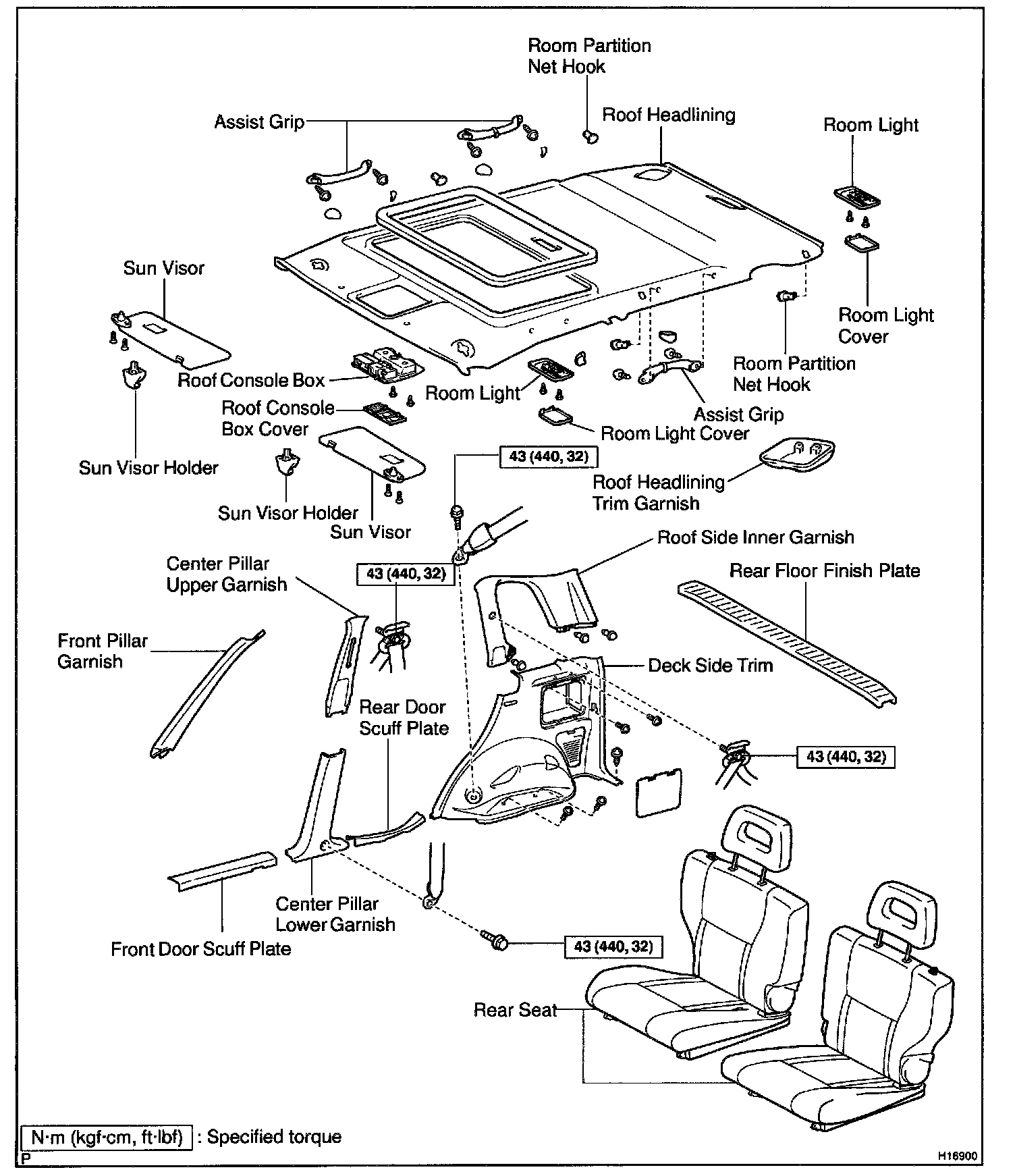

Roof Headlining:

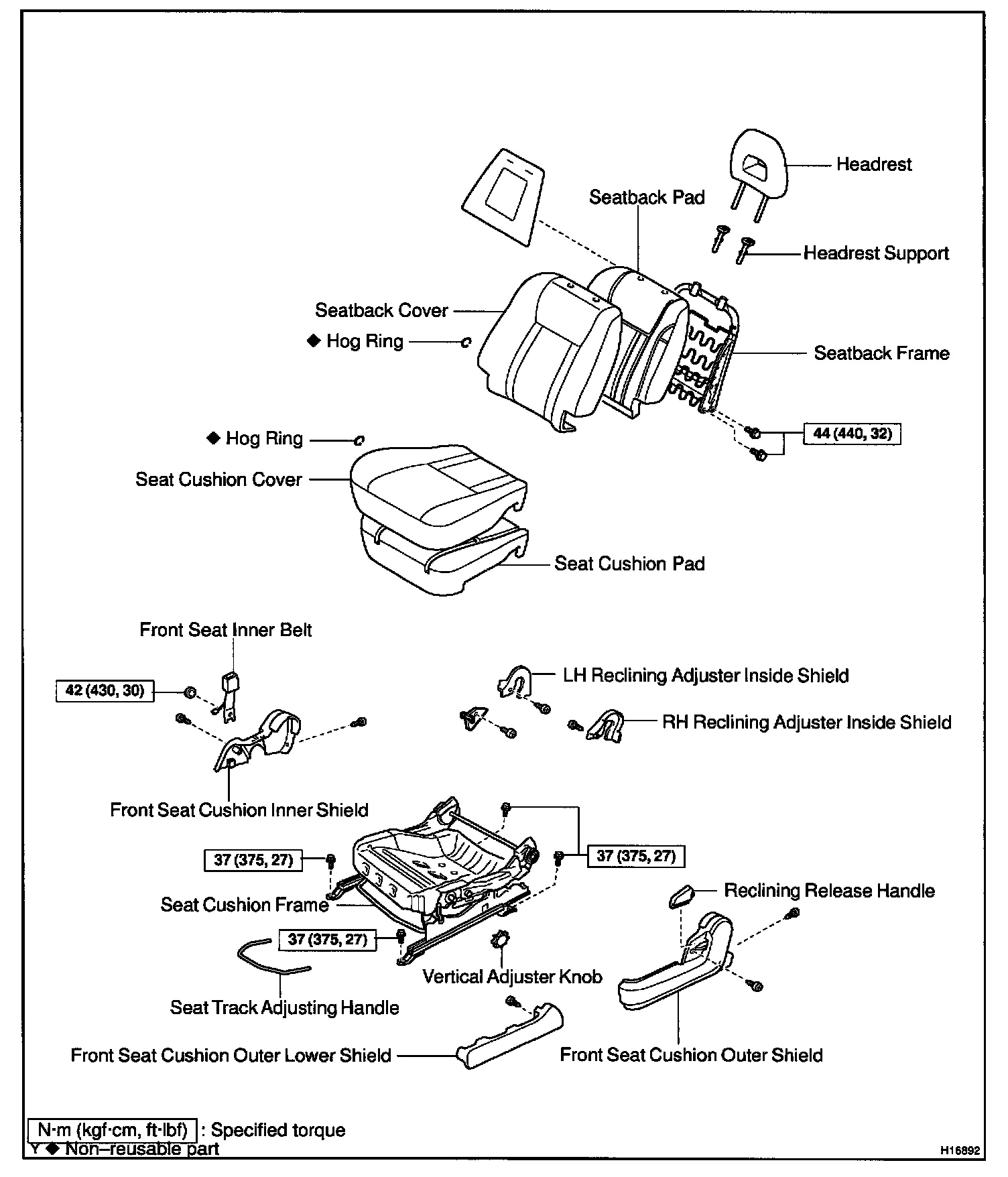

Front Seat:

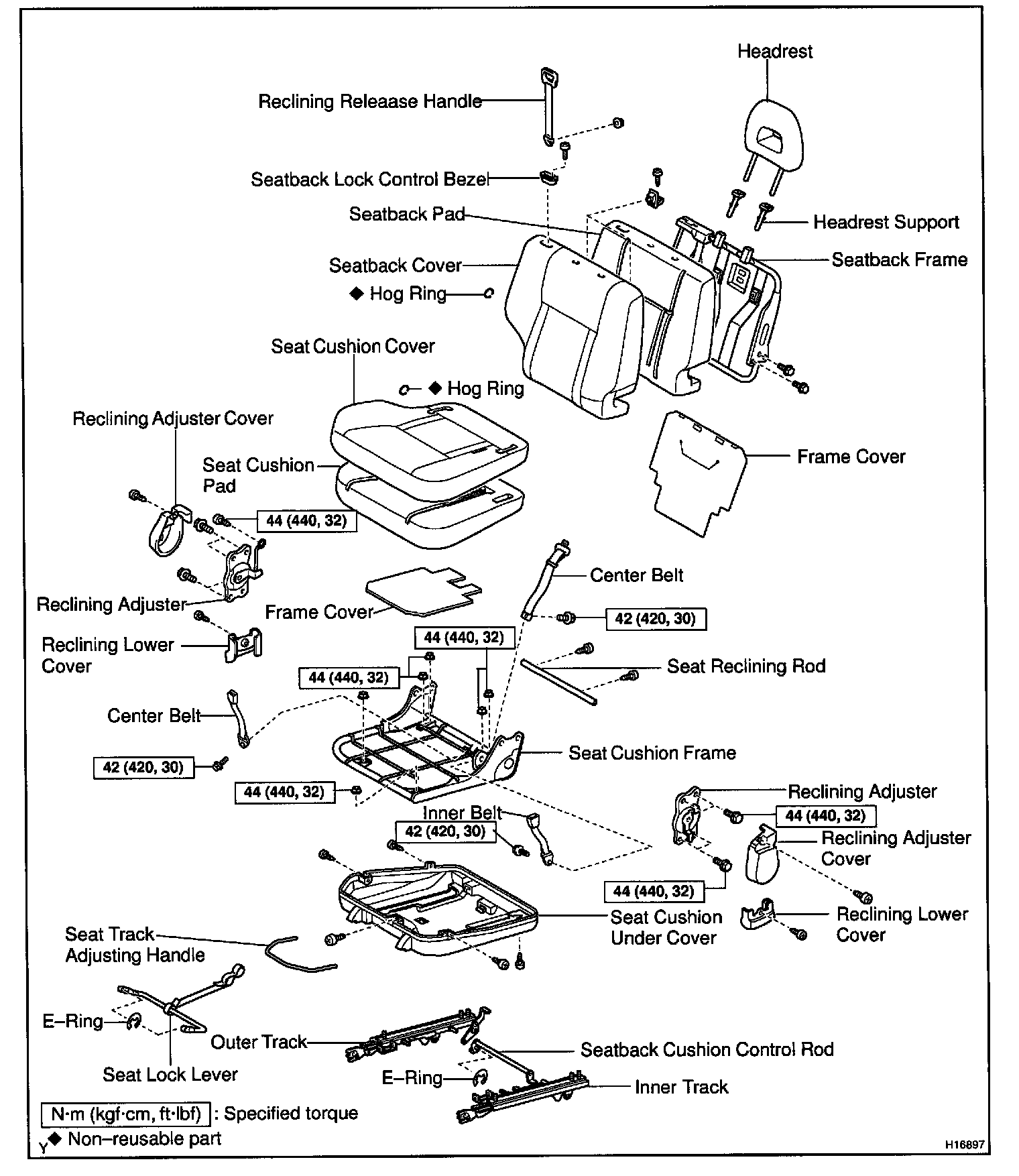

Rear Seat:

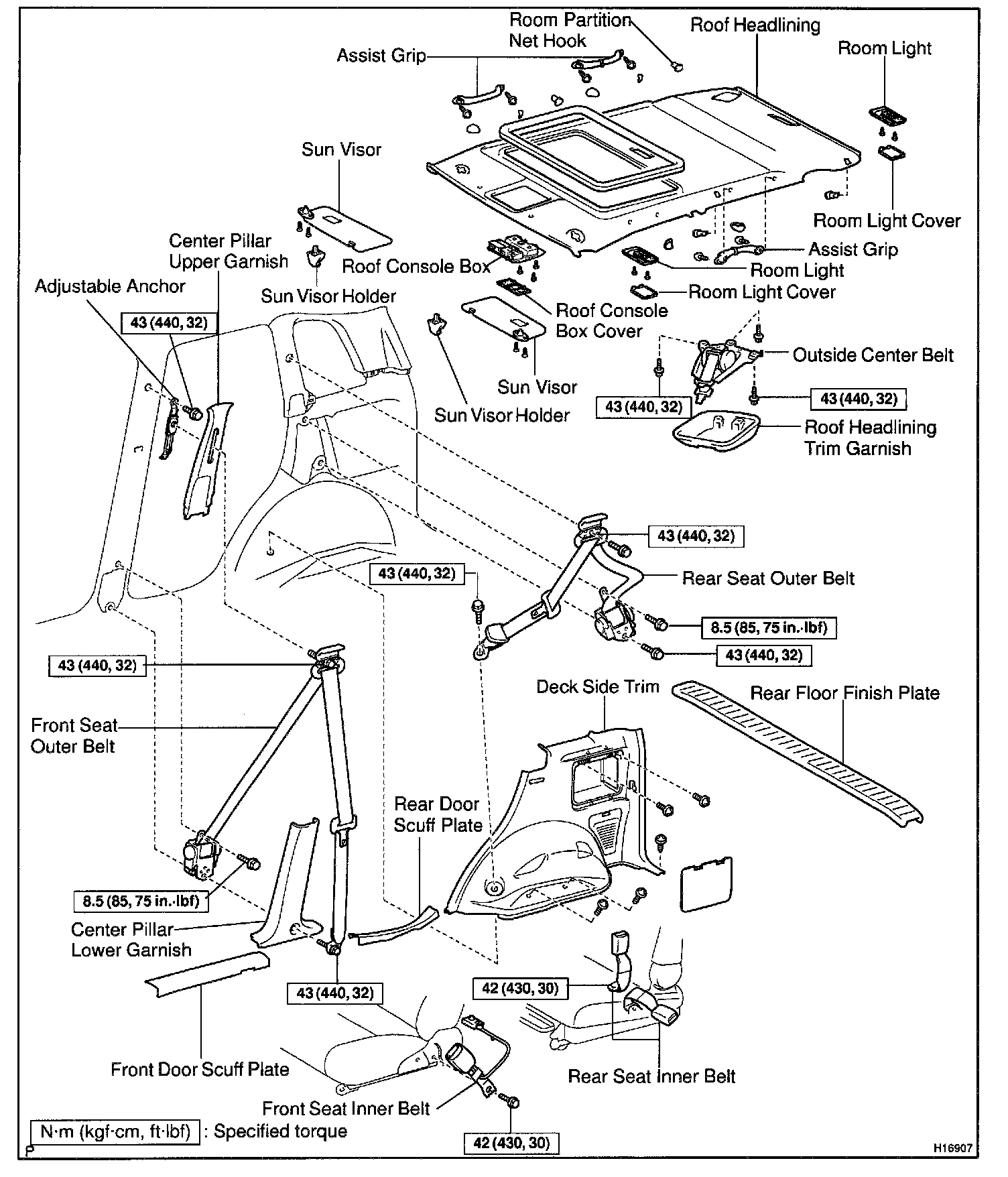

Seat Belt:
