Home >> Toyota >> 2001 >> RAV4 2WD L4-2.0L (1AZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Manual Transmission/Transaxle >> Shift Cable, M/T

Shift Cable, M/T

SHIFT LEVER AND CONTROL CABLE REPLACEMENT W/ RELATED COMPONENTS

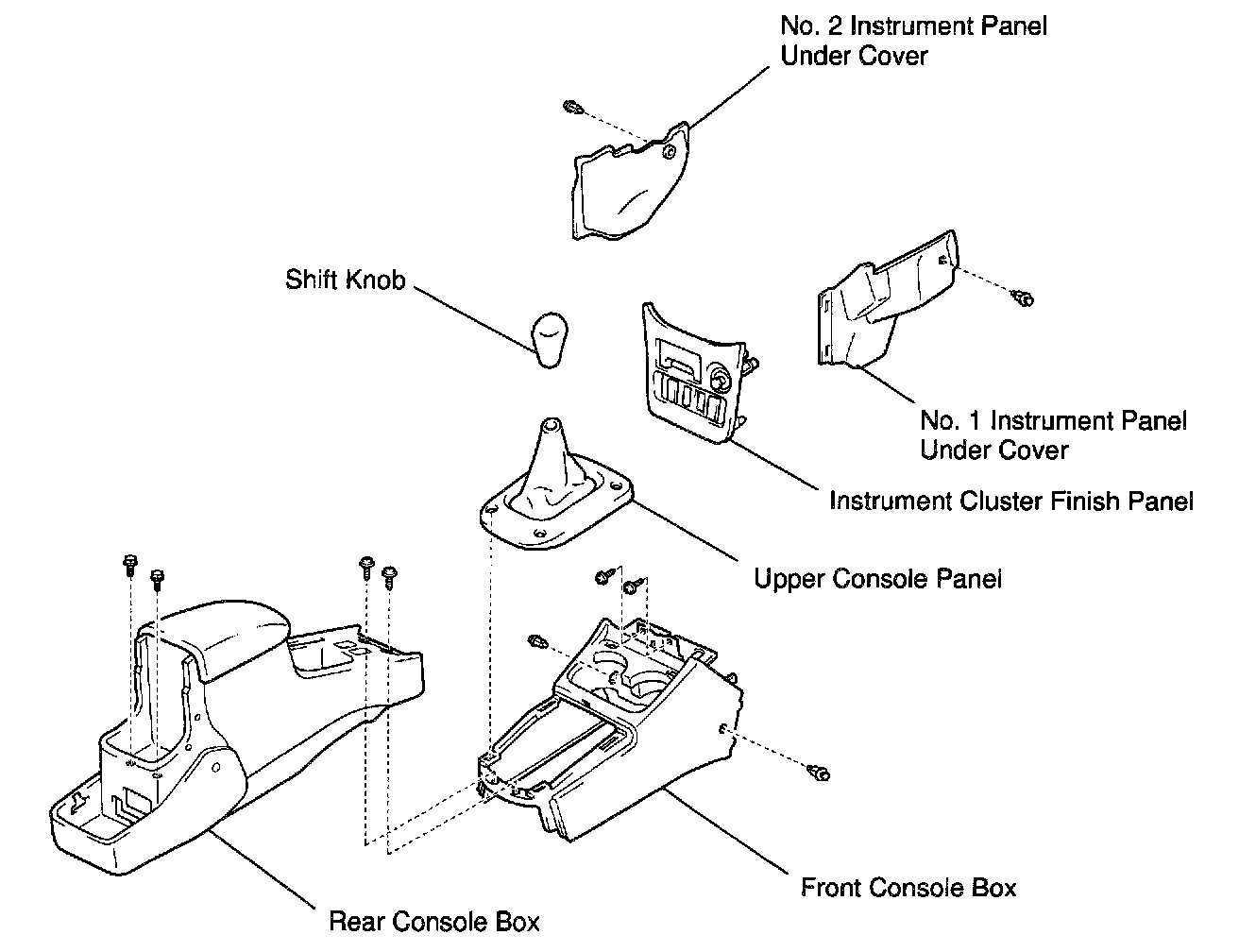

Part 1 of 2

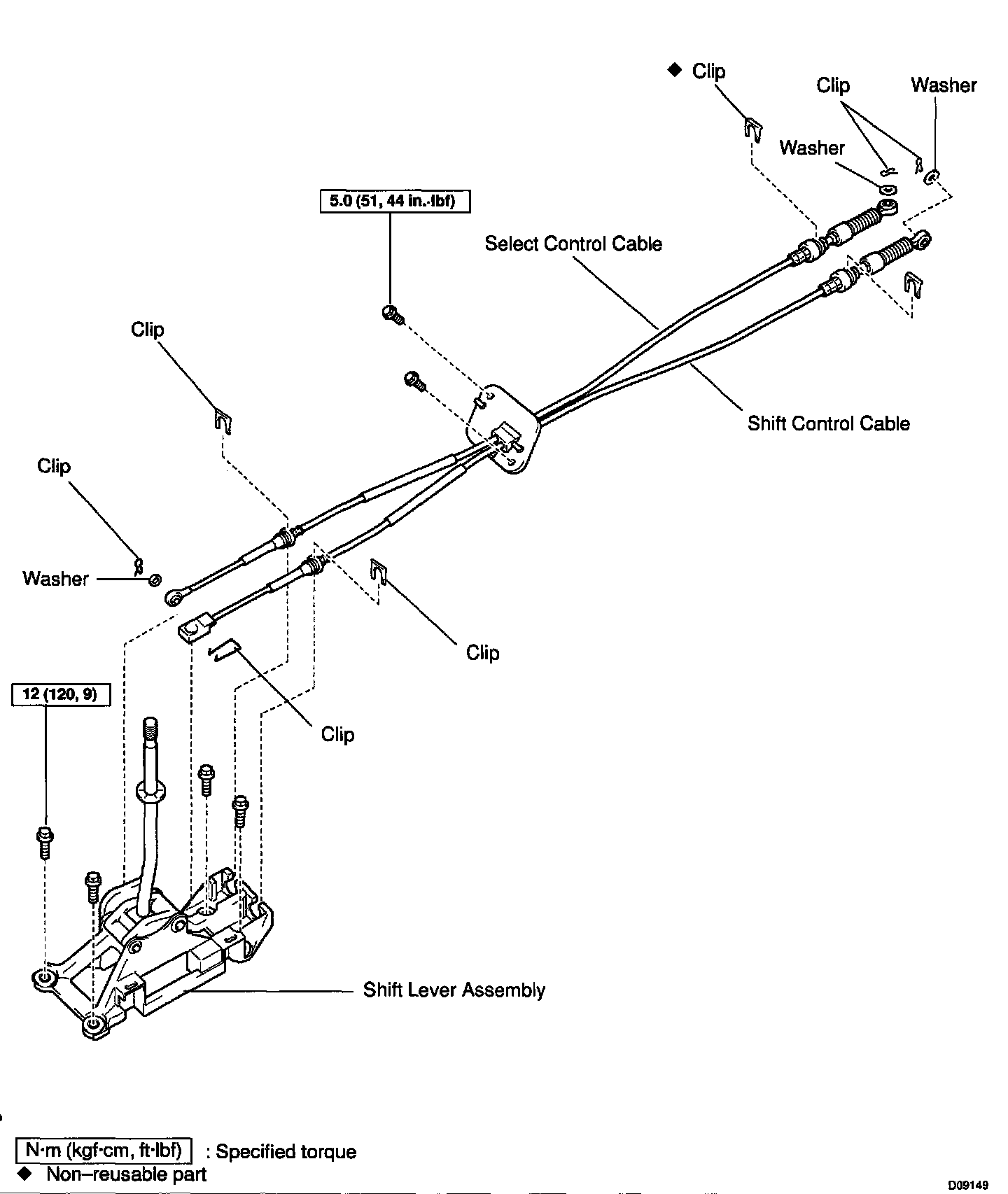

Part 2 of 2
