Fuse: Application and ID

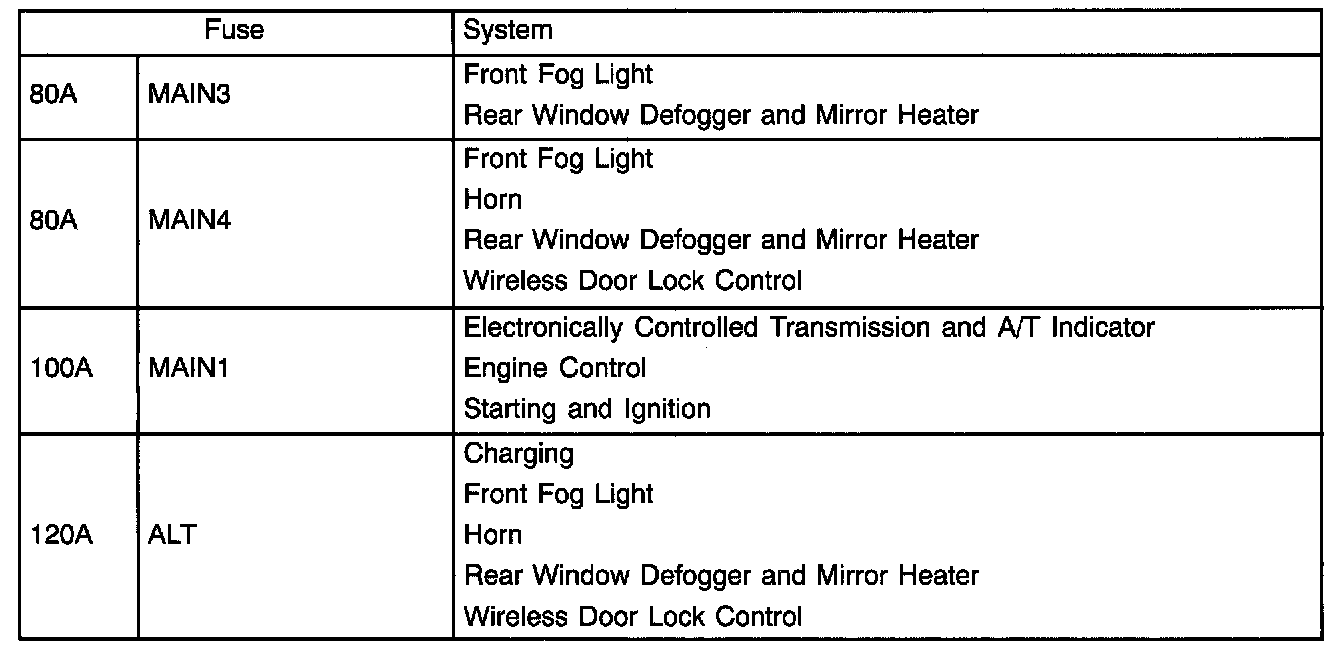

Engine Room R/B Fuse Applications:

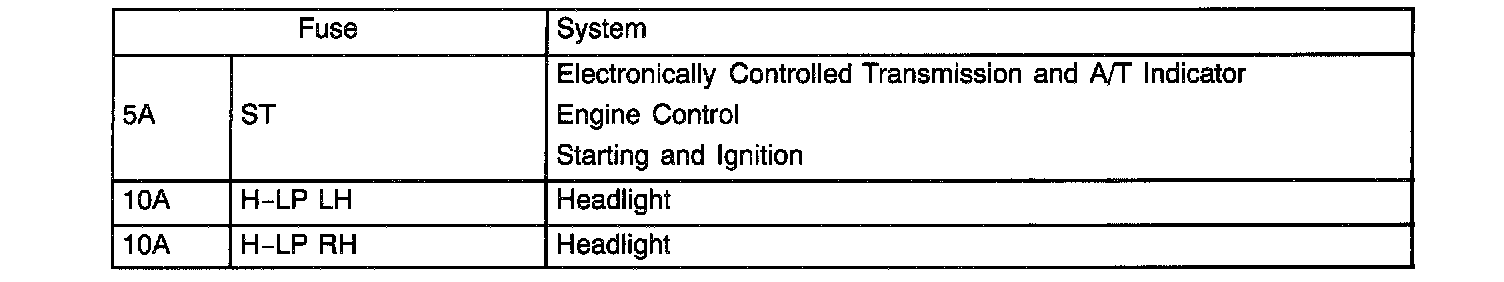

Engine Room J/B Fuse Applications:

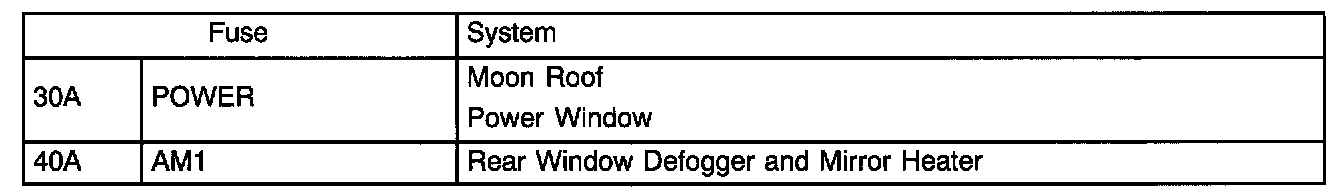

Fusible Link Block (F11, F12, F13) Fuse Applications:

Engine Room Fuse Details

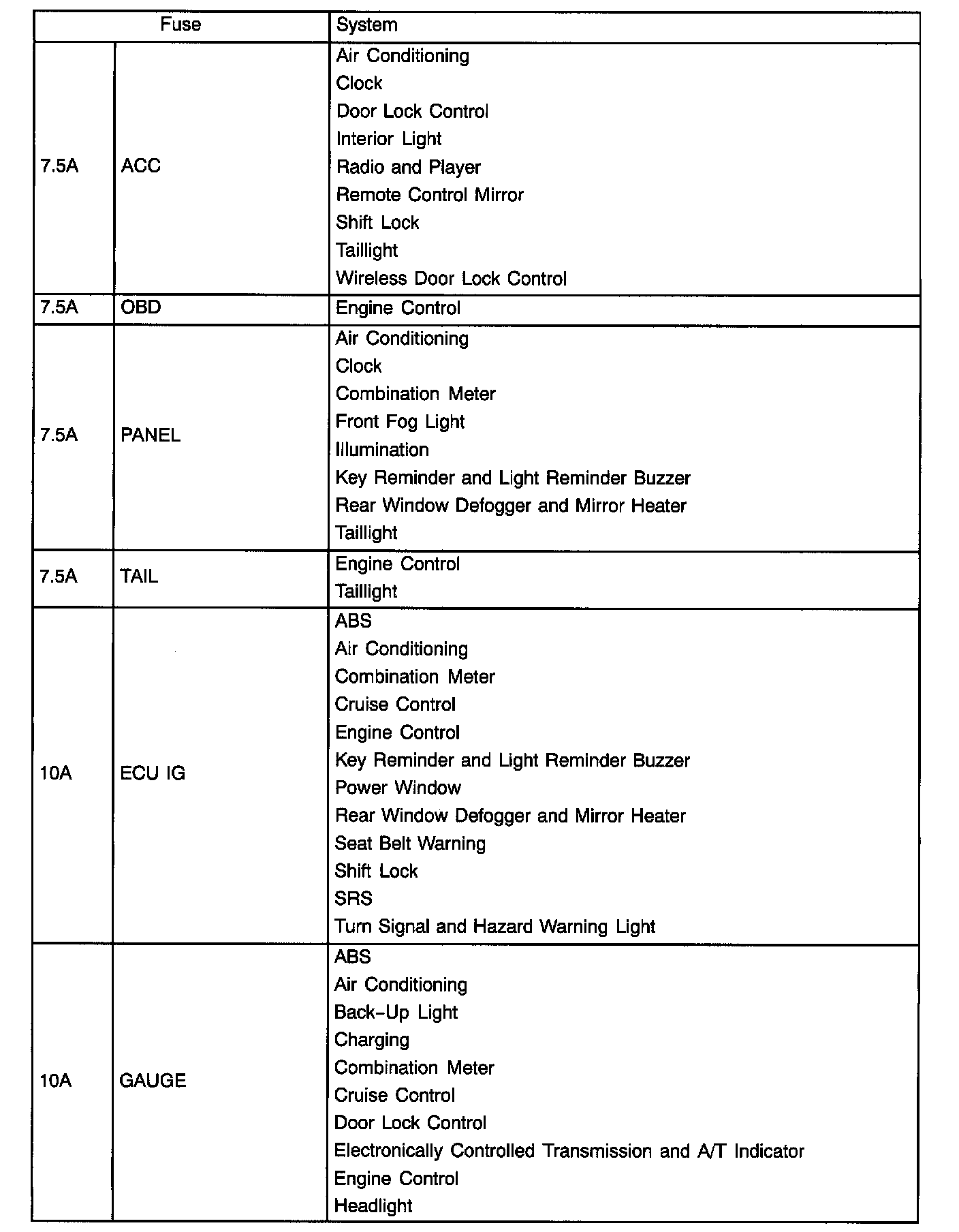

Driver Side J/B Fuse Applications (Part 1):

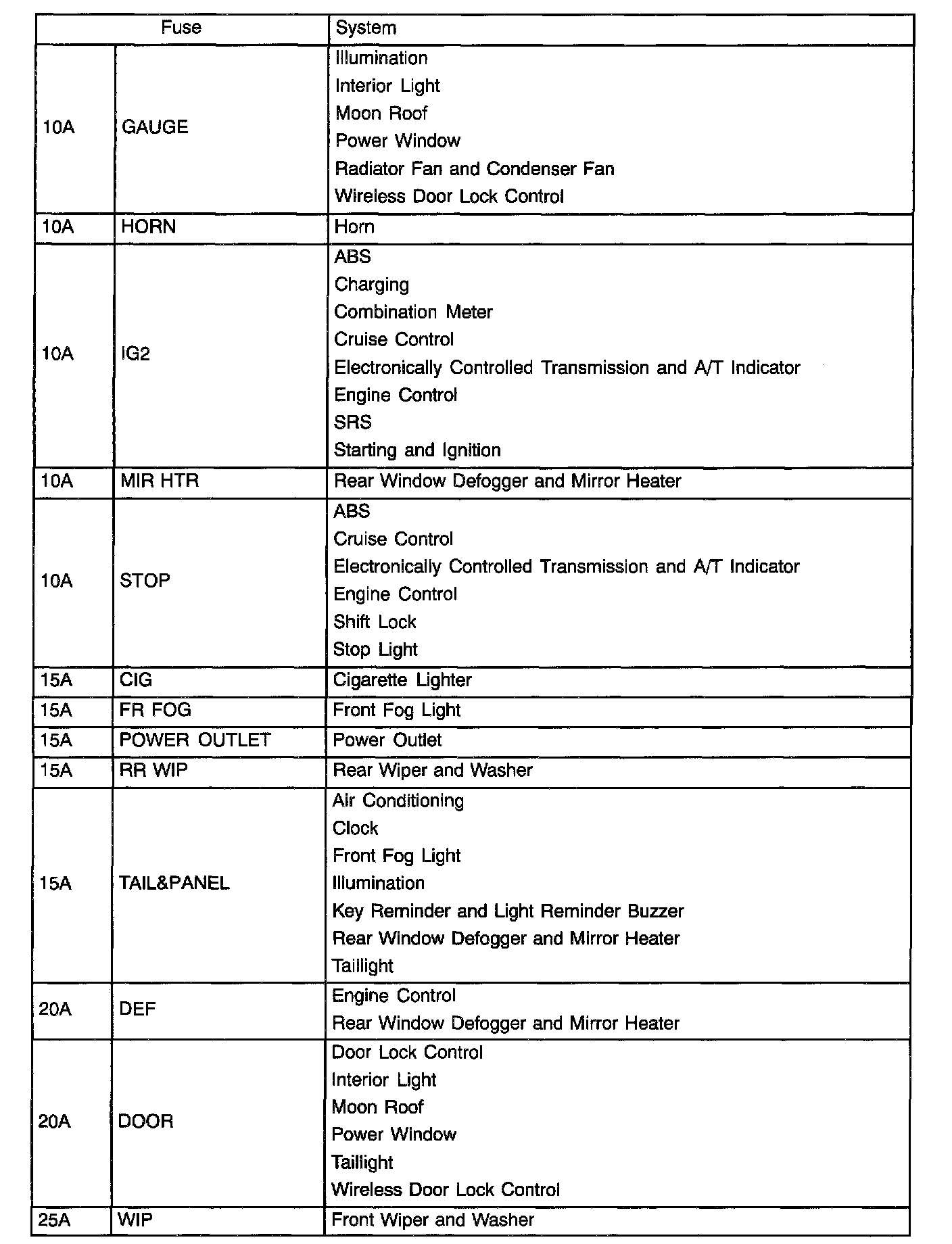

Driver Side J/B Fuse Applications (Part 2):

Driver Side J/B Fuse Applications (Part 3):

Interior Panel Fuse Details
