Headlight Relay Circuit
CIRCUIT DESCRIPTIONH-LP Relay is used when pressing the panic button on the vehicle with the wireless door lock but without the daytime running light.
Wiring Diagram:

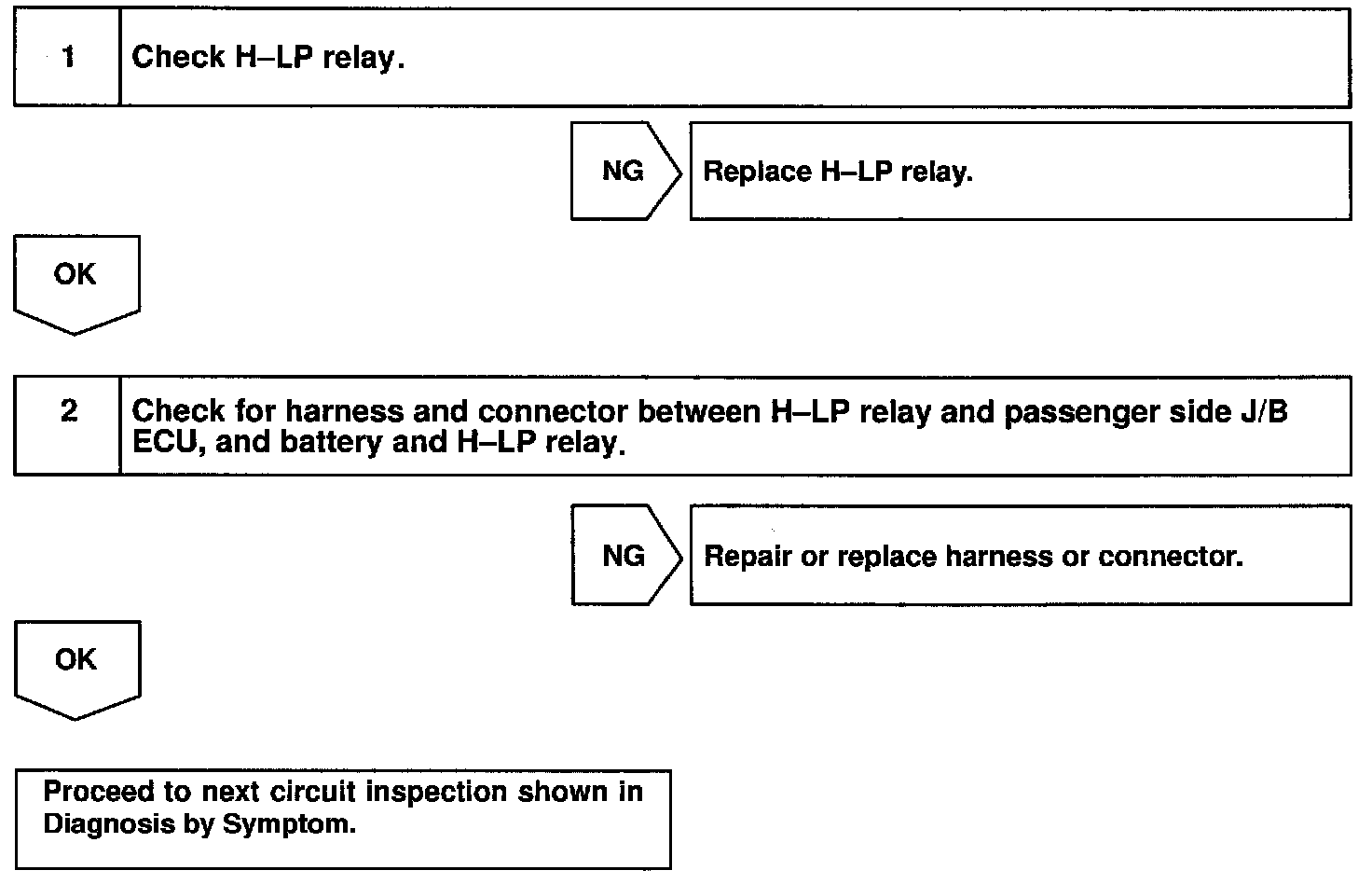

Steps 1 - 2:
INSPECTION PROCEDURE
H-LP Relay is used when pressing the panic button on the vehicle with the wireless door lock but without the daytime running light.
INSPECTION PROCEDURE
