Horn Circuit
CIRCUIT DESCRIPTIONThe horn is connected to the passenger side J/B ECU and activated by the passenger side J/B ECU when the panic button of the wireless door lock system is pressed

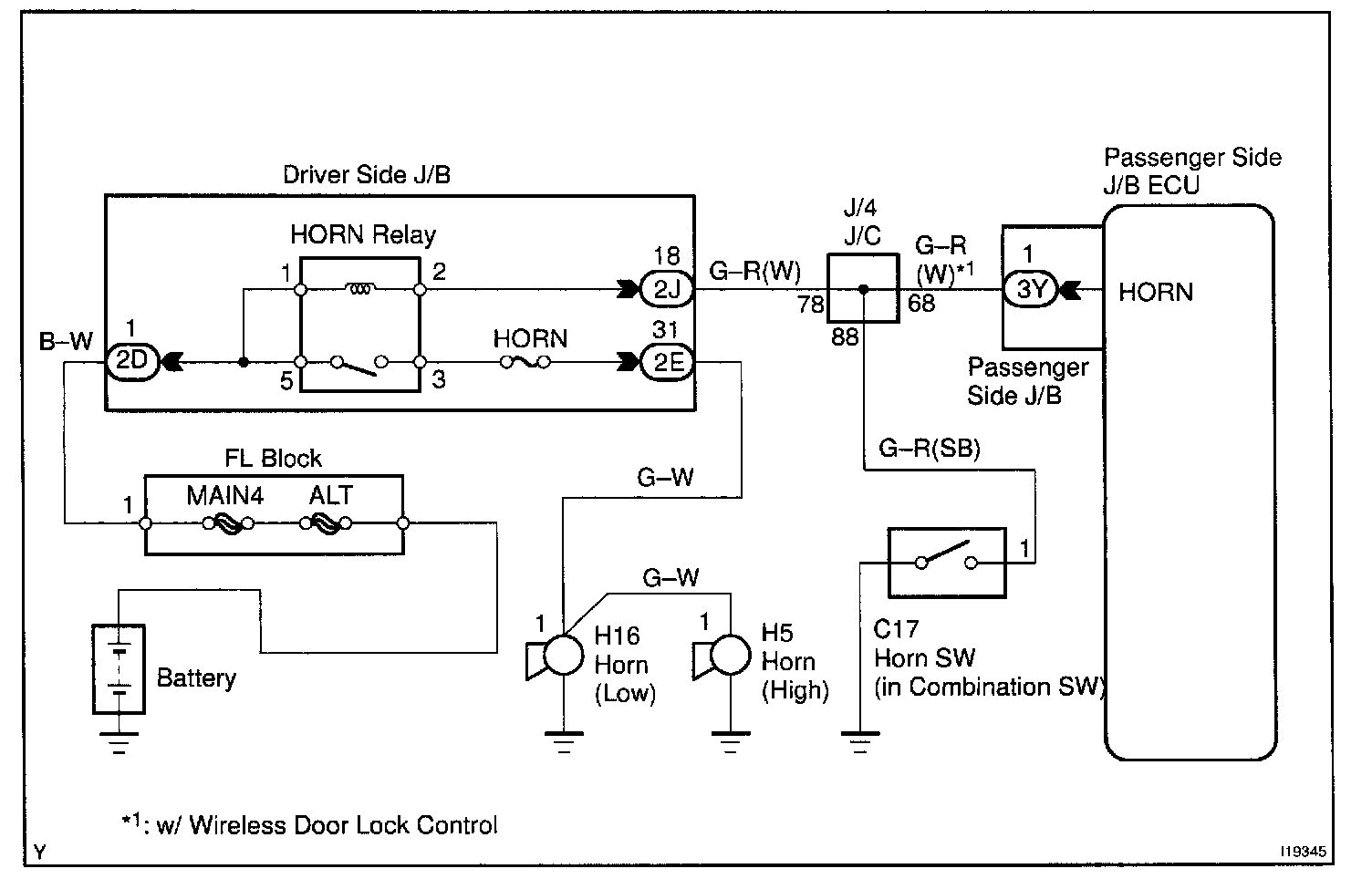

Wiring Diagram:

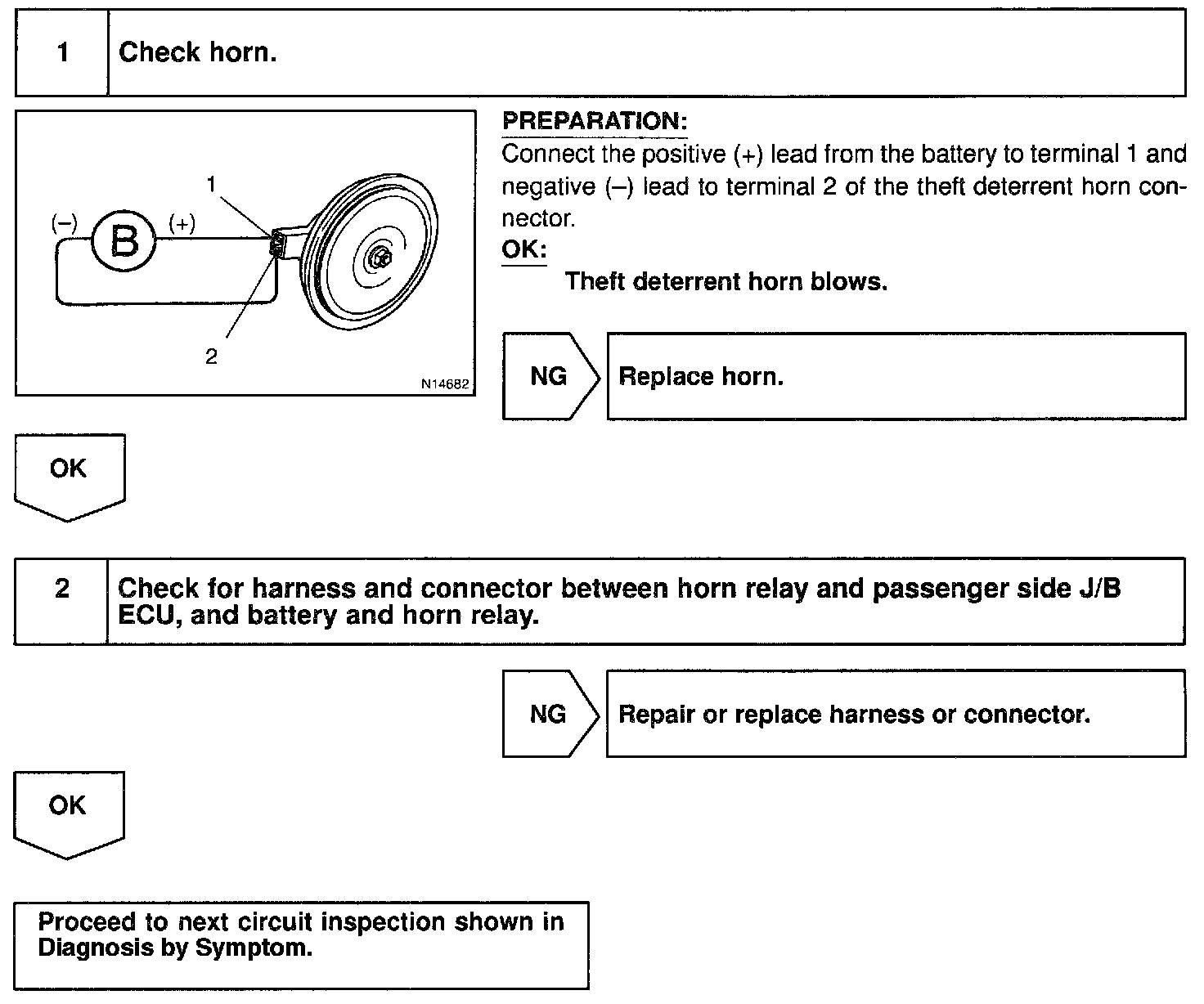

Steps 1 - 2:
INSPECTION PROCEDURE
The horn is connected to the passenger side J/B ECU and activated by the passenger side J/B ECU when the panic button of the wireless door lock system is pressed
INSPECTION PROCEDURE
