Illumination Circuit
CIRCUIT DESCRIPTIONReceiving the courtesy signal from the passenger side J/B ECU will make the interior light, ignition light, and courtesy light ON.

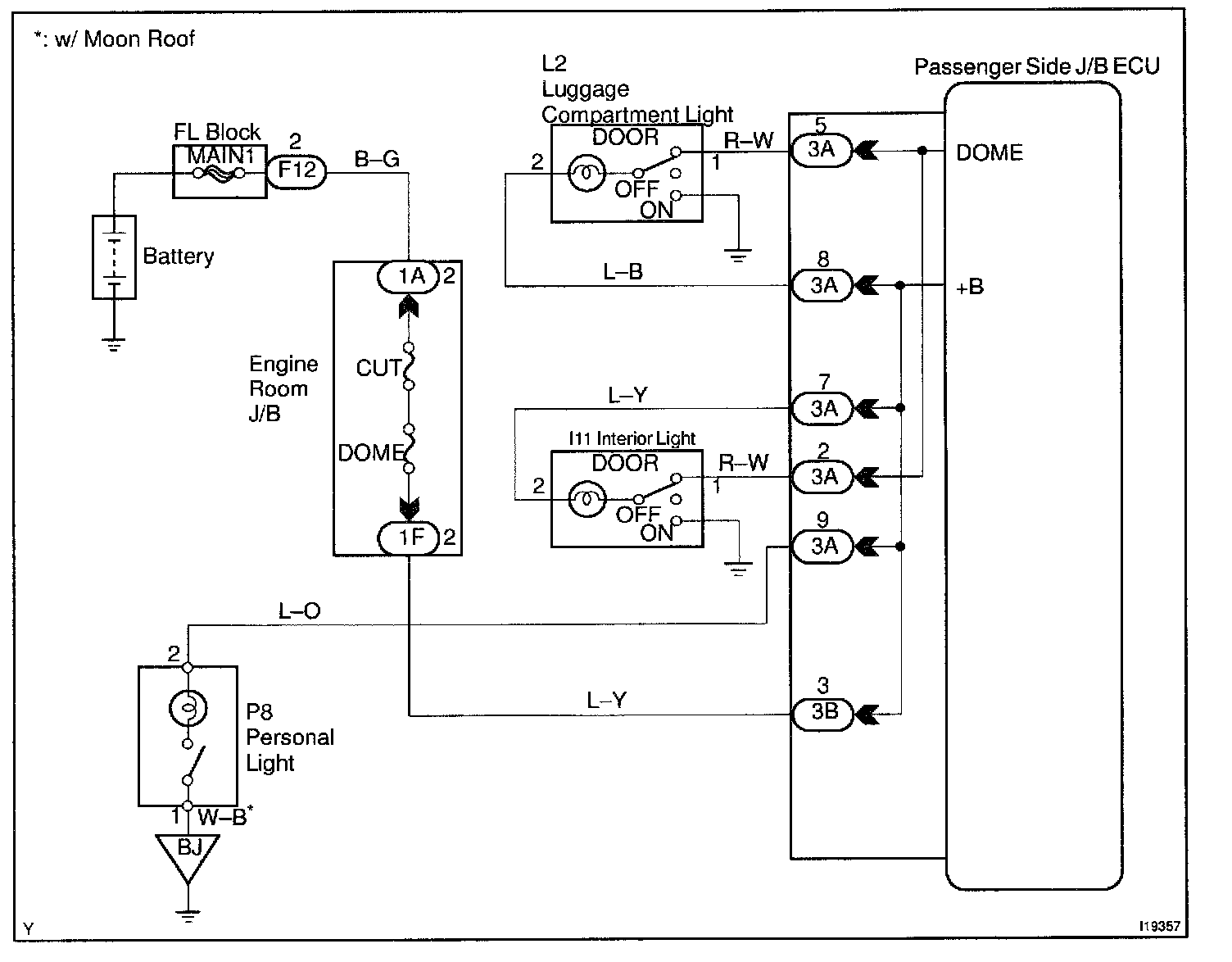

Wiring Diagram:
Steps 1 - 3:

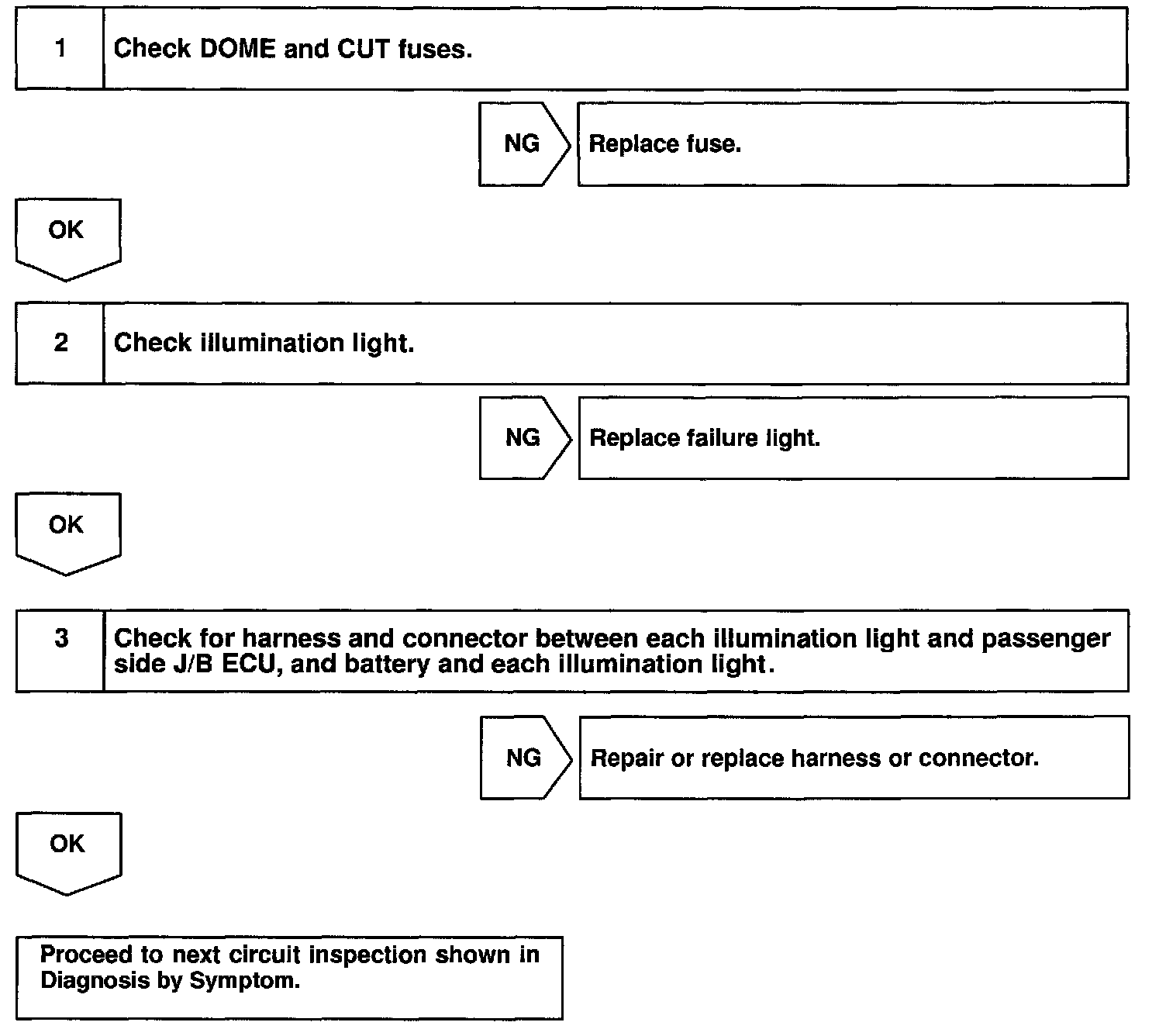

INSPECTION PROCEDURE
Receiving the courtesy signal from the passenger side J/B ECU will make the interior light, ignition light, and courtesy light ON.
INSPECTION PROCEDURE
