Light Control Switch Circuit (W/ Daytime Running Light)

CIRCUIT DESCRIPTION
This circuit detects the state of the light control switch.

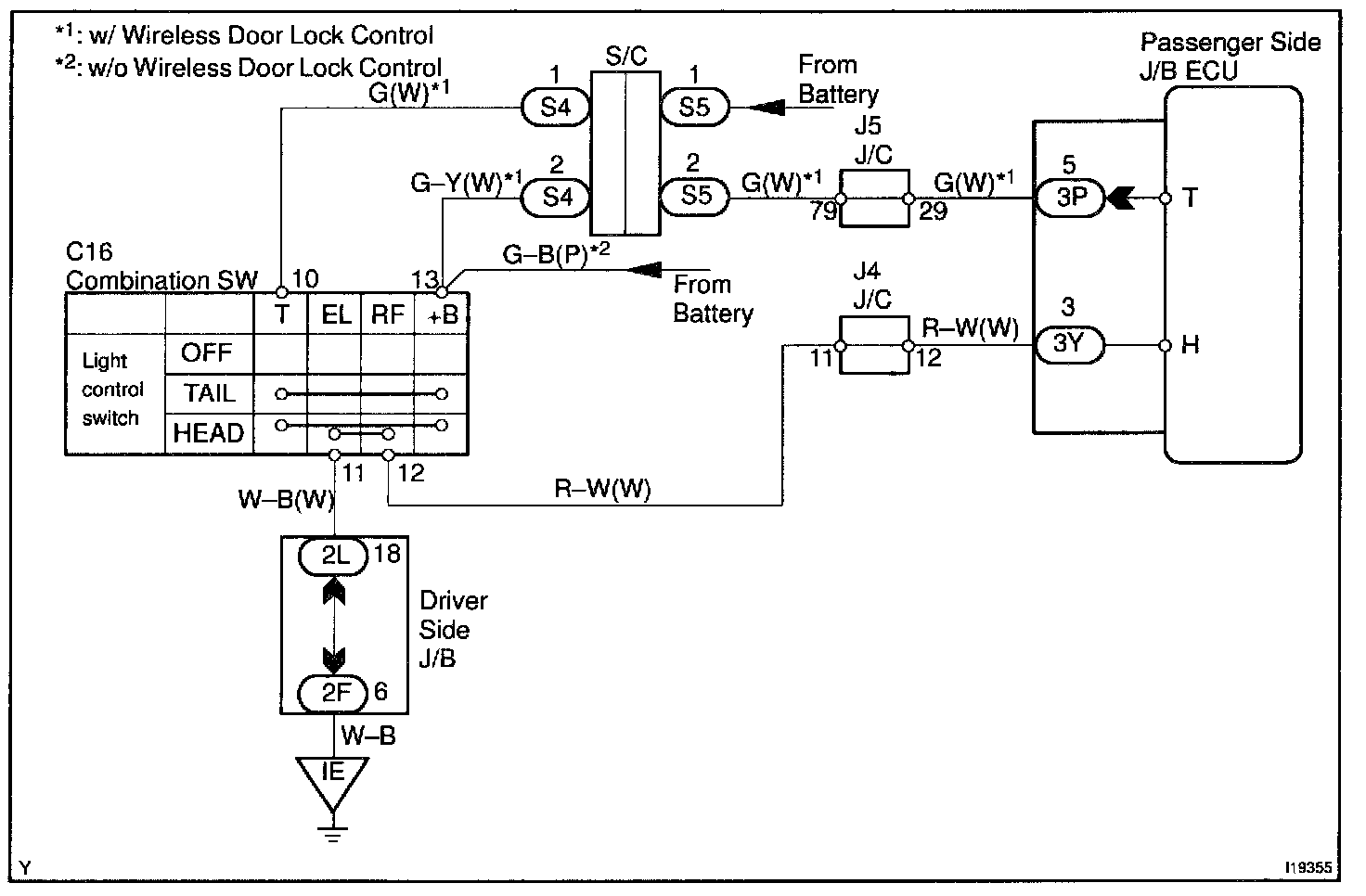

Wiring Diagram:

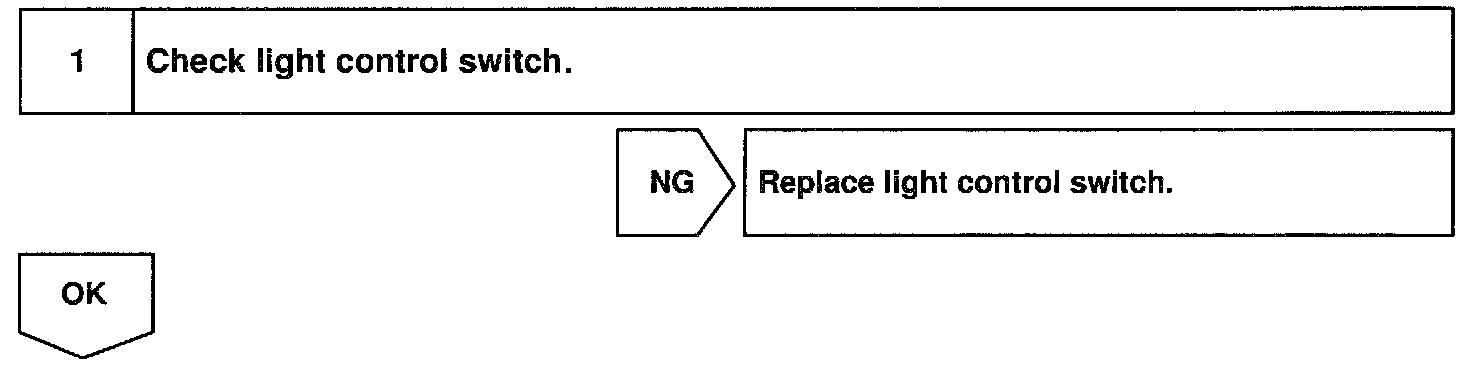

Step 1:

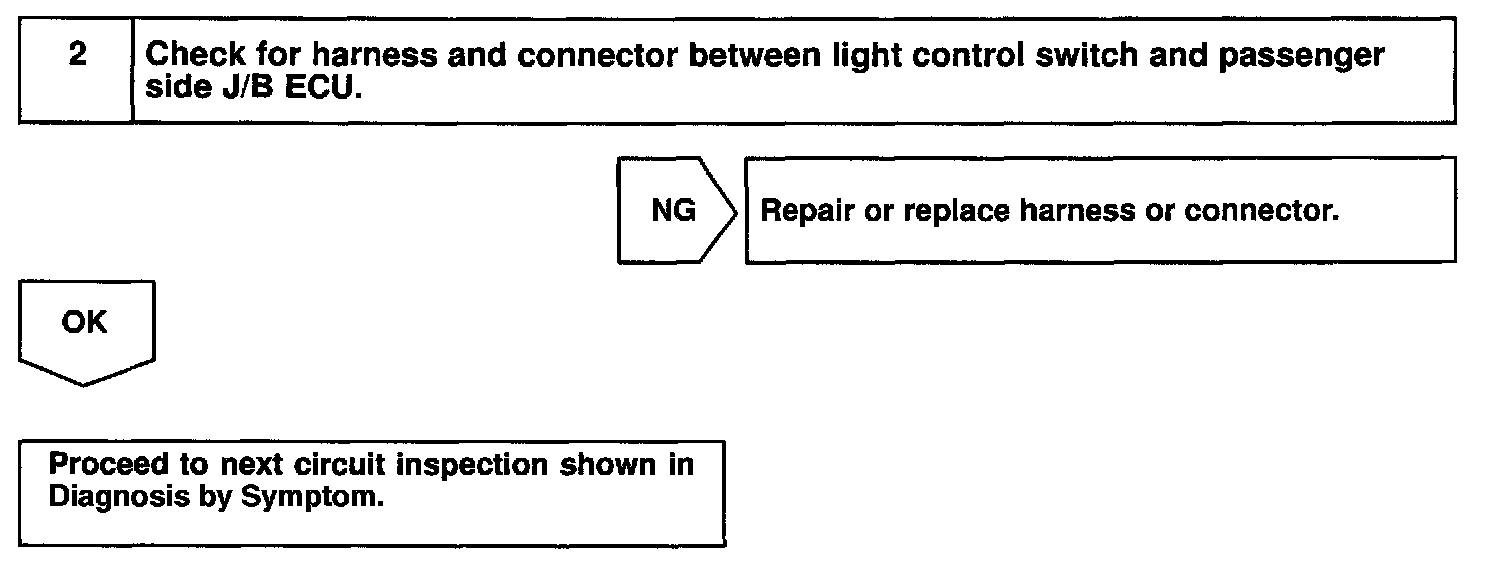

Step 2:




INSPECTION PROCEDURE
