Parking Brake Switch Circuit

CIRCUIT DESCRIPTION
This circuit detects the state of the parking brake switch.

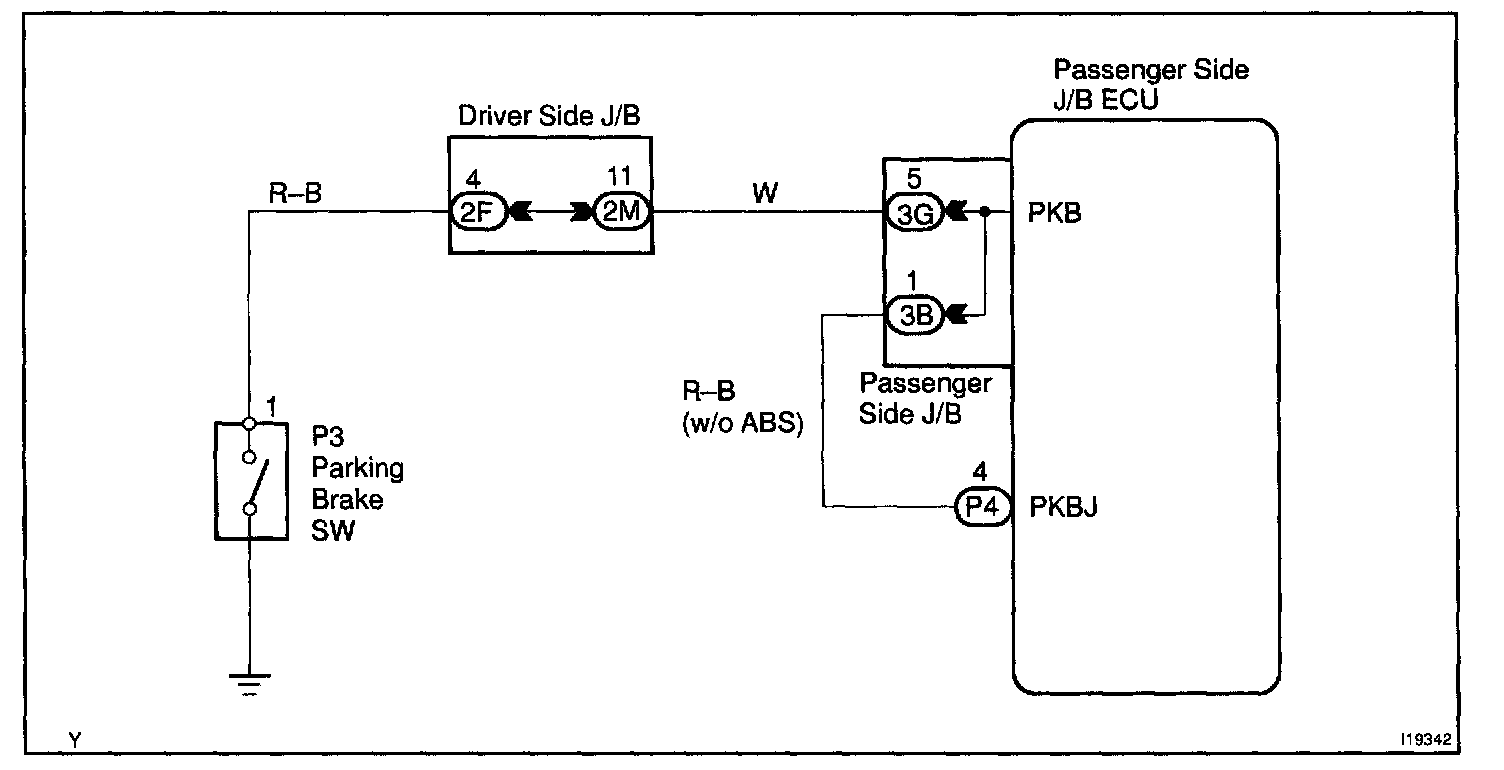

Wiring Diagram:

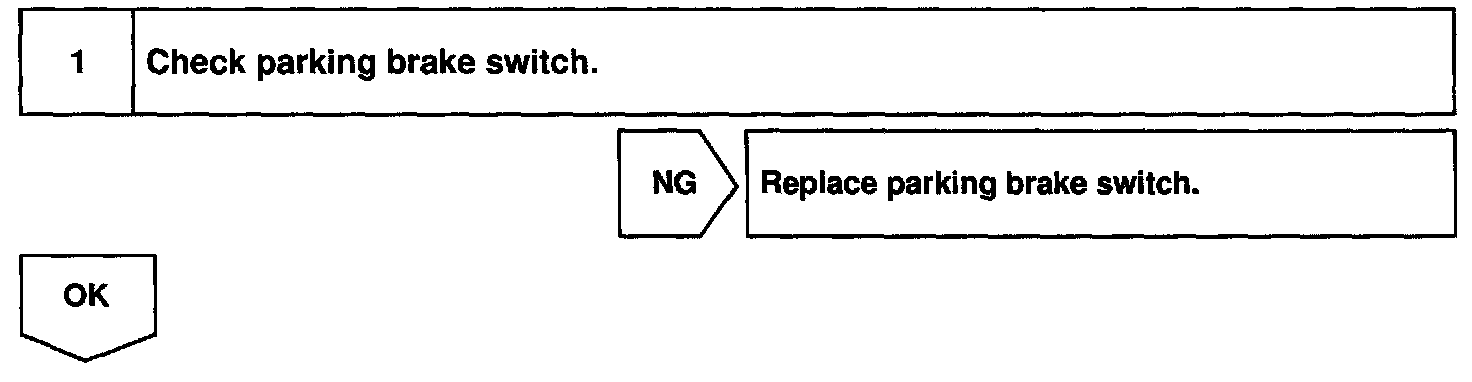

Step 1:

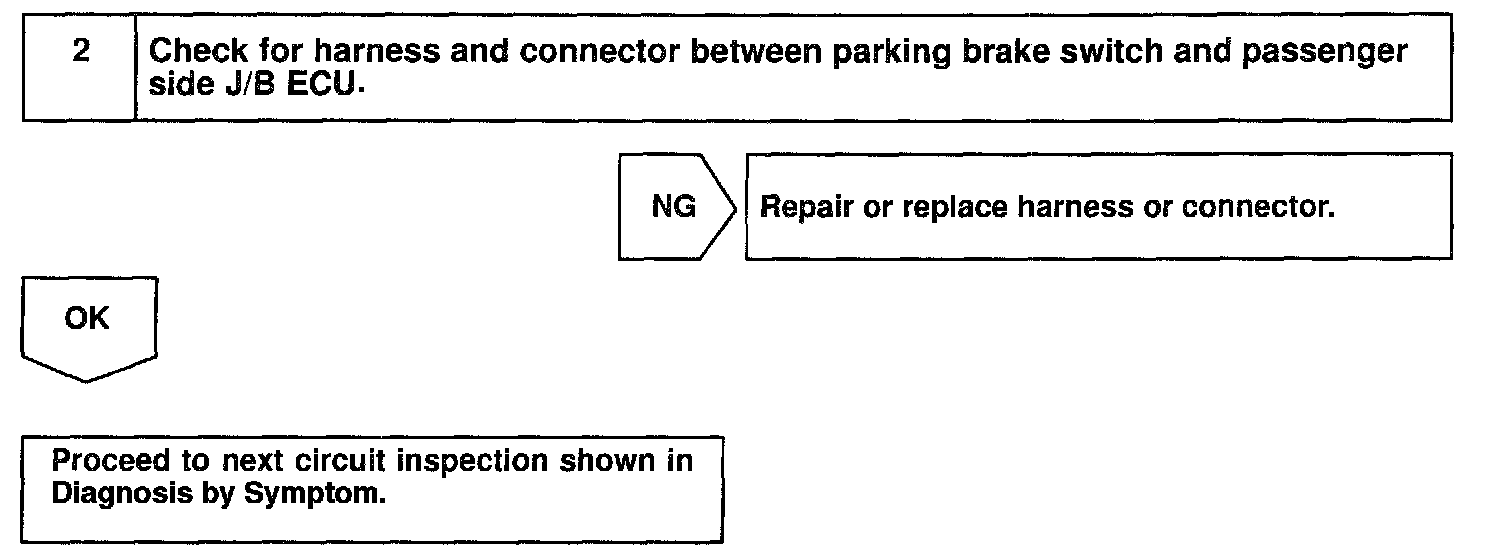

Step 2:




INSPECTION PROCEDURE
