On-Vehicle Inspection
THROTTLE BODYON-VEHICLE INSPECTION

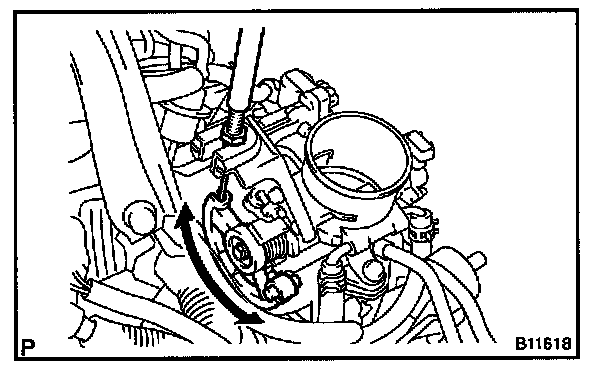

1. INSPECT THROTTLE BODY
Check that the throttle linkage moves smoothly.

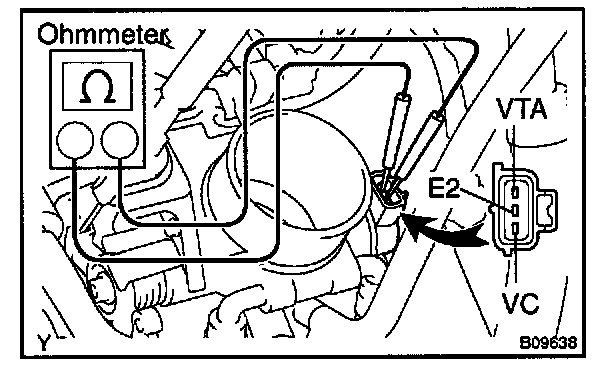

2. INSPECT THROTTLE POSITION SENSOR
a. Disconnect the sensor connector.

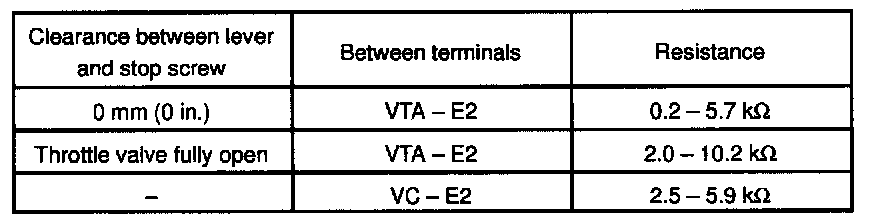

b. Using an ohmmeter, measure the resistance between the terminals.
c. Reconnect tile sensor connector.
