Connecting Rod Bearing

Connecting Rod Bearing

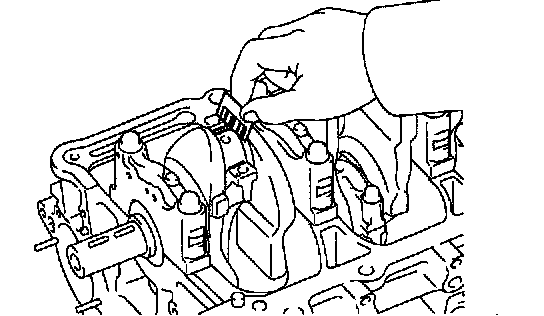

Measure the Plastigage at its widest point.
Standard oil clearance: 0.024 - 0.048 mm (0.0009 - 0.0019 inch)
Maximum oil clearance: 0.08 mm (0.0031 inch)
If the oil clearance is greater than maximum, replace the bearings. If necessary, replace the crankshaft.

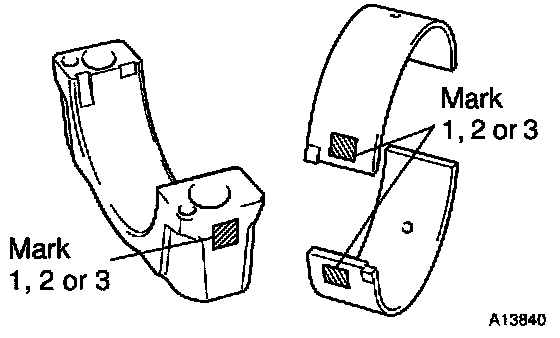

HINT: If replacing a bearing, replace it with one having the same number as marked on the connecting rod. There are 3 sizes of standard bearings, marked "1", "2" and "3" accordingly.





Reference

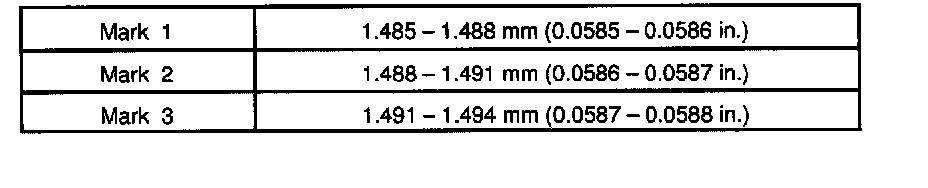

Standard bearing center wall thickness
