Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2001
>>
RAV4 4WD L4-2.0L (1AZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
>>
Unit Overhaul
>>

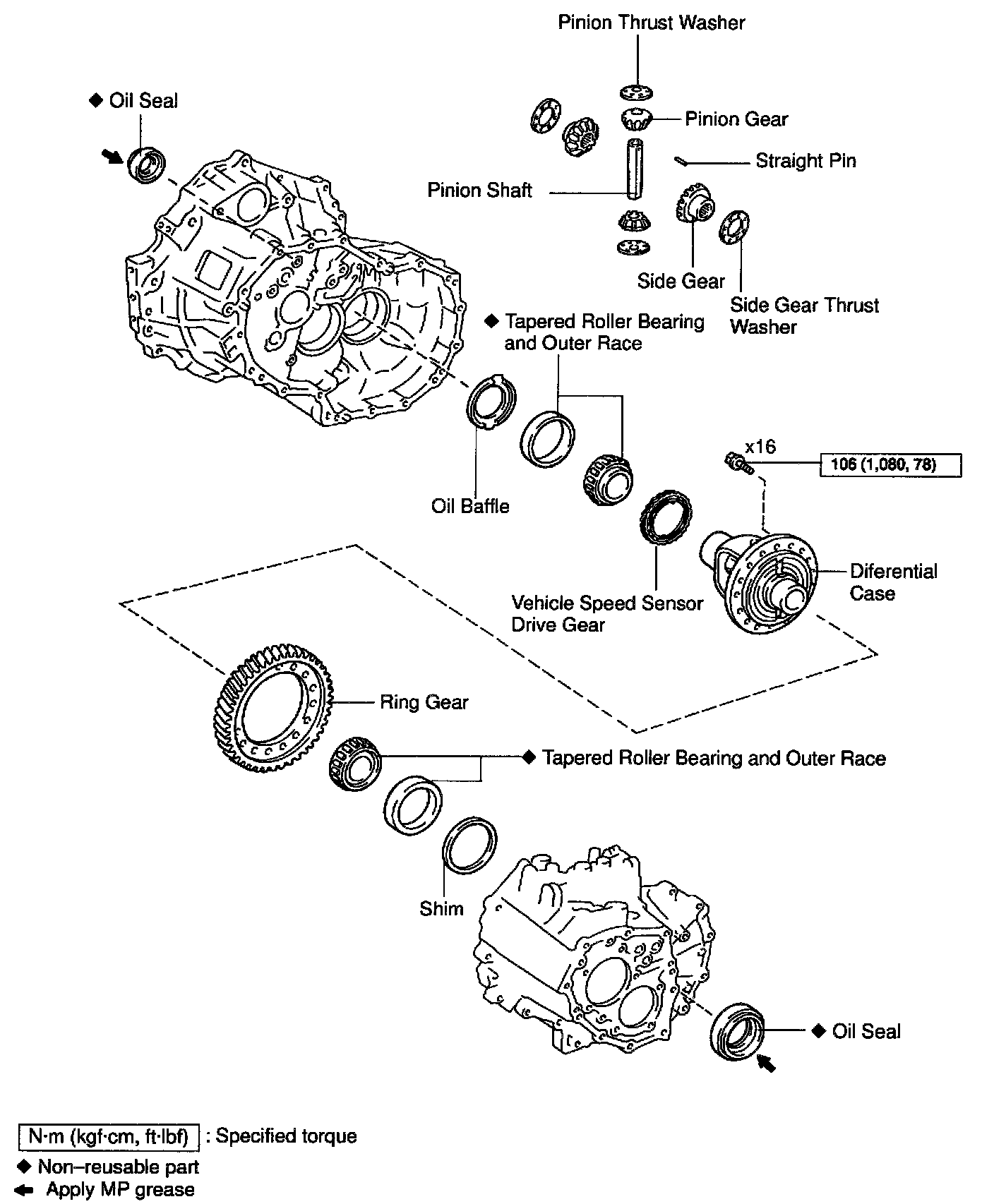

Differential Case
Differential Case
