Service Data and Torque Specifications

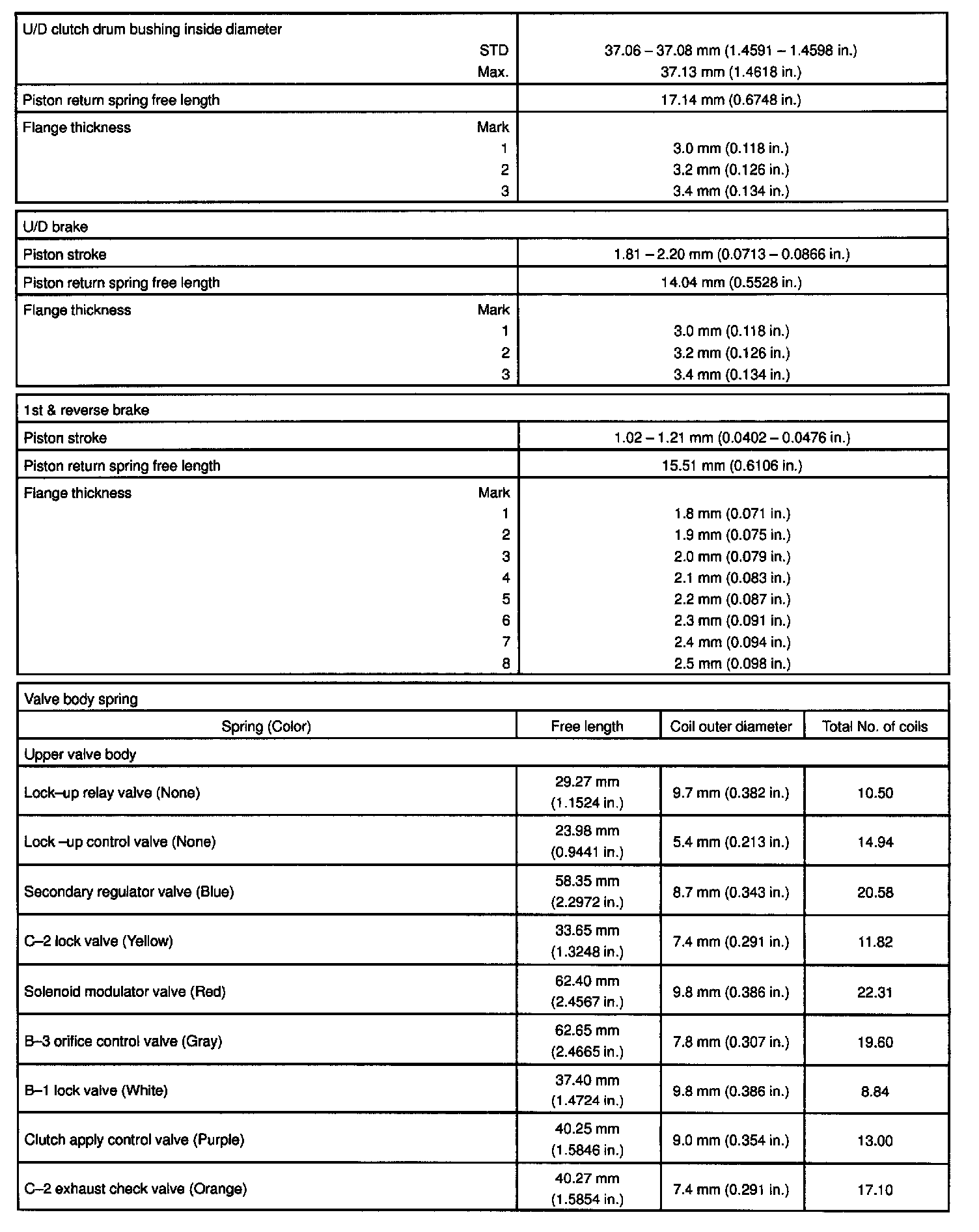

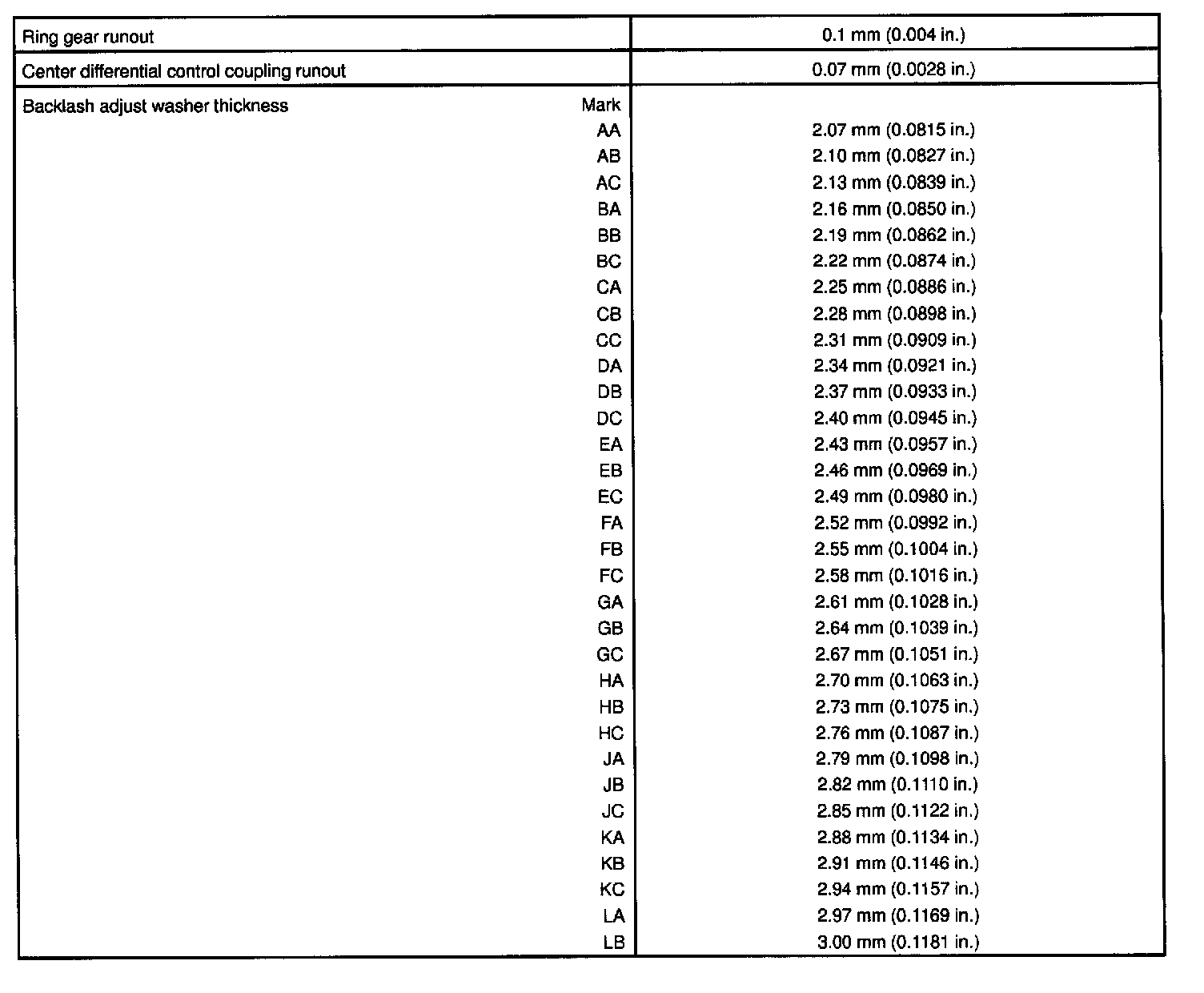

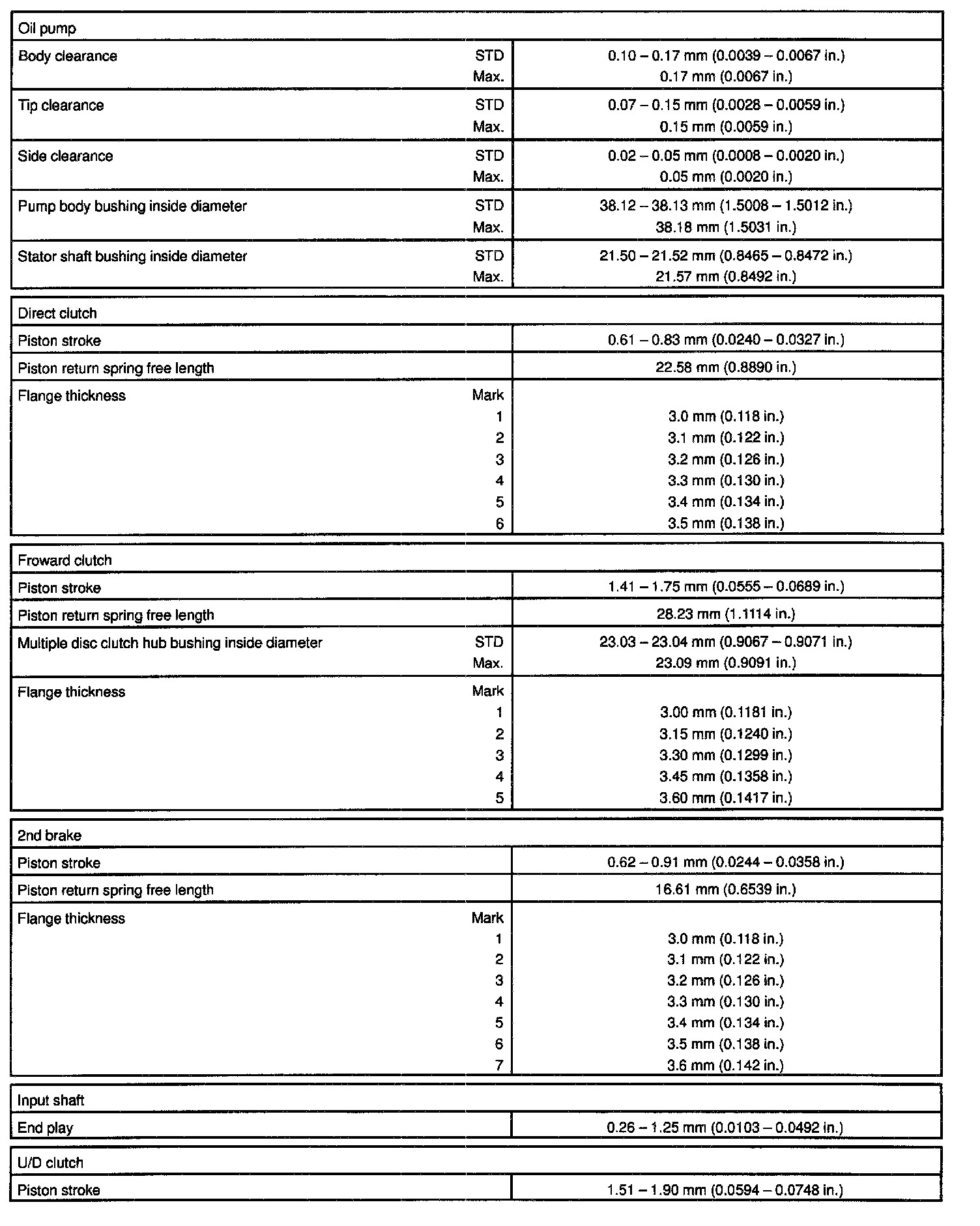

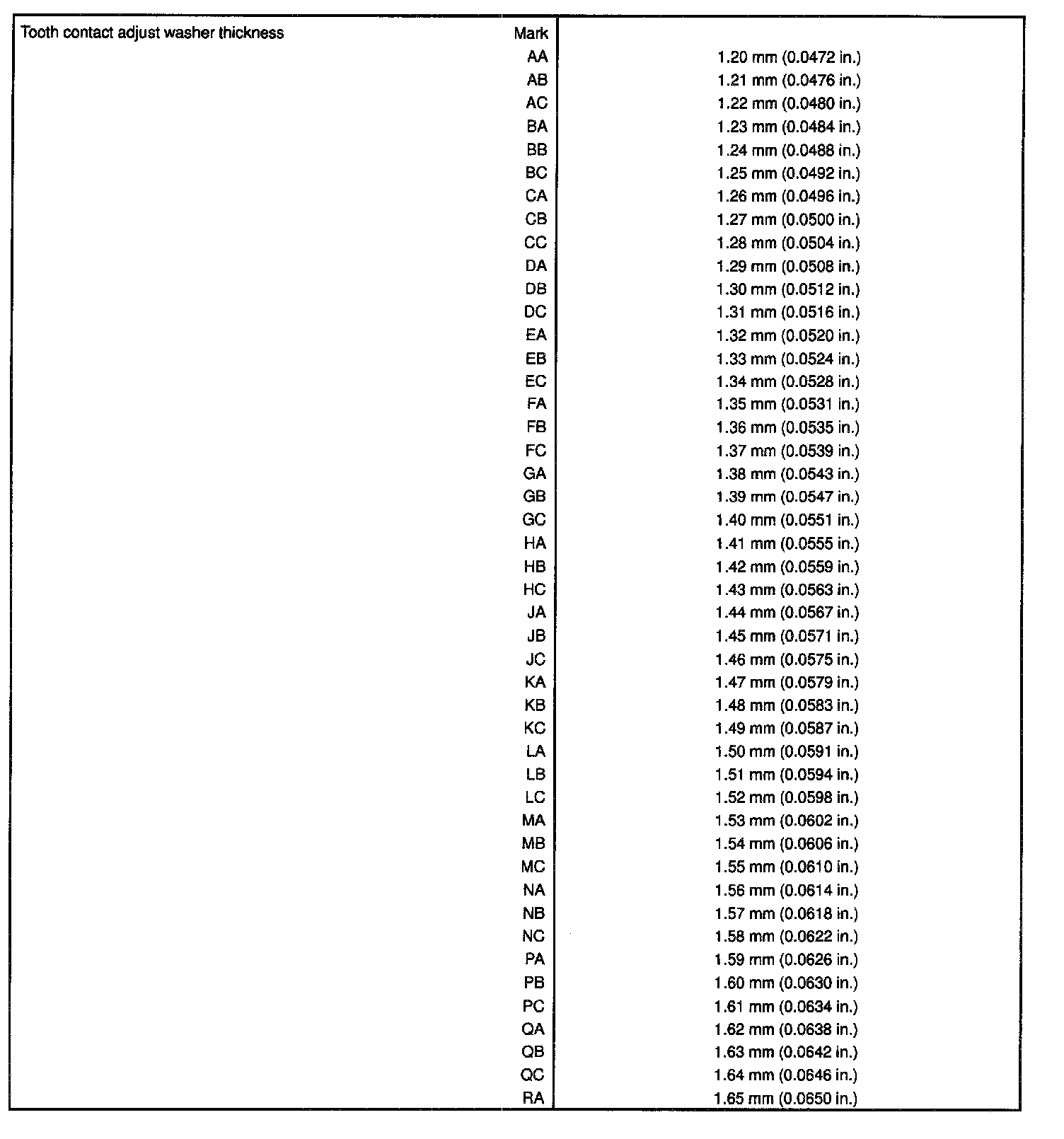

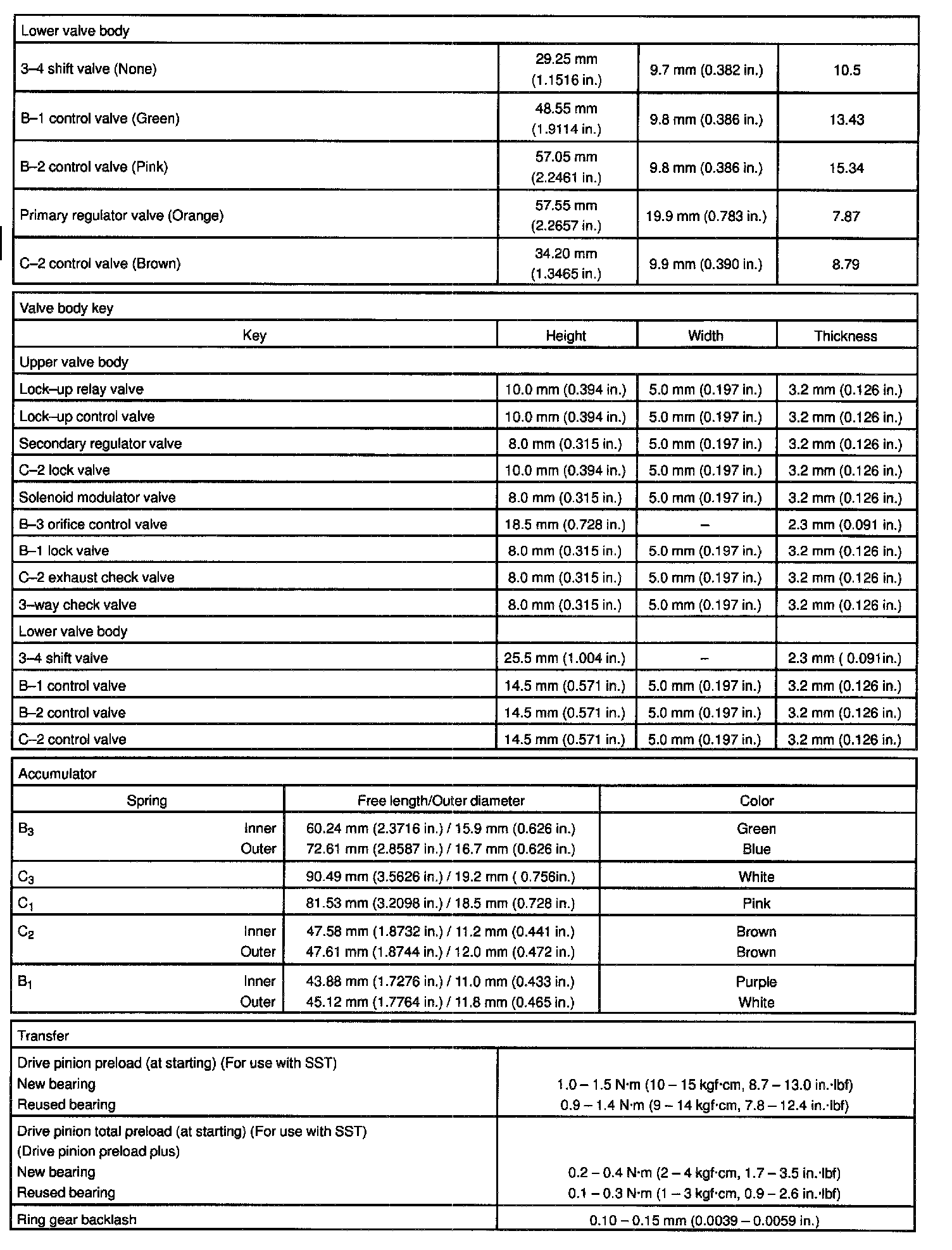

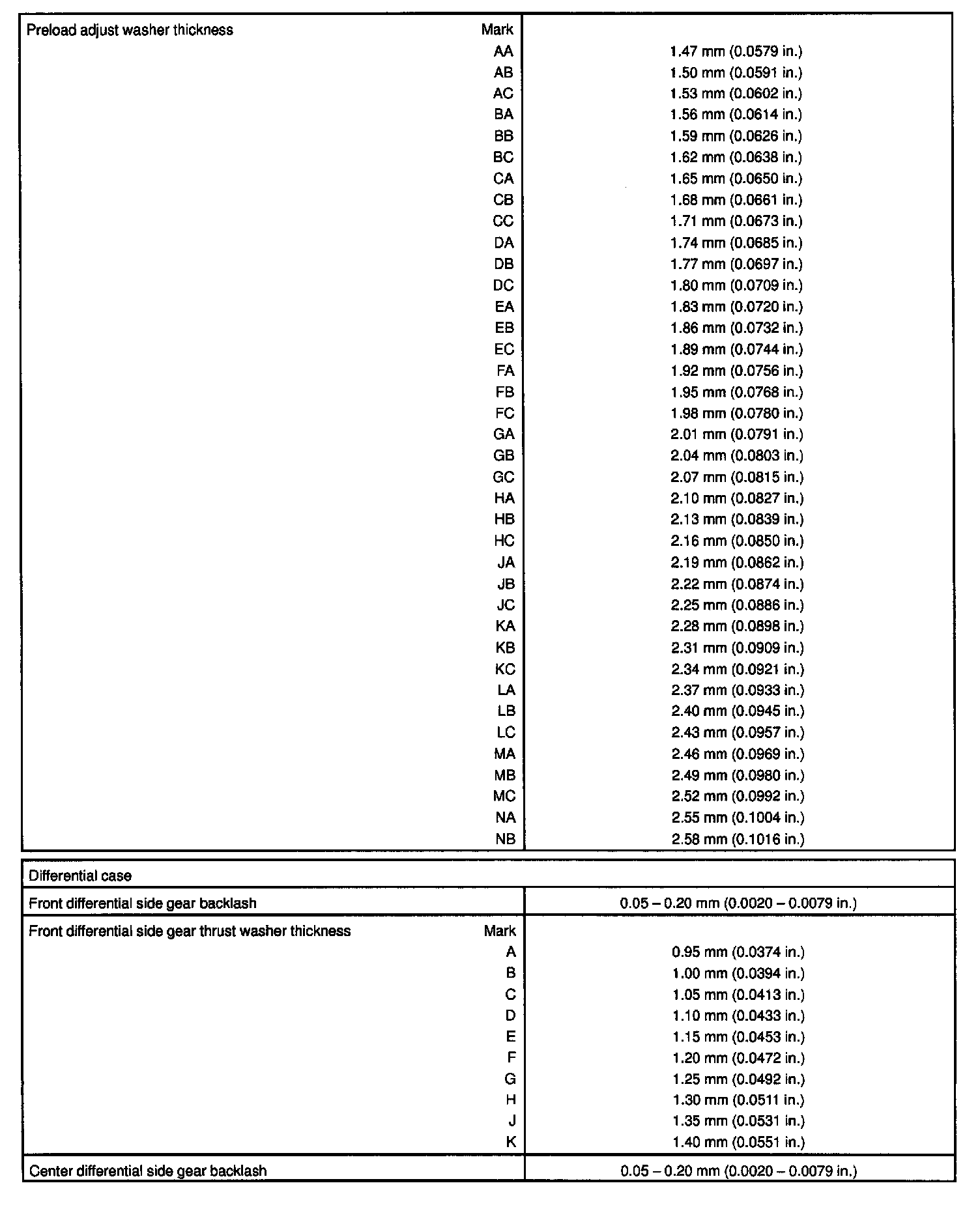

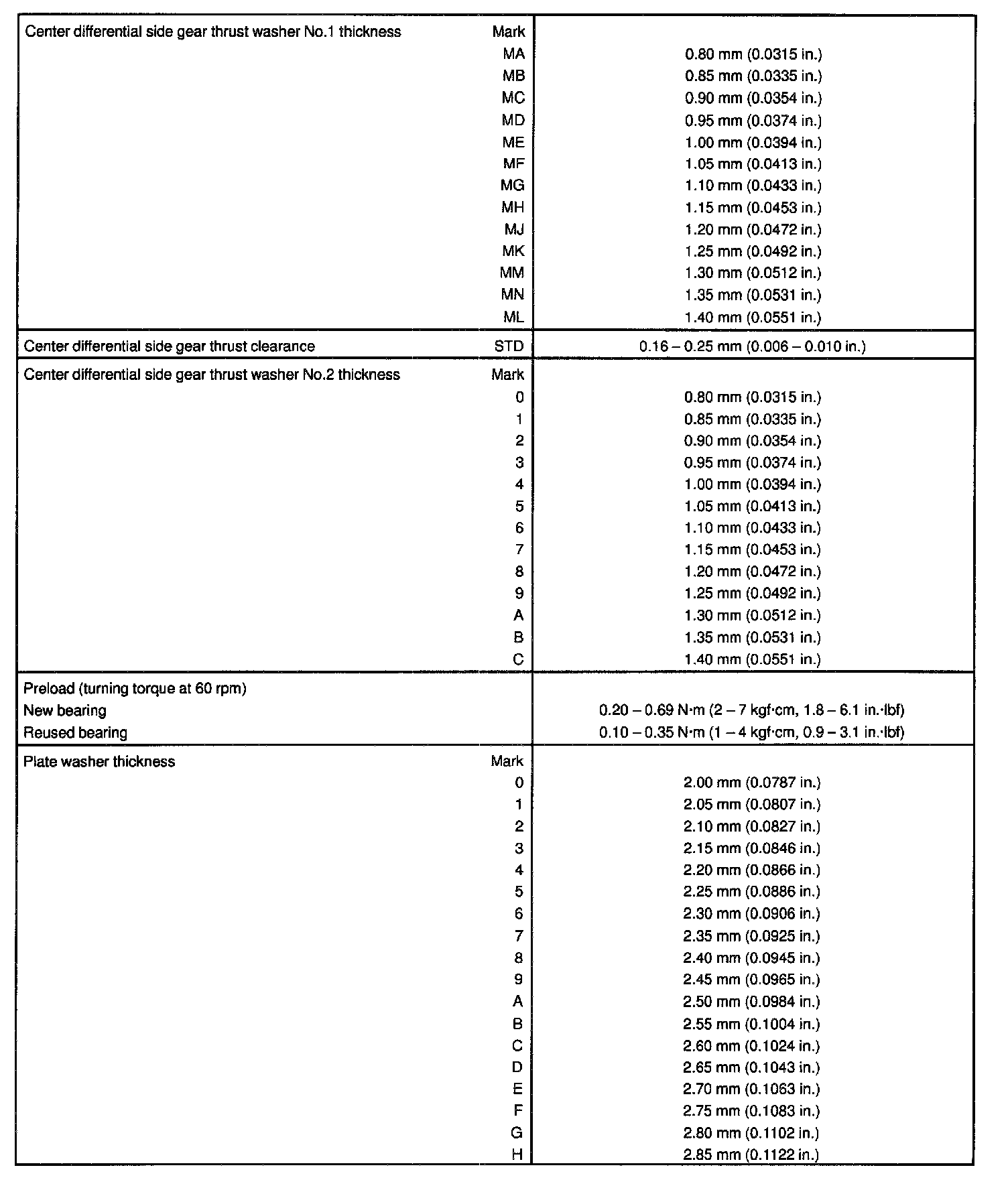

SERVICE DATA





Part 1 of 7





Part 2 of 7





Part 3 of 7





Part 4 of 7





Part 5 of 7





Part 6 of 7





Part 7 of 7

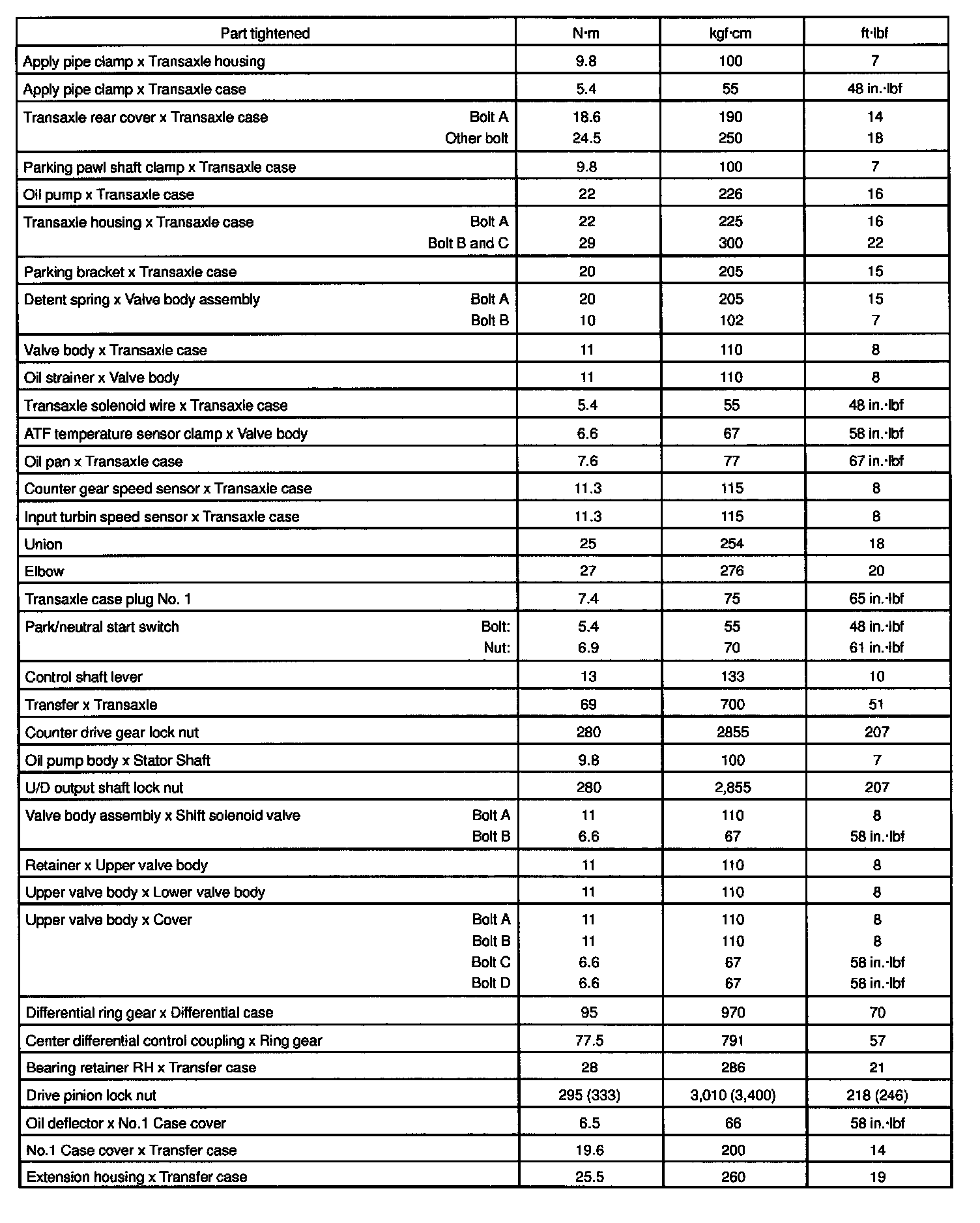

TORQUE SPECIFICATION
